Digital Insulation Tester

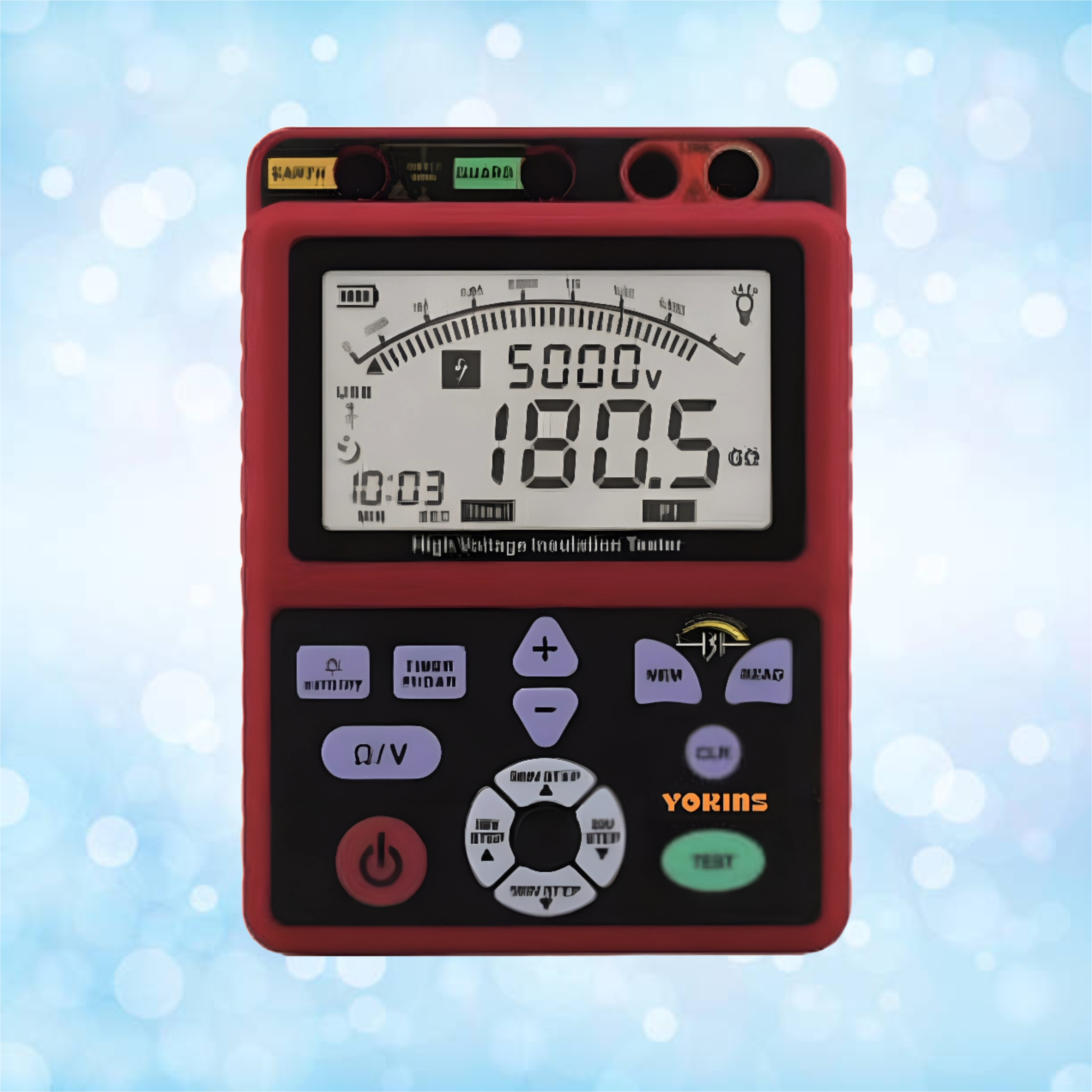

Digital Insulation Tester YIDIT-551T

Name: Digital Insulation Tester YIDIT-551T
Brand: Yokins Instruments
Availability: OutOfStock
Rating: 0 (0 reviews)

Internal self-discharge function
Output test voltage 50V/500V step adjustment
Measurement results Bar graph display
Live line warning sign and buzzer warning
Test time function Setting, automatically run the measurement
within the specified time
Auto Power Off

TechBrij: HTML Table

Rated voltage	250~950V / 1000~1950V / 2000~3950V / 4000~5500V
Measuring range	250~950V:0.0~999MΩ / 1000~1950V:0.0~1.99GΩ 2000~3950V:0.0~99.9GΩ / 4000~5500V:0.0~1000GΩ
Open circuit voltage	DC 250~950V +10%; 50V below 500V DC 4000~5500V +10%
Short Circuit	About 1.3mA
Accuracy	±(5%±3%dgt) (below 100GΩ); ±20%rdg (above 100GΩ)
AC/DC voltage test	30~600V (50/60Hz)
AC/DC resolution	1V
AC/DC Accurate	±(2%±3rdg)
High Voltage Probe	Yes
PI test (polarization index measurement)	Yes
USB transfer	USB interface with PC communication

TechBrij: HTML Table

Data refresh rate	1 time/1 second
Overload protection	Insulation resistance range: AC 1200V/10 seconds, Voltage range: AC 720V/10 seconds
Withstand Voltage	AC 8320V (50/60Hz)/5 seconds (Between the circuit and the periphery)
Insulation resistance	>1000MΩ /DC 1000V (between the circuit and the periphery)
Operating environment	Temperature: 0°C~40°C / Humidity: <85%
Storage environment	Temperature -20°C-60°C / Humidity: <90%
Power supply	Type C alkaline battery 1.5Vx8 or DC12V, 1A
Product Net weight	1000g
Product size	153x89.3x213mm
Packing	Gift Box
