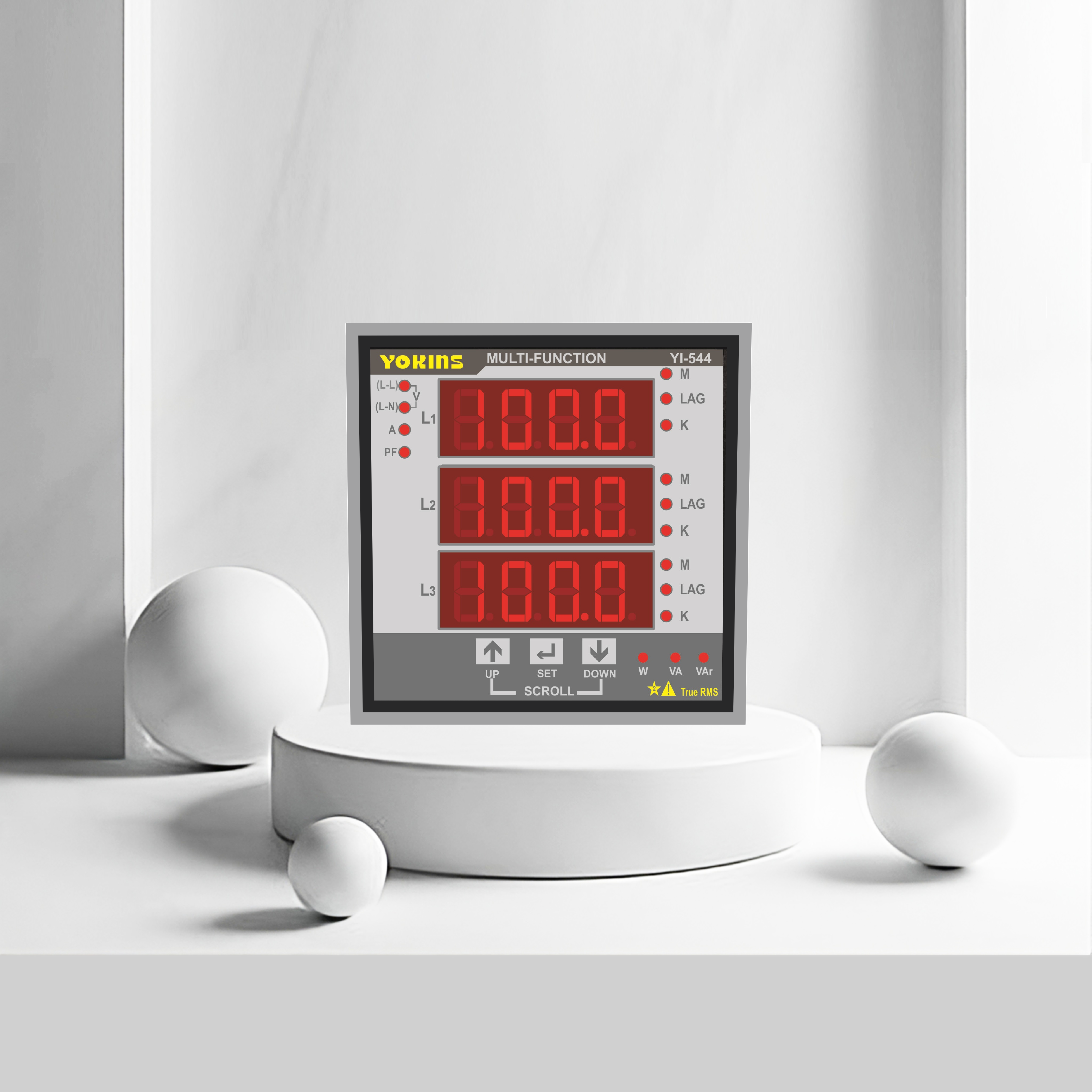

Three Phase Multifunction Meter
Three Phase Multifunction Meter
Three Phase Multifunction Meter
Three Phase Multifunction Meter
Three Phase Multifunction Meter
Three Phase Multifunction Meter
Multifunction Series

Three Phase Multifunction Meter

INR

Being the leader Three Phase Multifunction Meter Manufacturers and Suppliers, Our Three Phase Multifunction Meters are easy to use and install, with a clear and concise display.

Learn More
Quantity

DESCRIPTION

Yokins Instruments Pvt. Ltd. meter is designed and manufactured to the highest standards, ensuring accurate and reliable readings even in the most demanding conditions. Our meter can measure a wide range of electrical parameters, including current, voltage, power, energy, power factor, harmonics, etc. Our meters are fully programable for any desired CT or PT ratios. This makes it ideal for a wide range of applications, from industrial to commercial to residential. Our meter is easy to install and use, even for non-technical users. It comes with clear instructions and a user-friendly interface. Compact and lightweight design: We offer our meter at a competitive price, making it an affordable and cost-effective solution for your needs. Our meter is built to last, with a long service life. This means that you can save money in the long run by investing in a high-quality meter.


Our meter offers a variety of communication options, including RS-485, Modbus, and Ethernet. This makes it easy to integrate with other systems and devices. Our meter can log data and generate reports, which can be used to track energy consumption, identify trends, and optimize energy efficiency. Our meter can generate alarms and notifications to alert you to any problems with your electrical system. We are confident that our three-phase multifunction meters are amongst the best in the market. It is the perfect solution for businesses and individuals who need a high-quality, reliable, and affordable meter.

Check our range of Multifunction Series Digital Panel Meters.Contact us Today to learn more about our products and to find the best meter for your requirements.

Features
  • 28 Parameters on 14 Display
  • Pages In YI-542/543
  • 36 Parameters on 20 Display
  • Pages In YI-544
  • Auto / Manual Scroll Display
  • (User selectable)
  • SMPS, TRANSFORMER Power Supply
  • Ideal for Testing of Electrical Appliances
  • User Programmable CT Ratio,PT RATIO
  • TRMS Measurement
  • 3 Rows of 4 Digit RED Seven Segment
  • 3 Phase 4 wire, 3 Phase 3 wire Programmable
  • RS 485 Port (5KV Isolated( (Optional)
  • MODBUS RTU Protocol (Optional)
  • Two Relay Output for alarm can be
  • provided.(optional)
Specification
TechBrij: HTML Table
RMS Voltage20- 600Vrms (Accuracy - +0.5% FS +1 dgt.)
RMS Current0.020-10.00Ams (Accuracy :- +0.5%FS +1 dgt.)
Active Power0.030-6.000 KW (Accuracy - +0.5% ES +1 dgt.)
Apparent Power0030 - 6.000 KVA (Accuracy - £0.5°k ES +1 dgt)
Reactive Power0.030-6.000 KVAr ( Accuracy :- + 1.0% ES +1 dgt.)
Power Factor03Lag-1.0-0.3 Lead (Accuracy - +0.01 PE+1 dgt.)
Line Frequency45.00-65.00 Hz (Accuracy :- +0.1Hz)
Active Energy (KWh)000000.00 - 999999.99 Kwh (Accuracy Class 1,0.5)
Apparent Energy (KVAh)000000.00 - 999999.99 KVAh (Accuracy Class 1,0.5)
Reactive Energy (KVArh)000000.00 -999999.99 KVArh (Accuracy Class 1,0.5)
THD (V)Indicative
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Polarity IndicationL(Laggine/Inductive) or C(Leading/Capacitive)
Under Range IndicationError Code 01 Blinking when Current Non Detectable
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer 8.0ms
TechBrij: HTML Table
Maximum OverloadVoltage 1.2. Times Continuous, Current : 2 Times Continuous
Auxiliary Supply150-300V AC, 45-270V AC /DC, 19-60V AC /DC
VA Burden (Typical)
Auxiliary<2.5 VA
Voltage Input<0.2 VA / Phase
Current Input<0.2 VA / Phase
PT Primary Range50 to 500kV AC Programable
PT Secondary Range50 to 500V AC Programable
CT Primary Range1A to 50kA AC Programable
CT Secondary Range0.5A to 5A AC Programable
Metering StandardIEC 62053-21/22
Installation CategoryCat II (IEC / EN61010 - 1)
PollutionDegree 2 (IEC / EN61010 - 1)
Environment
Calibration27°C ± 5°C
Operating0 to 50°C, RH <70%
Storage10 to 60°C, RH < 70%
Dielectric Strength2.5 KV at 50 Hz for 1 mm
Insulation Resistance> 20 MOhms at 500 V DC
Extra Details
DIMENSIONS (mm) TechBrij: HTML Table

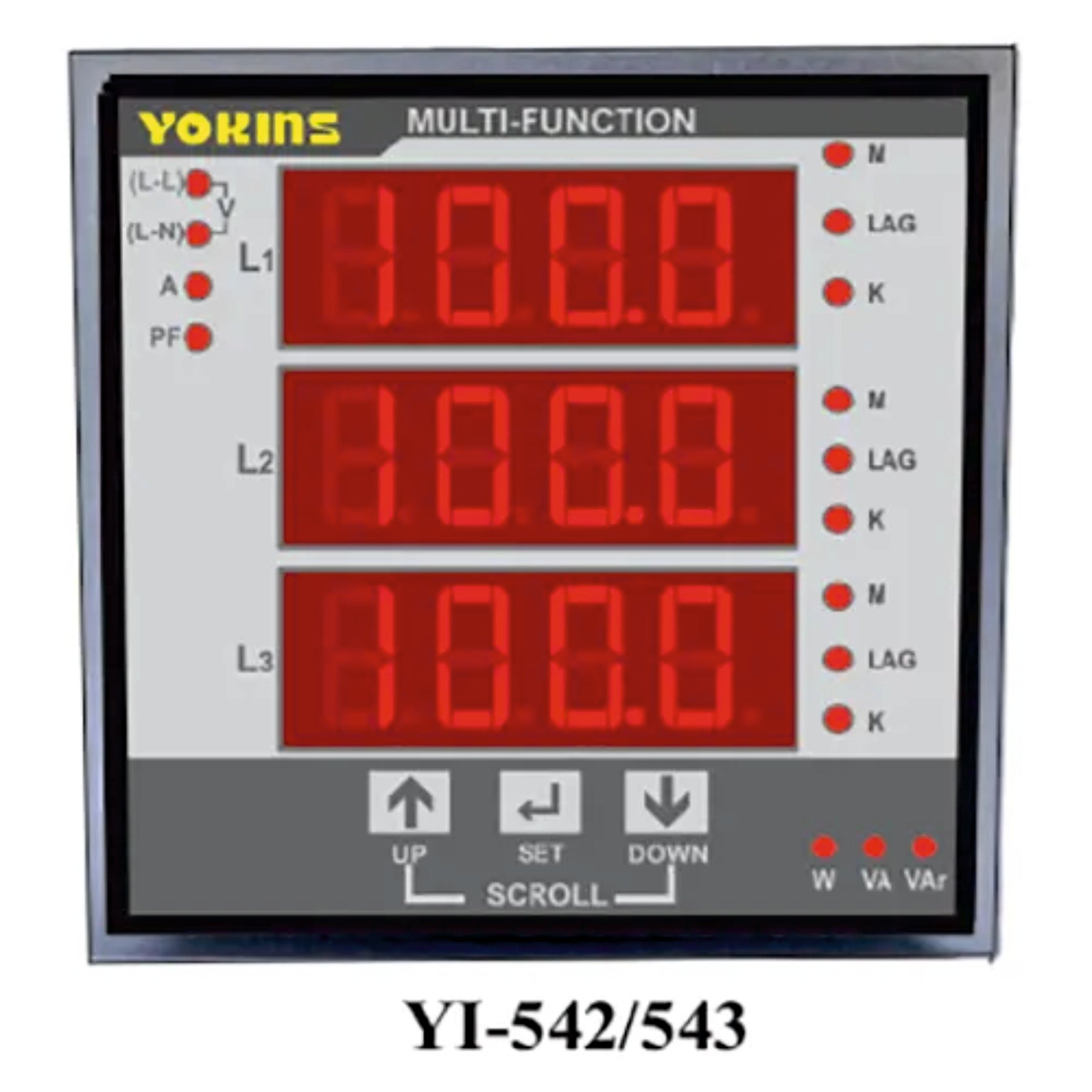

MODELYI-542/543/544
FRONT96 X 96
DEPTH (Behind Bezel)52
Panel Cut -Out92 X 92
ORDERING INFORMATION TechBrij: HTML Table
MODELPARAMETERS DISPLAYEDACCURACY CLASS AUX SUPPLY

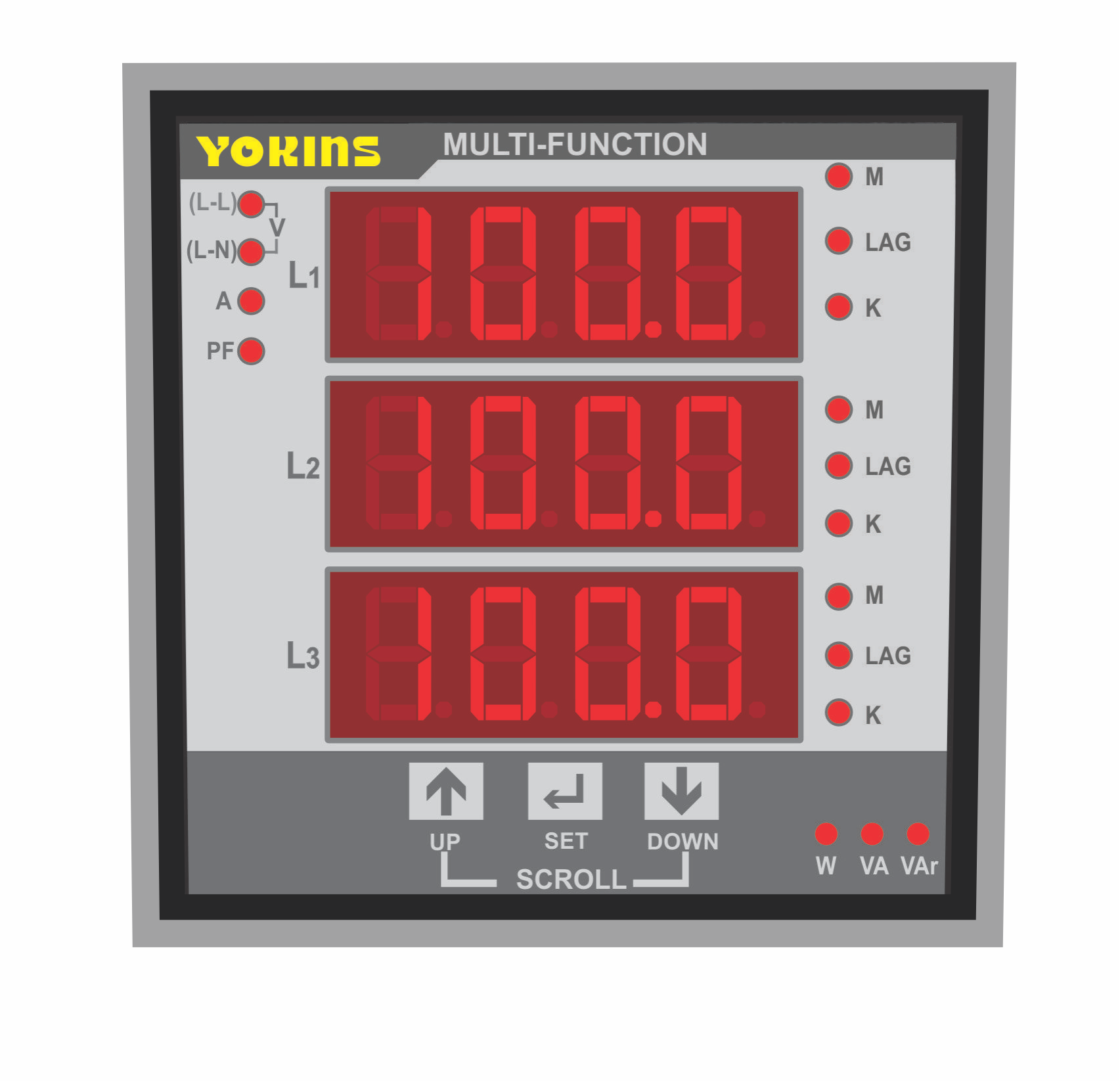

YI-542Voltage (Line to Line), Apparent Power(VA),Voltage (Line to Neutral), Active Energy(kwh),Current, RPM, Frequency (Class 0.2), Run Hour, Power Factor (Class 0.5), Load Hours, Active Power (W)1/ 0.545-270V AC /DC, 19-60V AC /DC

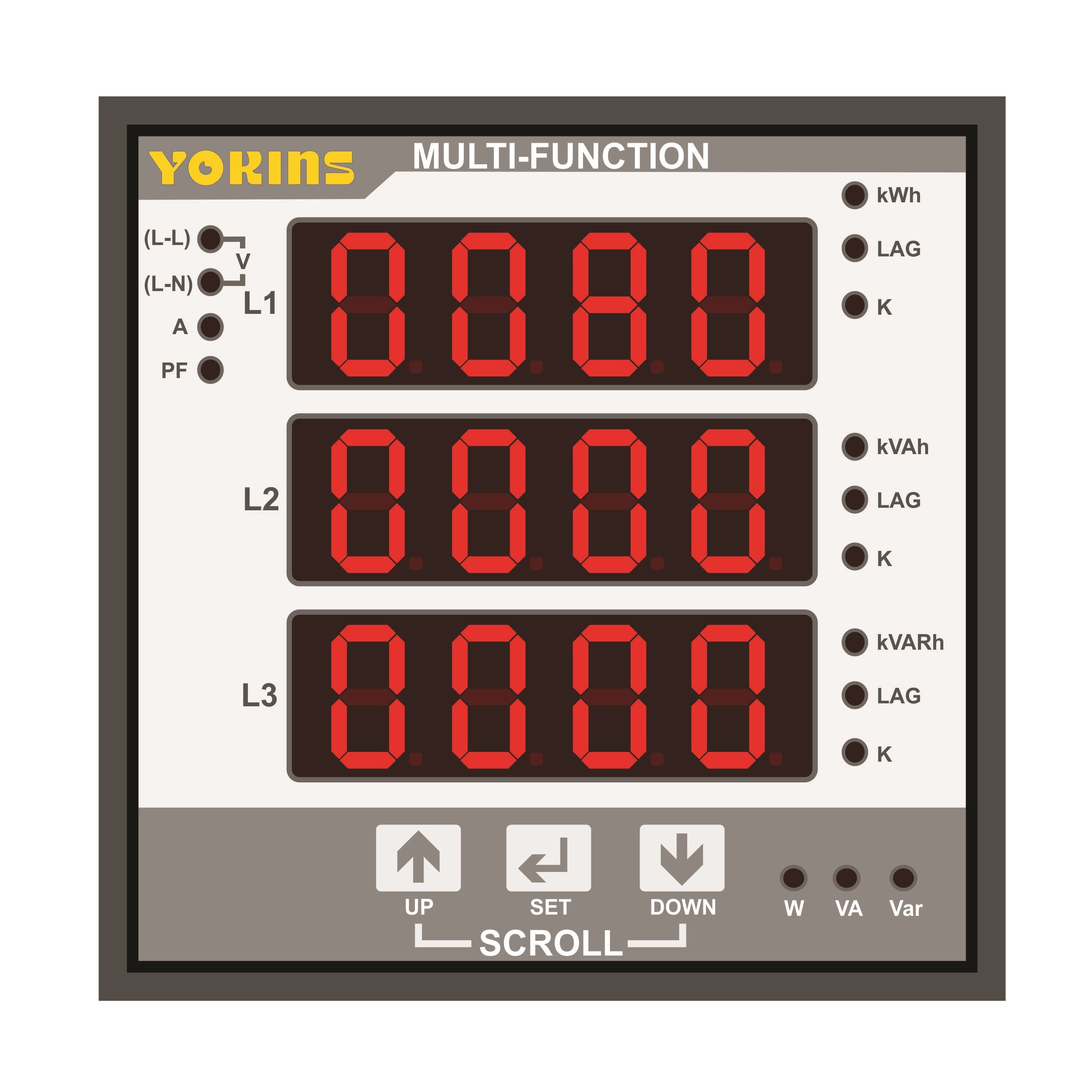

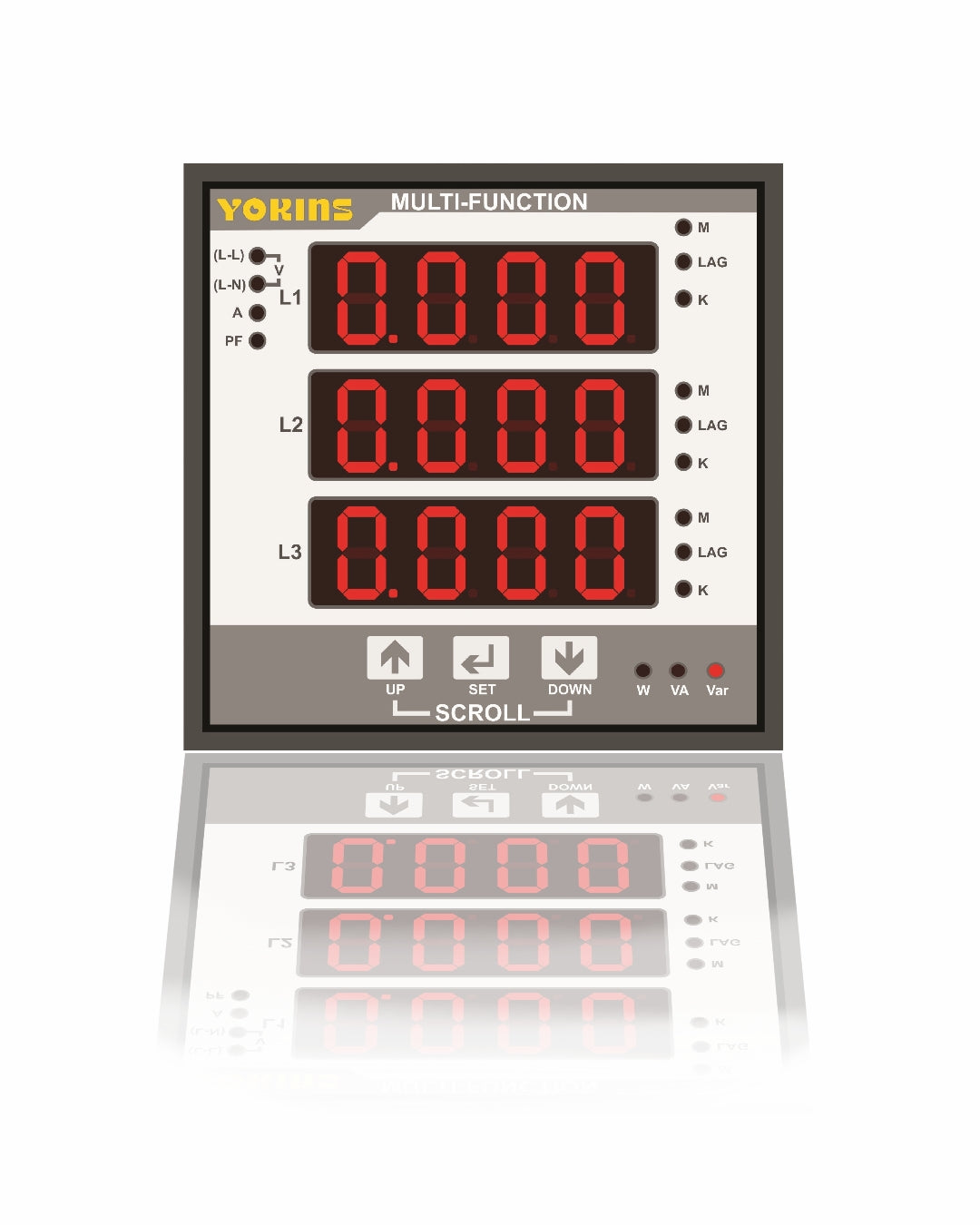

YI-543All Parameters of YI-542, Reactive Power(VAR), Reactive Energy (kvah), Apparent Energy (kvah)1/ 0.545-270V AC /DC, 19-60V AC/DC

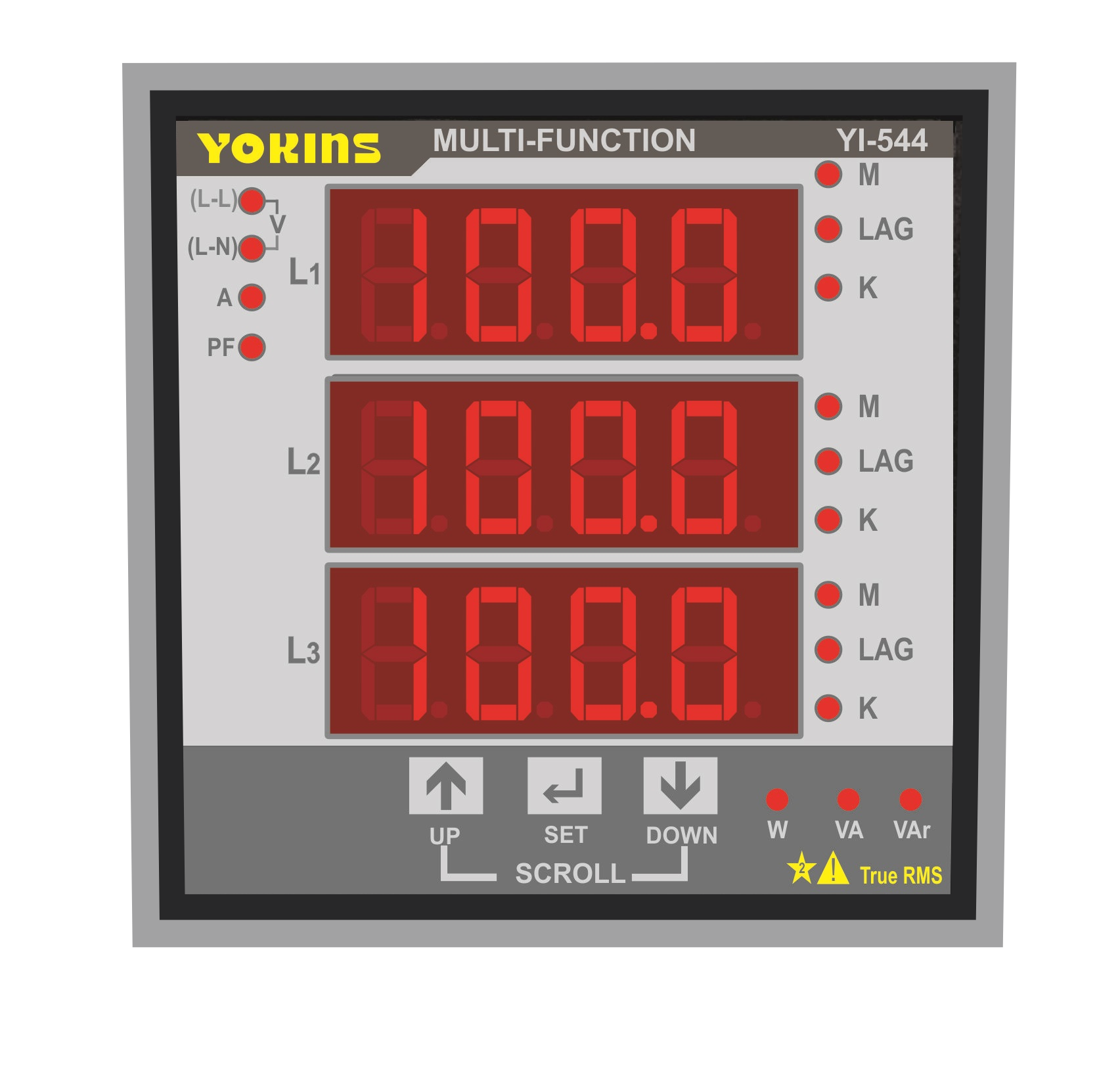

YI-544All Parameters of YI-543, VTHD, I THD1/ 0.545-270V AC /DC, 19-60V AC/DC
