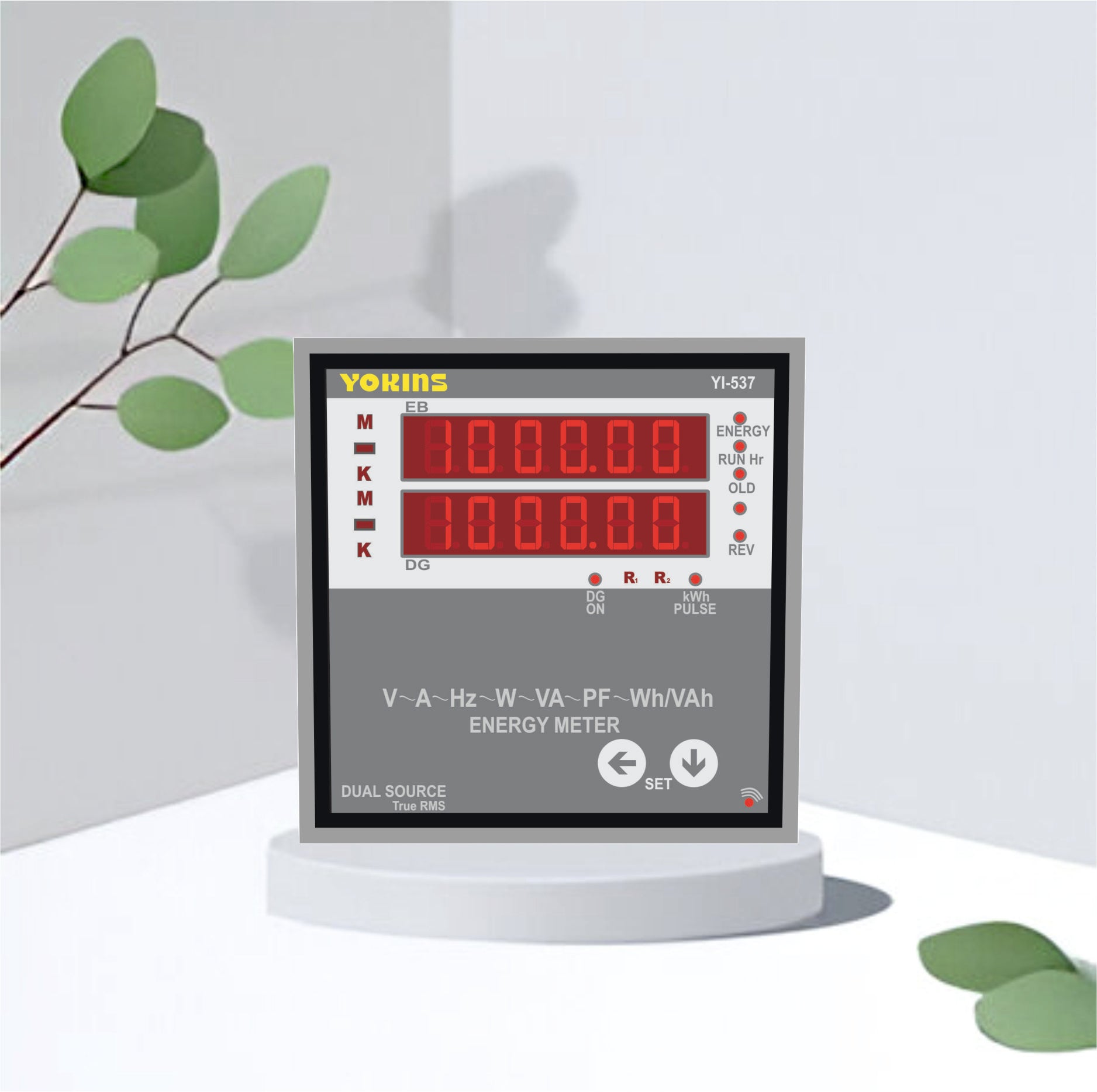

Dual Source Energy Cum Multifunction Meter
Dual Source Energy Cum Multifunction Meter
Dual Source Energy Cum Multifunction Meter
Dual Source Energy Cum Multifunction Meter
Dual Source Energy Cum Multifunction Meter
Dual Source Energy Cum Multifunction Meter
Energy Meter Series

Dual Source Energy Cum Multifunction Meter

Rs. 0.00

Being the leader Dual Source Multifunction Meter Manufacturers and Suppliers, Our Dual Source Multifunction Meters are easy to use and install, with a clear and concise display.

Learn More
Quantity
Download PDF

DESCRIPTION

Yokins Instruments Pvt. Ltd. Dual Source Energy Cum Multifunction Meter are highly accurate and reliable, ensuring that your energy bills are accurate. They are used to measure energy consumption from two different sources like electricity boards (DISCOM) and Gensets. As the electricity cost of using both the sources are different, sometimes we needs to calculate both the consumptions separately, so these meters help us in monitoring energy consumption from both the sources separately with ease. They are easy to install and use, with user-friendly interfaces and clear displays. They are durable and long lasting, even in harsh environments. They are backed by comprehensive warranties, giving you peace of mind. They are competitively priced, making them an affordable investment for businesses and homeowners alike. They are available in a variety of models to suit different needs, from single-phase to three-phase meters and from meters with basic functionality to meters with advanced features. They are supported by teams of experienced and knowledgeable engineers who can provide assistance with installation, configuration, and troubleshooting. They are the best choice for businesses and homeowners who are looking for a reliable and accurate way to measure their energy consumption and reduce their energy costs.



We offer a wide range of Energy Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.

Features

specifications

Extra Details

Features
  • 2 Rows of 6 Digit RED Seven Segment
  • Displays Active Energy(kWh) or
  • apparent energy(kVAh) [USER SETTABLE]
  • FOR BOTH EB & DG SIMULTANIOUSLY.
  • Active & Apparent energy - Energy
  • accumulation /integration, reverse lock,
  • saved in external flash
  • Old energy register back-up for re-start
  • energy reading.
  • Auto / Manual Scroll Display
  • (User selectable)
  • Load hour for secondary source(DG) are displayed.
  • Smart voltage sensing(AC & DC)of secondary source.
  • User Programmable CT Ratio,PT RATIO
  • TRMS Measurement

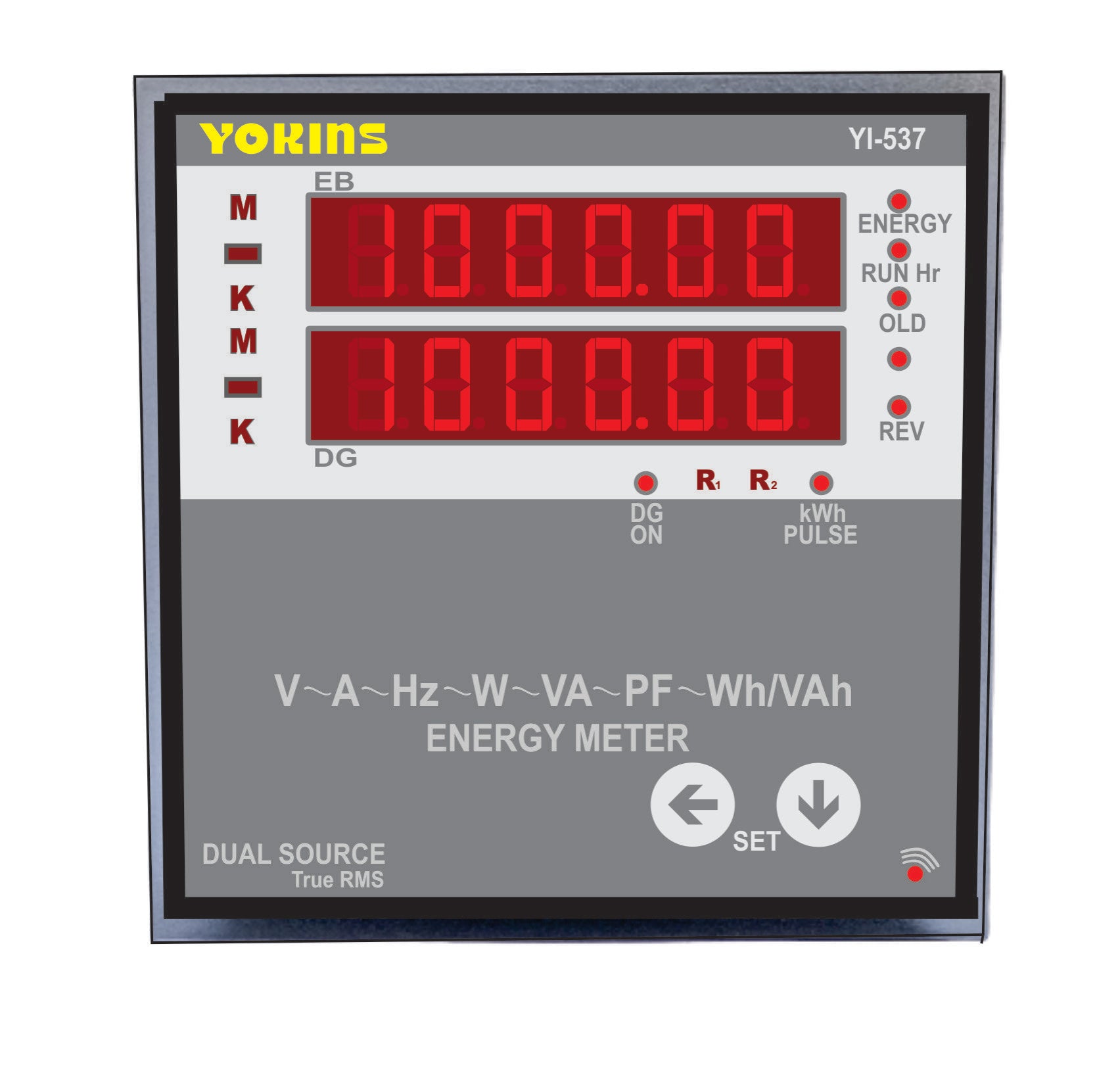

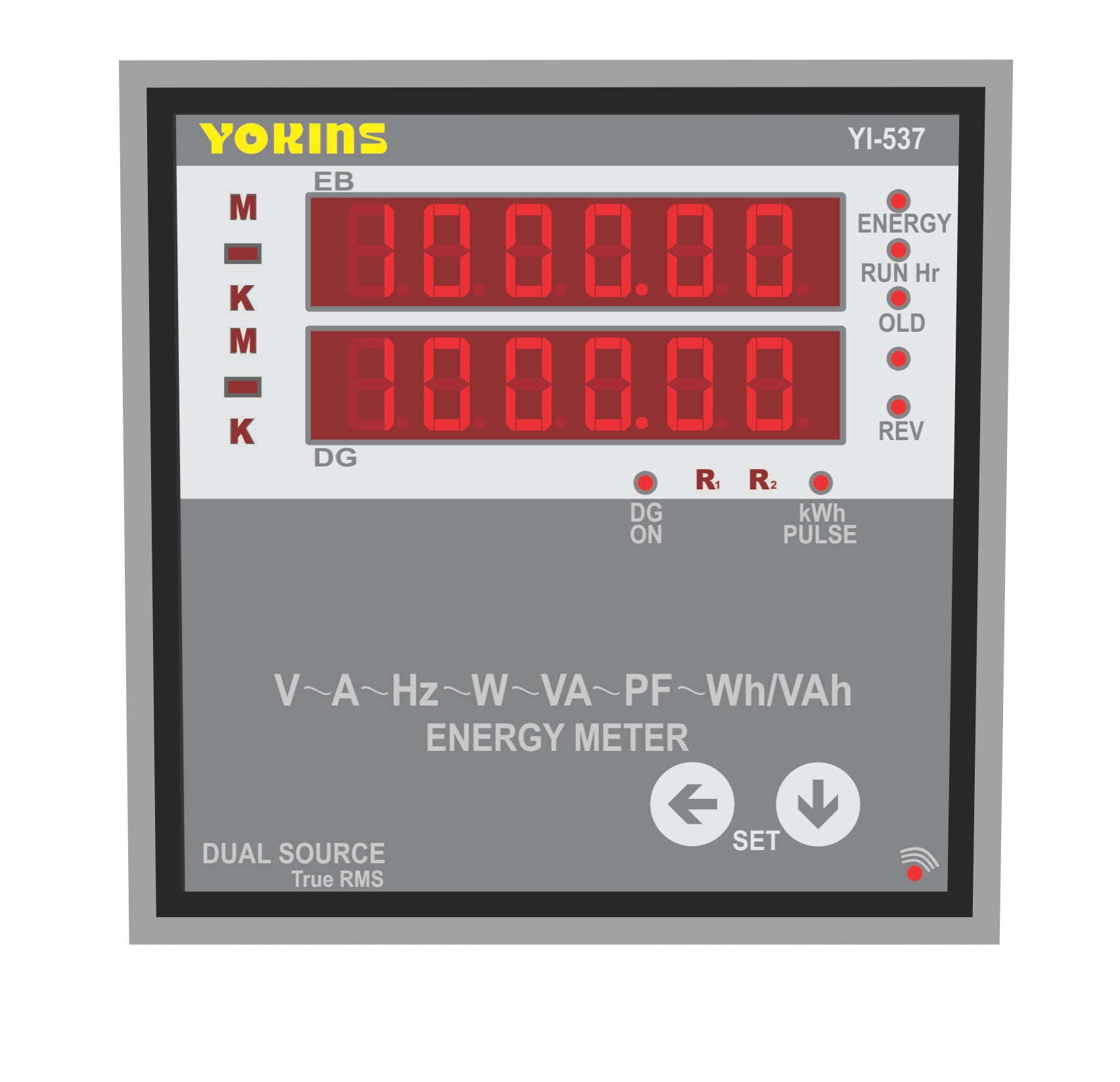

  • 3 Phase 3 element 4 wire system (YI-537)

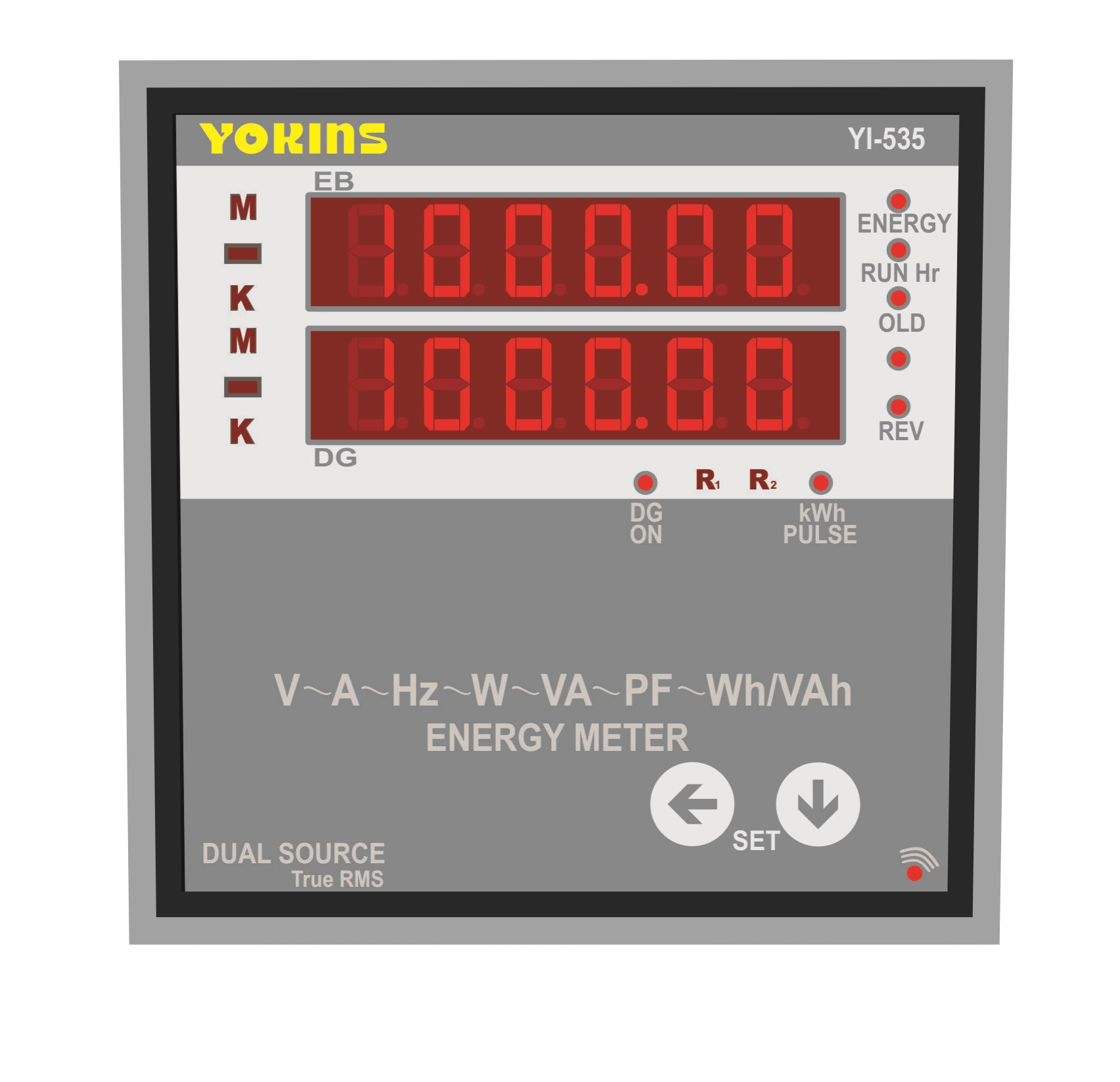

  • 1 Phase 2 wire 1 element(YI-535)
  • RS 485 Port (5KV Isolated( (Optional)
  • MODBUS RTU Protocol (Optional)
  • Single Relay Output for alarm can be provided.(optional)
Specification
TechBrij: HTML Table
RMS Voltage 20 - 600Vrms (Accuracy :- +0.5% FS +1 dgt.)
RMS Current0.020- 10.00Arms (Accuracy :- +0.5% FS +1dgt.)
Active Power 0.030- 6.000 KW (Accuracy :- +0.5% ES +1 dgt.)
Power Factor03Llag-1.0-0.3 Lead (Accuracy :- + 0.01 PE +1 dgt.)
Line Frequency45.00- 65.00 Hz (Accuracy :- £0.1Hz)
Active Energy (KWh)000000.00 - 999999.99 Kwh (Accuracy Class 1,0.5)
Apparent Energy (KVAh)000000.00 - 999999.99 KVAh (Accuracy Class 1,0.5)
DG HOURHHHH.MM FORMAT (ACCURACY +-1 MIN)
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Polarity IndicationL(Laggine/Inductive) or C(Leading/Capacitive)
Under Range IndicationError Code 01 Blinking when Current Non Detectable
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer8.0ms
Maximum Overload Voltage 1.2 Times Continuous, Current 2 Times Continuous
TechBrij: HTML Table
Auxiliary Supply150-300V AC, 45-270V AC/DC, 19-60V AC /DC
DG SENSING VOLTAGE24V-270V AC/DC
VA Burden (Typical)
Auxiliary<2.5 VA
Voltage Input<0.2 VA / Phase
Current Input<0.2 VA / Phase
PT Primary Range50 to 500kV AC Programable
PT Secondary Range50 to 500V AC Programable
CT Primary Range1A to 50kA AC Programable
CT Secondary Range0.5A to 5A AC Programable
Metering StandardIEC 62053-21/22
Installation CategoryCat II (IEC / EN61010 - 1)
PollutionDegree 2 (IEC / EN61010 - 1)
Environment
Calibration27°C ± 5°C
Operating0° to 50°C, RH <70%
Storage10° to 60°C, RH < 70%
Dielectric Strength2.5 KV at 50 Hz for 1 mm
Insulation Resistance> 20 MOhms at 500 V DC
Extra Details
DIMENSIONS (mm) TechBrij: HTML Table
MODELYI-535/537
FRONT96 X 96
DEPTH (Behind Bezel)52
Panel Cut -Out92 X 92
ORDERING INFORMATION TechBrij: HTML Table
MODELPARAMETERS DISPLAYEDACCURACY CLASSAUX SUPPLY
YI-535 DUAL SOURCE SINGLE PHASEVoltage (Line to Neutral), Active Energy (kwh) Current, Apparent Energy (kvah), Frequency(Class 0.2), DG Load Hours, Power Factor (Class 0.5), OLD ENERGY, Active Power (W)1.0/ 0.545-270V AC /DC/ 19-60V AC /DC/ 150-300V AC
YI-537 DUAL SOURCE THREE PHASEVoltage (Line to Line), Active Power (W), Voltage(Line to Neutral), Active Energy(kwh), Current, Apparent Energy (kvah), Frequency(Class 0.2), Load Hours, Power Factor (Class 0.5), DG LOAD HOUR1.0/ 0.545-270V AC /DC/ 19-60V AC /DC
