Based on Type

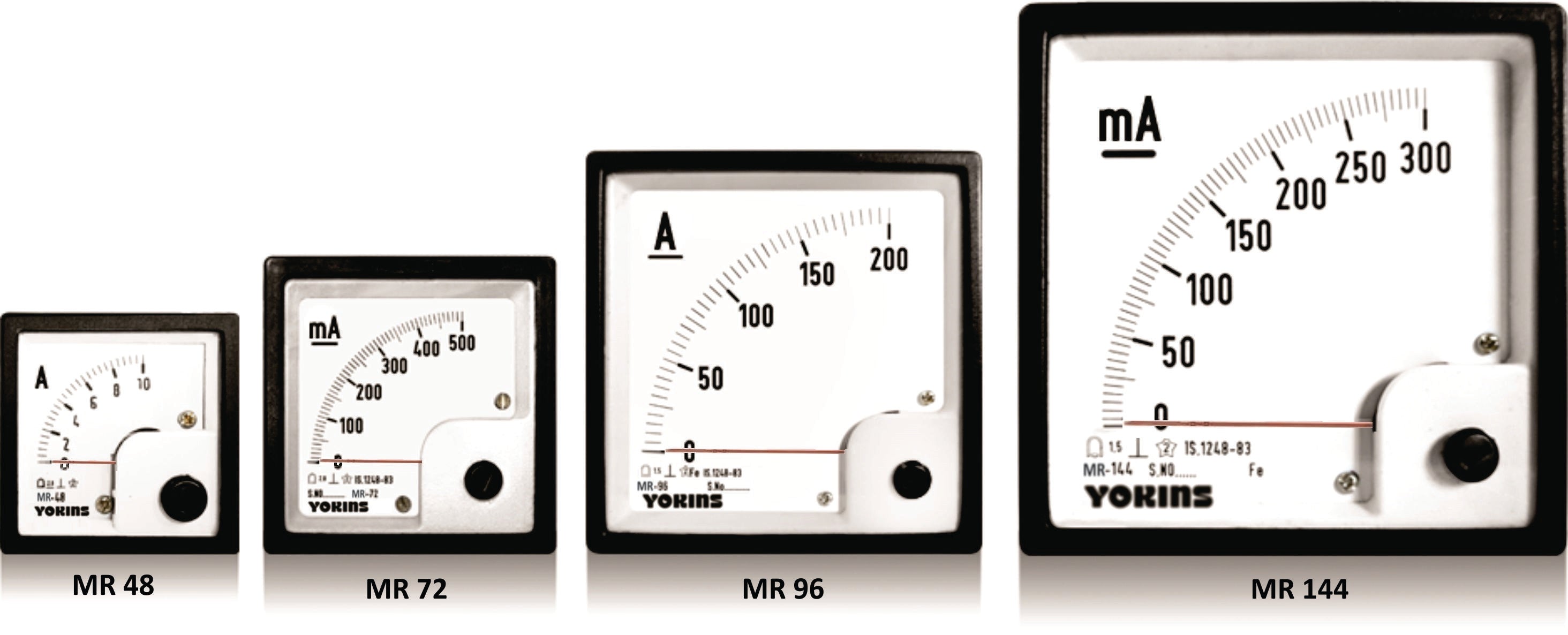

Analog Ammeters
DESCRIPTION
Product Description
PRODUCT RANGE
AC Moving Iron Ammeters
Range : Current (A) : 0 - 1A to 0 - 100A (Direct), Through CT/1A or /5A for Higher Currents and suppressed scale meters with ratio of maximum 1:6.
DC Moving coil Ammeters
Current µA : 50µA to 750µA .
Current mA : 1mA to 750mA.
Current A : 1A to 30A (Direct), Through External Shunt /75mV, /50mV or /60mV for Higher Currents.
AC Moving coil rectifier Ammeters
Current µA : 100µA to 750µA
Current mA : 1mA to 750mA
Current A : 1A to 5A (Direct), Through CT/1A or /5A for Higher Current
