DESCRIPTION

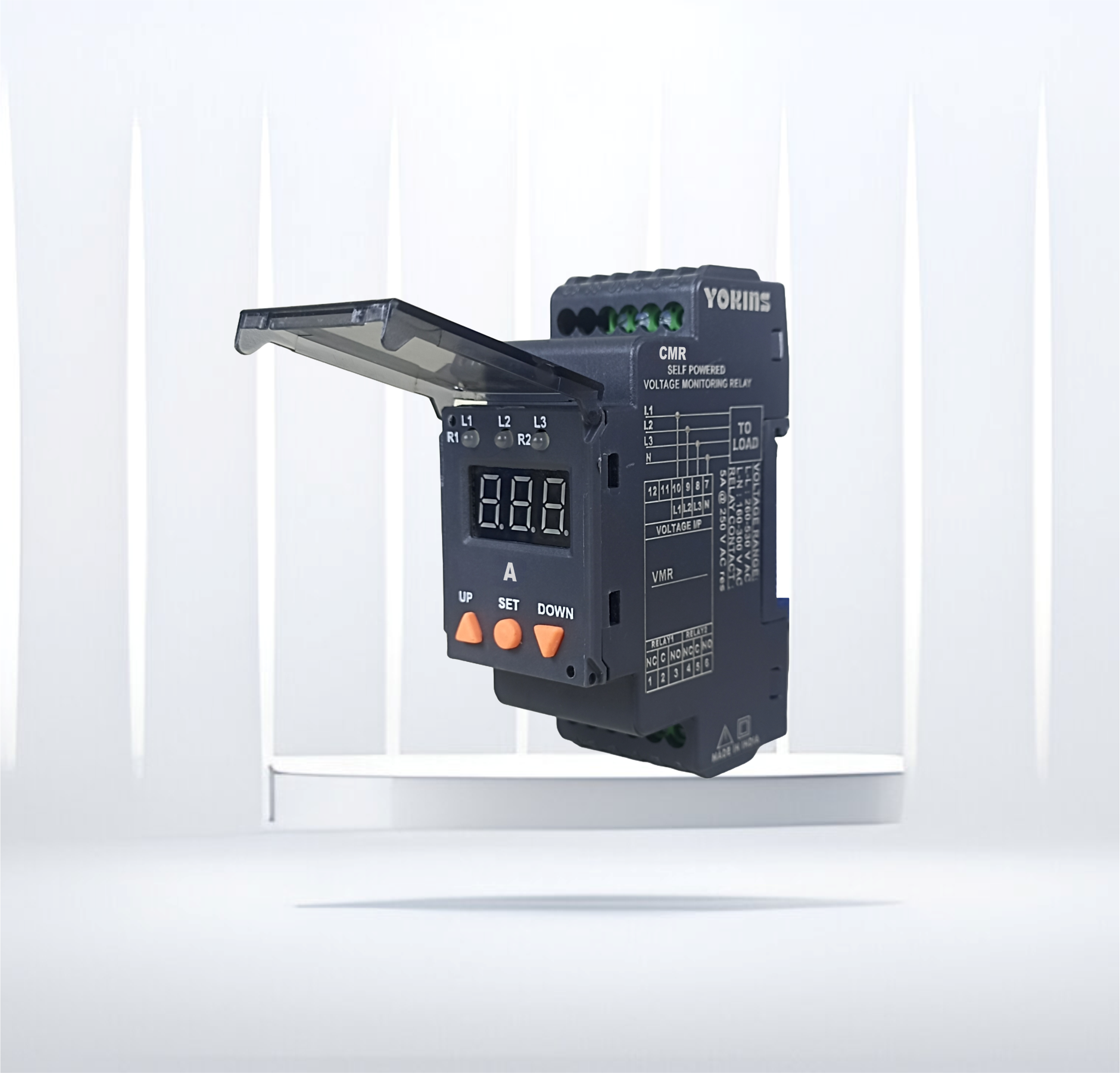

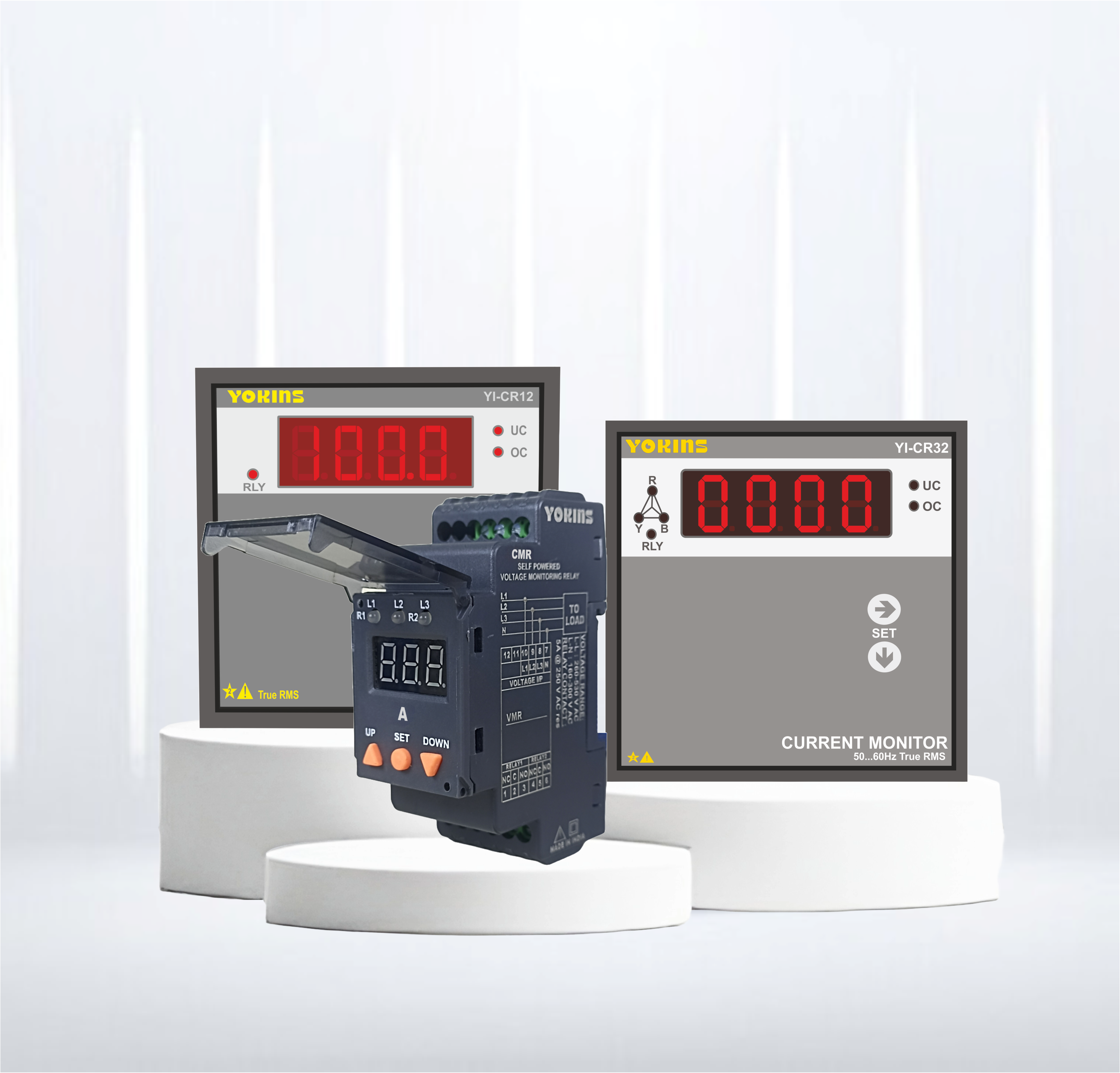

Yokins Instruments Pvt. Ltd. Current monitoring relays are incredibly accurate. Our Numerical Current monitoring relay is fully programable with exact setting of setpoints it offers very good accuracies. This means that your equipment is always protected from overcurrent and under current conditions. Our current monitoring relays are designed to be incredibly reliable, with a long lifespan and a high MTBF (mean time between failures). This means that you can be confident that your equipment will always be protected, even in the most demanding environments.
We are the leading Current Monitoring Relays manufacturers and suppliers, our current monitoring relays also known as CMR are manufactured to the highest quality standards, using only the best components. They can be customized for various ranges as per customer’s specific requirement, which makes it very versatile product.
Choose from our wide range of Numerical Relays or contact us to get Detailed Information about our Products.
SPECIFICATION
| RMS Current input | 50mA - 10A(CT set.) (Accuracy - +0.5% FS +1 dgt.) |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors/Terminal | Nylon 66, 33%GF,Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Fault Indication | Error Code for all fauls. |
| Dielectric Strength | 2.5KV @50 Hz for 1 minute between Input -Auxiliary & Case - Terminals |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | Per 8.0ms |
| Maximum Overload | Current : 2 Times Continuous |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-90V AC /DC |
| VA (Burden) | |
| Auxiliary | <2.5 VA |
| Current Input | <0.2 VA/Phase |
| Relay Contact | 2 AMPS, 250V AC POTENTIAL FREE |
| Metering Standard | IEC 62053-21/22 |
| Installation Category | CAT II (IEC/EN61010-1) |
| Pollution | Degree 2 (IEC/EN61010-1) |
| Environment | |
| Calibration | 27°C ± 5°C |
| Operating | 0° to 50°C, RH <70% |
| Storage | -10° to 60°C, RH < 70% |
| Dielectric Strength | 2.5 KV at 50 Hz for 1 mm |
| Insulation Resistance | > 20 MOhms at 500 V DC |
DIMENSIONS (MM)

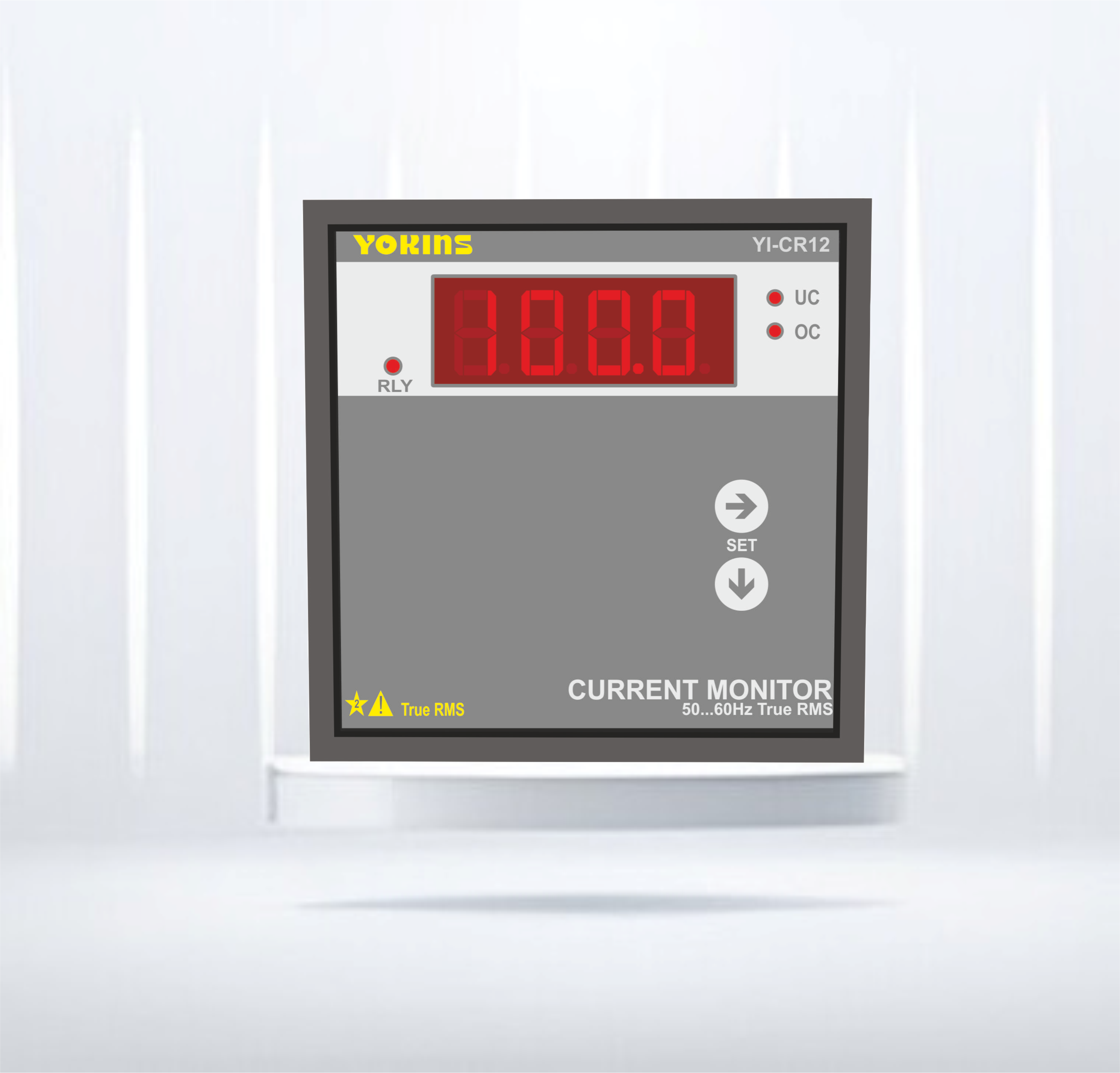

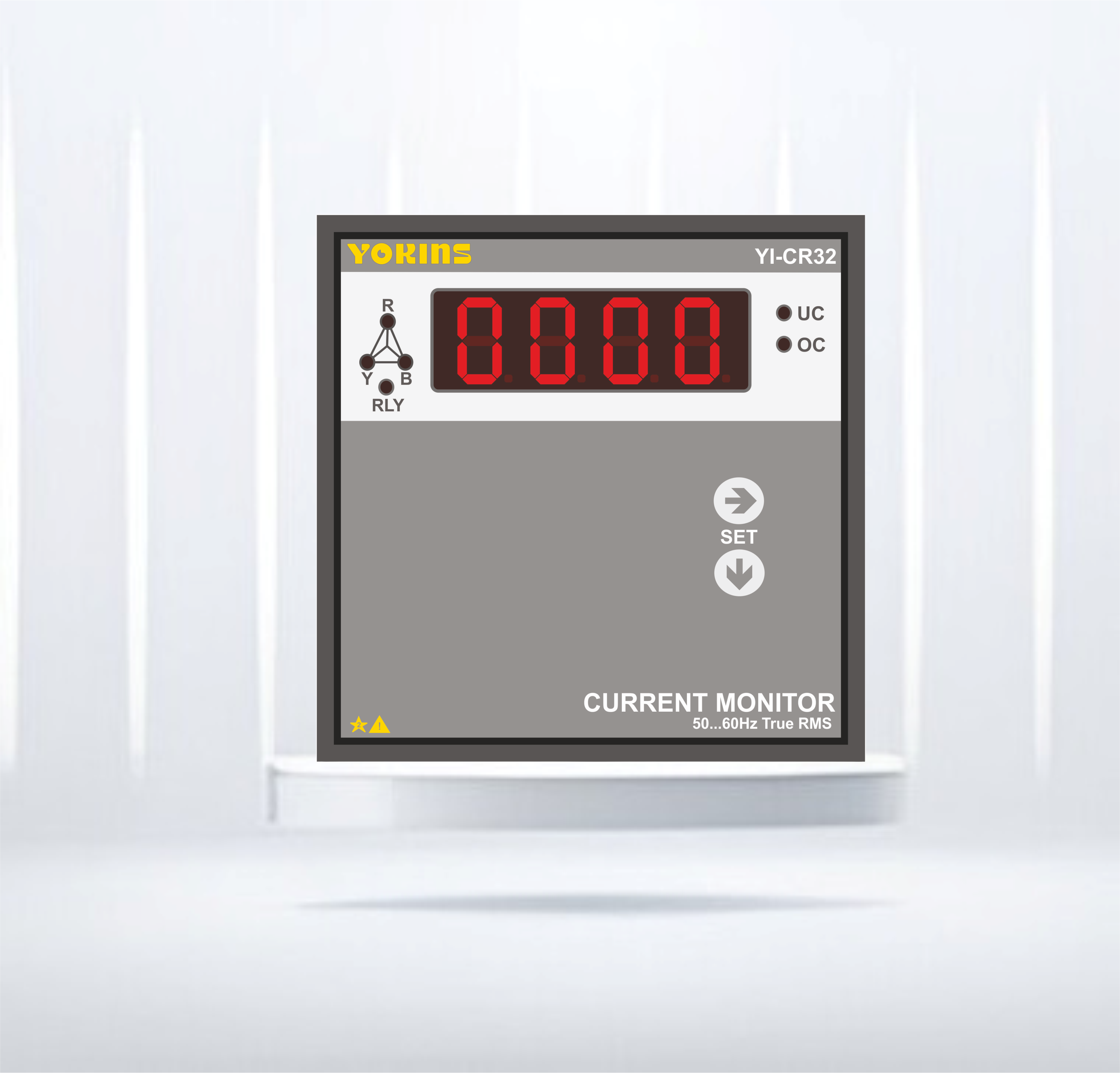

| MODEL | YI-CR12/CR32 |
| FRONT | 96 X 96 |
| DEPTH (Behind Bezel) | 39.5 |
| Panel Cut-Out | 92(+0.8-0.0) X 92(+0.8-0.0) |
FEATURES
- Single Solution for Monitoring Current And Protecting Device from load faults.
- Auto / Manual Scroll Display (User Selectable)
- SMPS, TRANSFORMER Power Supply
- Ideal for Protection of Industrial Motors Individual Led for each fault.
- All tripping parameters fully field Programmable
- Under Current, Over Current trips.
- TRMS Measurement
- 1 Rows of 4 Digit RED Seven Segment
- 3phase and single phase model available.
- RS 485 Port (5kv isolated) (Optional)
- MODBUS RTU Protocol (optional)
- One Relay Output (2 amps) available for contactor tripping.
ORDERING INFORMATION
| MODEL | DISPLAY & PROTECTION | ACCURACY CLASS | AUX SUPPLY |
| YI-CR32 (3PHASE) | 3 PHASE CURRENTS UNDER-OVER | 1.0 0.5 |
150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |
| YI-CR12 (1PHASE) | 1 PAHSE CURRENT UNDER-OVER | 1.0 0.5 |
150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |
