Based on Principle
Moving Coil Meters

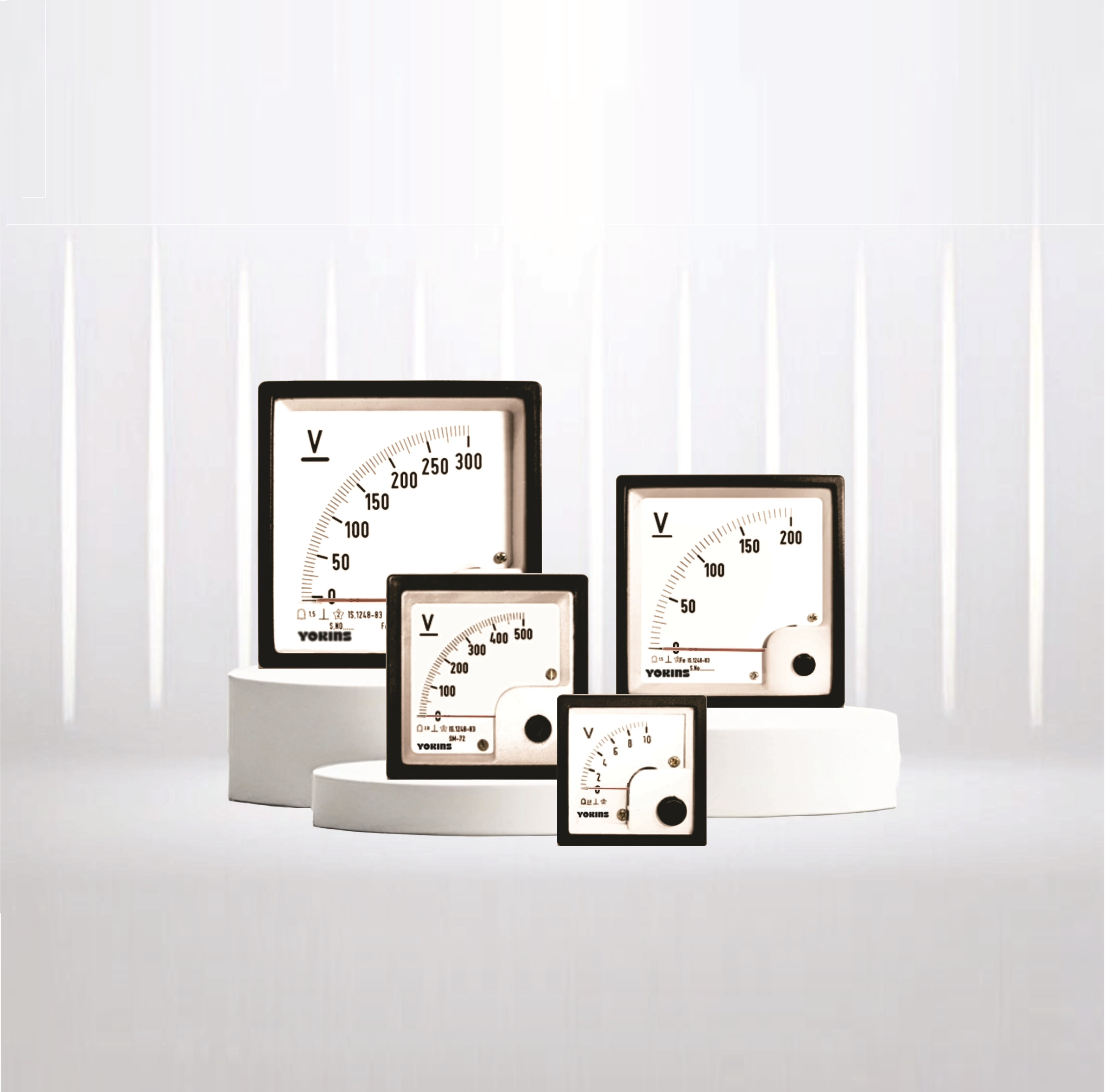

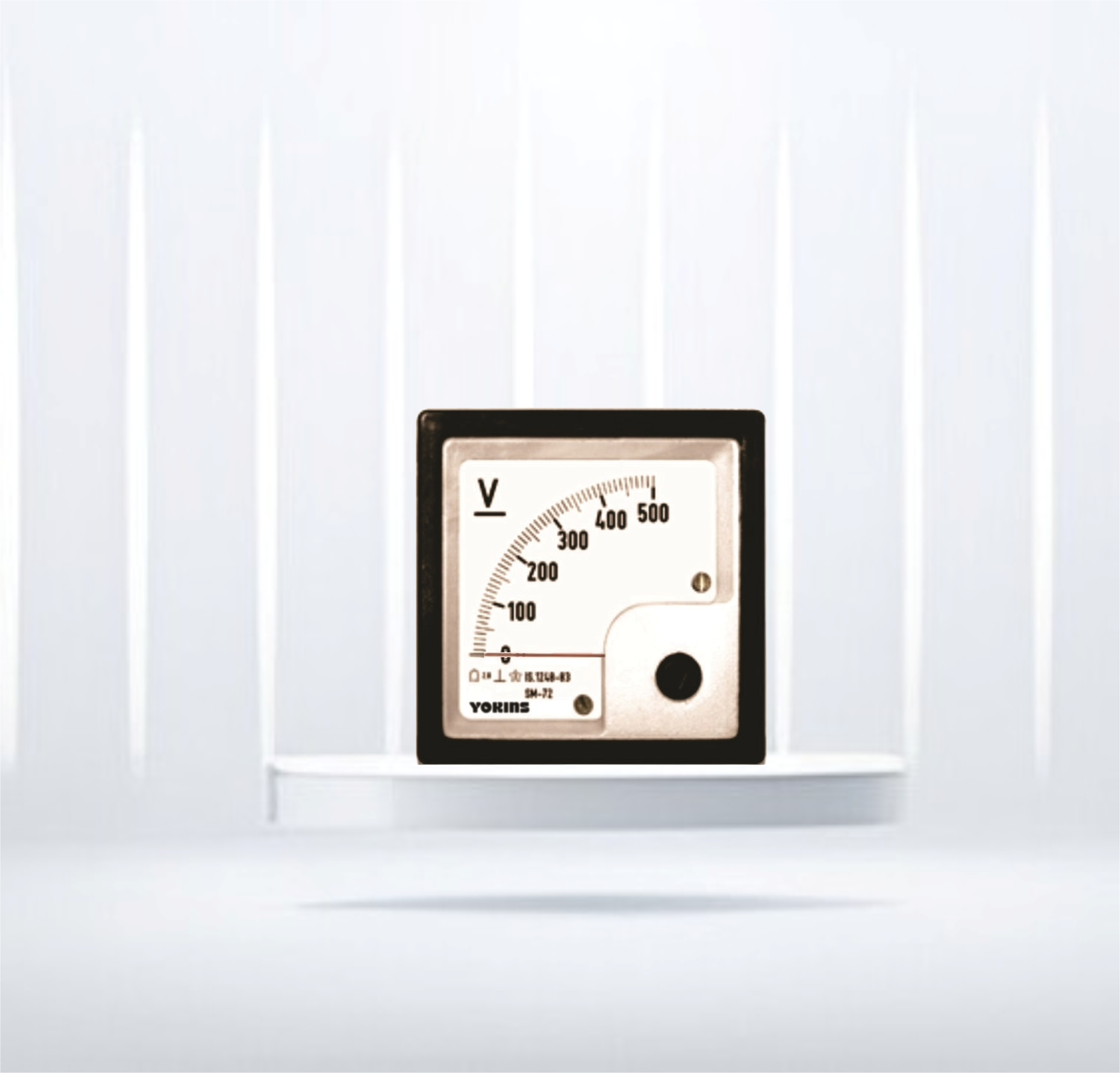

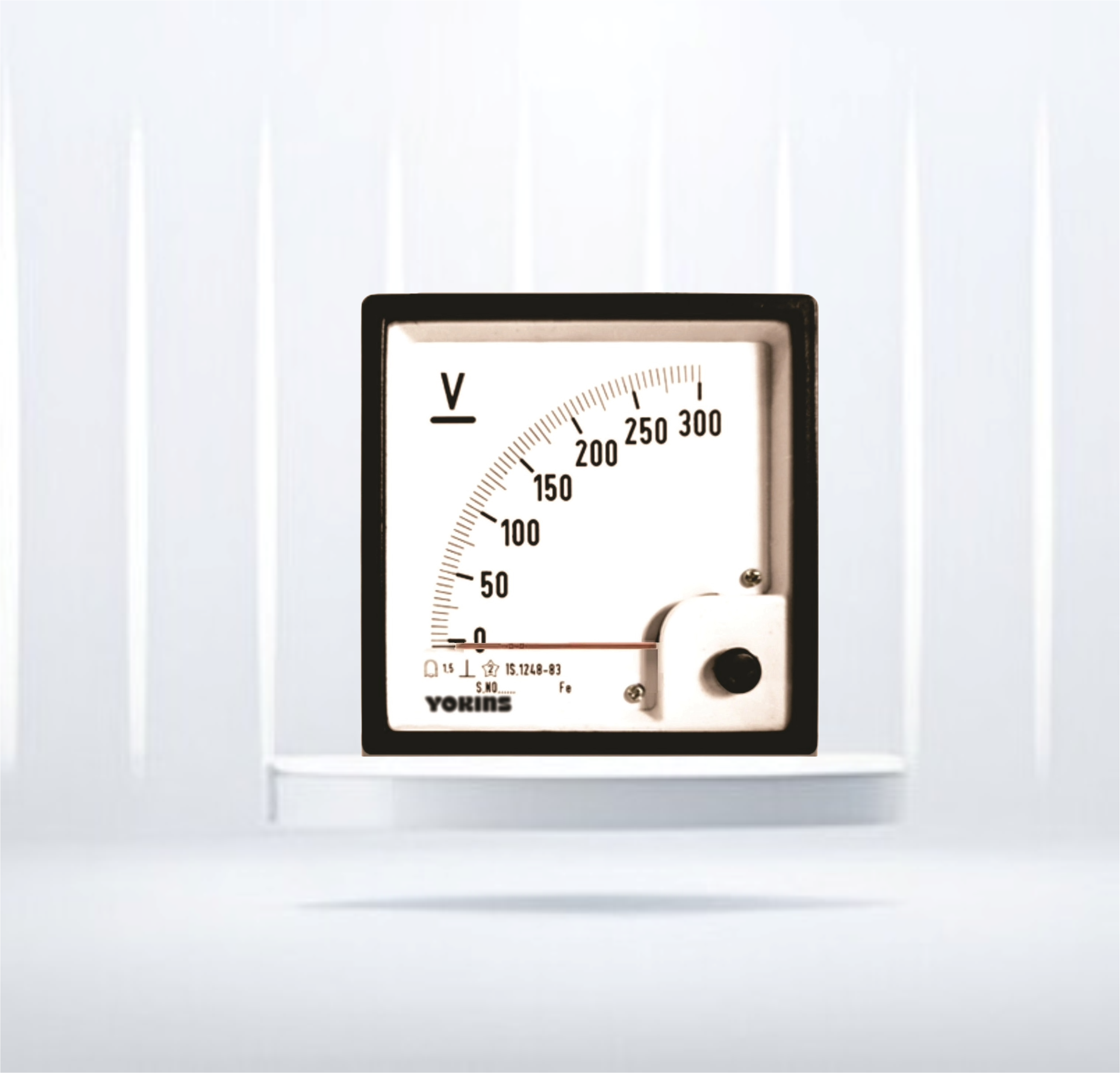

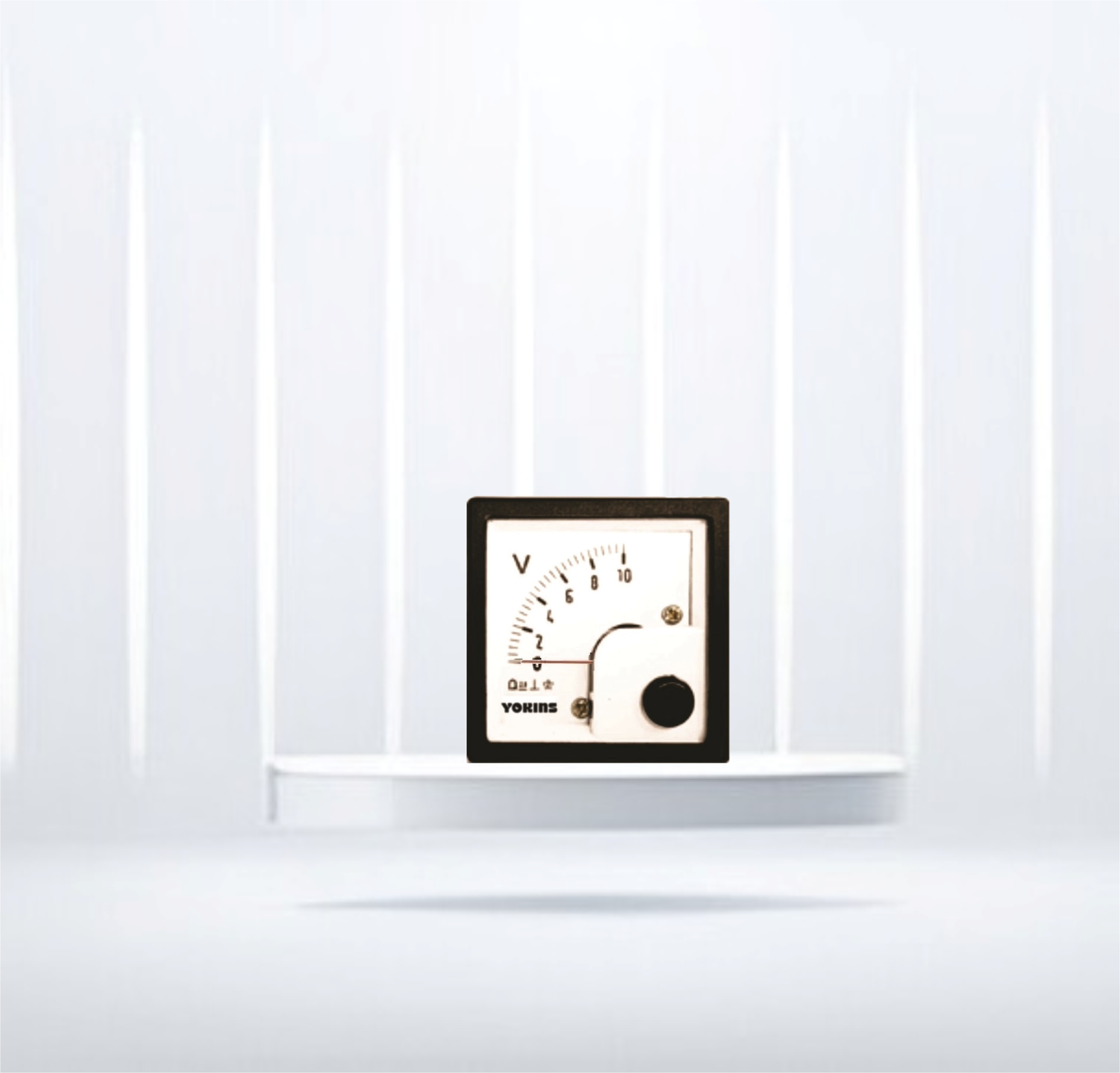

Moving Coil Instrument
Specification
TechBrij: HTML Table
Movement Type | Moving Coil permanent magnet type with Jewel Bearing Suspension. |
Range | |
Current µA | 50µA to 750µA. |
Current mA | 1mA to 750mA |
Current A | 1A to 30A (Direct), Through External Shunt /75mV, /50mV or /60mV for Higher Currents. |
Voltage mV | 50mV to 1000mV |
Voltage V | 1V to 1000V. |
Standards | IS-1248 |
Accuracy | ±1.5% of Full Scale for all except MR48. ±2.5% of Full scale for ML48. |
Zero position | Centre zero or offset zero. Colored dials or markings can be provided as per customer specification. |
Multiranges | Double range meters can also be provided. Available models and sizes |
Extra Details
STANDARD FLUSH TYPE SQUARE MODELS
TechBrij: HTML Table
CROWN SERIES (FLUSH MOUNTING, ROUND PANEL CUT MODELS)
TechBrij: HTML Table
PHOENIX SERIES (REAR MOUNTING, RECTANGULAR PANEL CUT MODELS
TechBrij: HTML Table
ROUND FLUSH MOUNTING MODELS
TechBrij: HTML Table
TYPE | PANEL CUTOUT | FRONT (AXB) (sq.mm) | C | D | SCALE LENGTH | ACCURACY |
MR-144 | 136 X 136 | 144 X144 | 44 | 52 | 155 | 1.00% |
MR-96 | 92 X 92 | 96 X 96 | 44 | 52 | 92 | 1.50% |
MR-72 | 68 X 68 | 72 X 72 | 44 | 50 | 62 | 1.50% |
MR-48 | 46 X 46 | 52 x 52 | 37 | 42 | 40 | 2.50% |
Type | Panel Cut(mm) | A | B | C | D | E | Scale Length |
DCF 65 | 55 | 46 | 46 | 35 | 65 | 65 | 60 |
DCF 70 | 55 | 41 | 86 | 70 | 65 | ||
DCF 80 | 64 | 63 | 54 | 40 | 80 | 80 | 72 |
DCF 100 | 65 | 83 | 50 | 38 | 100 | 80 | 90 |
Type | Panel Cut | A | B | C | D | E | F | G | H | Scale Length |
DC 65(R) | 63 x 36 | 48 | 45 | 33 | 69 | 69 | 21 | 3.5 | 18 | 60 |
DC 70(R) | 77 x 37 | 67 | 55 | 41 | 86 | 70 | 8 | 3.5 | 18 | 65 |
DC 90(R) | 97.5 x 49 | 70 | 60 | 47 | 104 | 84 | 8 | 5 | 17 | 90 |
DC 120(R) | 124.5 x 60 | 88 | 65 | 49 | 134 | 101 | 6 | 5 | 23 | 105 |
Type | A | B | C | D | Panel Cut | Scale length |
MO65 | 45 | 39 | 82 | 65 | 65 | 50 |
MO80 | 64 | 55 | 98 | 80 | 80 | |
MO100 | 70 | 60 | 125 | 104 | 104 | 92 |
MO110 | 70 | 60 | 135 | 112.5 | 115 |
