Product Description
DESCRIPTION

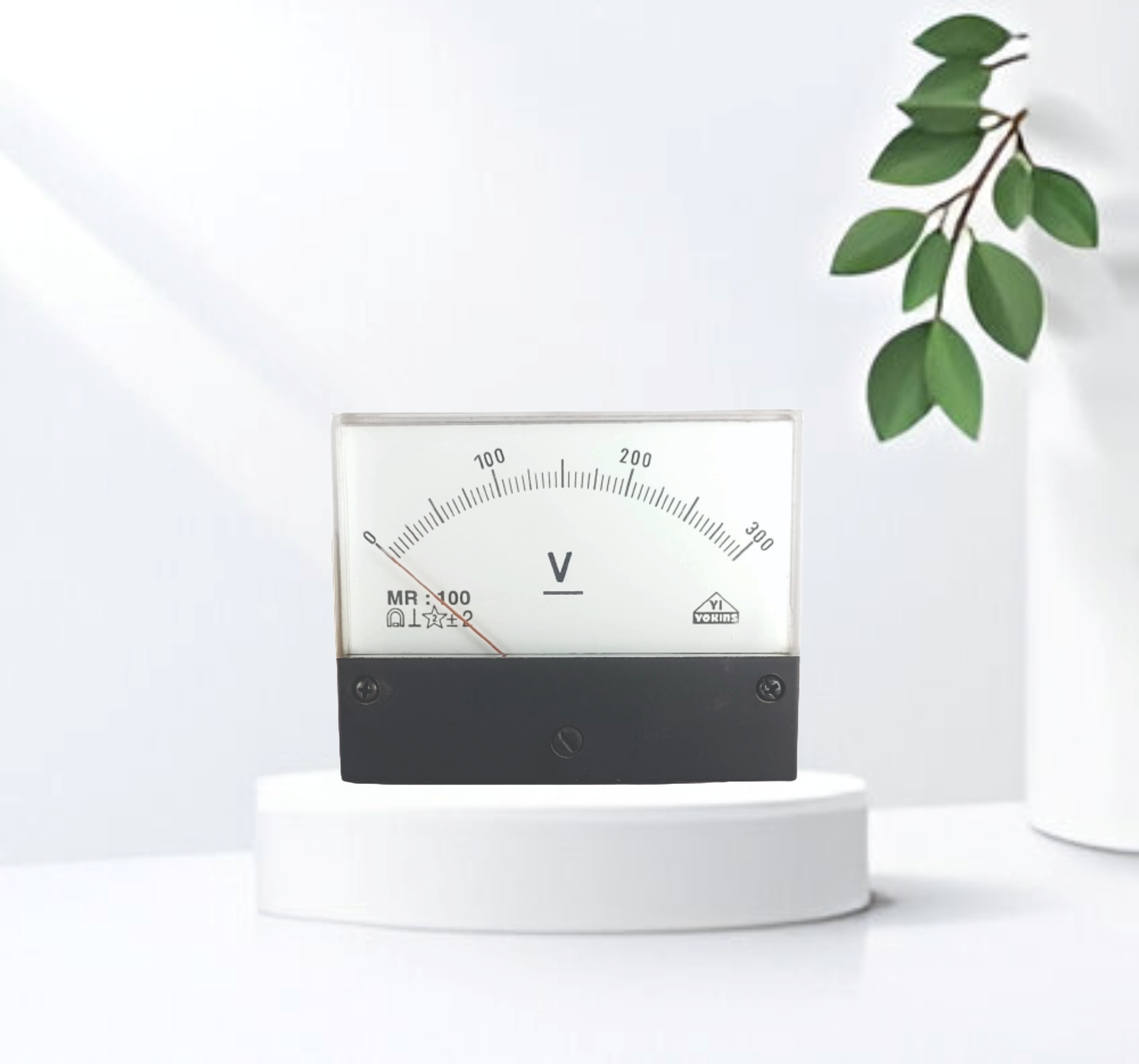

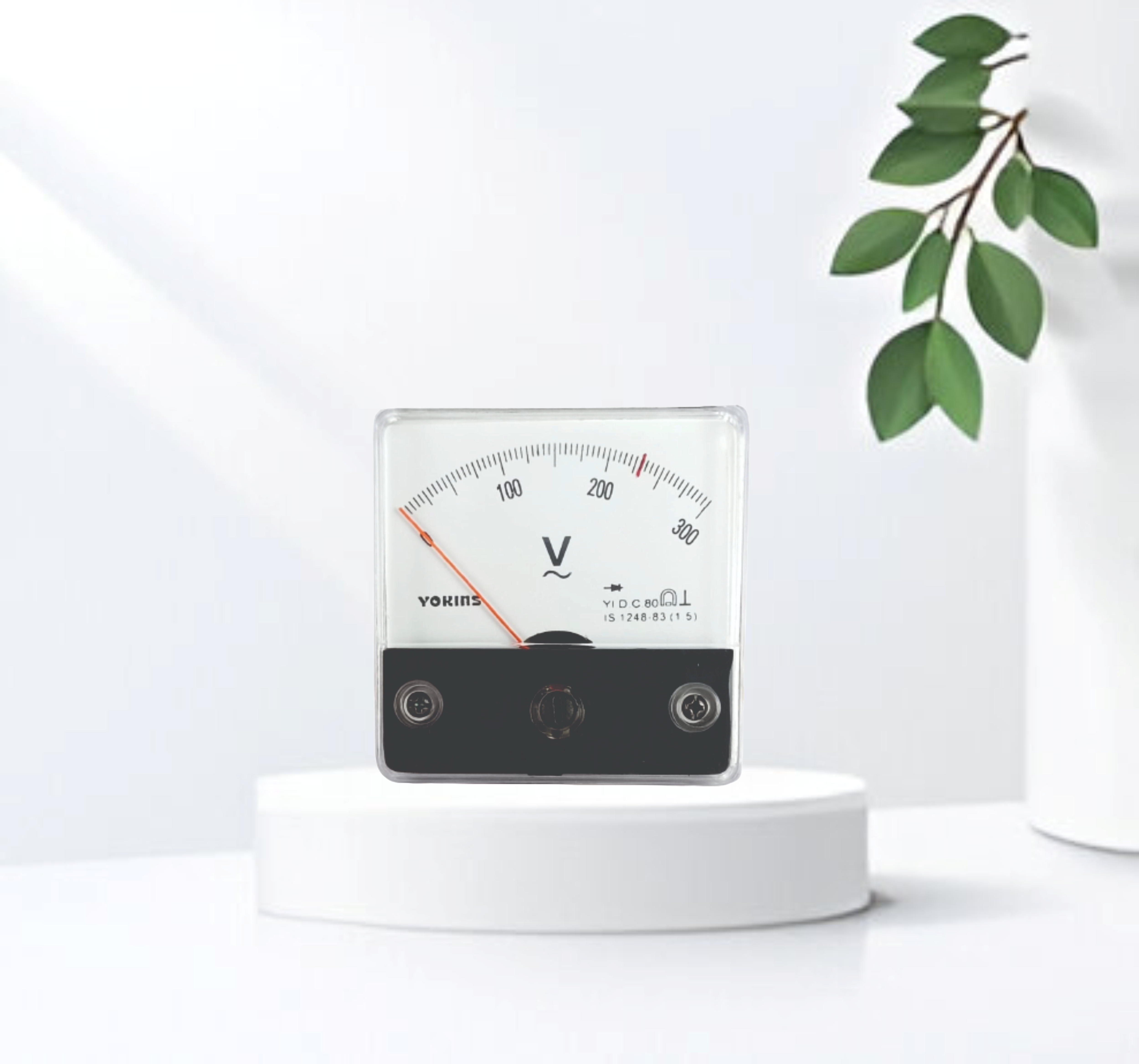

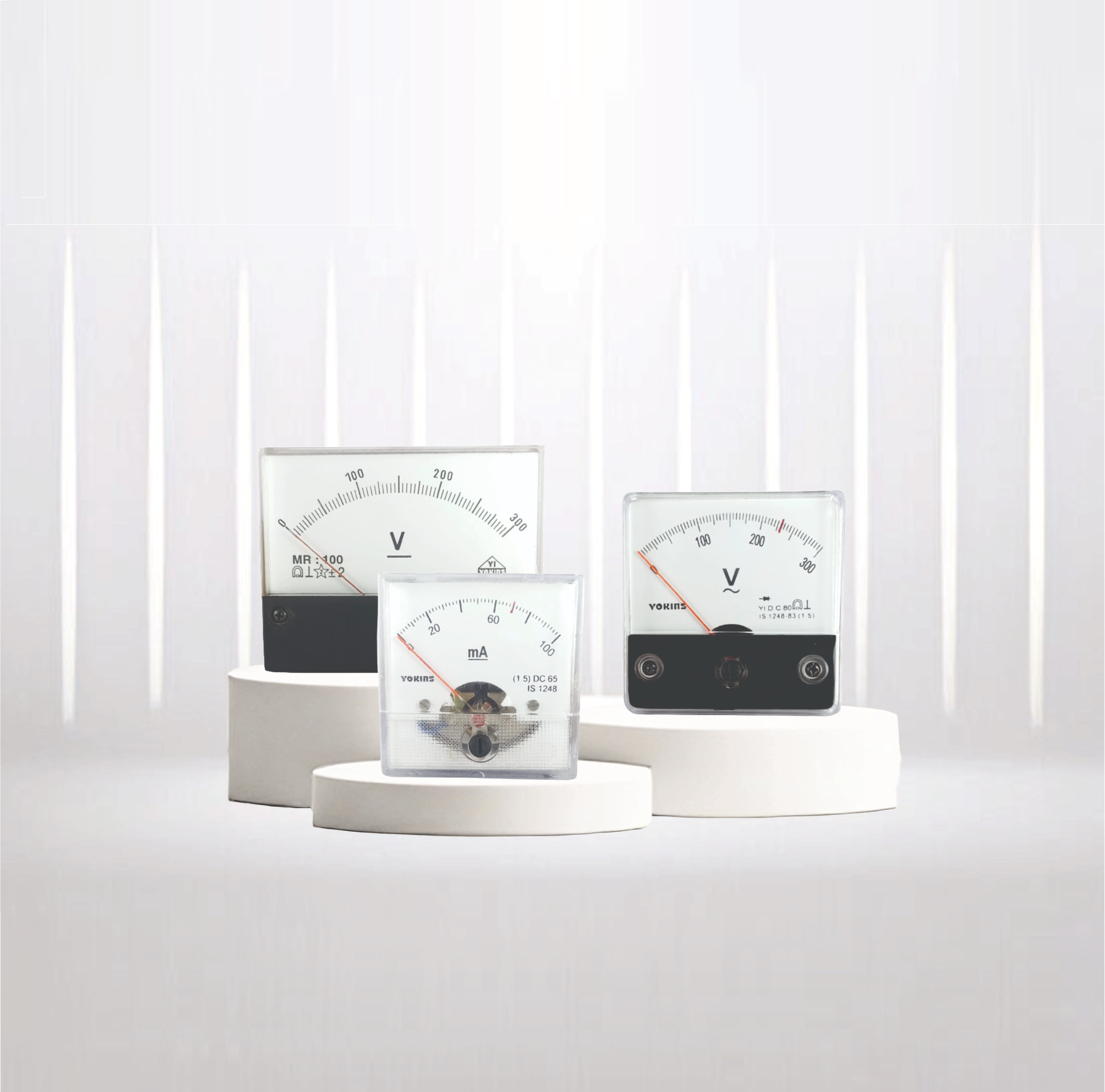

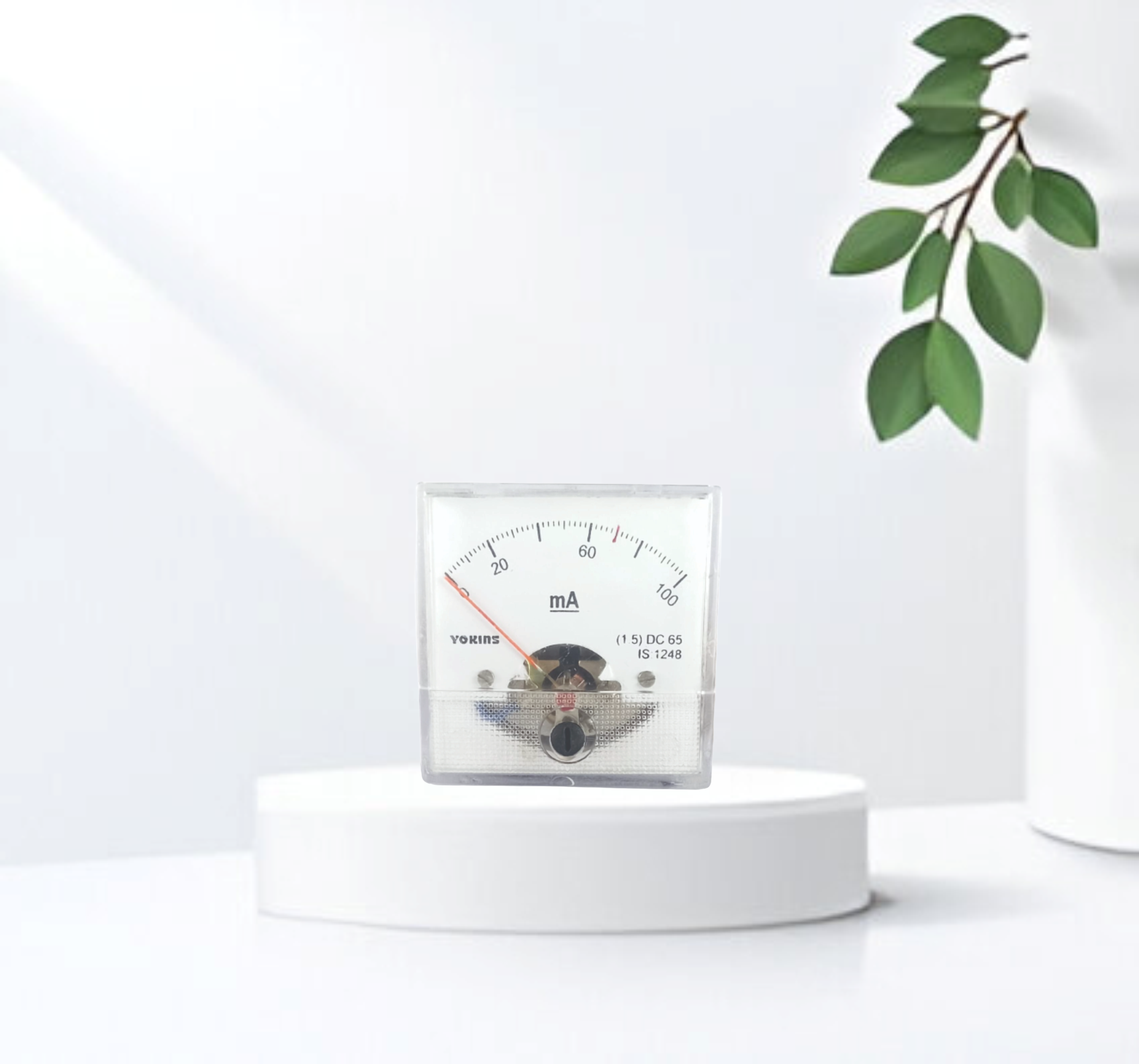

YOKINS Crown Series is designed for Flush panel mounting arrangement. In Crown series meters are manufactured in Moving coil, Moving iron and moving coil rectifier type.
Based on Shape & Mounting, we have a wide range of Analog Panel Meters. Contact us to get detailed information about our products.
DIMENSIONS (MM)
| Type | PanelCut | A | B | C | D | E | Scale Length |
| ACF/DCF 65 | 55 | 46 | 46 | 35 | 65 | 65 | 60 |
| ACF/DCF 80 | 64 | 63 | 54 | 40 | 80 | 80 | 72 |
| DCF 100 | 65 | 83 | 50 | 38 | 100 | 80 | 90 |
| DCF 120 | 70 | 102 | 55 | 40 | 120 | 100 | 105 |
APPLICATION
- Marine
- X-ray machine
- Switchgear
- Distribution systems
- Control panels
- Embedded generation
- Energy management
- Building management
- Utility power monitoring
- Process Control
- Motor Monitoring
FEATURES
- AC Moving Iron type for ACF65 and ACF80
- DC Moving Coil type for DCF65, DCF80, DCF100
- AC Moving coil type with Rectifier Circuit in all above model
- Accuracy : ±1.5% of Full Scale for DCF80 and DCF100.
- ±2.5% of Full Scale for ACF65, DCF65 & ACF80.
- Standards : IS-1248
- Size : Dimensional details below.
