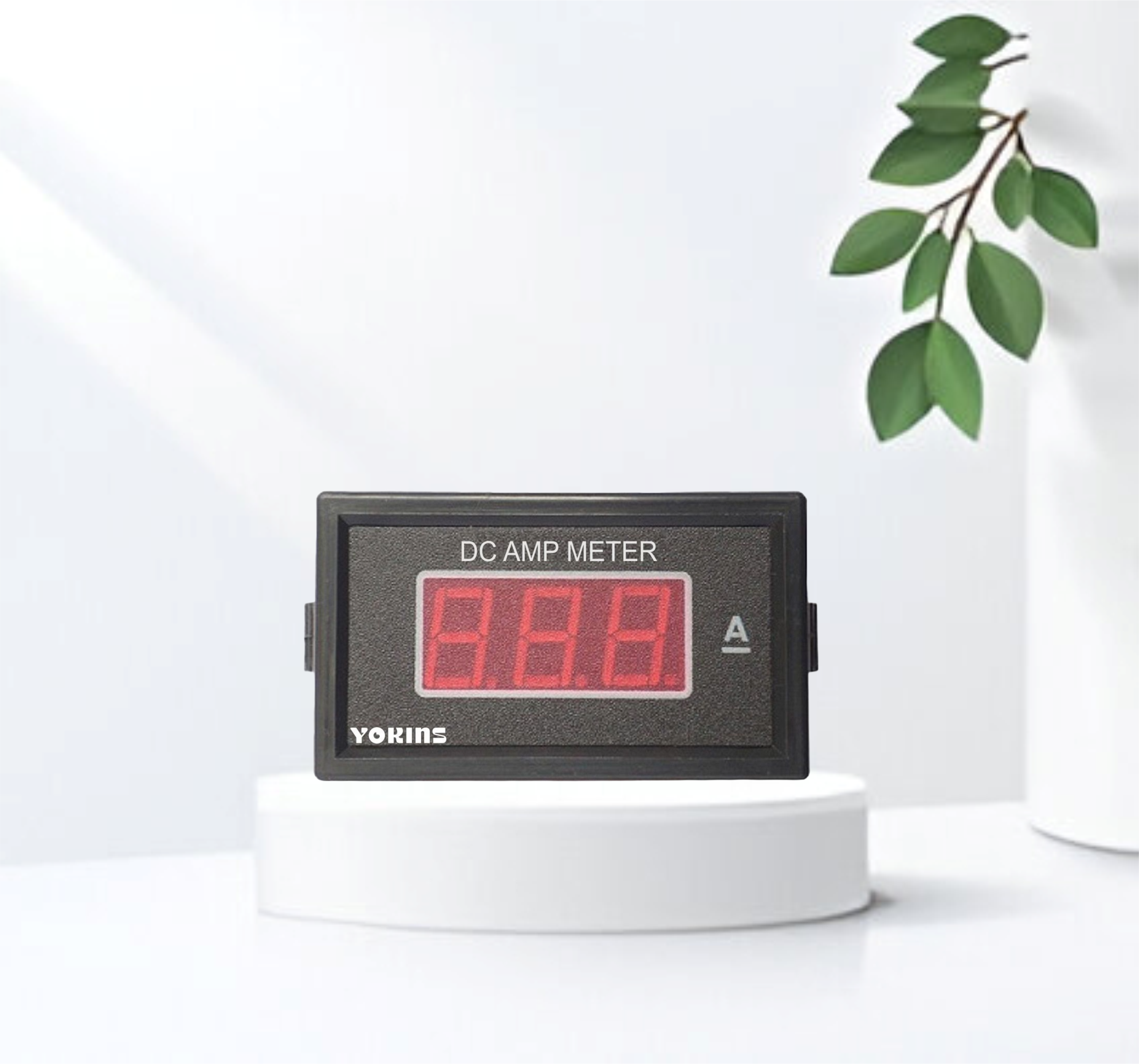

DC Ammeter - Yokins Instruments
DC Ammeter - Yokins Instruments
Compact Digital Displays

DC Ammeter

INR

A DC ammeter is an electronic instrument used to measure direct current (DC) amperage (current flow) in a circuit. Unlike a voltmeter, which measures voltage, an ammeter is specifically designed to measure the flow of electric charge in terms of amperes (A), the standard unit for electric current.

Learn More
Buy Ammeter
Quantity
Download PDF
×

DESCRIPTION

Yokins Instruments Pvt. Ltd. Compact Digital Meter DC Ammeters are designed for customers who have space constraint and want to install a good quality meter in affordable cost.

Check our range of Compact Digital Meter Series Digital Panel Meters. Contact us Today to learn more about our products and to find the best meter for your requirements.

Product Description

Extra Details

Product Description

A DC ammeter is an electronic instrument used to measure direct current (DC) amperage (current flow) in a circuit. Unlike a voltmeter, which measures voltage, an ammeter is specifically designed to measure the flow of electric charge in terms of amperes (A), the standard unit for electric current.

Specification

DD-DA100-09, DD-DA400-09 & DD-DA500-09

  • Accuracy: +/-1%, +/-2LSB
  • Sample Speed: about 10 times/sec
  • LED Size/color: 3 digit, 0.56’,Red
  • Over Range: Display ‘H’
Extra Details
DIMENSION TechBrij: HTML Table
ModelDD-DA100-09DD-DA400-09DD-DA500-09
Dimension70*41mm70*41mm70*41mm
Mounting Size68*38mm68*38mm68*38mm
ORDERING INFORMATION TechBrij: HTML Table
ModelRangeMaximum DisplayResolutionAuxiliary Supply
DD-DA100-090-100A/75mV DC (Through Shunt)99.90.19V AC/DC with two white wire
DD-DA400-090-400A/75mV DC (Through Shunt)40019V AC/DC with two white wire
DD-DA500-090-500A/75mV DC (Through Shunt)50019V AC/DC with two white wire

FAQ

  • 1. What is a DC ammeter?

    A DC ammeter is a device used to measure the direct current (DC) flowing through a circuit. It displays the current in amperes (A) and is connected in series with the load or circuit to measure the current flow.

  • 2. How does a DC ammeter work?

    A DC ammeter works by measuring the amount of electric charge flowing through a circuit. When connected in series, the current flows through the meter, which then displays the value based on internal measurement circuits, often using a shunt resistor or magnetic field to determine the current.

  • 3. What is the difference between a DC ammeter and a DC voltmeter?

    • A DC ammeter measures the current (flow of charge) in amperes (A).
    • A DC voltmeter measures the voltage (potential difference) between two points in a circuit in volts (V).
