Basic Series

AC Voltmeter (Three Phase)

INR

Being the leader Single Phase Voltmeter Manufacturers and Suppliers, Our voltmeters are easy to use and install, with a clear and concise display

Learn More
Buy Product
Quantity
Download PDF
×

Product Description

FEATURES

specifications

Extra Details

Product Description

An AC Voltmeter (Three Phase) is a device used to measure the voltage in a three-phase AC (Alternating Current) system. In a three-phase system, the AC voltage fluctuates in three separate phases, typically spaced 120 degrees apart, and the voltmeter is designed to measure the voltage in each of these phases.

FEATURES
  • Displays Line to Line Voltage, Line to Neutral Voltage, Average voltages and system frequency.
  • Password Protected.
  • True RMS measurement of parameters.
  • Auto/Manual scrolling of parameters
  • Easy Programming with push buttons on front facia.
  • RS-485 Communication optional.
  • Relay Output for alarm can be provided.(optional)

Specification
TechBrij: HTML Table
Display4 Digit Red LED Super Bright Display
Digit Height0.56"/14.2.mm
Maximum display9999 (Max.) Counts
Resolution0.001 to 1 Count Depending on Range/ Scale Display
Display StabilityWith in ±1 Digit
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary
& Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer 8.0ms
Maximum OverloadVoltage 1.2 Times Continuous
TechBrij: HTML Table
Frequency Response40-400 Hz
Auxiliary Supply150-300V AC, 45-270V AC /DC, 19-60V AC /DC
Input Voltage0- 750V AC(Direct)
PT Primary Range50 to 500kV AC Programable
PT Secondry Range50 to 500V AC Programable
Accuracy Class1 & 0.5 (Freq. Measurement of Class 0.2)
VA (Burden)
Auxiliary≤1.5 VA
Voltage Input≤1.0 VA
Environment
Calibration27⁰C ± 5⁰C
Operating0⁰ to + 60⁰C, RH<70%
Storage-10⁰ to +70⁰C, RH<70%
Metering StandardIEC62052-11
Extra Details
DIMENSIONS (mm) TechBrij: HTML Table

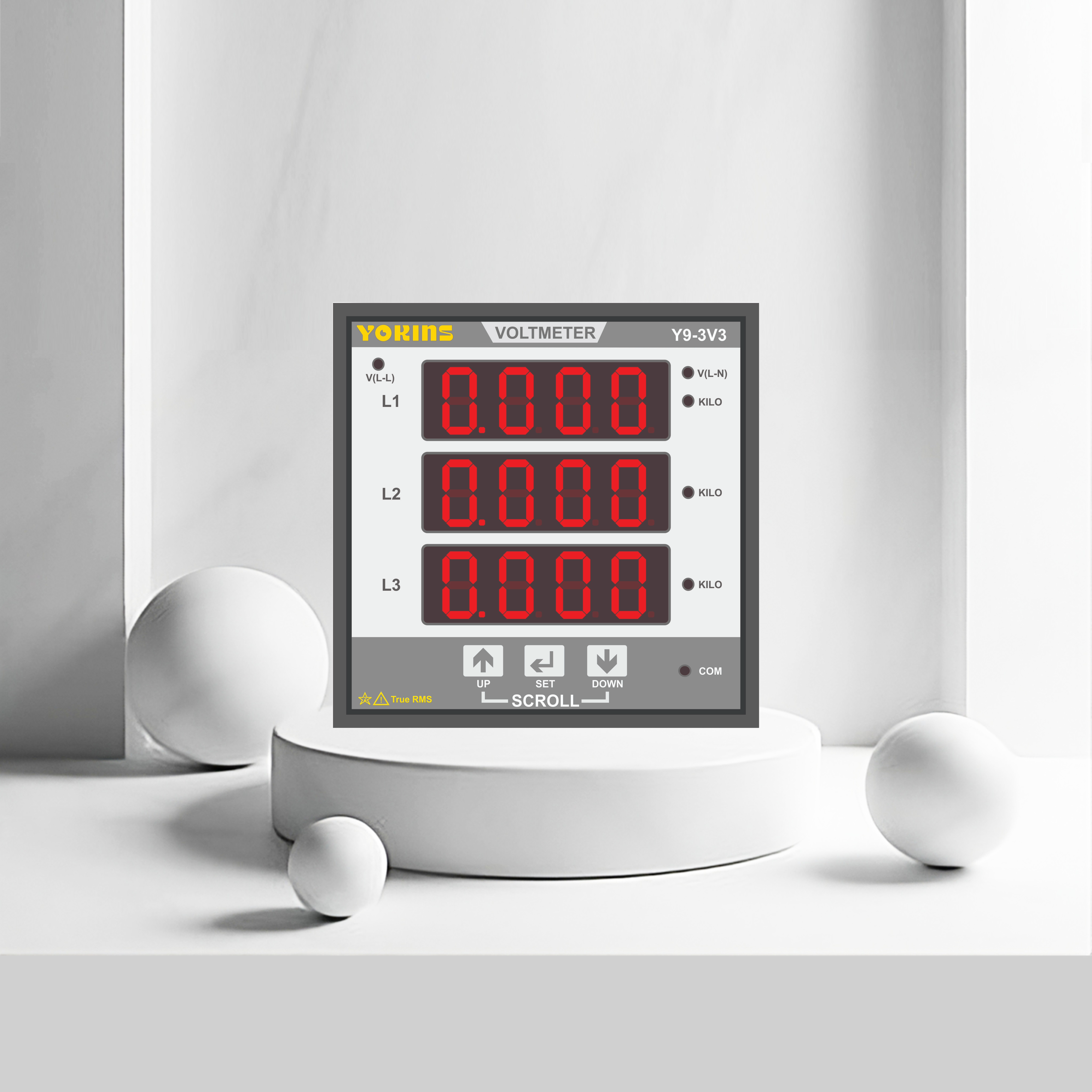

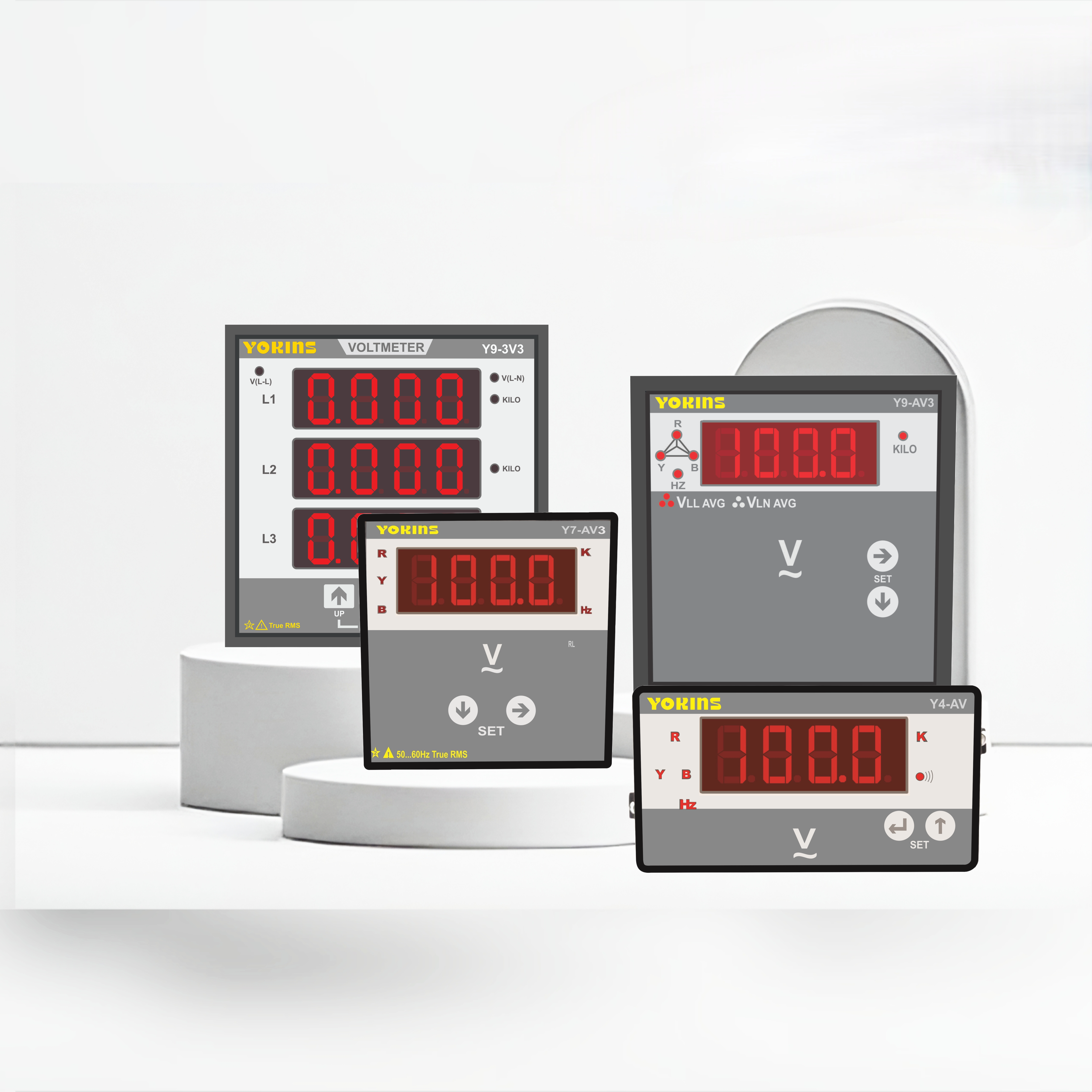

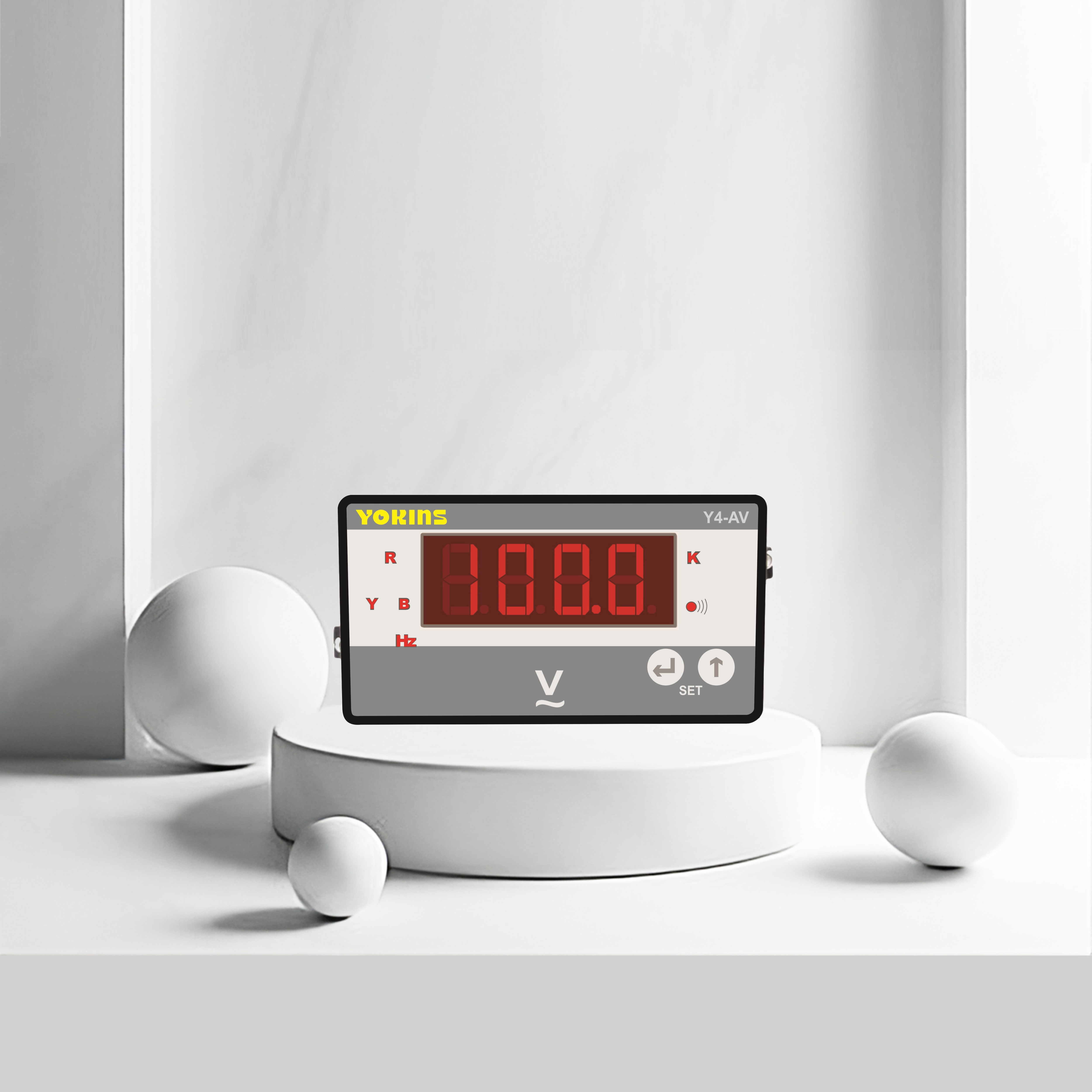

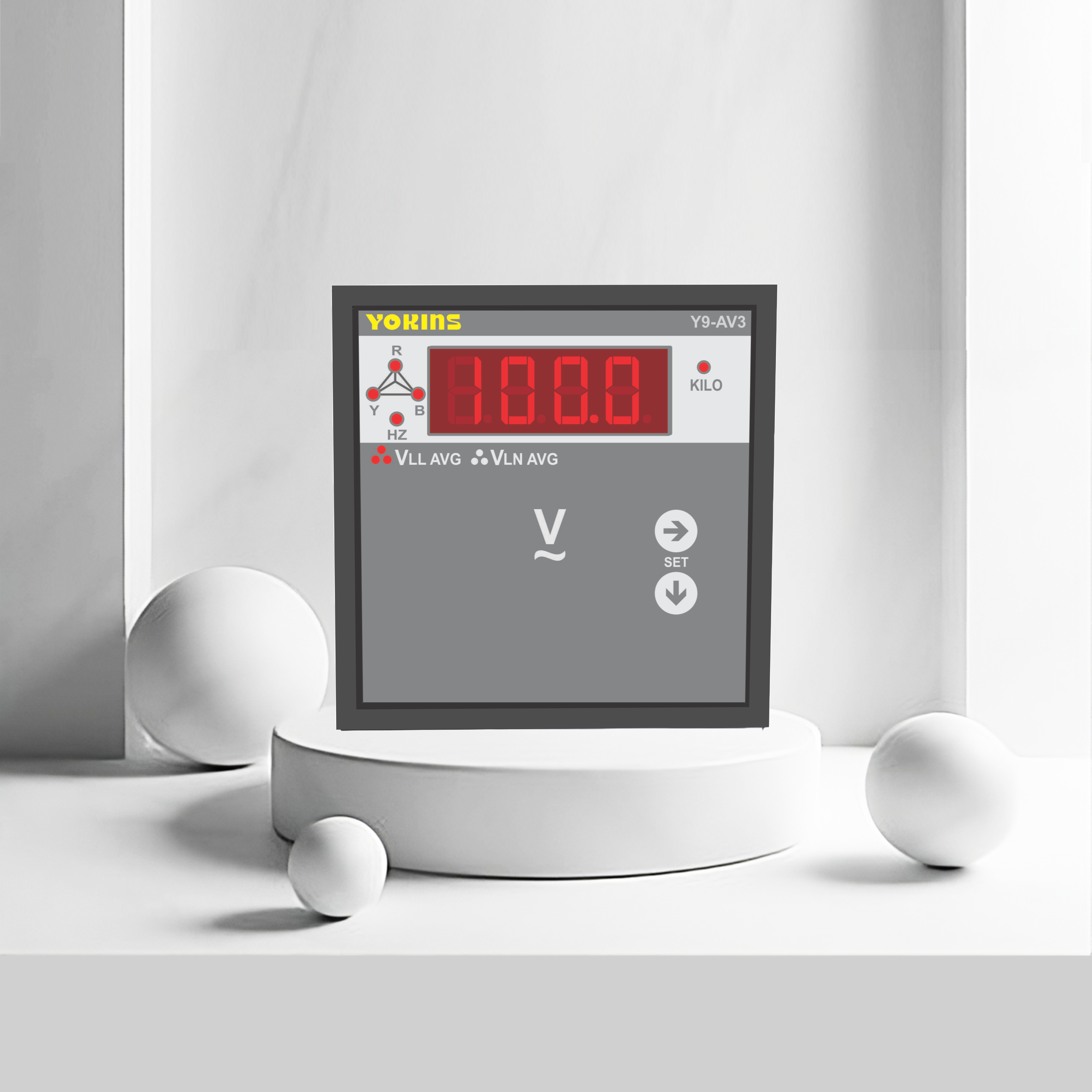

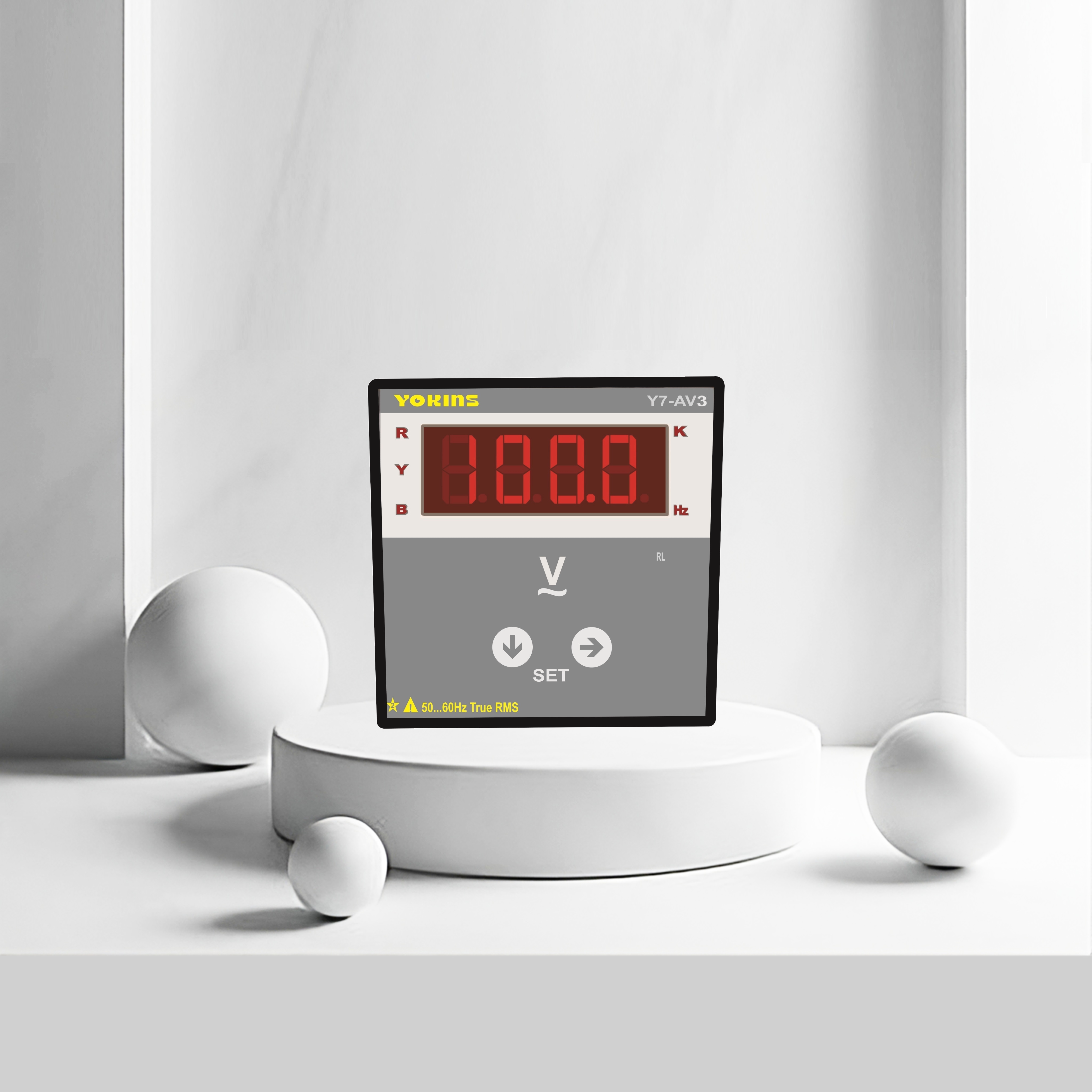

MODELY9-AV3Y7-AV3Y4-AV3Y9-3V3
FRONT96 x 9672 x 7248 x 9696 x 96
DEPTH (Behind Bezel)39.5597452
Panel Cut -Out92 x 9268 x 6844 x 9292 x 92
ORDERING INFORMATION TechBrij: HTML Table
MODELMEASURING RANGEACCURACY CLASSAUX SUPPLY
Y9-AV320-600V (Line to Neutral)/30-1000 (Line to Line)1.0/0.5150-300V AC(TX Supply)/45-270V AC/DC/19-60V AC/DC
Y7-AV320-600V (Line to Neutral)/30-1000 (Line to Line)1.0/0.5150-300V AC(TX Supply)/45-270V AC/DC/19-60V AC/DC
Y4-AV320-600V (Line to Neutral)/30-1000 (Line to Line)1.0/0.5150-300V AC(TX Supply)/45-270V AC/DC/19-60V AC/DC
Y9-3V320-600V (Line to Neutral)/30-1000 (Line to Line)1.0/0.5150-300V AC(TX Supply)/45-270V AC/DC/19-60V AC/DC

FAQ

  • 1. What is a Three-Phase AC Voltmeter?

    A Three-Phase AC Voltmeter is a device used to measure the voltage in a three-phase electrical system. It measures both the individual phase voltages and the line-to-line voltages in a three-phase alternating current (AC) setup.

  • 2. What is the difference between phase voltage and line voltage?

    • Phase Voltage: The voltage measured between any one phase (e.g., R, Y, or B) and neutral.
    • Line Voltage: The voltage measured between any two phases in the system (e.g., between R and Y).

    In a three-phase system, line voltage is √3 (approximately 1.732) times the phase voltage.

  • 3. What voltage range can a Three-Phase AC Voltmeter measure?

    The voltage range of a three-phase AC voltmeter can vary depending on the model, but it generally measures from low voltages (such as 110V or 230V) up to high voltages used in industrial settings (up to several kilovolts).
