DESCRIPTION
Yokins Instruments Pvt. Ltd. Meter are used for measurement of AC Energy or KWH in various applications, these are panel mounting meters which can be installed in control panels to monitor Energy consumption. These are microcontroller based and ensure accurate and reliable energy measurement, even in the most challenging conditions. We offer both single phase and three phase panel mounting energy meters. Our meter is more than just an energy meter. It also measures voltage, current, power factor, and frequency, giving you a complete picture of your energy consumption. Our meters are fully programable so that you can set PT ratios and CT ratios as per your requirement. Our meter is designed to be easy to install and use, even for non-technical users. It comes with clear instructions and a user-friendly interface. Our meter is compact and lightweight, making it easy to mount in any location. Our meter is made with durable materials and construction, so you can be sure it will last for years to come. Our meter is offered at an affordable price, making it a great value for your investment. We offer a comprehensive warranty on our meter, so you can be confident in your purchase.
Â
We are confident that you will be satisfied with our Energy Cum Multifunction Meter.
Â
We offer a wide range of Energy Series Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.
FEATURES
- 1 Rows of 6 Digit RED Seven Segment
- Displays Active Energy(kWh) or
- apparent energy(kVAh) [USER SETTABLE].
- Active & Apparent energy - Energy
- accumulation /integration, reverse lock,
- saved in external flash
- Old energy register back-up for re-start
- energy reading.
- Auto / Manual Scroll Display
- (User selectable)
- User Programmable CT Ratio,PT RATIO
- TRMS Measurement
- RS 485 Port (5KV Isolated( (Optional)
- MODBUS RTU Protocol (Optional)
- Single Relay Output for alarm can be
- provided.(optional)

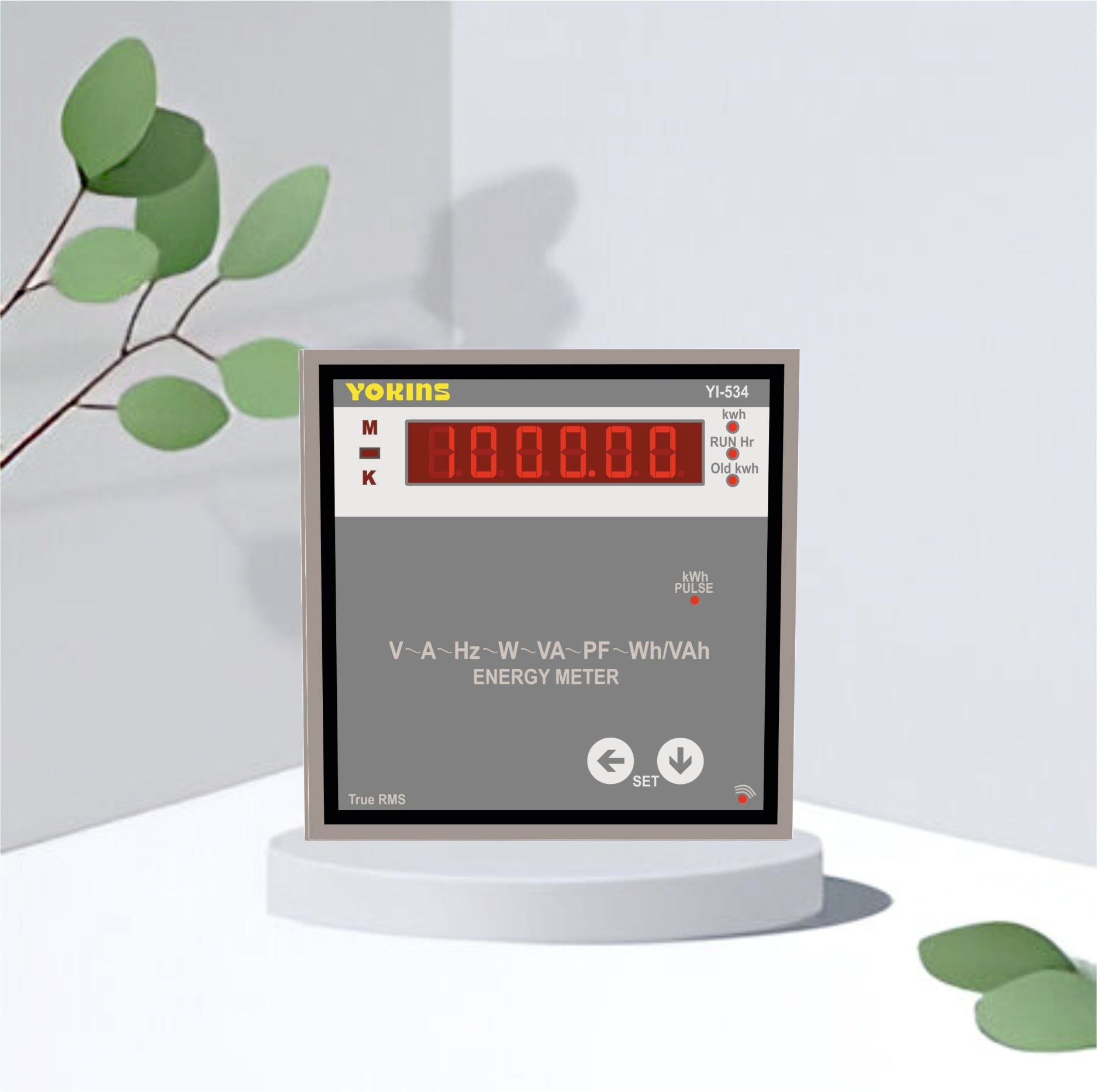

- 3 Phase 3 element 4 wire system (YI-534),
- 1 Phase 2 wire 1 element(YI-532)
SPECIFICATION
| RMS Voltage | 20- 600Vrms (Accuracy - £0.5% FS +1 dgt.) |
| RMS Current | 0,020 - 10.00Arms (Accuracy :- £ 0.5% FS +1 dgt.) |
| Active Power | 0.030-6.000 KW (Accuracy :-Â 0.5% ES +1 dgt.) |
| Power Factor | 0.3Llag-10-0.3 Lead (Accuracy -+ 0.01 PE +1dgt.) |
| Line Frequency | 45.00 - 65.00 Hz (Accuracy - +0.1Hz) |
| Active Energy (KWh) | 000000.00 - 999999.99 Kwh (Accuracy Class 1,0.5) |
| Apparent Energy (KVAh) | 000000.00 - 999999.99 KVAh (Accuracy Class 1,0.5) |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF, Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Polarity Indication | L(Laggine/Inductive) or C(Leading/Capacitive) |
| Under Range Indication | Error Code 01 Blinking when Current Non Detectable |
| Dielectric Strength | 2.5KV @50 Hz 1 minute between Input -Auxiliary |
| & Case - Terminals | |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | Per8.0ms |
| Maximum Overload | Voltage 1.2 Times Continuous, Current 2 Times Continuous |
| Auxiliary Supply | 150-300V AC, 45-270V AC |
| DC, 19-60V AC /DC | |
| Â | Â |
| VA (Burden) | Â |
| Auxiliary | <2.5 VA |
| Voltage Input | <0.2 VA / Phase |
| Current Input | <0.2 VA / Phase |
| Â | Â |
| PT Primary Range | 50 to 500kV AC Programable |
| PT Secondary Range | 50 to 500V AC Programable |
| CT Primary Range | 1A to 50kA AC Programable |
| CT Secondary Range | 0.5A to 5A AC Programable |
| Metering Standard | IEC 62053-21/22 |
| Installation Category | Cat II (IEC / EN61010 - 1) |
| Pollution | Degree 2 (IEC / EN61010 - 1) |
| Environment |  |
| Calibration | 27°C ± 5°C |
| Operating | 0° to 50°C, RH <70% |
| Storage | -10° to 60°C, RH < 70% |
| Dielectric Strength | 2.5 KV at 50 Hz for 1 mm |
| Insulation Resistance | > 20 MOhms at 500 V DC |
DIMENSIONS (MM)
| MODEL | YI-532/534 |
| FRONT | 96 X 96 |
| DEPTH (Behind Bezel) | 52 |
| Panel Cut -Out | 92(+0.8-0.0) X 92(+0.8-0.0) |
ORDERING INFORMATION
| MODEL | PARAMETERS DISPLAYED | ACCURACY CLASS | AUX SUPPLY |
| YI-532 SINGLE PHASE | Voltage (Line to Neutral)    Active Energy (kwh) Current                                        Apparent Energy (kvah) Frequency(Class 0.2)              Load Hours Power Factor (Class 0.5) Active Power (W) |
1.0 0.5 |
45-270V AC/DC 19-60V AC/DC 150-300V AC/DC |
| YI-534 THREE PHASE | Voltage (line to Line)        Active Energy (kwh) Voltage (Line to Neutral) Apparent Energy (kvah) Current                                     Load Hours Frequency (Class 0.2) Power Factor (Class 0.5) Active Power (W) |
1.0 0.5 |
45-270V AC/DC 19-60V AC/DC |
TERMINAL CONNECTION
TERMINAL CONNECTION
