Oil DI-Electric Test Set
Product Description

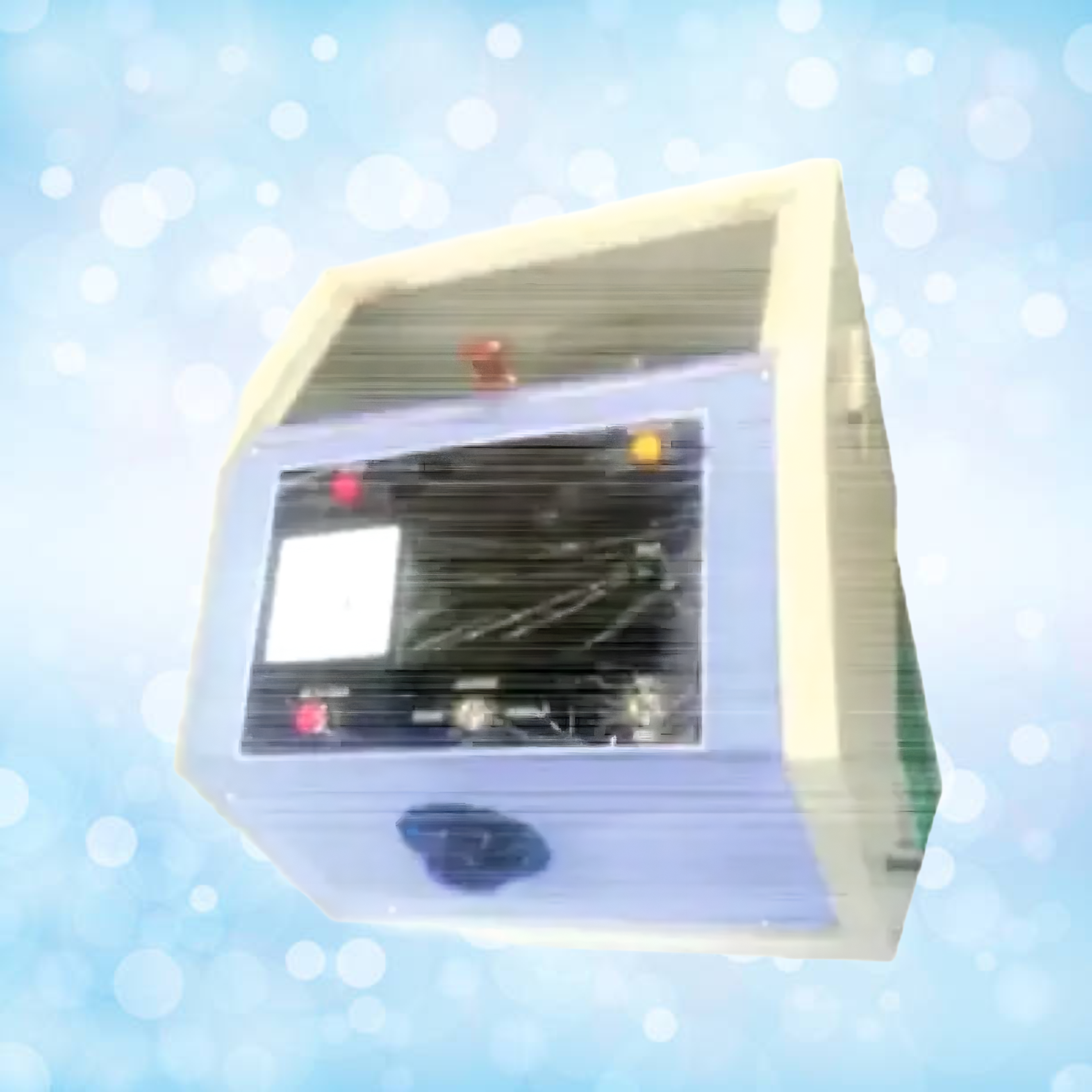

Oil Di-electric Test Set
- Input-230vac (Single Phase) ± 10%
- Output-0-60 KV,0-80KV, 0-100KV, 0-120KV.
- Duty-5min on/15 min off
- Capacity-0.6KVA TO 1.2KVA
- Control-motorized or manual.
- Metering-AC primary side.
- Output-Raising casted type busing
Protection
- Fuse input side
- A fast acting relay in case of fault/ when current exceed the preset value.
- Zero start, cage door, over voltage, provided.
- Control panel & HV Transformers air cooled.
Indication
- LT on, HT on/off, zero
Push button
- HT ON/OFF Increase/decrease
Tripping range
- 10mA
Meter Type
- AC kV meter, (size 96/96 Analog or digital type as customer required).
Resolution
- 0.1 (Digital)
Accessories
- Input lead 3meters.
- Oil cup with electrode
- Earthing lead 5meters.
Size of set
- Panel (460mm/460mm/460mm)±10%
