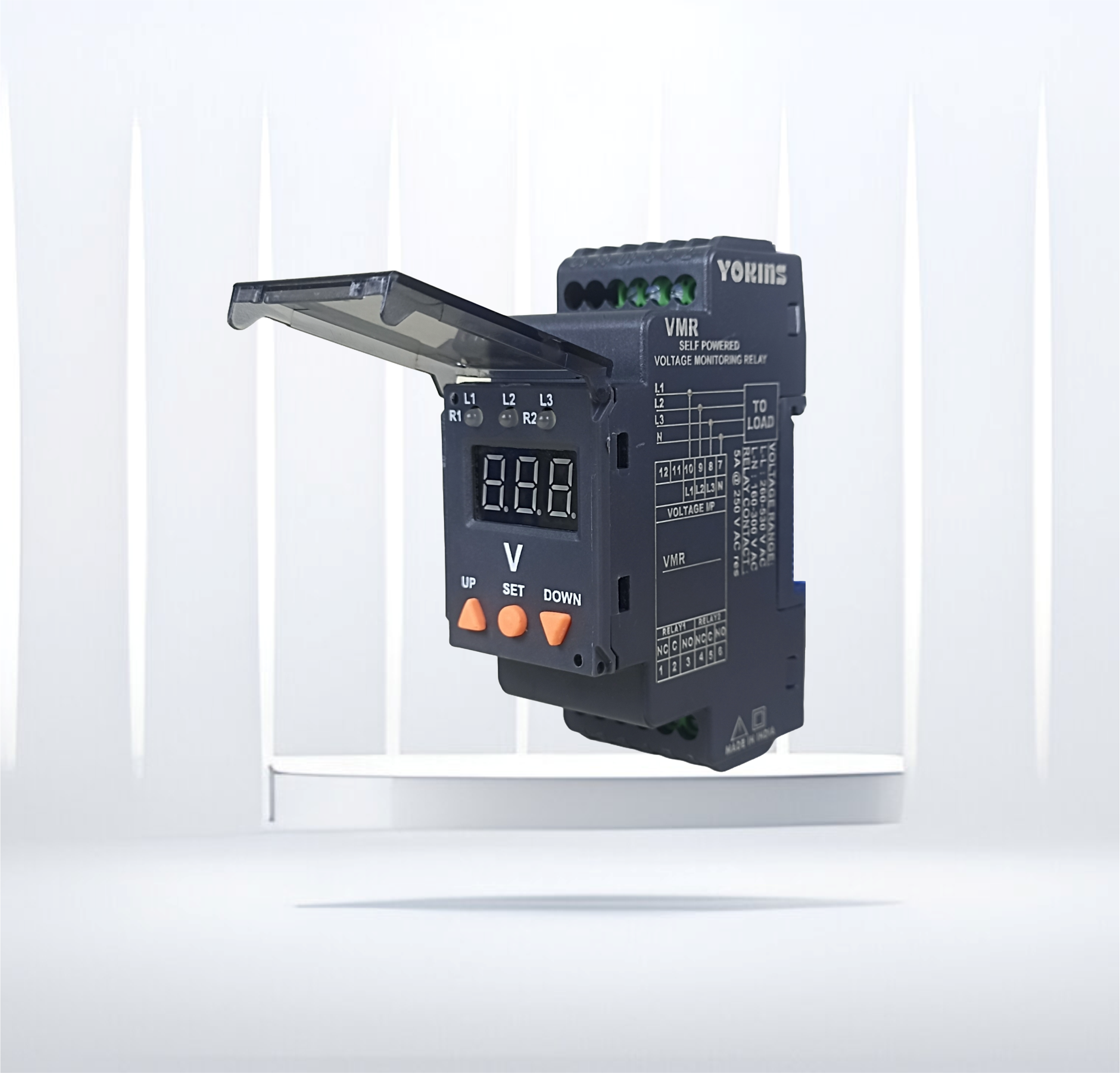

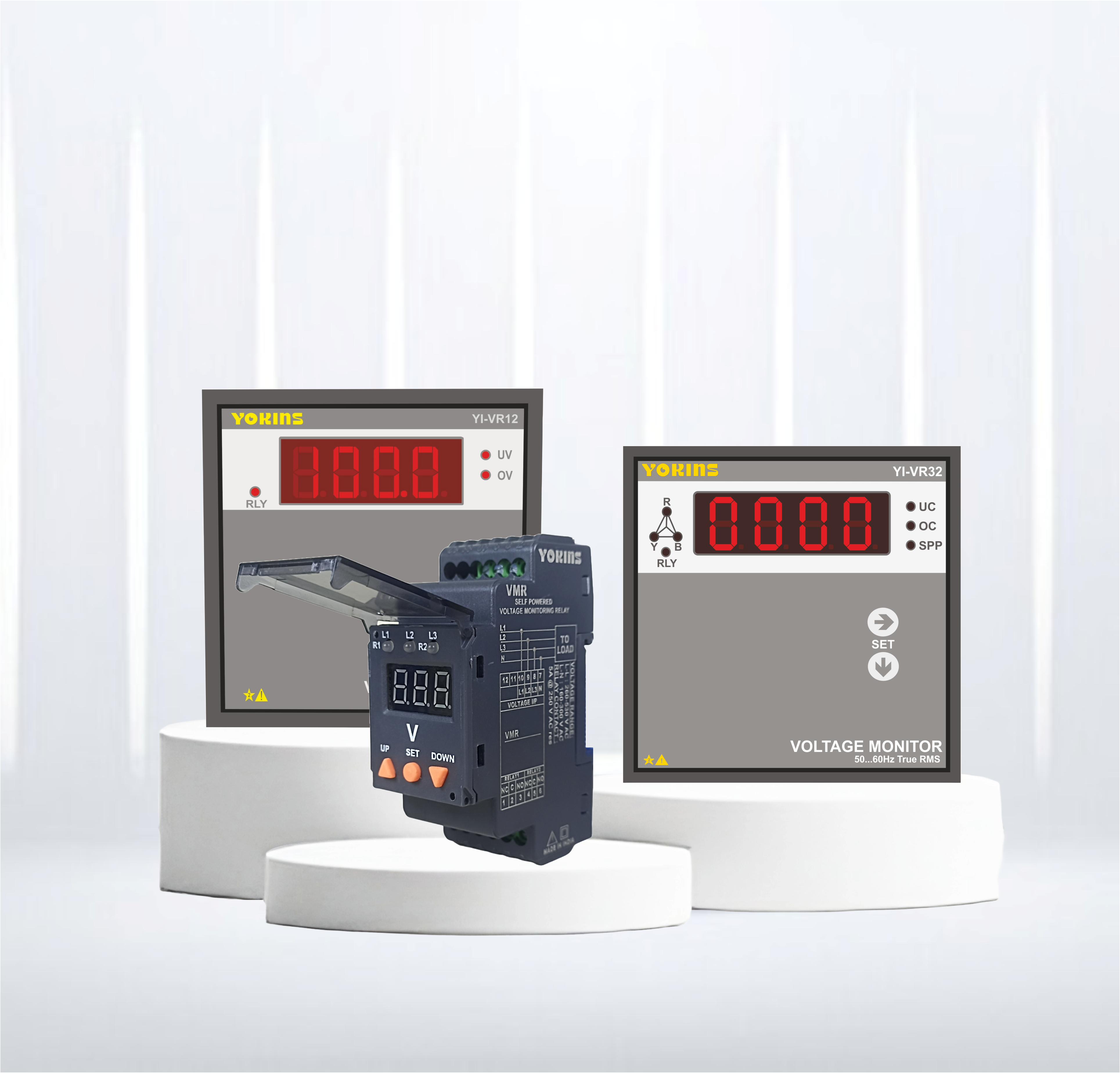

DESCRIPTION
Yokins Instruments Pvt. Ltd. voltage monitoring relays are incredibly accurate. Our Numerical Voltage monitoring relay is fully programable with exact setting of setpoints it offers very good accuracies. This means that your equipment is always protected from overvoltage and undervoltage conditions. Our voltage monitoring relays are designed to be incredibly reliable, with a long lifespan and a high MTBF (mean time between failures). This means that you can be confident that your equipment will always be protected, even in the most demanding environments.
We are the leading Voltage Monitoring Relays manufacturers and suppliers, our voltage monitoring relays also known as VMR are manufactured to the highest quality standards, using only the best components. They can be customized for various ranges as per customer’s specific requirement, which makes it very versatile product.
Â
Choose from our wide range of Numerical Relays or contact us to get Detailed Information about our Products.
SPECIFICATION
| RMS Voltage | 20-600Vrms (Accuracy - +0.5% FS +1 dgt.) |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF,Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Fault Indication | Error Code for all fauls. |
| Dielectric Strength | 2.5KV @50 Hz for 1 minute between Input -Auxiliary & Case - Terminals |
| Impulse Withstand | 3.5V, 1.2/50 micro Second |
| Refresh Rate | Per 8.0ms |
| Maximum Overload | Voltage : 1.2 Times Continuous |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-60V AC /DC |
| VA (Burden) | Â |
| Auxiliary | <2.5 VA |
| Voltage Input | <0.2 va/Phase |
| Â | Â |
| Relay Contact | 2. AMPS, AC POTENTIAL FREE |
| 5 AMPS,160+270V, IN HVLV WALL MOUNT | |
| Metering Standard | IEC 62053-21/22 |
| Installation Category | Cat II (IEC/EN61010-1) |
| Pollution | Degree 2 (IEC/EN61010-1) |
| Environment | Â |
| Calibration | 27°C ± 5°C |
| Operating | 0° to 50°C, RH <70% |
| Storage | -10° to 60°C, RH < 70% |
| Dielectric Strength | 2.5 KV at 50 Hz for 1 mm |
| Insulation Resistance | > 20 MOhms at 500 V DC |
PARAMETER (Voltage) / ALARM/TRIPS
- RY (Phase- Phase)
- YB (Phase- Phase)
- BR (Phase- Phase)
- Average (Phase-Phase)
- RN (Phase-Neutral)
- YN (Phase-Neutral)
- BN (Phase-Neutral)
- Average (Phase- Neutral)
ALARM/TRIPS
- Under Voltage
- Over Voltage
- Voltage Asymmetry/Unbalance
- Phase Loss
FEATURES
- Single Solution for Monitoring voltage and Protect device from voltage faults.
- Auto/Manual Scroll Display (user Selectable)
- SMPS, TRANSFORMER Power Supply
- Ideal for Protection of Industrial Motors Indicidual led for each fault.
- All tripping Parameters Fully field Programmable
- Under-Over Voltage, Phase Prevention. TRMS Measurement
- 1 Rows of 4 Digit RED Seven Segment 3phase and single phase model available.
- RS 485 Port (5kv isolated) (Optional)
- MODBUS RTU Protocol (Optional)
- One Relay Output (2 amps) available for contactor tripping.
- Contactor tripping.
DIMENSIONS (MM)

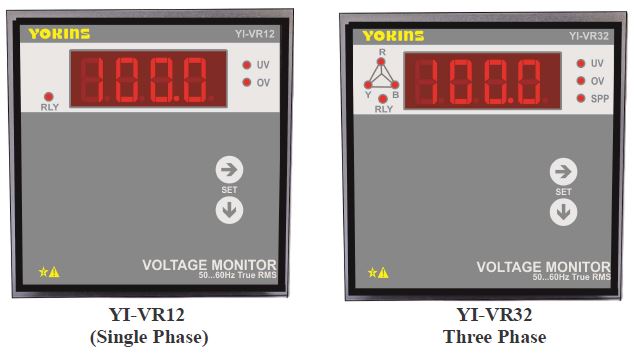

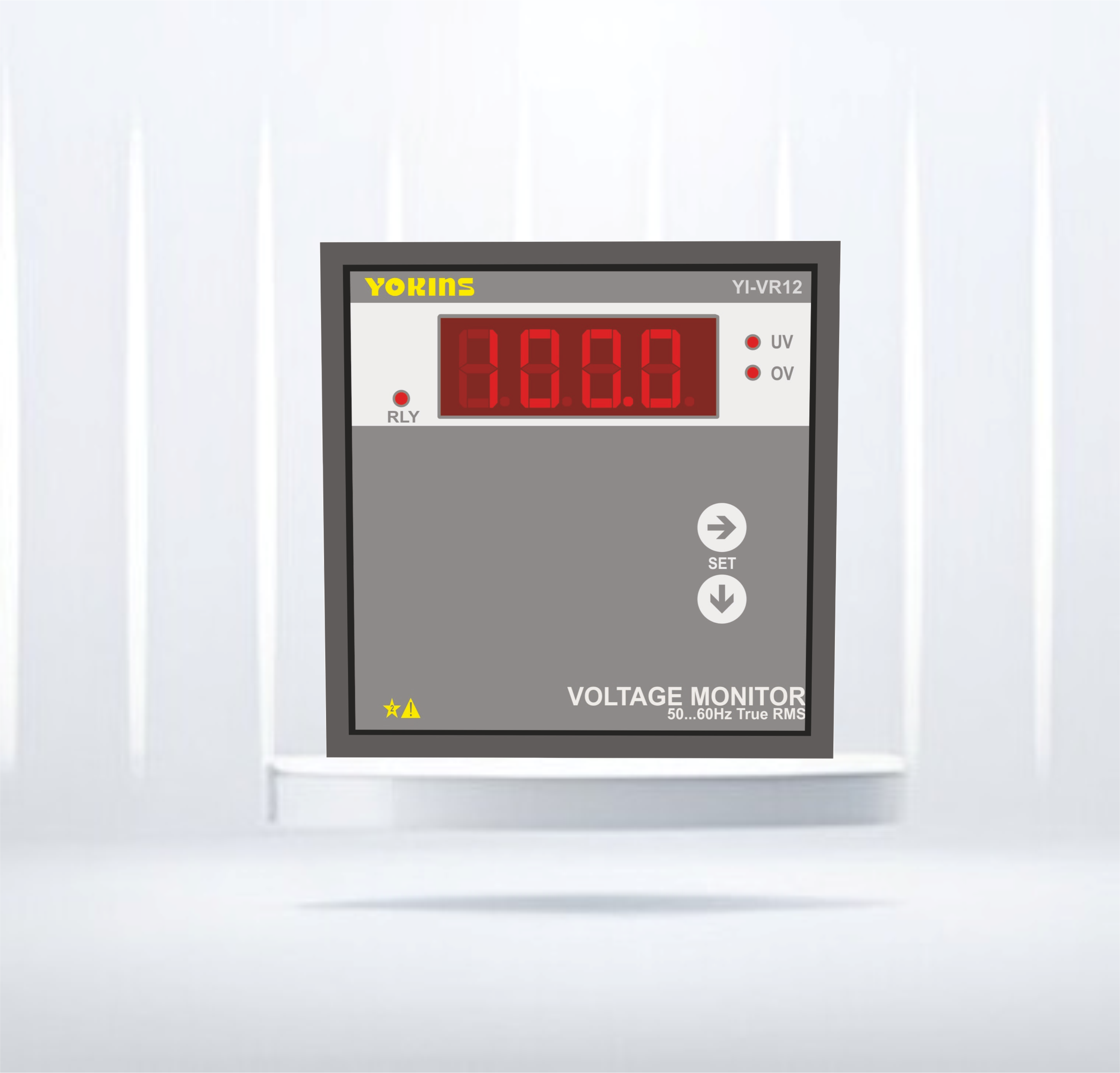

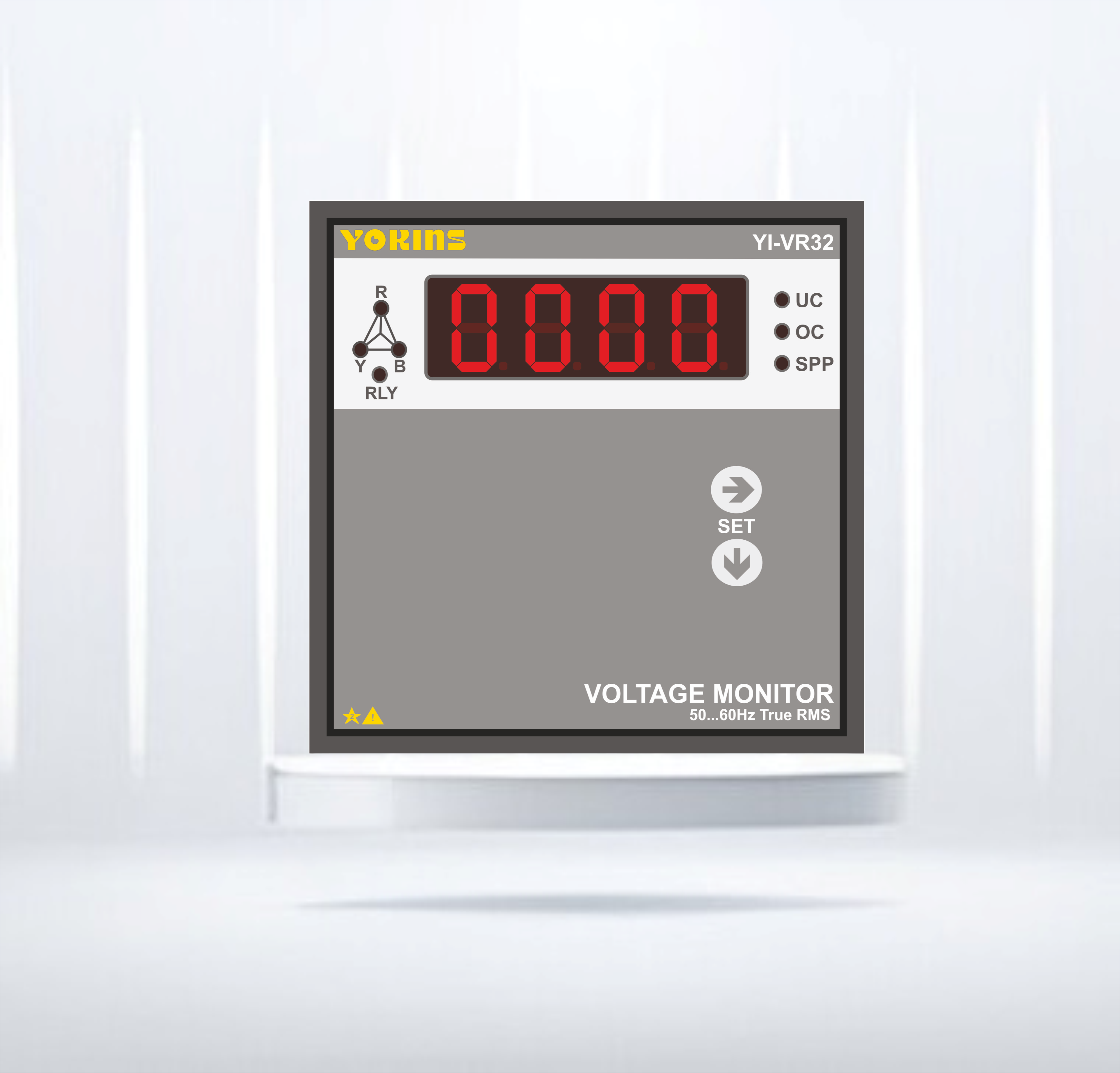

| MODEL | YI-VR12/VR32 |
| FRONT | 96 X 96 |
| DEPTH (Behind Bezel) | 39.5 |
| Panel Cut-Out | 92(+0.8-0.0) X 92(+0.8-0.0) |
ORDERING INFORMATION
| MODEL | DISPLAY & PROTECTION | ACCURACY CLASS | AUX SUPPLY |
| YI-VR32 (3PHASE) |
VOLTAGE (L-L & L-N) UNDER-OVER SPP VOLTAGE IMBALANCE |
1.0 0.5 |
150-300V AC(TX SUPPLY) 45-270V AC/DC 19-60V AC/DC |
| Â YI-VR12 (1PHASE) |
VOLTAGE (L-N) UNDER-OVER |
1.0 0.5 |
150-300V AC(TX SUPPLY) 45-270V AC/DC 19-60V AC/DC |
TERMINAL CONNECTION
