Power System HV Test Sets

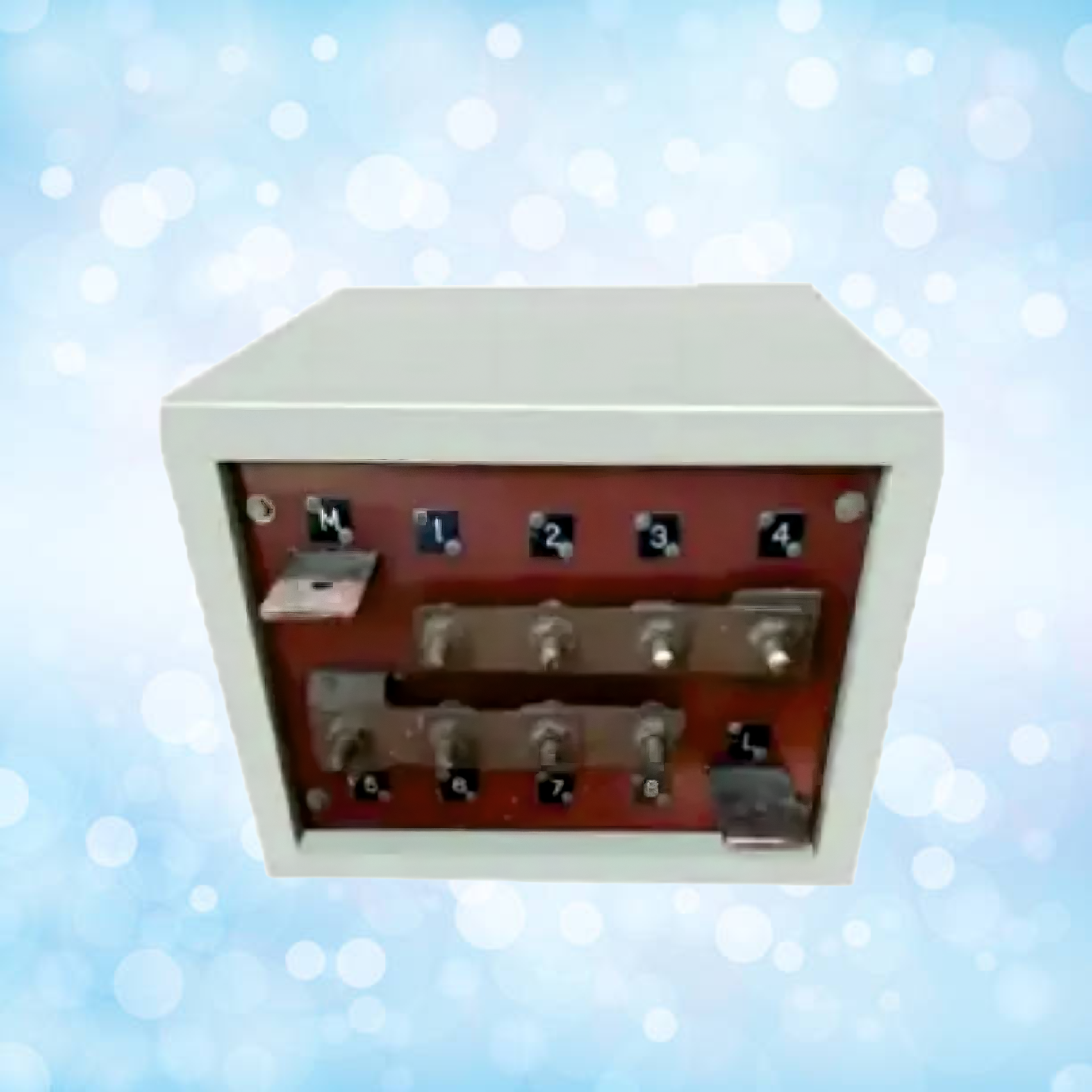

AC And DC High Current Source
Product Description
AC/DC High Current Source 0-5000Amp@ Capacity as per customer requirement
- Input-230-415vac (Single / Two Phase)± 10%
- Output-0-50Amp to 5000Amp
- Duty-15min on/15 min off
- Set-2 Part (above 300Amp)
- Control-Motorized or Manual.
- Metering-AC primary Side & DC Secondary side.
- Output-Copper Bus bar
Protection
- Fuse input side
- Control panel air cooled.
- Current Source air cooled.
- Rectifier Section are also air Cooled.
- Over Current Protection
Indication
- LT on, Output On/Off, AC & DC.
Push Button
- Output ON/OFF & Increase/Decrease.
Meter Type
- AC / DC Amp meter & Volt Meter
- (size 48/96 or 96/96 Analog or digital type as customer required).
Resolution
- 0.1 (Digital)
Size of Set
- As per Current rating
- 300Amp Size (510mmx400mmx300mm)
