DESCRIPTION
Specification
TechBrij: HTML Table
TechBrij: HTML Table
| Display | 4Digit Red LED Super Bright Display |
| Digit Height | 0.56"/14.2.mm |
| Maximum display | 0-80000 rpm. |
| Resolution | 0,001 to 1 Count Depending on Range/ Scale Display |
| Display Stability | Within 1 Digit |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF, Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Dielectric Strength | 2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | Per8.0ms |
| Maximum Overload | DC voltage : 1.2 Times Continuous of rated. |
| Sensing speeds | Slowest, Slow, Medium, Fast, Fastest. |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-60V AC /DC |
| Input Signal | 24 V DC Pulse from proximity sensor and microswitch. |
| SCALE | 0 - 8000 value. |
| Accuracy Clas | 1 & 0.5 |
| VA (Burden) | |
| Auxiliary | ≤1.5 VA |
| Voltage Input | ≤1.0 VA |
| Environment | |
| Calibration | 27⁰ C ± 5⁰C |
| Operating | 0⁰ to + 60⁰C, RH<70% |
| Storage | -10⁰ to +70⁰C, RH<70% |
| Metering Standard | IEC62053-11 |
Extra Details
DIMENSIONS (mm)
TechBrij: HTML Table

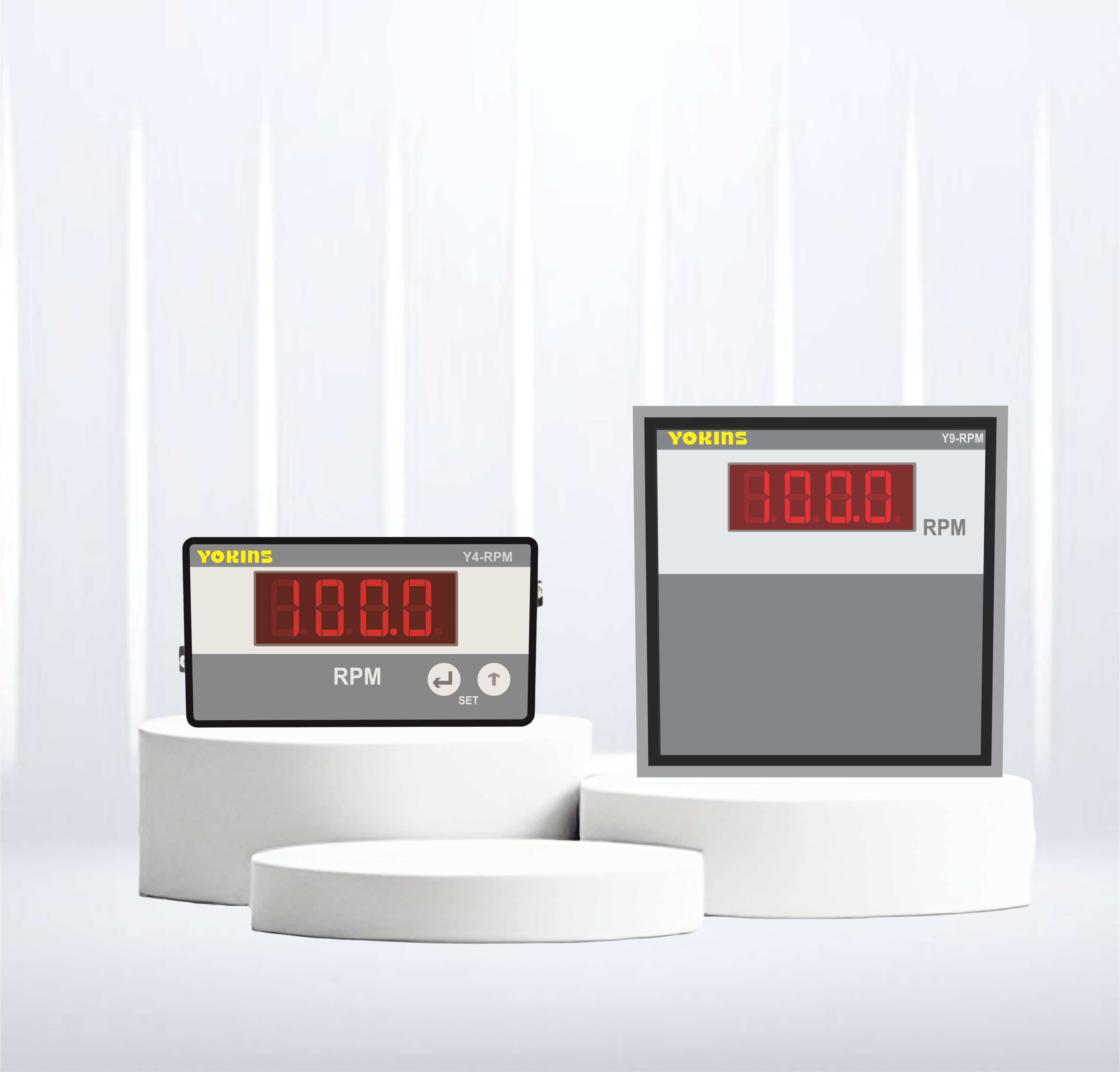

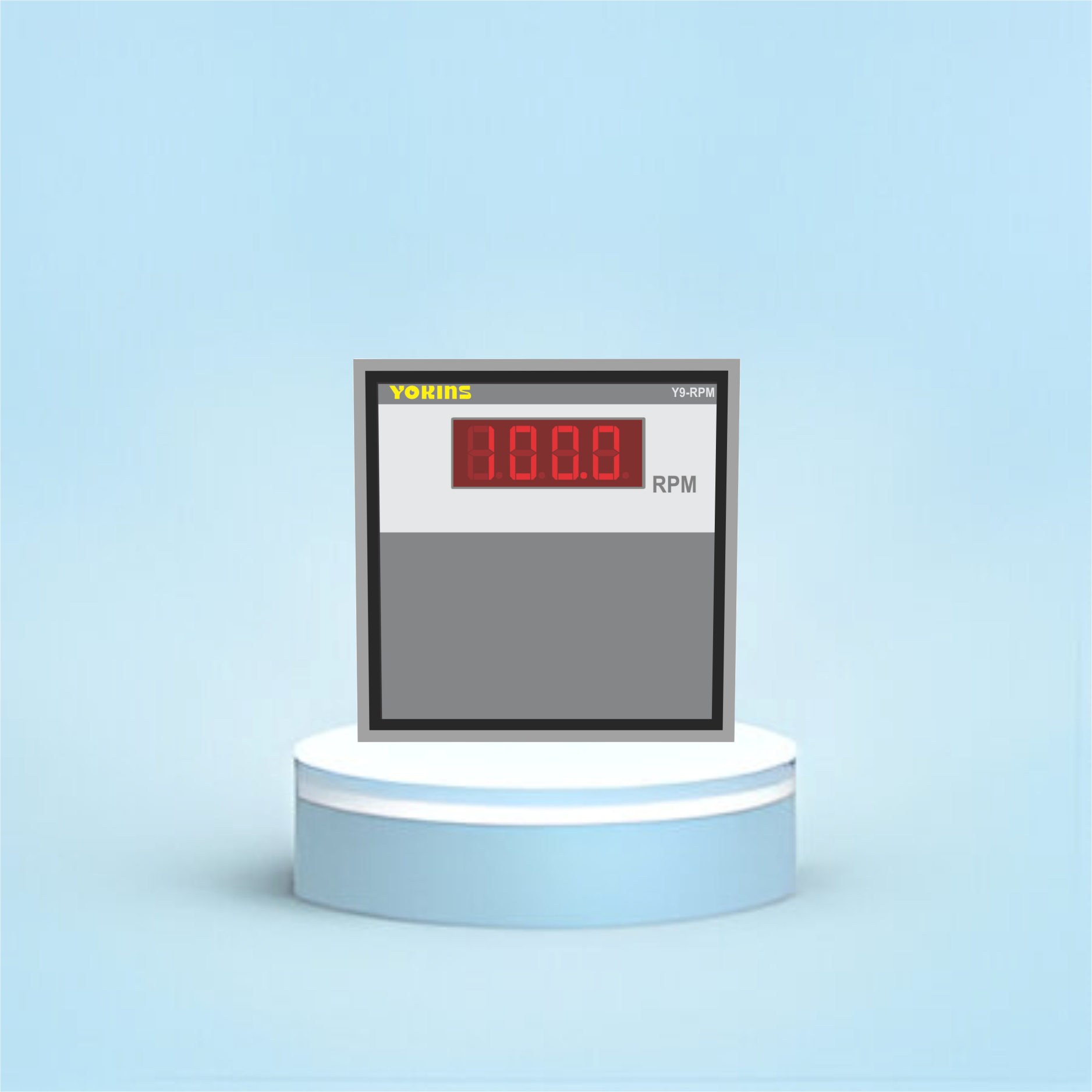

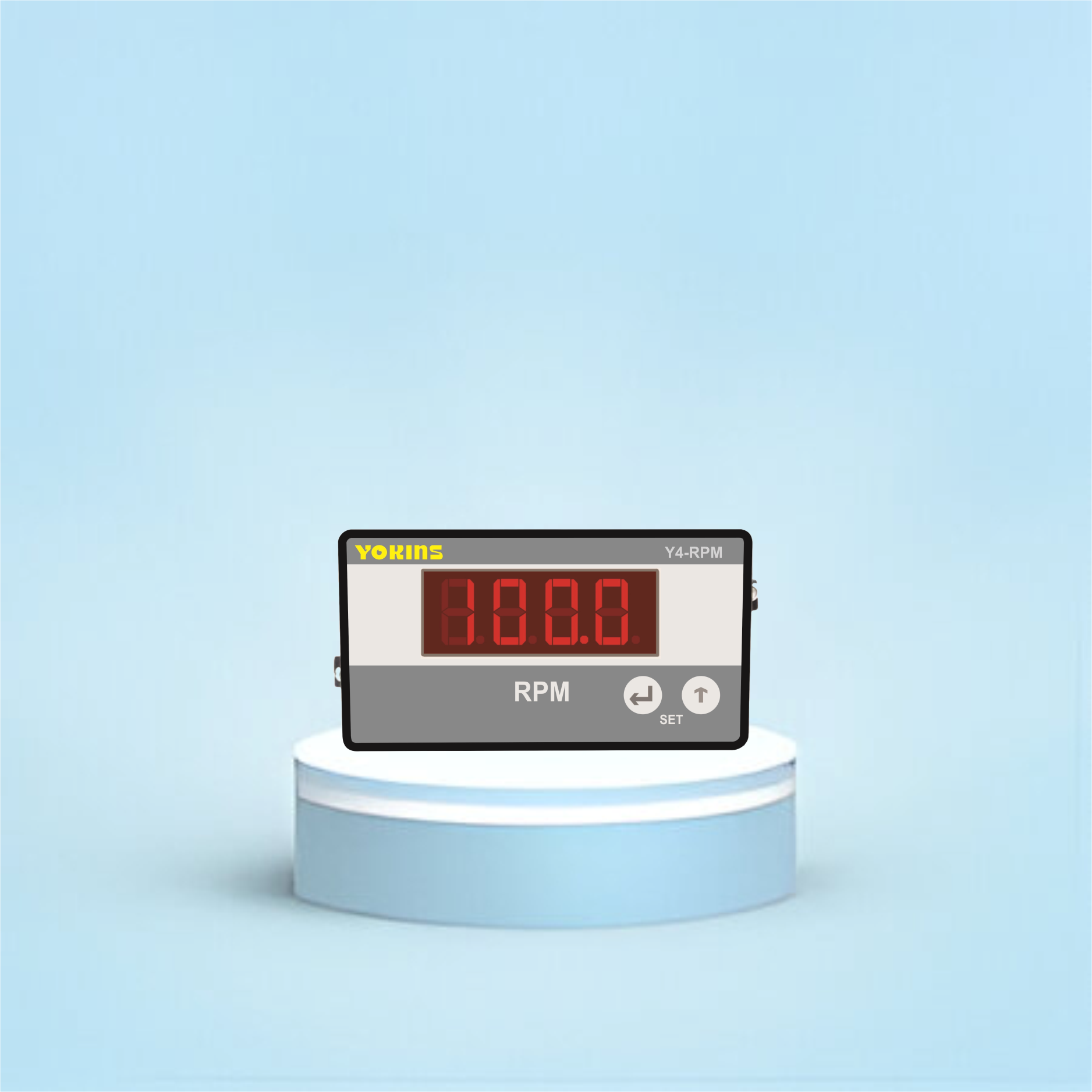

| MODEL | Y4-RPM | Y9-RPM |
| FRONT | 48 X 96 | 96 X 96 |
| DEPTH (Behind Bezel) | 74 | 39.5 |
| Panel Cut -Out | 44 X 92 | 92 X 92 |
ORDERING INFORMATION
TechBrij: HTML Table
| MODEL | SENSING VIA | ACCURACY CLASS | AUX SUPPLY |
| Y9-RPM | NPN SENSOR, PNP SENSOR, MICRO SWITCH | 1.0/ 0.5 | 150-300V AC (TX Supply), 45-270V AC/DC, 19-60V AC/DC |
| Y4-RPM | NPN SENSOR, PNP SENSOR, MICRO SWITCH | 1.0/ 0.5 | 150-300V AC (TX Supply), 45-270V AC/DC, 19-60V AC/DC |
