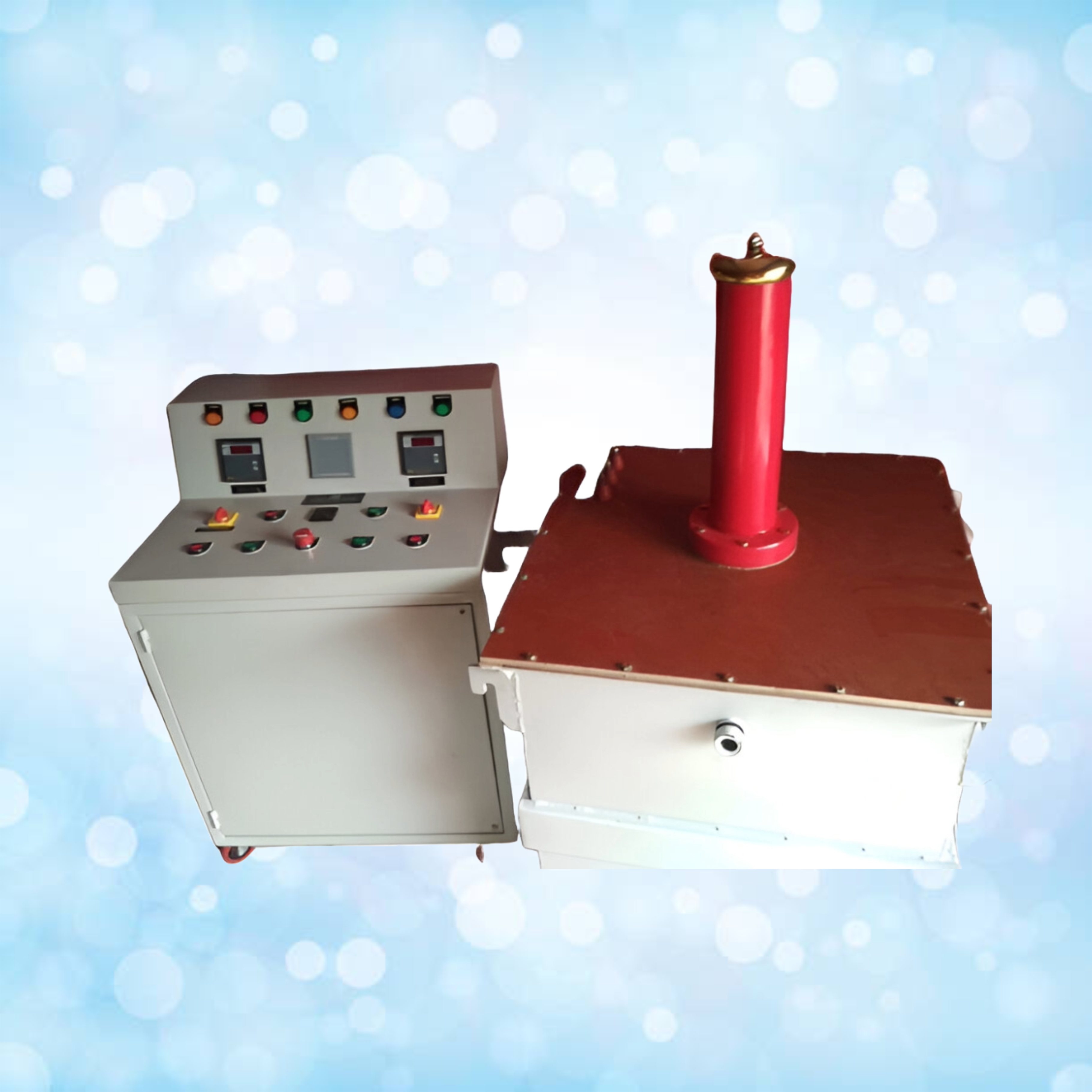

DC HV Test Set
Product Description
DC High voltage test set 0-200KV@ Current as per customer requirement
- Input-230vac (Single Phase)± 10%
- Output-0-200KV.
- Duty-15min on/15 min off
- Control-motorized or manual.
- Metering-DC secondary side.
- Output-Nylone busing.
- Set-2 part (above 90KV/10mA)
Protection
- Fuse input side
- A fast acting relay in case of fault/ when current exceed the preset value.
- Zero start, timer reset & earth interlocking provided.
- Control panel air cooled.
- HV Transformers air cooled.
- Rectifier section are also air cooled.
Indication
- LT on, HT on/off, zero, max, DC
Push button
- HT ON/OFF, Timer Start / Reset & push to Read Ma
Tripping Range
- DC-25%/50%/75%/100%.
Meter type
- DC kV meter, Ma meter DC.
- (size 48/96 or 96/96 Analog or digital type as customer required)
Resolution
- (0.1) (Digital)
Timer Digital Type
- 999 sec. (48/48)
Accessories
- Input lead 3meters.
- Output lead 10meters.
- Earthing lead 5meters.
- Connecting lead 3meters.
Size of set
- Panel (510mm/400mm/350mm)±10% (at 80KV)
