Power System HV Test Sets
AC Spark Tester
Product Description

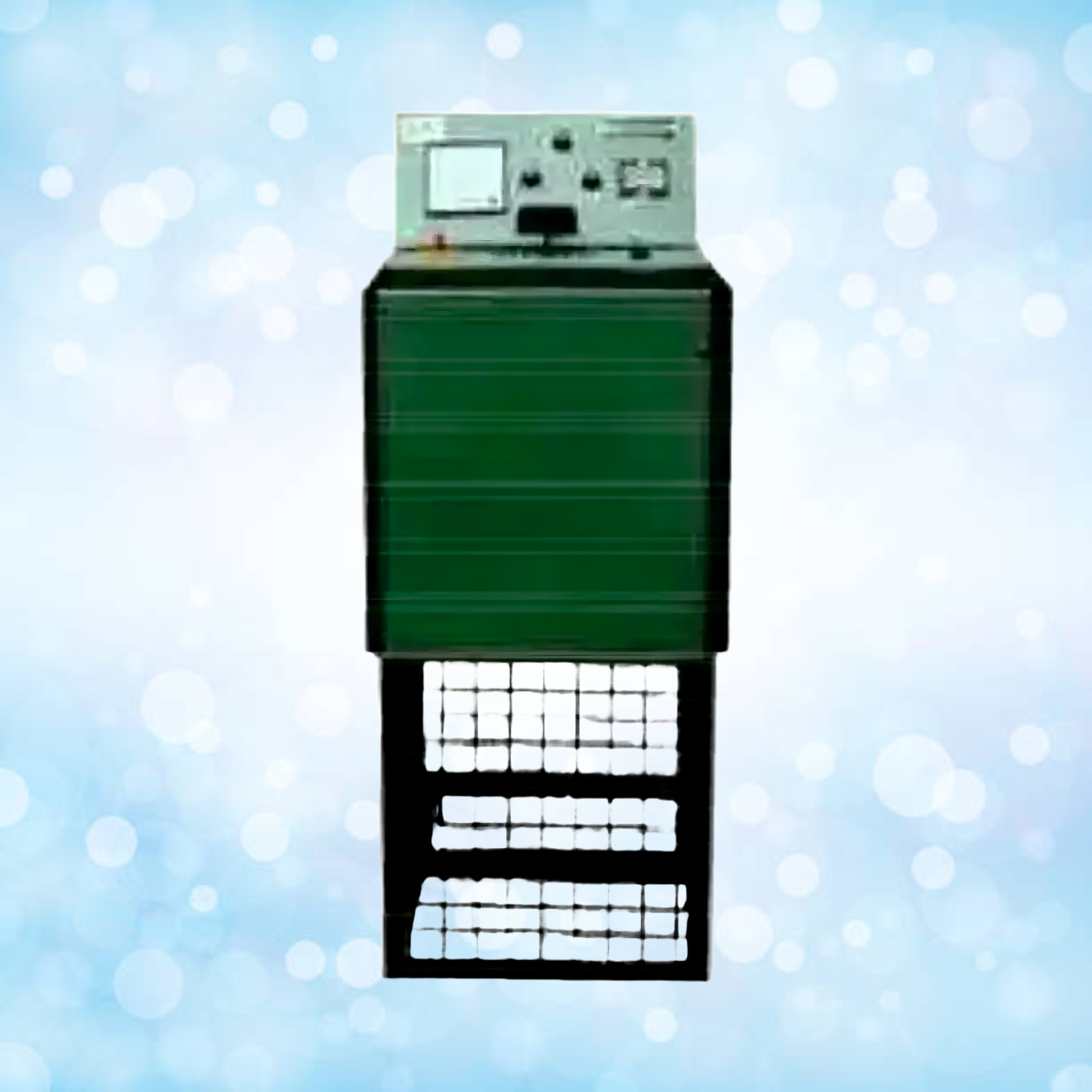

AC Spark Tester 0-50KV@ 2KVA
- Input-230vac (Single Phase)± 10%
- Output-0-50KV.
- Duty-Contiuouse.
- Control-manual.
- Metering-AC Primary side.
Protection
- Fuse input side
- A fast acting relay in case of fault/ when current exceed the preset value.
- Cage door.
- Control panel air cooled.
- HV Transformers air cooled (at 15KV)
- Trip & Trip by pass switch.
Indication
- LT on, HT on, Fault.
Push button
- HT ON
Meter Type
- AC kV meter (size 96/96 Analog
- Impluse Counter : 99999
Accessories
- Input lead 3meters.
- Output lead 1.5meters.
- Electrode box with brass ball chain
Size of set
- Panel (400mm/420mm/910mm)±10%.
