DESCRIPTION

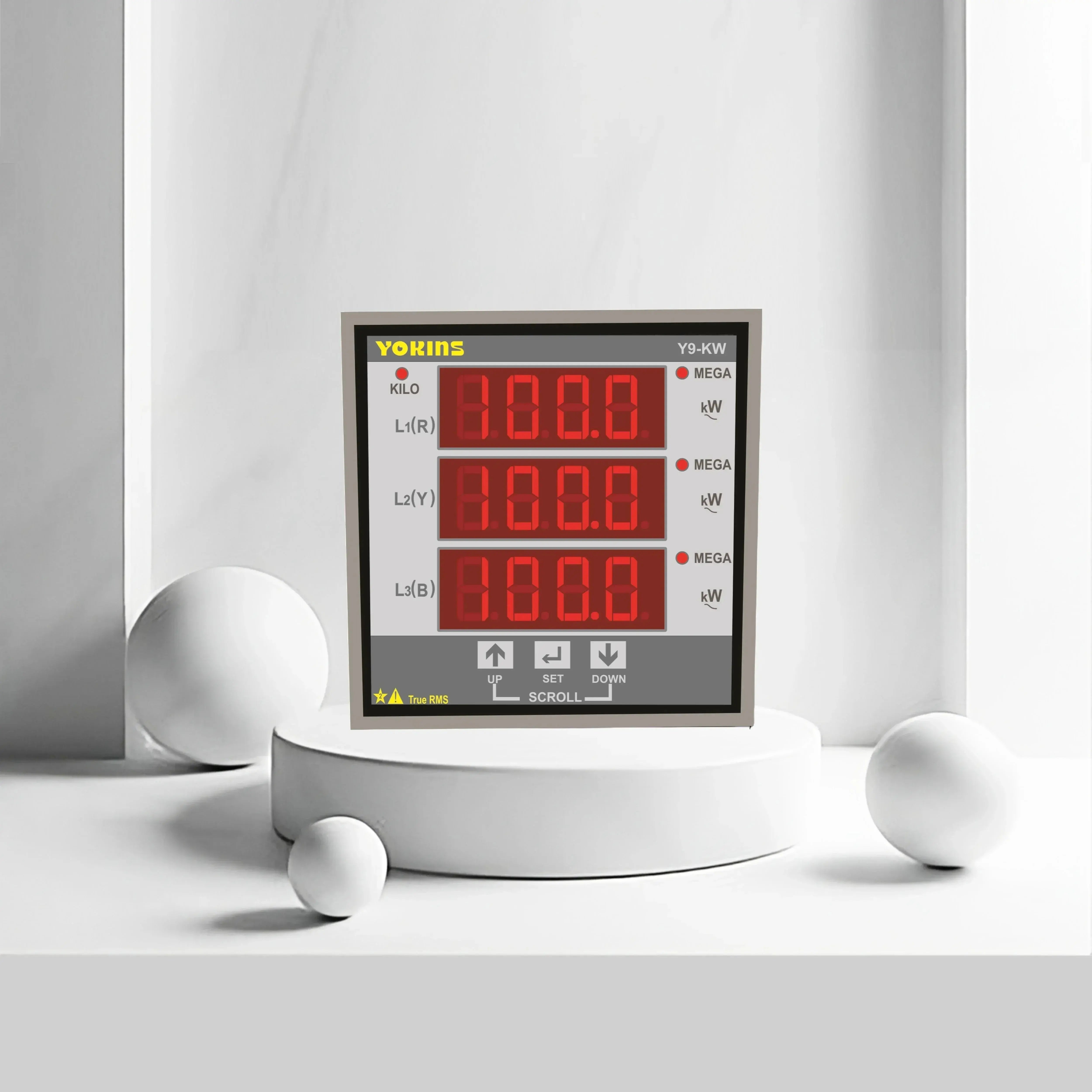

Yokins Instruments Pvt. Ltd. Watt & Kilo Wattmeter also known as power meter and KW meter can measure a wide range of power consumption, from few watts to Mega Watts, making them ideal for a variety of applications. Our meters are easy to use and install, with clear and concise instructions. Our meters are designed to be durable and robust, able to withstand the rigors of everyday use. Our meters are affordable and competitively priced, making them a great value for your money. Our MW meter are backed by a comprehensive warranty, giving you peace of mind knowing that your investment is protected. Our meters can be customized to meet your specific needs, such as different voltage and current ranges, display options, Relay Outputs and communication protocols.
Our watt & Kilo watt meter are available in single phase and three phase models
Our team of experts is always available to provide support and answer any questions you may have. Our Digital Kilo watt meter are used by professionals around the world, including engineers, electricians, and energy auditors. In short, our watt and kilowatt meters are the best because they are accurate, reliable, easy to use, durable, affordable, backed by a warranty, offer a wide range of features, can be customized, and are supported by a team of experts.
We offer a wide range of Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.
FEATURES
- Displays active energy consumption of a system(1ph or 3ph)
- Low Wattage Measurement in Single Phase Model,
- MW Measurement in Three Phase Model Available
- Password Protected.
- True RMS measurement of parameters.
- Auto/Manual scrolling of parameters
- Easy Programming with push buttons on front facia.
- RS-485 option available on demand.
- Relay Output for alarm can be provided.(optional)
SPECIFICATION
| Measuring Metrhod | Cosine of Phase Shift Between Voltage & Current |
| Display | 4 Digit Red LED Super Bright Display |
| Digit Height | 0.56"/14.2.mm |
| Maximum display | 9999 (Max.) Counts |
| Resolution | 0.001 to 1 Count Depending on Range/ Scale Display |
| Display Stability | With in ±1 Digit |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF, Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Polarity Indication | L(Laggine/Inductive) or C(Leading/Capacitive) |
| Under Range Indication | Error Code 01 Blinking when Current Non Detectable |
| Dielectric Strength | 2.5KV @50 Hz 1 minute between Input -Auxiliary |
| & Case - Terminals | |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | 3 Samples/Second |
| Maximum Overload | Voltage 1.2 Times Continuous |
| Current 2 Times Continuous | |
| Frequency Response | 40-65 Hz |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-60V AC /DC |
| Input Voltage | 0- 600V AC(Direct) |
| Input Current | 0.020- 10A AC(Direct) |
| CT Primary Range | 1A to 50kA AC Programable |
| CT Secondary Range | 0.5A to 5A AC Programable |
| PT Primary Range | 50 to 500kV AC Programable in Y9-KW |
| PT Secondry Range | 50 to 500V AC Programable in Y9-KW |
| Accuracy Class | 0.5 |
| VA (Burden) | |
| Auxiliary | ≤1.5 VA |
| Voltage Input | ≤1.0 VA |
| Current Input | ≤1.0 VA |
| Environment | |
| Calibration | 27⁰ C ± 5⁰C |
| Operating | 0 to + 60⁰C, RH<70% |
| Storage | 10 to +70⁰C, RH<70% |
| Metering Standard | IEC62052-11 |
DIMENSIONS (MM)
| MODEL | Y9-WATT | Y9-WATT-15A | Y9-KW |
| FRONT | 96 X 96 | 96 X 96 | 96 X 96 |
| DEPTH (Behind Bezel) | 39.5 | 52 | 52 |
| Panel Cut -Out | 92 (+0.8-0.0) X 92(+0.8-0.0) | 92 (+0.8-0.0) X 92(+0.8-0.0) | 92 (+0.8-0.0) X 92(+0.8-0.0) |
ORDERING INFORMATION
| MODEL | MEASURING RANGE | ACCURACY CLASS | AUX SUPPLY |
| Y9-WATT (Single Phase) |
(Voltage Input=) 20- 600V AC(Direct) (Current Input=) 0.080- 5A AC(Direct) OR 0.020- 1A AC(Direct) |
0.5 | 150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |
| Y9-WATT-15A (Single Phase) |
(Voltage Input=) 20- 300V AC(Direct) (Current Input=) 0.1- 15A AC(Direct) |
1.0 | 220V AC 80-300V AC /DC |
| Y9-KW (Three Phase) |
(Voltage Input=) 20-600V (Line to Neutral) 30-1000 (Line to Line) (Current Input=) 0.020A-10A AC 0.1A-30A Direct AC per phase |
0.5 | 150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |
