DESCRIPTION

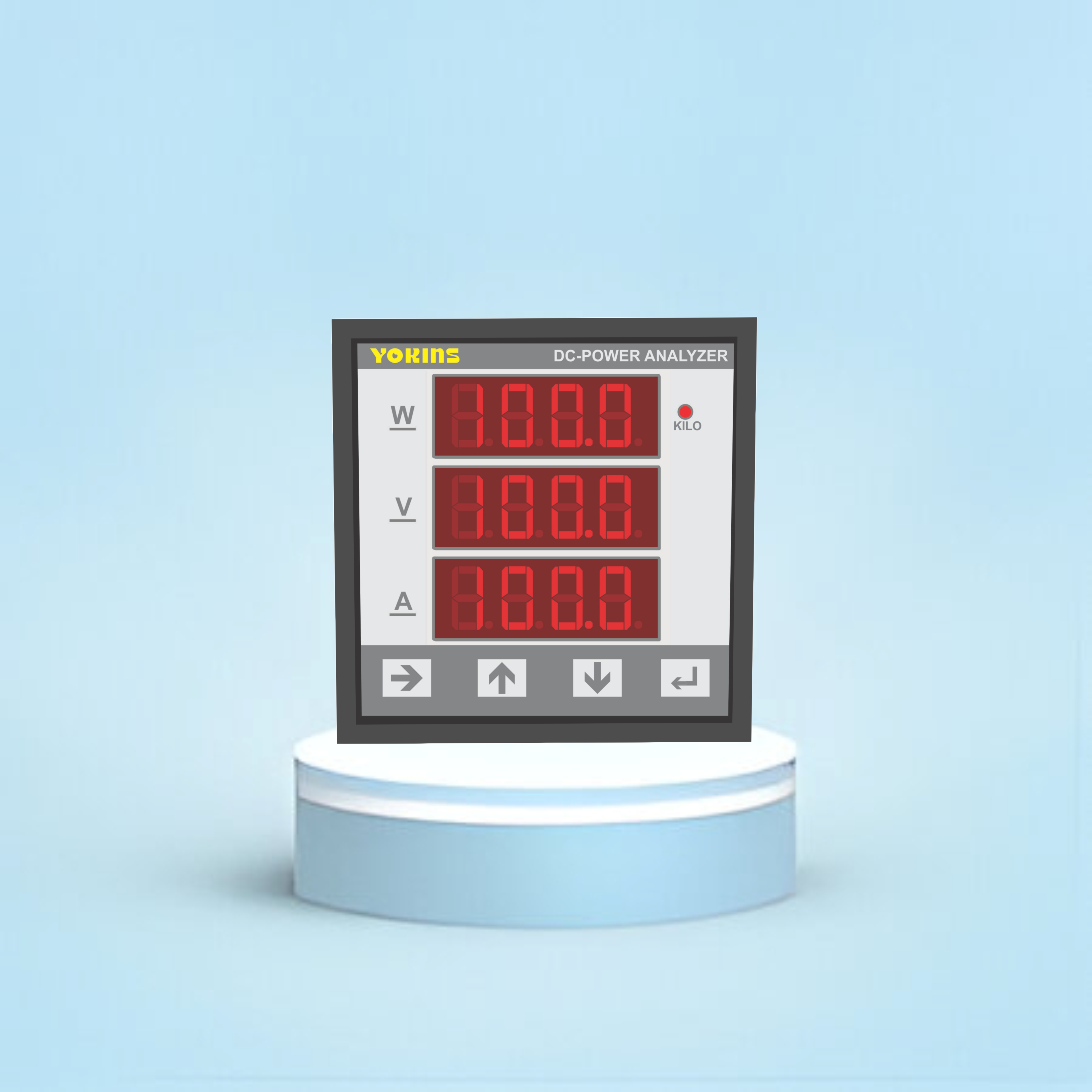

Yokins Instruments Pvt. Ltd. Single Channel DC KWH meter or DC Energy meters are manufactured using the latest technology and calibrated to the highest standards, ensuring accurate and reliable readings. Our meters can be used for measurement of DC KWH or DC Energy in a wide range of applications, including solar power systems, wind turbines, electric vehicles, and battery storage systems, telecom, etc. We offer various voltage and current ranges and can customize as per user’s requirement. Our meters are designed to be easy to install and use, with clear instructions and a user-friendly interface. Our meters are made from high-quality materials and are built to last, even in harsh environments. Our meters are competitively priced and offer excellent value for money. We offer a comprehensive warranty on our meters, giving you peace of mind knowing that your investment is protected. Our meters offer a wide range of features, including real-time energy monitoring, data logging, and communication options. We can also customize the meter as per customer’s specific requirement. Our team of experts is here to help you with any questions or technical support you may need. We are committed to providing our customers with the highest quality products and services.
We offer a wide range of DC Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.
Choose our Single Channel DC KWH Meter today and experience the difference!
FEATURES
- Displays Energy(kWh),Power(kW),Voltage,Current.
- Voltage Full scale programmable.
- Current full scale programmable independently.
- Reverse lock option for not accumulating the reverse current
- energy. This can be used for the better
- study of charging and discharging circuit
- Programmable shunt secondary 50mV to 75mV.
- Energy resetting at 999999K* multiplication factor

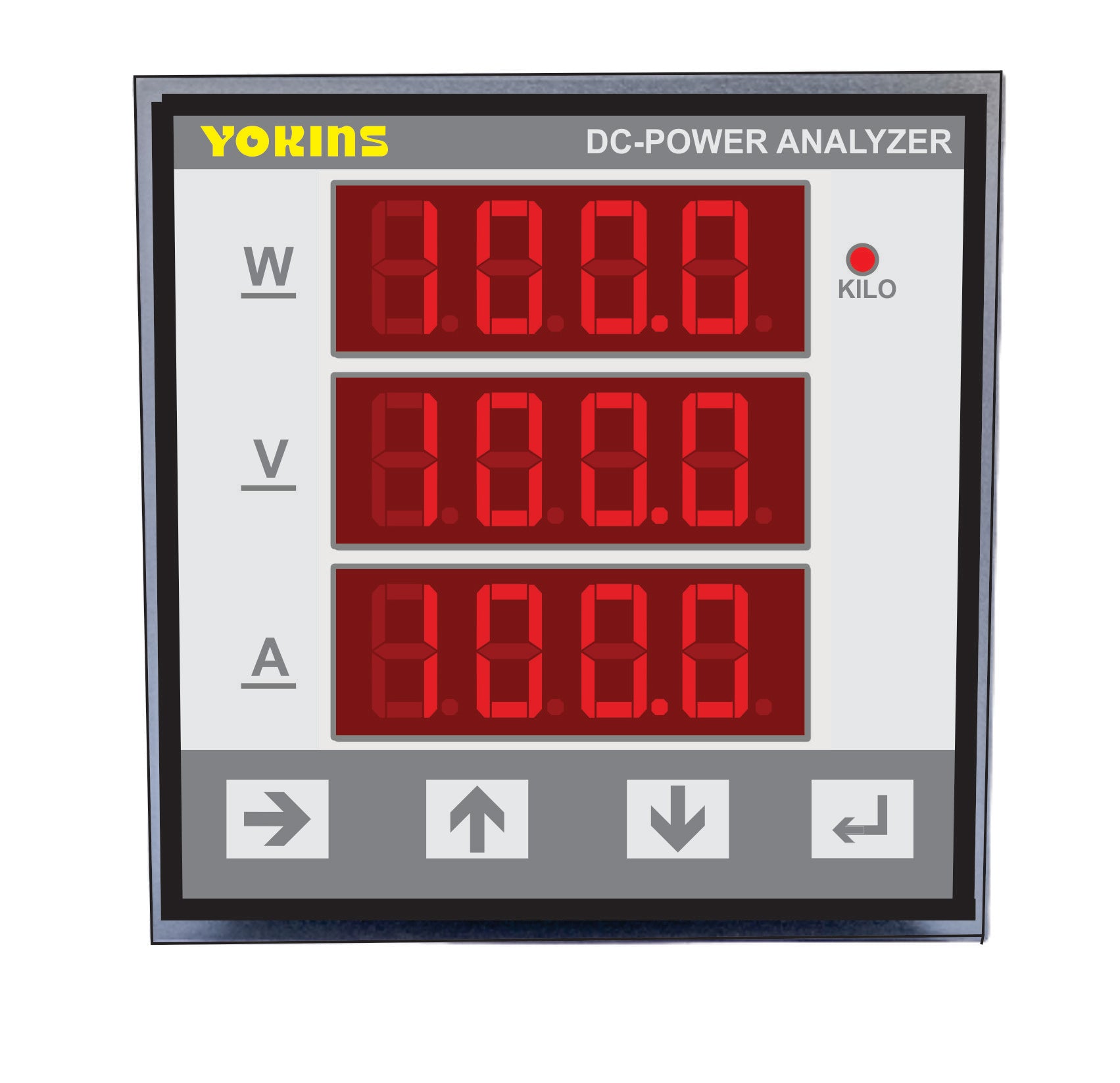

- 3 rows 4 digit Red seven segment display
- & 6 digit display for kwh
- RS 485 Port (5KV Isolated( (Optional)
- Modbus Rtu Protocol (optional)
- Auto / Manual Scroll Display (User selectable)
- SMPS, TRANSFORMER Power Supply
SPECIFICATION
| DC Voltage | 0-200VDC (Accuracy :- + 0.5% FS +1 dgt.) |
| DC Current | 0.020 - 10.00A DIRECT, |
| 0-75 mV (VIA SHUNT)(Accuracy :- +0.5% FS+1 dgt.) | |
| DC Power | 0.030 - 2.000 KW DIRECT (Accuracy - + 0.5% ES +1 dgt.) |
| DC Energy (KWh) | 000000 - 999999 Kwh (Accuracy Class 1,0.5) |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF,Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws |
| Decimal Point | Auto Scrolling |
| Polarity Indication | Negative Polarity Indication Available On Demand |
| Under Range Indication | Error Code 01 Blinking when Current Non Detectable |
| Dielectric Strength | 2.5KV @50 Hz for 1 minute between Input -Auxiliary |
| & Case - Terminals | |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | Per8.0ms |
| Maximum Overload | Voltage: 1.2 Times Continuous, Current : 2 Times Continuous |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-90V AC /DC |
| VA (Burden) | |
| Auxiliary | <2.5 VA |
| Voltage Input | <0.2 VA |
| Current Input | <0.2 VA / CHANNEL |
| Metering Standard | IEC 62053-21/22 |
| Installation Category | Cat II (IEC / EN61010 - 1) |
| Pollution | Degree 2 (IEC / EN61010 - 1) |
| Input Currrent | 0-20A DIRECT , 0 - 75mV/0-60mV DC(SETTABLE) |
| Input Voltage | 0- 750V DC(Direct) |
| SCALE | KV RANGE VIA PROGRAMMING POSSIBLE. |
| SHUNT | 1A-50kA PROGRAMABLE. |
| Environment | |
| Calibration | 27°C ± 5°C |
| Operating | 0° to 50°C, RH <70% |
| Storage | -10° to 60°C, RH < 70% |
| Dielectric Strength | 2.5 KV at 50 Hz for 1 mm |
| Insulation Resistance | > 20 MOhms at 500 V DC |
DIMENSIONS (MM)
TERMINAL CONNECTION
| MODEL | PENTA DC113 |
| FRONT | 96 X 96 |
| DEPTH (Behind Bezel) | 71.8 |
| Panel Cut -Out | 92(+0.8-0.0) X 92(+0.8-0.0) |
