DC Volt & Ampere Meter
DC Volt & Ampere Meter
DC Meter Series

DC Volt & Ampere Meter

Rs. 0.00

Being the leader DC Volt & Ammeter Manufacturers and Suppliers, Our DC Volt & Ammeters are easy to use and install, with a clear and concise display.

Learn More
Quantity
Download PDF

DESCRIPTION

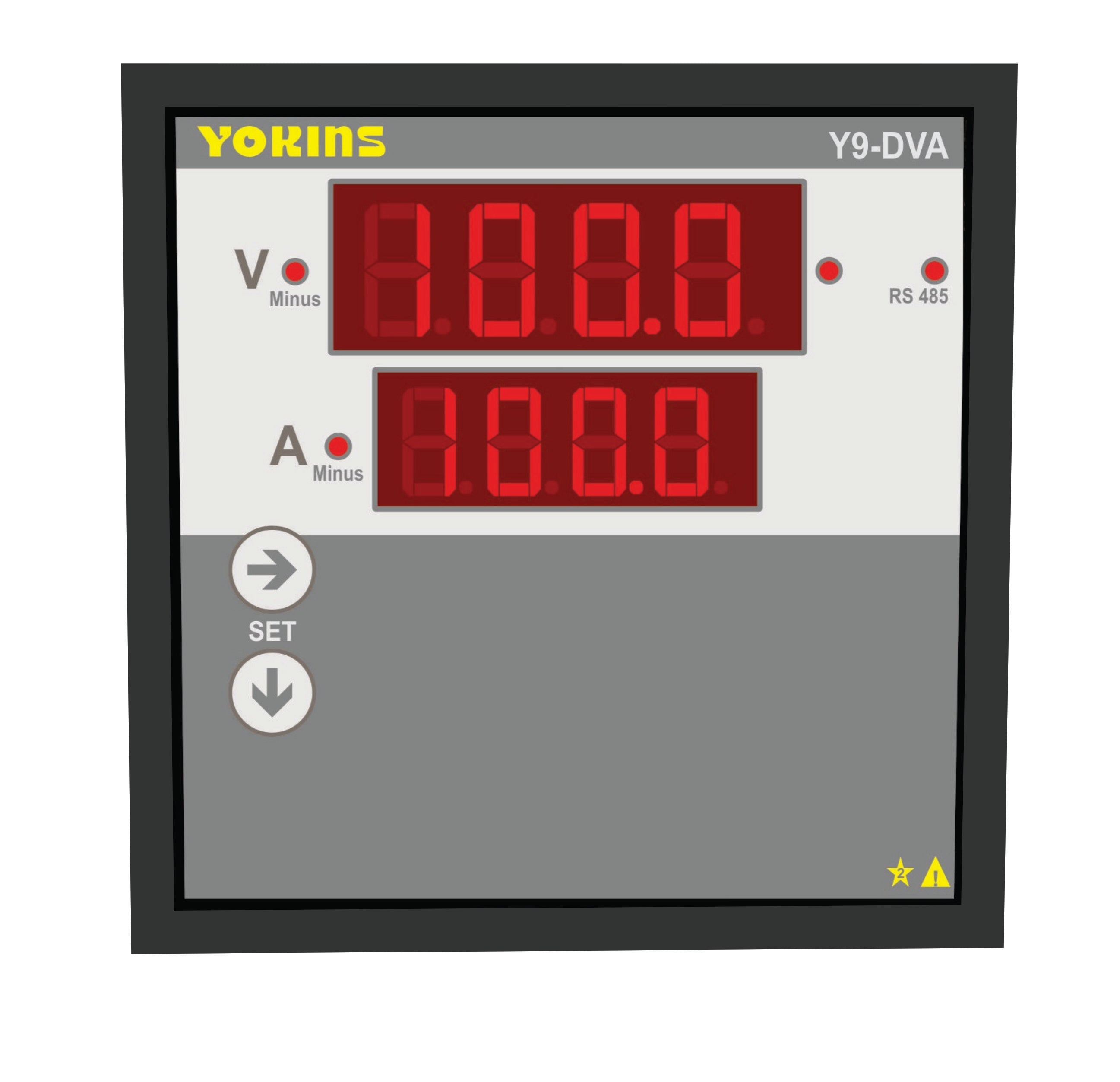

Yokins Instruments Pvt. Ltd. DC Volt Amp meters are meant for measuring DC Voltage and DC Current simultaneously in a single meter, with 2 displays. We have wide Voltage and current ranges to offer and can also customize the same as per specific requirements, making them ideal for a variety of applications. They can be used in all applications where we have space constraint and want to use single meter instead of two separate meters for voltage and current measurement. Our meters are built with the highest quality components and are calibrated to meet or exceed industry standards, ensuring accurate and reliable readings every time. Our DC VA Meters are designed to be easy to use, with clear and concise displays and intuitive controls. Our DC VA meters are built to withstand the rigors of everyday use, with durable housings and impact-resistant displays. Our DC VA meters are competitively priced, offering excellent value for your money. We are so confident in the quality of our DC VAmeters that we offer a comprehensive warranty on all products.



Call us today to learn more about our DC Vameters and how they can benefit your business or organization.



VA meter

We offer a wide range of DC Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.

FEATURES

specifications

Extra Details

FEATURES
  • Displays DC Current & DC Voltage Simultaneously.
  • Voltage range of 0-800V direct and shunt settable available
  • current range.
  • Password Protected.
  • Small Ranges Available For Better Accuracy
  • Auto/Manual scrolling of parameters
  • Easy Programming with push buttons on front facia.
  • RS-485 option available on demand.
  • Relay Output for alarm can be provided.(optional)
Specification
TechBrij: HTML Table
Display 4 Digit Red LED Super Bright Display
Digit Height 0.56"/14.2.mm
Maximum display9999(Max) Counts
Resolution0,001 to 1 Count Depending on Range/ Scale Display
Display StabilityWithin 1 Digit
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer8.0ms
Maximum OverloadVoltage : 1.2 Times Continuous & Current : 2 Times Continuous(mV)
TechBrij: HTML Table
Auxiliary Supply150-300V AC, 45-270V AC /DC, 19-60V AC /DC
Input Current0-20A DIRECT , 0 - 75mV/0-60mV DC(SETTABLE)
Input Voltage0- 800V DC(Direct)
SCALEKV RANGE VIA PROGRAMMING POSSIBLE.
SHUNT1A-50kA PROGRAMABLE.
Accuracy Class1 & 0.5
VA (Burden)
Auxiliary≤1.5 VA
Current Input≤1.0 VA
Voltage Input≤1.0 VA
Environment
Calibration27⁰ C ± 5⁰C
Operating0⁰ to + 60⁰C, RH<70%
Storage10⁰ to +70⁰C, RH<70%
Metering StandardIEC62052-11
Extra Details
DIMENSIONS (mm) TechBrij: HTML Table
MODELY9-DVA
FRONT96 X 96
DEPTH (Behind Bezel)39.5
Panel Cut -Out92 X 92
ORDERING INFORMATION TechBrij: HTML Table
MODELMEASURING RANGEACCURACY CLASSAUX SUPPLY
Y9-DVA"V                                                     A 0-10V DC 0-10A DC(DIRECT) 0-20V DC 0-20A DC(DIRECT) 0-50V DC 0-75mV (SHUNT INPUT)
0-100V DC 0-60mV(SHUNT INPUT)
0-200 V DC -75-0-75 mV
03-800V DC (SHUNT OR TRANSDUCER I/P)
-60-0-60 mV
(SHUNT OR TRANSDUCER I/P)"1 / 0.5150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC
