DESCRIPTION

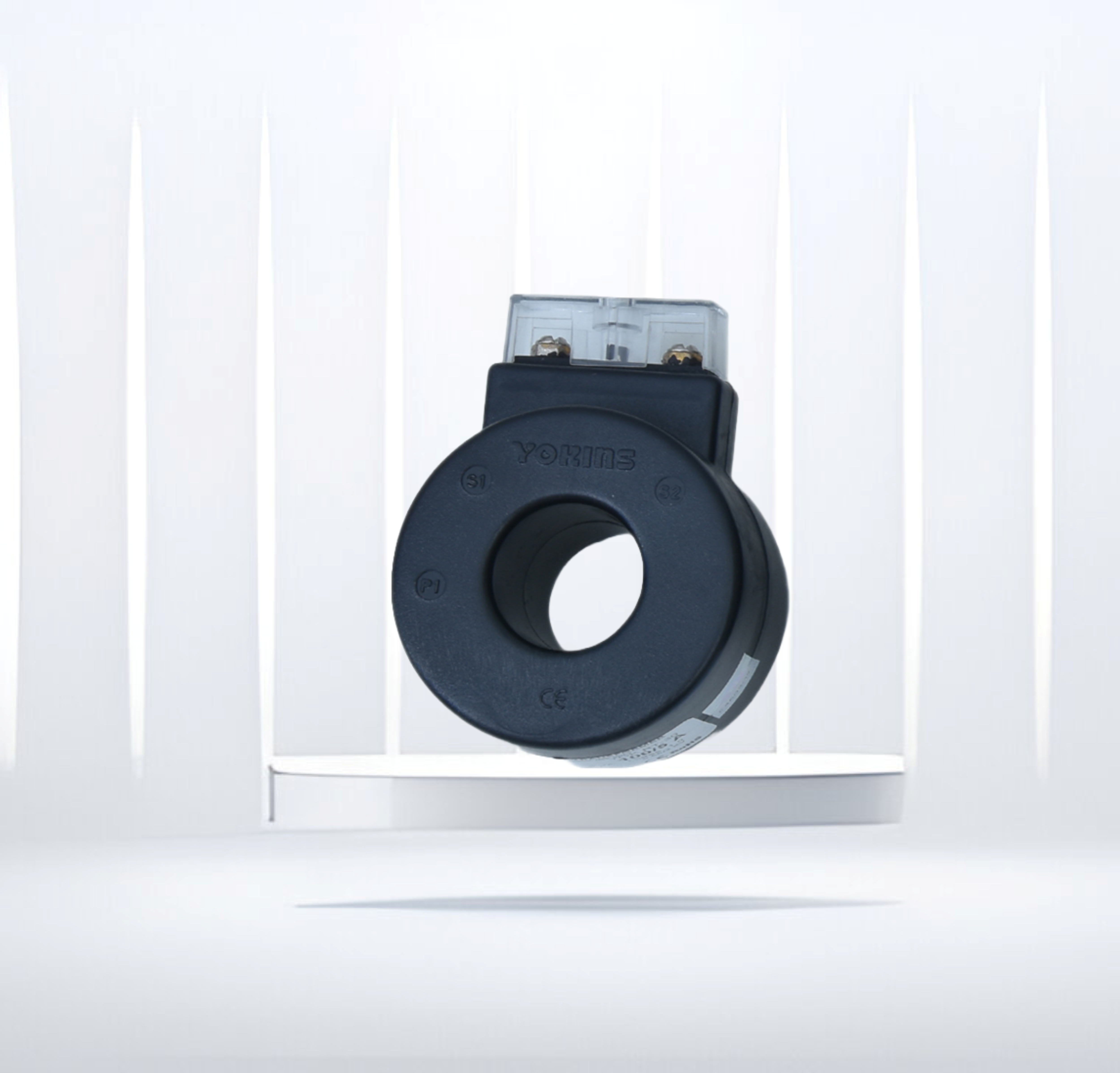

YOK-RT Series round CT are housed in robust case with classical finish. With brass terminals for secondary current output & Protective cover/cap for the same. Polycarbonate is a very tough & light weight engineering plastic material which has got the best mechanical properties very close to a metallic housing.
RT Series Round Type Current Transformers: The Best Choice
Yokins Instruments Pvt. Ltd Round Current transformers are designed to provide the highest level of accuracy, with class 0.5, and 1.0 available. We offer a wide range of current ratings, from 30A to 1500A, to meet the needs of any application. Our RT Series current transformers are housed in a durable polycarbonate case that is resistant to impact, fire, and UV radiation. Our RT Series current transformers are easy to install, and offers protective cover for secondary terminals. Our RT Series current transformers are competitively priced, offering excellent value for money.
Contact us today to learn more about our RT Series current transformers and how we can help you meet your application needs.
Â
Choose from our wide range of Current Transformers or contact us to get Detailed Information about our Products.
FEATURES
- Test Voltage 3KV 50Hz 1 min
- System Voltage 720V Max.
- Ration Rating From 50/5A to 5000/A
- Comprehensive measurement rating & bus bar sizes.
- CT manufactured as per IEC-00644-1 & 2705-
APPLICATIONS
- Â
- Distribution System
- Generator Sets
- Control Panels
- Overload Protection
- Control Devices
ACCURACY CONFIRM TO IS:2705/1981 (LATEST)
Â
Ratios of above 1500A or any other IDs as specified can be provided in Tape wound type
| Ratio | Burden | Accuracy | CT Model |
| 30/5A (2T) | 5 VA | 5 | YOK RT-30 |
| 40/5A (2T) | 5 VA | 5 | YOK RT-30 |
| 50/5A | 5 VA | 5 | YOK RT-30 |
| 60/5A | 5 VA | 5 | YOK RT-30 |
| 75/5A | 5 VA | 5 | YOK RT-30 |
| 100/5A | 5 VA | 1 | YOK RT-30 |
| 100/5A | 10 VA | 1 | YOK RT-30 |
| 150/5A | 5 VA | 1 | YOK RT-30 |
| 150/5A | 10 VA | 1 | YOK RT-30 |
| 200/5A | 10 VA | 1 | YOK RT-43 |
Â
| Ratio | Burden | Accuracy | CT Model |
| 250/5A | 10VA | 1 | YOK RT-43 |
| 300/5a | 10VA | 1 | YOK RT-43 |
| 400/5A | 15VA | 1 | YOK RT-58 |
| 500/5A | 15VA | 1 | YOK RT-58 |
| 600/5A | 15VA | 1 | YOK RT-58 |
| 800/5A | 15VA | 1 | YOK RT-72 |
| 1000/5A | 15VA | 1 | YOK RT-72 |
| 1200/5A | 15VA | 1 | YOK RT-72 |
| 1500/5A | 15VA | 1 | YOK RT-72 |
DIMENSIONS
Â
| Model | ID | OD | H | T | A | B | C | D |
| YOK RT-30 | 30 | 73 | 100 | 50 | 50 | 45 | 21 | 15 |
| YOK RT-43 | 43 | 92 | 119 | 40 | 52 | 45 | 21 | 15 |
| YOK RT-58 | 58 | 100 | 126 | 42 | 50 | 45 | 21 | 15 |
| YOK RT-72 | 72 | 110 | 135 | 40 | 52 | 45 | 21 | 15 |
Â
NOTE:-
⇒  All ranges can be provided with 1A secondary
⇒ Accuracy class of 0.5can be provided against order for ratios above 100A
