Product Description
DESCRIPTION

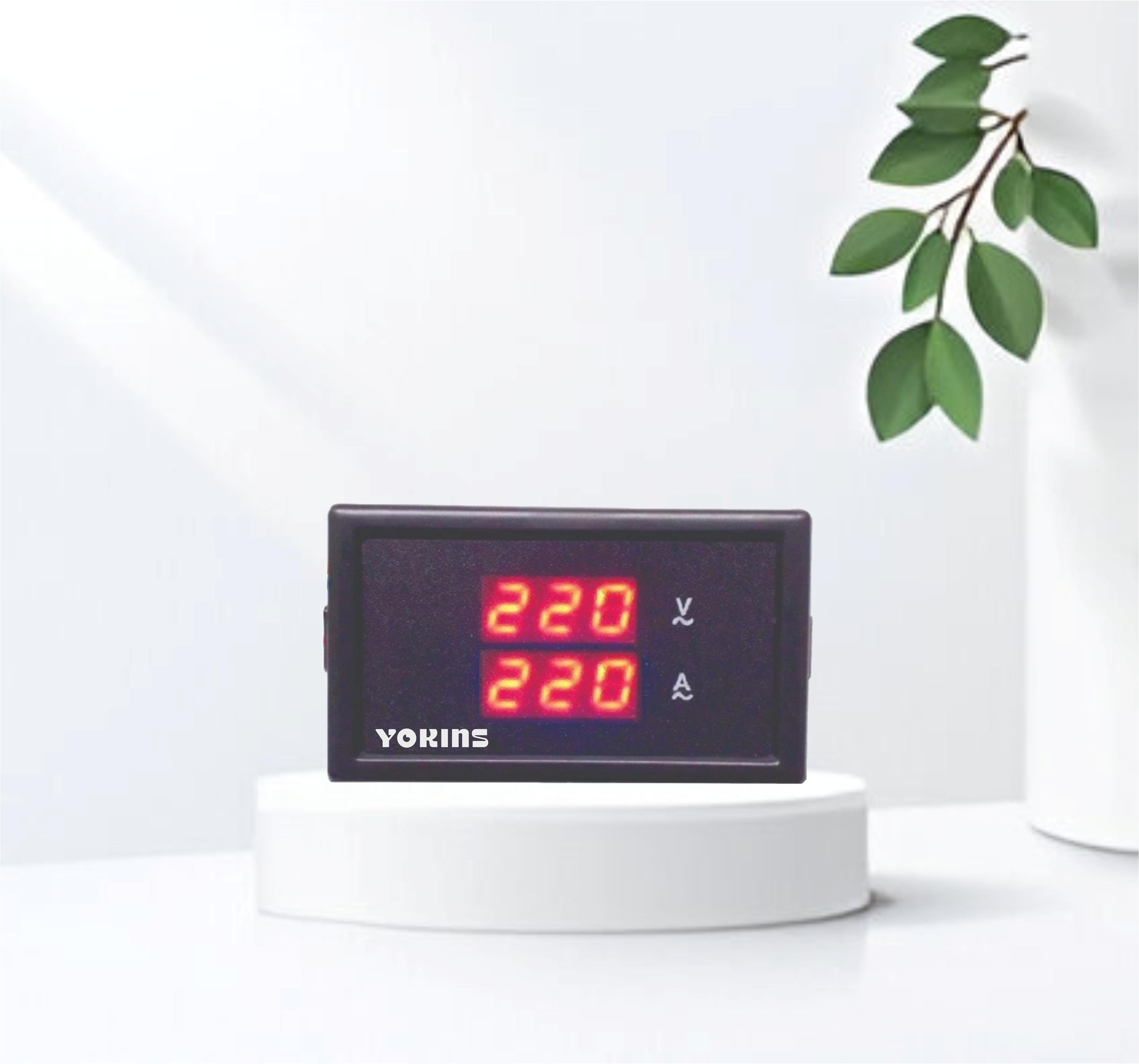

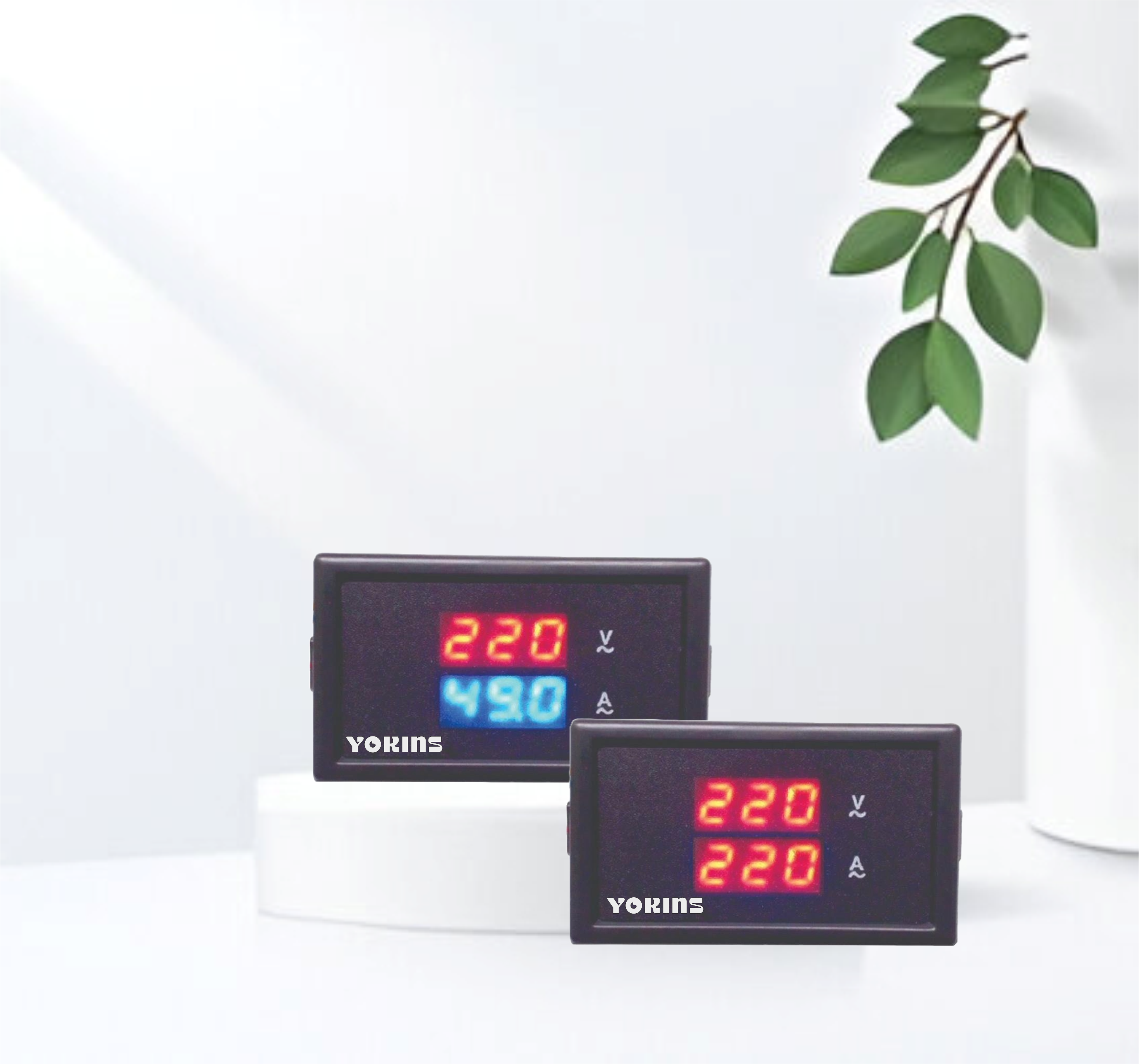

Yokins Instruments Pvt. Ltd. Compact Digital Meter AC Volt & Ampere Meters are designed for customers who have space constraint and want to install a good quality meter in affordable cost.
Check our range of Compact Digital Meter Series Digital Panel Meters. Contact us Today to learn more about our products and to find the best meter for your requirements.
SPECIFICATION
DD-AVA300-50-SP(RB)
- Range: 0-50.0 A AC & 300V AC (through CT, two white wire for CT)
- Resolution to 1V & 0.1A;
- Accuracies to +/-1%,+/-2LSB
- Reliable, long life, Micro controller measuring
- Sample Speed: about 10 times/sec.
- Over Range: Display 'H'
DD-AVA300-50-SP(RR)
- Range: 0-50.0 A AC & 300V AC (through CT, two white wire for CT)
- Resolution to 1V & 0.1A;
- Accuracies to +/-1%,+/-2LSB
- Reliable, long life, Micro controller measuring
- Sample Speed: about 10 times/sec.
- Over Range: Display 'H'
ORDERING INFORMATION
| Model | Voltage & Current Range | Maximum Display | LED Size/Color |
| DD-AVA300-50-SP(RB) | 50-300V AC 50A AC |
300 & 50.0 | 3 digit, 0.26’, Red & Blue |
| DD-AVA300-50-SP(RR) | 50-300V AC 50A AC |
300 & 50.0 | 3 digit, 0.26’, Red & Red |
DIMENSION
Dimension
| Model | Dimension | Mounting Size |
| DD-AVA300-50-SP(RB) | 70*41mm | 68*38mm |
| DD-AVA300-50-SP(RR) | 70*41mm | 68*38mm |
Connection
Connection
