RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
RPM Meter and 0-10v Programmable Display DPM
DC Meter Series

RPM Meter and 0-10v Programmable Display DPM

INR

Being the leader RPM Meter Manufacturers and Suppliers, Our RPM Meters are easy to use and install, with a clear and concise display.

Learn More
Quantity
Download PDF

DESCRIPTION

Yokins Instruments Pvt. Ltd. Process Indicators are designed to measure RPM or any other process parameter from sensor or transducer output of 0-10V DC. Our meter has fully programmable display which can be programmed to display any range with respect to input received. It shows readings proportional to input of 0-10V DC received, making it ideal for a variety of applications like measuring the speed of a variety of rotating machinery, including engines, motors, and fans. Our RPM Meter and 0-10v Programmable Display DPM have a fast response time, less than 100 milliseconds. This makes them ideal for use in applications where speed measurement is critical, such as in robotics and automation systems. These Process Indicators are designed to provide highly accurate and reliable measurements, even in the most challenging environments. Our RPM meter and 10V programmable display DPM is easy to use and install, even for non-technical users. The programmable display allows you to customize the display to meet your specific needs. Our RPM meter and 10V programmable display DPM is competitively priced, making it a great value for your money. Our Process Indicator is built to last, with a durable construction that can withstand even the most demanding environments. Our RPM meter and 10V programmable display DPM is backed by a strong warranty, giving you peace of mind knowing that your investment is protected. Our team of experts is here to help you with any questions or problems you may have with your RPM meter and 10V programmable display DPM.



We are confident that our RPM meter and 10V programmable display DPM is the best choice for your needs. Order yours today and experience the difference!



We offer a wide range of DC Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.

FEATURES

specifications

Extra Details

FEATURES
  • Display Solution for digital signal of 0-10V coming from any device or transducer.
  • Can be programmed upto 9999K Value.
  • Password Protected.
  • Lower value to higher value & vice versa can be programmed.
  • Auto scaling response time less than 1 second.
  • Easy Programming with push buttons on front facia.
  • RS-485 option available on demand.
  • Relay Output for alarm can be provided.(optional)
  • Data logging facility. (optional).
Specification
TechBrij: HTML Table
Display 4Digit Red LED Super Bright Display
Digit Height 0.56"/14.2.mm
Maximum display9999(Max) Counts
Resolution0,001 to 1 Count Depending on Range/ Scale Display
Display StabilityWithin 1 Digit
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer8.0ms
Maximum OverloadDC voltage : 1.2 Times Continuous of rated.
TechBrij: HTML Table
Auxiliary Supply150-300V AC, 45-270V AC /DC, 19-60V AC /DC
Input Signal4-20mA / 0-20mA DC(Direct)
SCALE0 - 9999k value.
Accuracy Clas1 & 0.5
VA (Burden)
Auxiliary≤1.5 VA
Voltage Input≤1.0 VA
Environment
Calibration27⁰ C ± 5⁰C
Operating0⁰ to + 60⁰C, RH<70%
Storage-10⁰ to +70⁰C, RH<70%
Metering Standard IEC62053-11
Extra Details
DIMENSIONS (mm) TechBrij: HTML Table

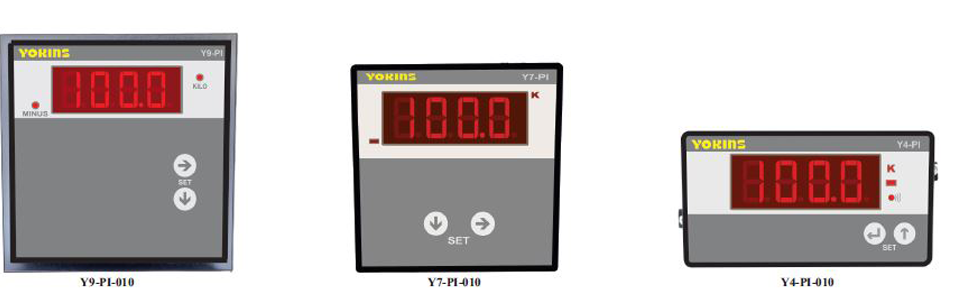

MODELY7-PI-010Y4-PI-010Y9-PI-010
FRONT72 X7248 X 9696 X 96
DEPTH (Behind Bezel)597439.5
Panel Cut -Out68 X 68 44 X 9292 X 92
ORDERING INFORMATION TechBrij: HTML Table
MODELMEASURING RANGEACCURACY CLASS AUX SUPPLY
Y9-PI 0-100-10V DC (PROGRAMMABLE)1.0/ 0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60 AC /DC
Y7-PI 0-100-10V DC (PROGRAMMABLE)1.0/ 0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60 AC /DC
Y4-PI 0-100-10V DC (PROGRAMMABLE)1.0/ 0.545-270V AC /DC
