DESCRIPTION

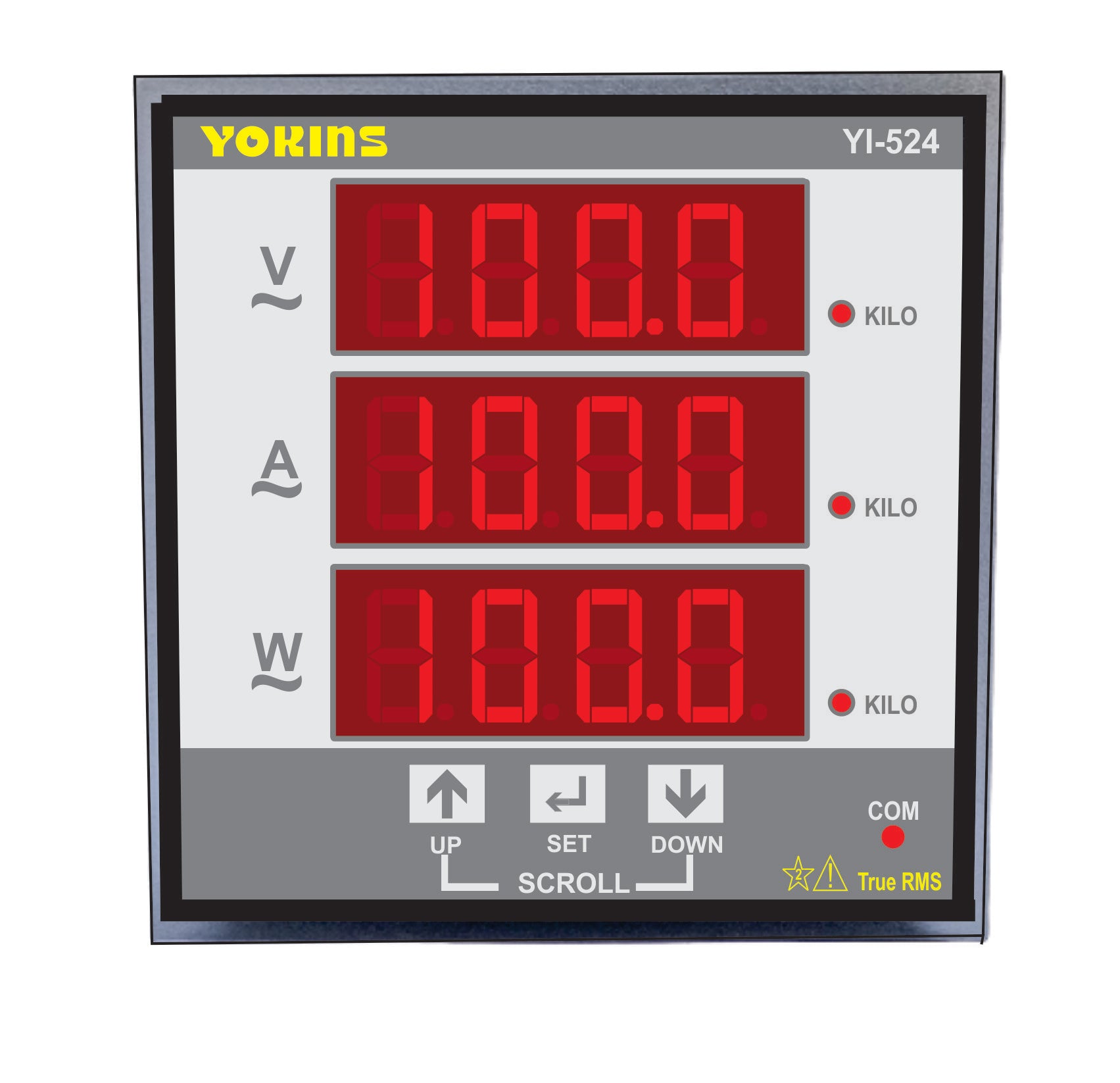

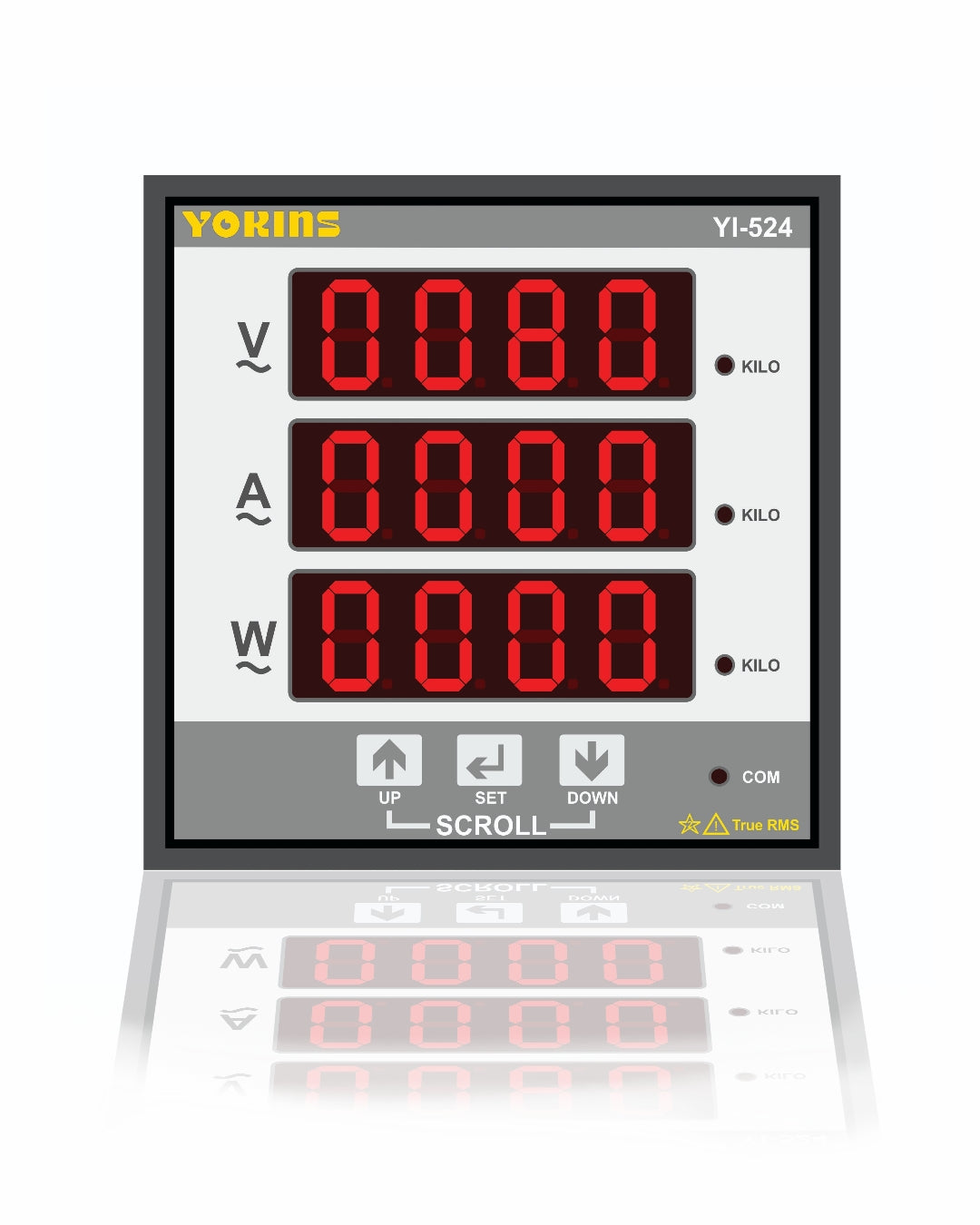

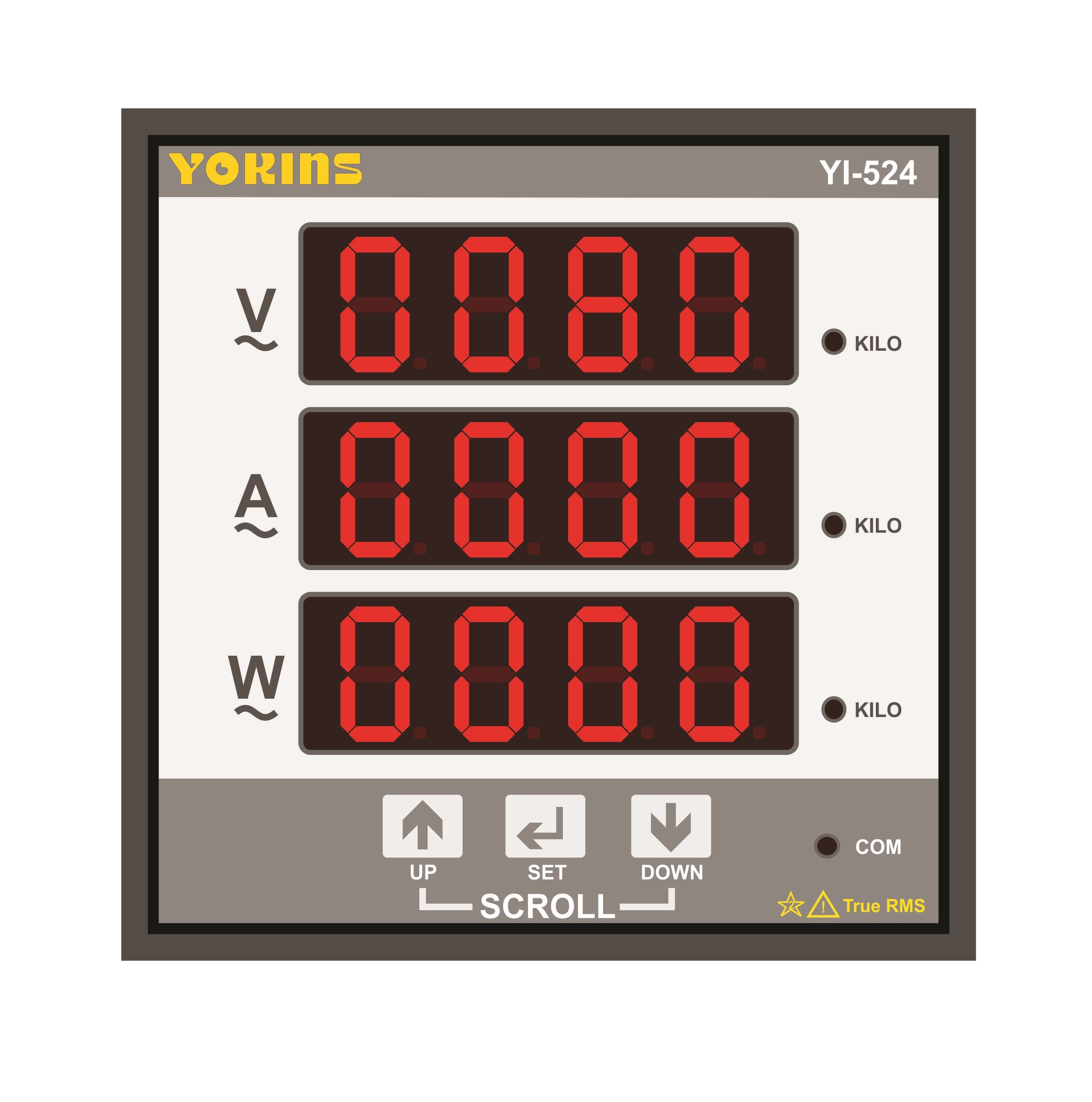

Yokins Instruments Single Phase Multifunction Meter is accurate and reliable, with a high degree of precision. A single-phase multifunction meter is a versatile device designed to measure and monitor various electrical parameters in a single-phase electrical system. This type of meter is commonly used in residential, commercial, and small industrial applications where the electrical load is supplied through a single-phase power source. It can measure a wide range of electrical parameters, including voltage, current, power (watt), energy, power factor, and frequency. Our meters are fully programable for any desired CT or PT ratios. It is easy to install and use, with a user-friendly interface. It is durable and built to last, with a rugged design that can withstand harsh environmental conditions. It is affordable and offers excellent value for money.
Check our range of Multifunction Series Digital Panel Meters.Contact us Today to learn more about our products and to find the best meter for your requirements.
SPECIFICATION
| RMS Voltage | 20-600Vrms (Accuracy - +0.5% FS +1 dgt.) |
| RMS Current | 0.020 - 10.00Arms (Accuracy :- + 0.5% FS +1 dgt.) |
| Active Power | 0.030-6.000 KW (Accuracy - + 0.5% ES +1 dgt.) |
| Apparent Power | 0.030 - 6.000 KVA (Accuracy :- +0.5°k ES +1 dgt.) |
| Reactive Power | 0.030 - 6.000 KVAr ( Accuracy :- + 1.0% ES +1 dgt.) |
| Power Factor | 0.3 Llag-1.0-0.3 Lead (Accuracy :- + 0.01 PE+1dgt) |
| Line Frequency | 45.00-65.00 Hz (Accuracy - £0.1Hz) |
| Active Energy (KWh) | 000000.00 - 999999.99 Kwh (Accuracy Class 1,0.5) |
| Apparent Energy (KVAh) | 000000.00 - 999999.99 KVAh (Accuracy Class 1,0.5) |
| Reactive Energy (KVArh) | 000000.00 - 999999.99 KVArh (Accuracy Class 1,0.5) |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF, Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Polarity Indication | L(Laggine/Inductive) or C(Leading/Capacitive) |
| Under Range Indication | Error Code 01 Blinking when Current Non Detectable |
| Dielectric Strength | 2.5KV @50 Hz 1 minute between Input -Auxiliary |
| & Case - Terminals | |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | 3 Samples/Second |
| Maximum Overload | Voltage 1.2 Times Continuous |
| Current 2 Times Continuous | |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-60V AC /DC |
| VA Burden (Typical) | |
| Auxiliary | <2.5 VA |
| Voltage Input | <0.2 VA / Phase |
| Current Input | <0.2 VA / Phase |
| CT Primary Range | 1A to 50kA AC Programable |
| CT Secondary Range | 0.5A to 5A AC Programable |
| Metering Standard | IEC 62053-21/22 |
| Installation Category | Cat II (IEC / EN61010 - 1) |
| Pollution | Degree 2 (IEC / EN61010 - 1) |
| Environment | |
| Calibration | 27°C ± 5°C |
| Operating | 0° to 50°C, RH <70% |
| Storage | 10° to 60°C, RH < 70% |
| Dielectric Strength | 2.5 KV at 50 Hz for 1 mm |
| Insulation Resistance | > 20 MOhms at 500 V DC |
DIMENSIONS (MM)
TERMINAL CONNECTION
| MODEL | YI-524 |
| FRONT | 96 X 96 |
| DEPTH (Behind Bezel) | 52 |
| Panel Cut -Out | 92 (+0.8-0.0) X 92 (+0.8-0.0) |
FEATURES
- 10 Parameters on 7 Display Pages
- Measures V, A, PF, Hz, KW, KVA, KVAr, KWh. KVAh & KVArh
- Auto / Manual Scroll Display (User selectable)
- SMPS, TRANSFORMER Power Supply
- Ideal for Testing of Electrical Appliances
- User Programmable CT Ratio
- TRMS Measurement
- 3 Rows of 4 Digit RED Seven Segment
- RS 485 Port (5KV Isolated( (Optional)
- MODBUS RTU Protocol (Optional)
Application
- Home Appliance Testing
- QC
- Studying Energy Efficiency of Electrical Equipement
- Building Management - Systems
- Power Management
- Generator/Motor Characteristics
- Plant - Maintenance
