Digital Hour Meters
DESCRIPTION
An hour meter is an instrument used to track how long an equipment or a machine has been operating. It is sometimes referred to as an engine hour meter or a time counter. Hour meters are helpful for planning maintenance and repairs as well as tracking equipment performance and usage.
Yokins manufactures both digital hour meter and counter type electromechanical hour meters. Our hour meters measures lapsed time accurately, ensuring that you have the most precise data on your equipment's runtime. Our hour meters are easy to install and use, with clear and concise displays that make it easy to read the runtime data. Our digital hour meters are compatible with a wide range of equipment, making them ideal for use in a variety of industries
Hour meters find extensive applications across diverse industries and sectors, including but not limited to manufacturing, construction, agriculture, transportation, aviation, and maritime. They are frequently found in engine-powered devices and machinery, including generators, compressors, pumps, tractors, vehicles, boats, and airplanes. The owners and operators of various devices and equipment can schedule timely and effective maintenance and repairs by employing hour meters to monitor their usage and performance. This can lower operating costs, increase service quality and safety, and prolong the life of the machinery and equipment.
We are the best digital hour meters manufacturer and supplier. We offer excellent customer service, so you can be sure that you will get the help you need if you have any questions or problems with your digital hour meter. We have a reputation for providing high-quality digital hour meters, and our products are used by customers all over the world. Knowing that your equipment's runtime is being accurately tracked can give you peace of mind, helping you to avoid costly downtime and repairs. Choose our digital hour meters for the best possible accuracy, durability, ease of use, versatility, affordability, features, reliability, customer service, reputation, and peace of mind.
Choose from our wide range of Hour Meters or contact us to get Detailed Information about our Products.
SPECIFICATION
| Display | 4 Digit Red LED Super Bright Display in y9-Hr |
| 6 Digit Red LED Super Bright Display in y7-Hr & Y4-Hr | |
| Digit Height | 0.56"/14.2.mm in Y9-Hr & Y4-Hr |
| 0.36"/9.1.mm in Y7-Hr | |
| Maximum Display | 9999(Max.)Counts |
| Resolution | 1 minutes or 1 Hour (i.e HH.MM or HHHH in Y9-Hr) (i.e HHHH.MM in Y7-Hr & Y4-Hr) |
| Display Stability | With in ±1 Digit |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF, Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Dielectric Strength | 2.5KV @50 Hz for 1 minute between Input -Auxiliary & Case - Terminals |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Maximum Overload | Voltage 1.2 Times Continuous |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-60V AC /DC |
| Accuracy Class | 1 Second |
| VA (Burden) | |
| Auxiliary | ≤1.5 VA |
| Environment | |
| Calibration | 27⁰ C ± 5⁰C |
| Operating | 0 to + 60⁰C, RH<70% |
| Storage | 10 to +70⁰C, RH<70% |
| Metering Standard | IEC62052-11 |
DIMENSIONS (MM)

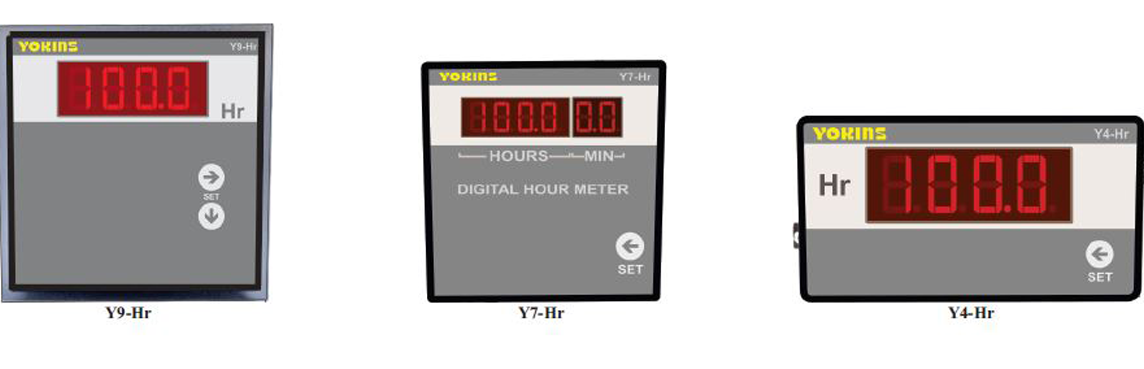

| MODEL | Y7-Hr | Y4-Hr | Y9-Hr |
| FRONT | 72 X 72 | 48 X 96 | 96 X 96 |
| DEPTH (Behind Bezel) | 59 | 74 | 39.5 |
| Panel Cut -Out | 68 X 68 | 44(+0.5-0.0) X 92(+0.8-0.0) | 92 (+0.8-0.0) X 92(+0.8-0.0) |
FEATURES
- Displays Run Hour of any System
- Hours & Minutes saved in Memory Until Manual Reset
- Password Protected.
- Hour Mode & Minute Mode Selectable in Y9-Hr
- Easy Programming with push buttons on front facia.
- RS-485 option available on demand.
- Relay Output for alarm can be provided.(optional)
ORDERING INFORMATION
| MODEL | DISPLAY RANGE | ACCURACY CLASS | AUX SUPPLY |
| Y9-Hr | 0001-9999Hours or 00.01-99.60 Hours |
1 Sec. | 150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |
| Y7-Hr | 0000.01-9999.60 Hours | 1 Sec. | 150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |
| Y4-Hr | 0000.01-9999.60 Hours | 1 Sec. | 45-270V AC /DC |
