Description
Yokins Instruments is a prominent manufacturer, supplier, and exporter of current transformers in India.
Our TB Series has a large selection of busbar type Current Transformers. They are available for primary currents ranging from 30A to 4000A, with reliabilities and precision ranging from class 0.5 to 3, making them appropriate for a wide range of industrial applications.
Yokins current transformers are housed in compact housing and are made from engineering grade plastic moulding and have holes that take a variety of busbar.
Our TB Series current transformers comes with a mounting bracket for installation, making them simple to set up regardless of the environment or application. They are highly accurate and provide dependable performance at a low cost.
TB Series current transformers can operate in a wide range of temperatures.
Choose from our wide range of Current Transformers or contact us to get Detailed Information about our Products.

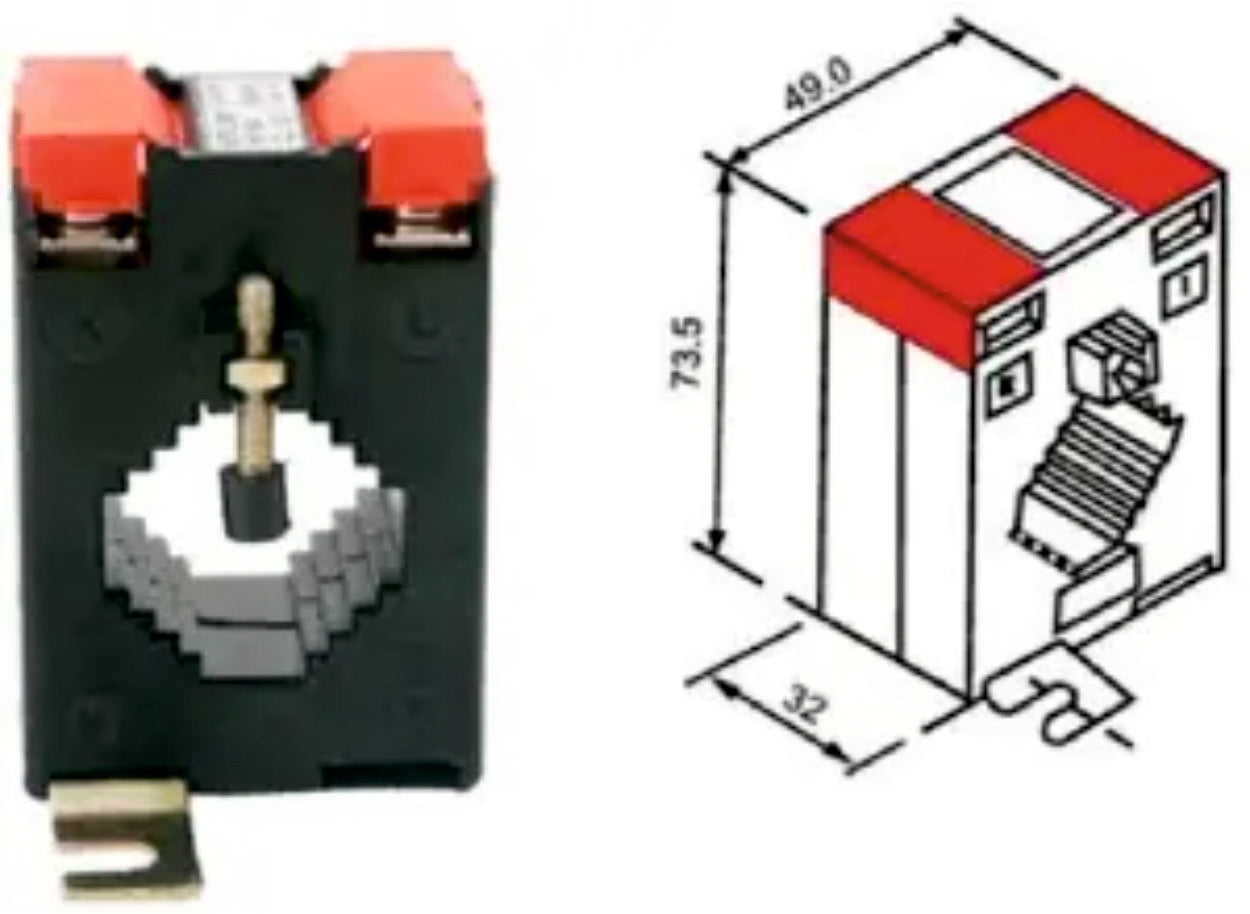

YOK-TB3010-Metering CT upto 250/5A (with Dimension)
Suitable For Bus Bar Mounting
|
RATIO |
VA | Class |
| 60/5A to 80/5A | 1 | 3.0 |
| 100/5A | 1 | 1.0 |
| 125/5A | 1 | 1.0 |
| 150/5A | 1 | 1.0 |
| 200/5A | 2.5 | 1.0 |
| 250/5A | 2.5 | 1.0 |
YOK-TB4010-Metering CT Upto 600/5A (With Dimension)
| RATIO | VA | CLASS |
| 150/5A | 1.5 | 1.0 |
| 200/5A | 1.5 | 1.0 |
| 250/5A | 2.5 | 1.0 |
| 300/5A | 2.5 | 1.0 |
| 400/5A | 2.5 | 1.0 |
| 500/5A & 600/5A | 2.5 | 1.0 |
YOK-TB8010-Metering CT Upto 2000/5A (with Dimension)
| RATIO | VA | CLASS |
| 400/5A | 5 | 1.0 |
| 500/5A | 5 | 1.0 |
| 600/5A | 5 | 1.0 |
| 750/5A TO 20005A | 5 | 1.0 |
YOK-TB10030-Metering CT Upto 6000/5A (with Dimension)
| RATIO | VA | CLASS |
| 400/5A | 5 | 1.0 |
| 500/5A & 600/5A | 5 | 1.0 |
| 750/5A & 800/5A | 5 | 1.0 |
| 1000/5A & 1600/5A | 5 | 1.0 |
| 2000/5A & 2500/5A | 5 | 1.0 |
| 3000/5A & 40005A | 5 | 1.0 |
