AC Transducers
Frequency Transducer
DESCRIPTION
Specification
TechBrij: HTML Table

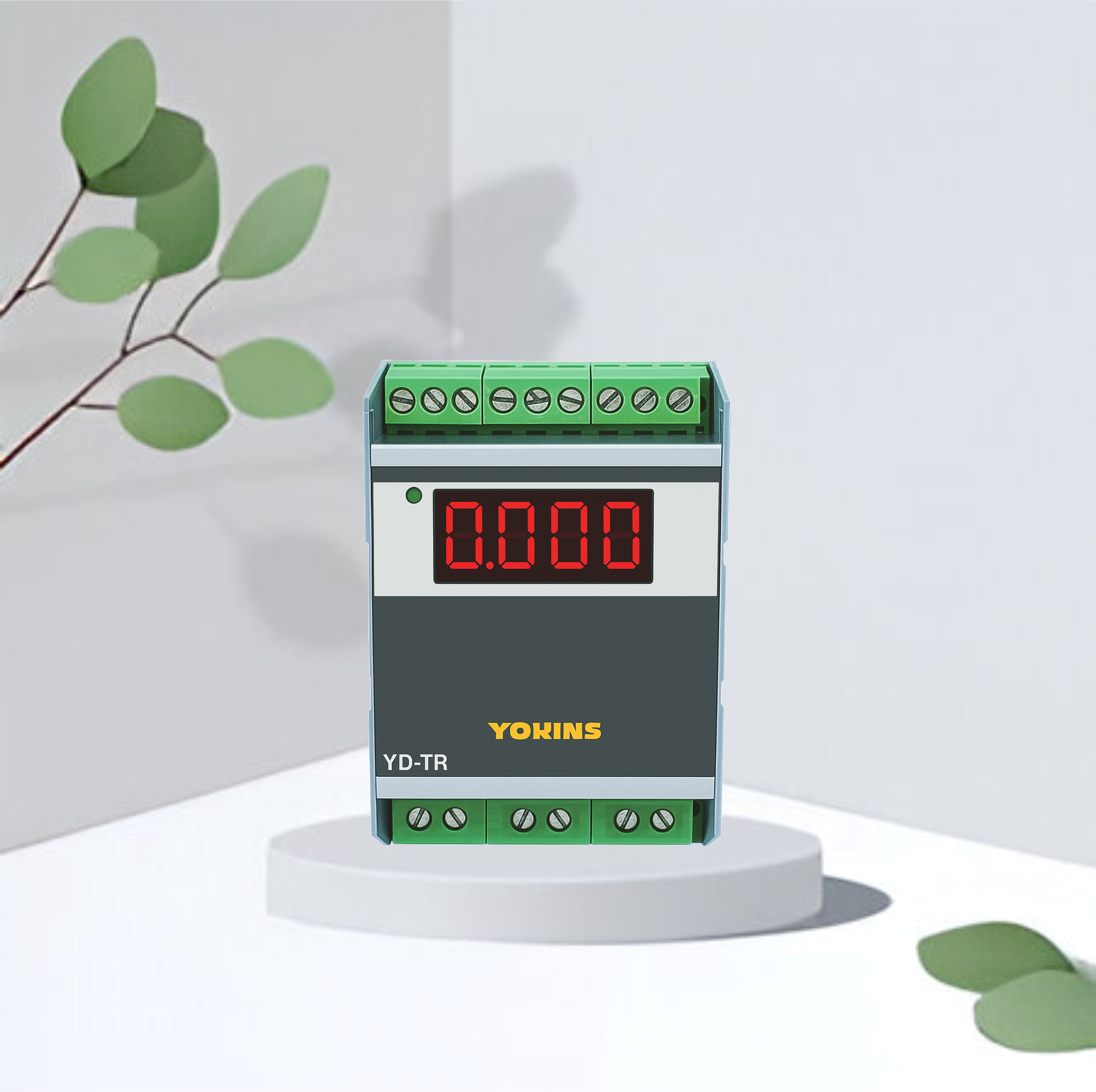

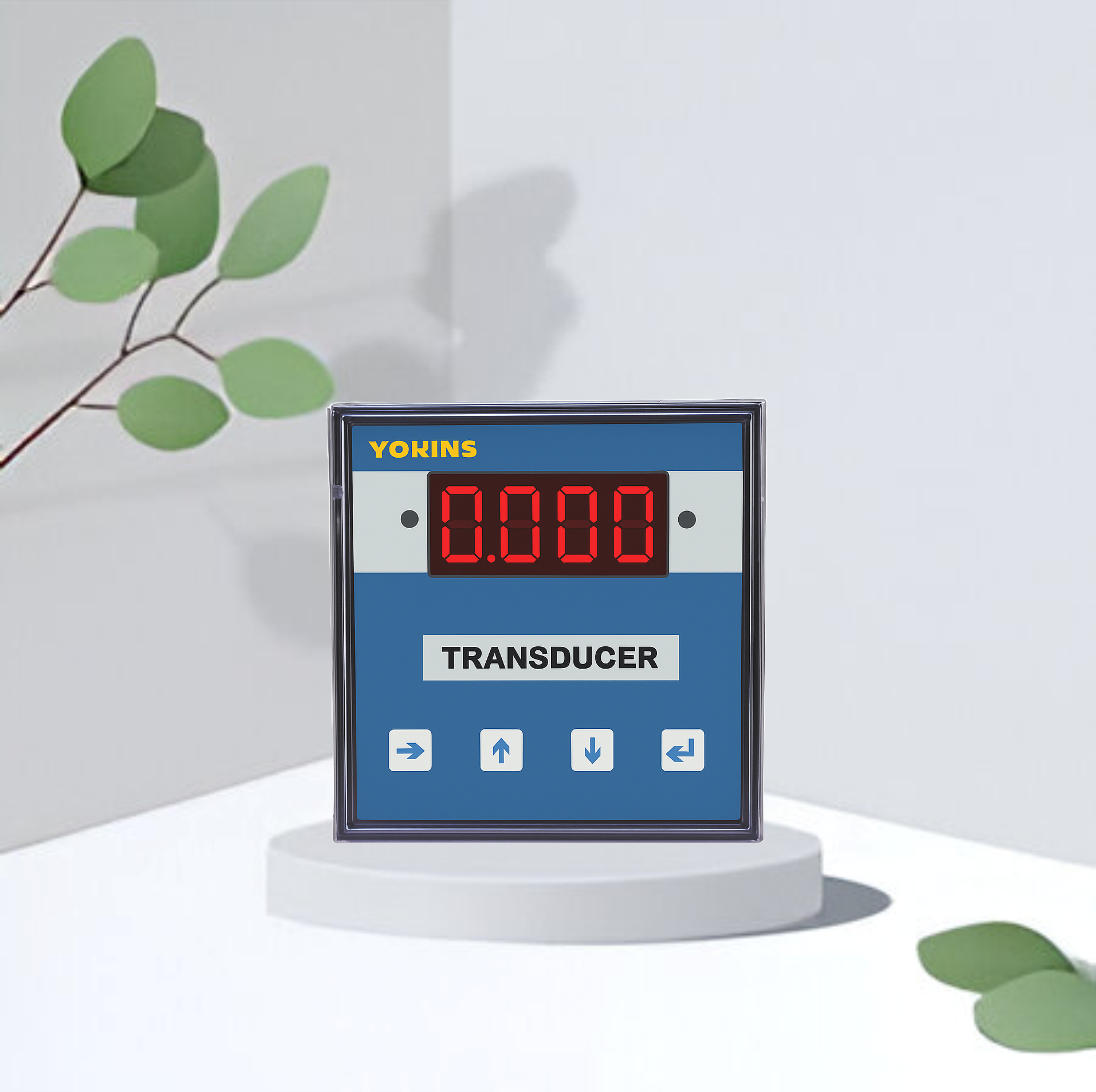

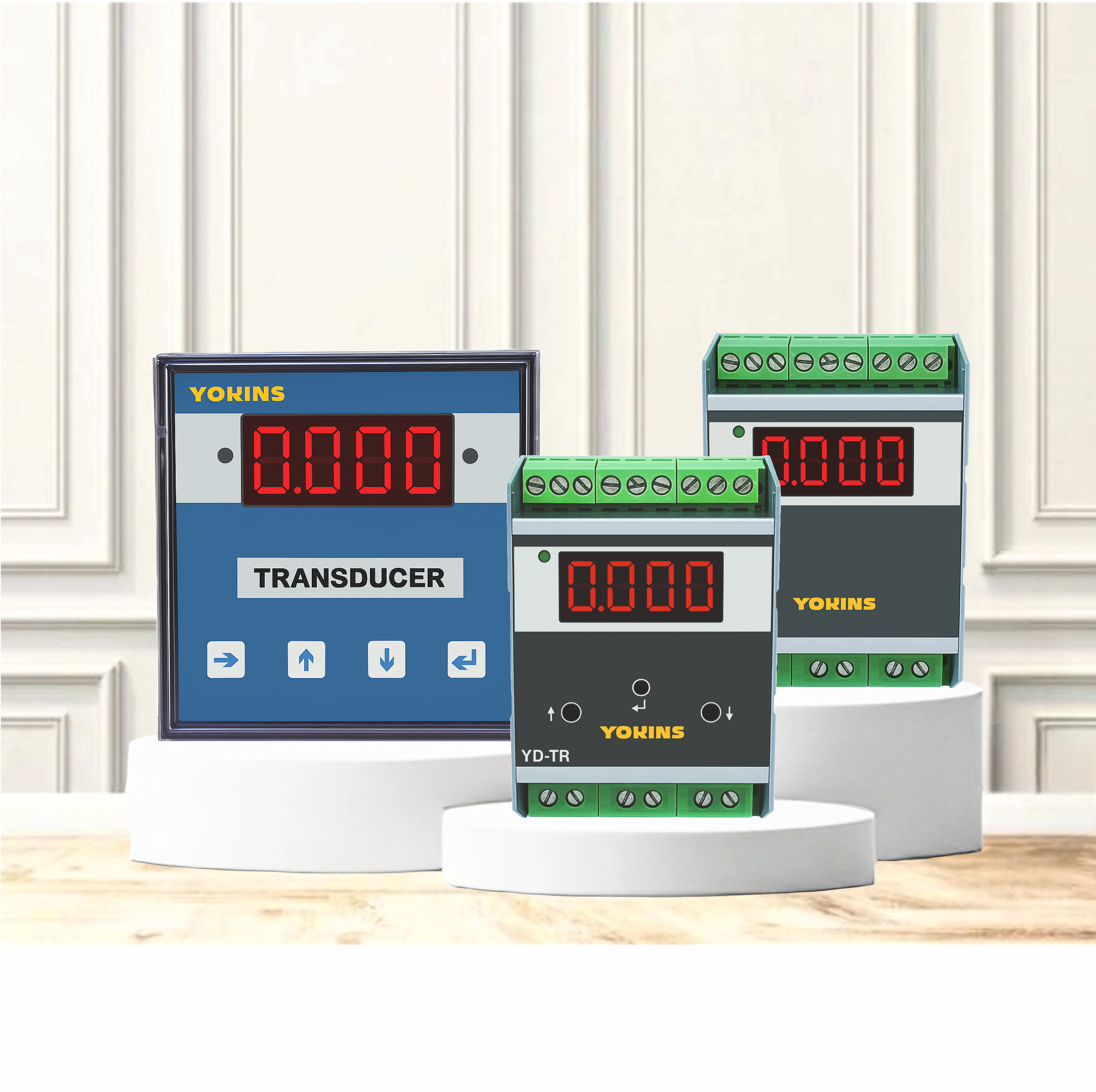

Sizes or models Available | DIN Rail type and Panel mounting 96x96 |
AC Inputs | Frequency : 45-55, 45-65, 55-65 Hz Voltage : 100-300V or 200-500V (other customized ranges can be provided on demand) |
DC Outputs | Current (mA): 0-1, 0-20, 4-20mA Voltage (V) : 0-5V, 0-10V (other customized ranges can be provided on demand) |
Accuracy | 1.0% or 0.5% |
Number of Outputs | Single output or double output |
Auxiliary Supply | 230V ±10% AC or 80 to 270V AC/DC |
Optional Outputs | Relay Output or RS485 Output |
