AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)
AC Ammeter (Three Phase)

AC Ammeter (Three Phase)

INR

Being the leader Three Phase Ammeter Manufacturers and Suppliers, Our Ammeters are easy to use and install, with a clear and concise display.

Learn More
Quantity
Download PDF

How to Choose the Right Digital Panel Meter for Your

Digital panel meters offer unparalleled accuracy and ease of use, making them essential tools in modern industries. Their clear digital displays allow for quick readings, enhancing operational efficiency and reducing the risk of errors.

Product Description

specifications

Extra Details

Product Description

Yokins Instruments Pvt. Ltd. three phase AC ammeters also known as Digital current meter are the most accurate and reliable on the market, with a high degree of precision and repeatability. They are also incredibly durable and can withstand even the harshest environments. Our ammeters are easy to install and use, with a simple and intuitive design. They are also very affordable, making them a great value for your money. Our ammeters are backed by a strong warranty, so you can be sure that you are making a sound investment.

They are microcontroller based fully programable meters. They are also very versatile and can be used in a wide range of applications, including industrial, commercial, and residential settings. Our ammeters are also supported by a team of experienced and knowledgeable engineers who are always available to answer your questions and provide technical support. If you are looking for the best three phase AC ammeter on the market, then look no further! Our ammeters are the perfect solution for your needs.

Apart from three phase AC ammeters, we offer a wide range of Basic series products.

We offer a wide range of Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.

Specification
Display 4 Digit Red LED Super Bright Display
Digit Height 0.56"/14.2.mm
Maximum display 9999 (Max.) Counts
Resolution 0.001 to 1 Count Depending on Range/ Scale Display
Display Stability With in ±1 Digit
Faceplate /Lens Polycarbonate Transparent
Case/Housing Material FR-ABS Black
Connectors /Terminal Nylon 66, 33%GF, Black/Brass
Mounting Clamps Sturdy, Moulded Glass filled nylon with screws.
Decimal Point Auto Scrolling
Dielectric Strength 2.5KV @50 Hz 1 minute between Input -Auxiliary
& Case - Terminals
Impulse Withstand 3.5.KV, 1.2/50 micro Second
Refresh Rate Per 8.0ms
Maximum Overload Current 2 Times Continuous
Frequency Response 40-400 Hz
Auxiliary Supply 150-300V AC, 45-270V AC /DC, 19-60V AC /DC
Input Current 0.020A - 10A AC(Direct) in Standard Product
CT Primary Range 1A to 50kA AC Programable
CT Secondary Range 0.5A to 5A AC Programable
Accuracy Class 1 & 0.5
VA (Burden)
Auxiliary ≤1.5 VA
Voltage Input ≤1.0 VA
Environment
Calibration 27⁰ C ± 5⁰C
Operating 0⁰to + 60⁰C, RH<70%
Storage -10⁰ to +70⁰C, RH<70%
Metering Standard IEC62052-11
Extra Details

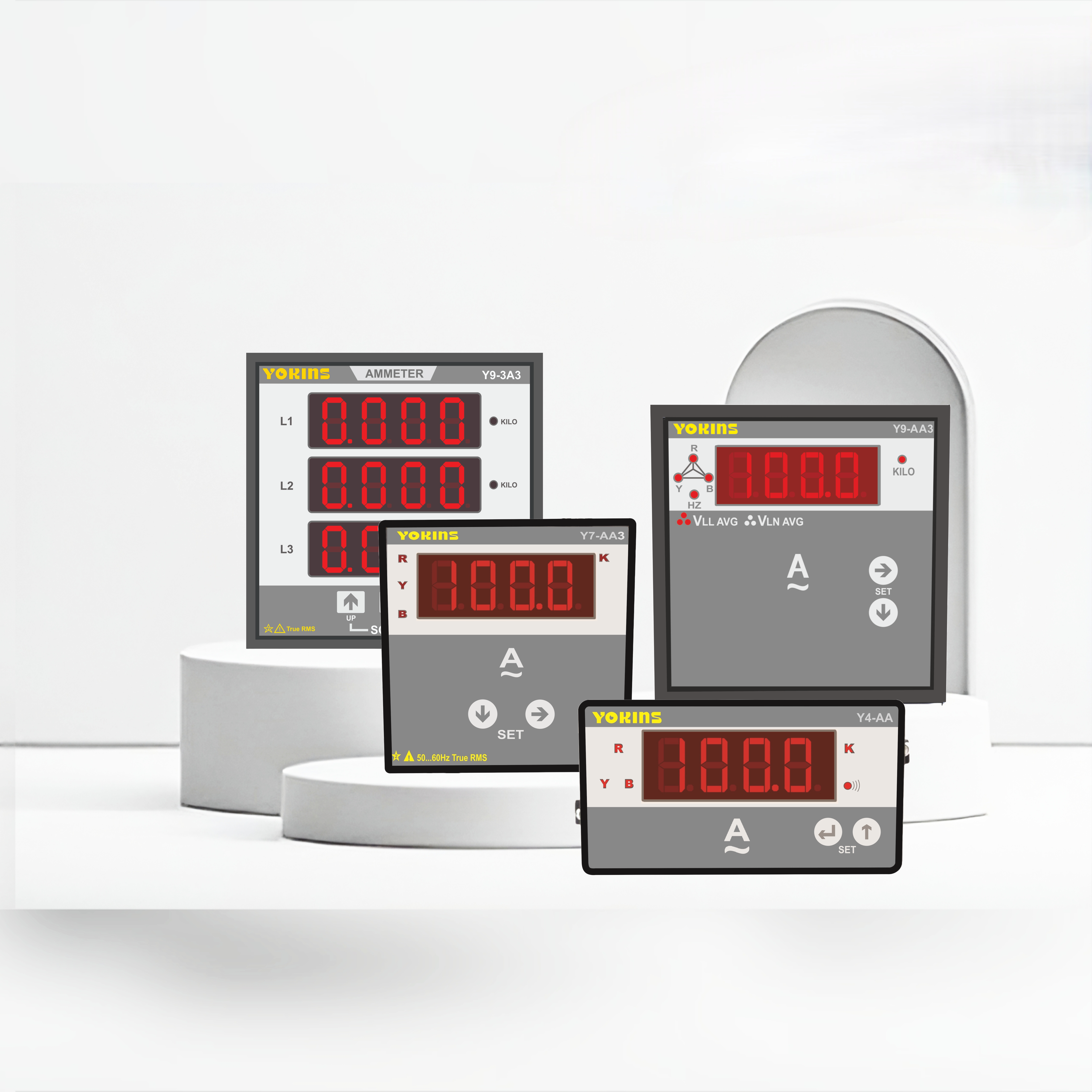

MODEL Y9-AA3 Y7-AA3 Y4-AA3 Y9-3A3
FRONT 96 X 96 72 X 72 48 X 96 96 X 96
DEPTH (Behind Bezel) 39.5 59 74 52
Panel Cut -Out 92 (+0.8-0.0) x 92(+0.8-0.0) 68 x 68 44(+0.5-0.0) x 92(+0.8-0.0)  92 (+0.8-0.0) X 92(+0.8-0.0)

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

  • Performance

    Digital panel meters provide an inexpensive way to present data from various sensors and can be used for both monitoring and basic control functions in industrial and commercial.

The Evolution

The Future of Measurement: Exploring Digital Panel Meters

The Evolution

The Future of Measurement: Exploring Digital Panel Meters

02 Aug 22

FAQ's

  • The Future of Measurement: Exploring Digital Panel Meters

    A digital panel meter (DPM) is an electronic device used to display measurements of electrical parameters such as voltage, current, temperature, and frequency in a clear, numerical format. Unlike analog meters, which use a needle and dial to indicate values, digital panel meters provide precise readings on an LED or LCD screen. They are widely used in various industries for monitoring and controlling processes, ensuring accurate data collection and enhancing operational efficiency. Digital panel meters can be customized with different input types and display options to suit specific applications, making them versatile tools in both industrial and commercial settings.
