A-Series Push Buttons
Push Buttons
Product Description
A-Series Push Button, EB2M-A, 22mm,
Unmarked, Spring Return, 1 NO Or 1 NC

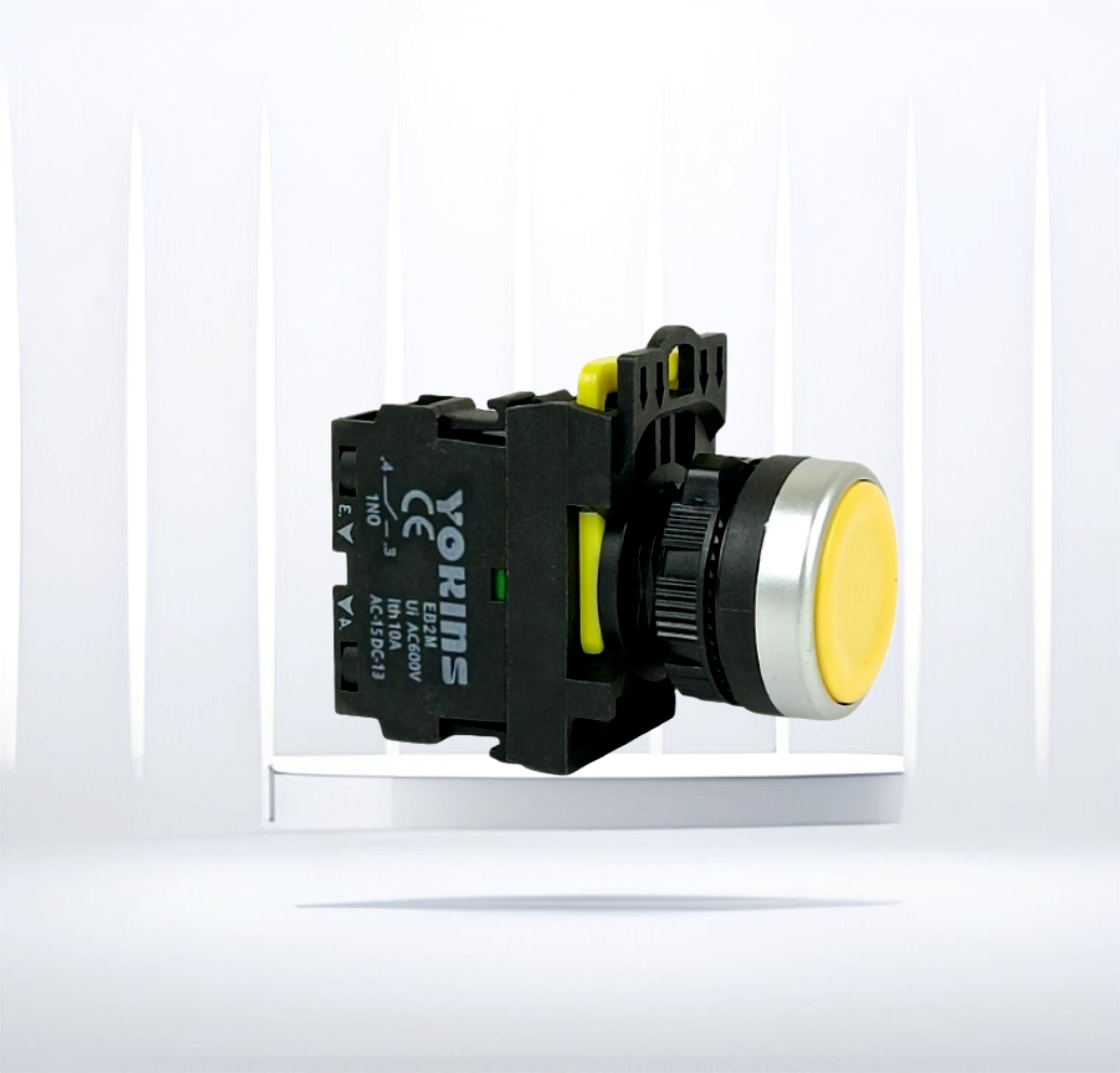

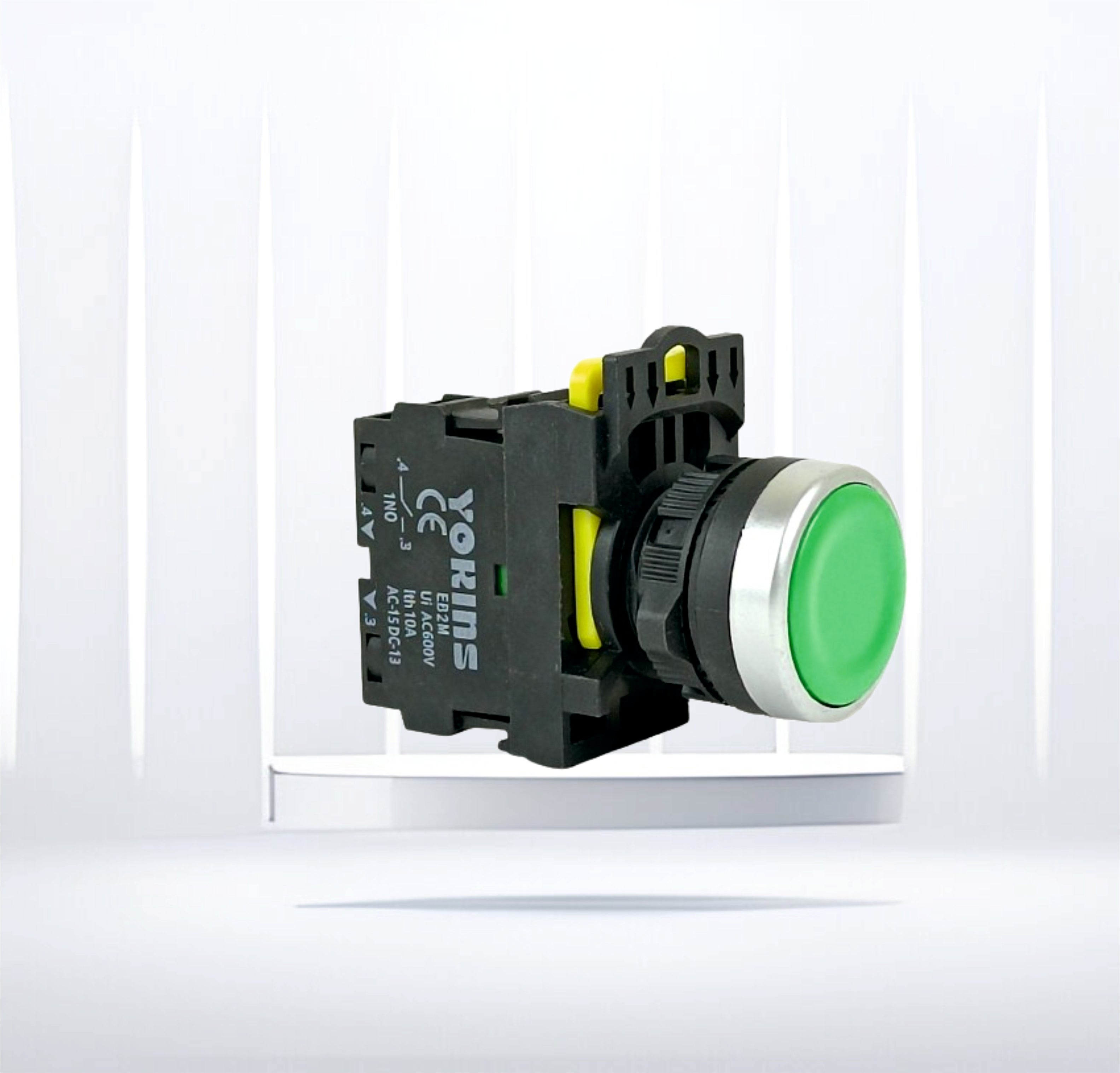

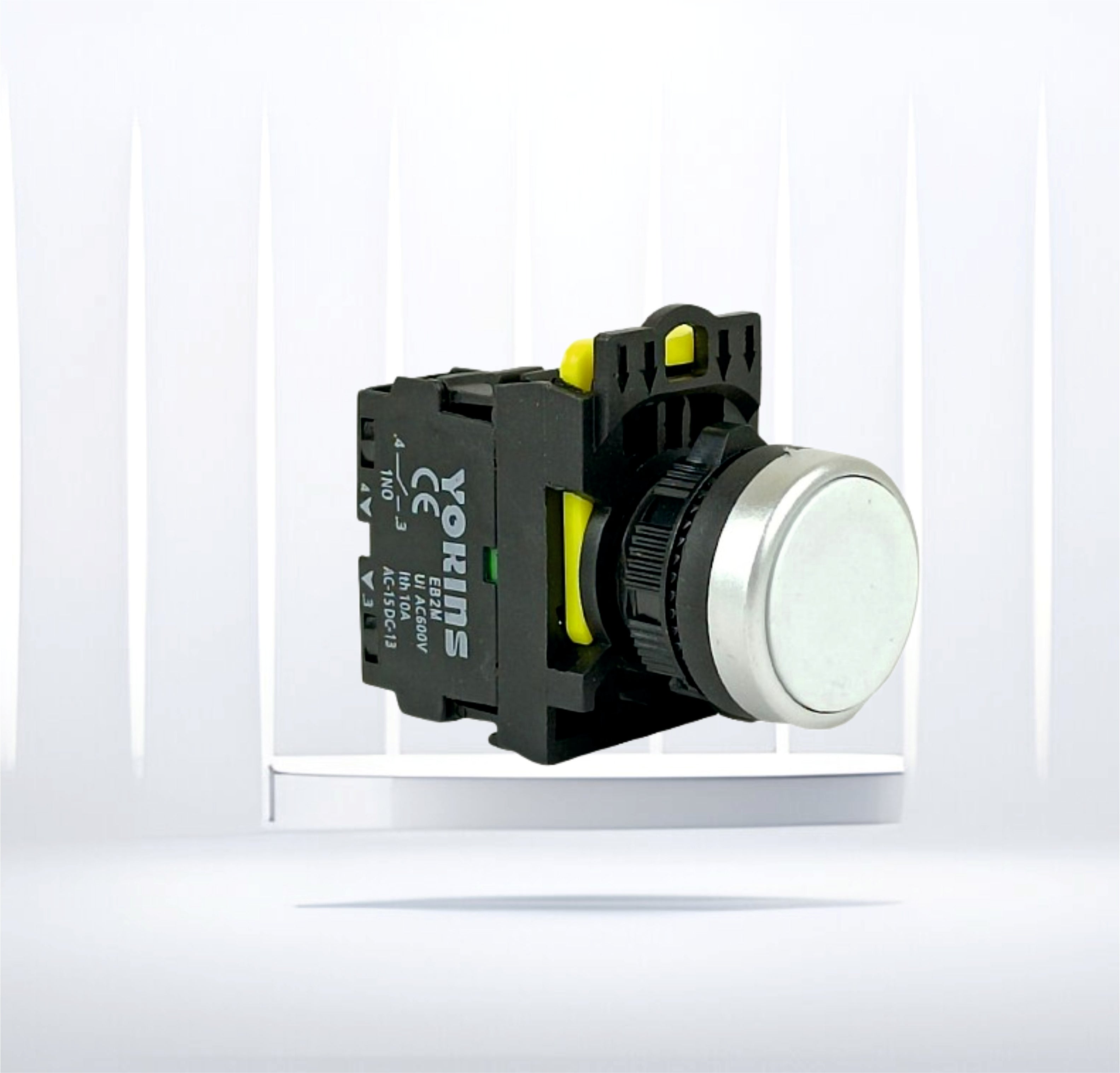

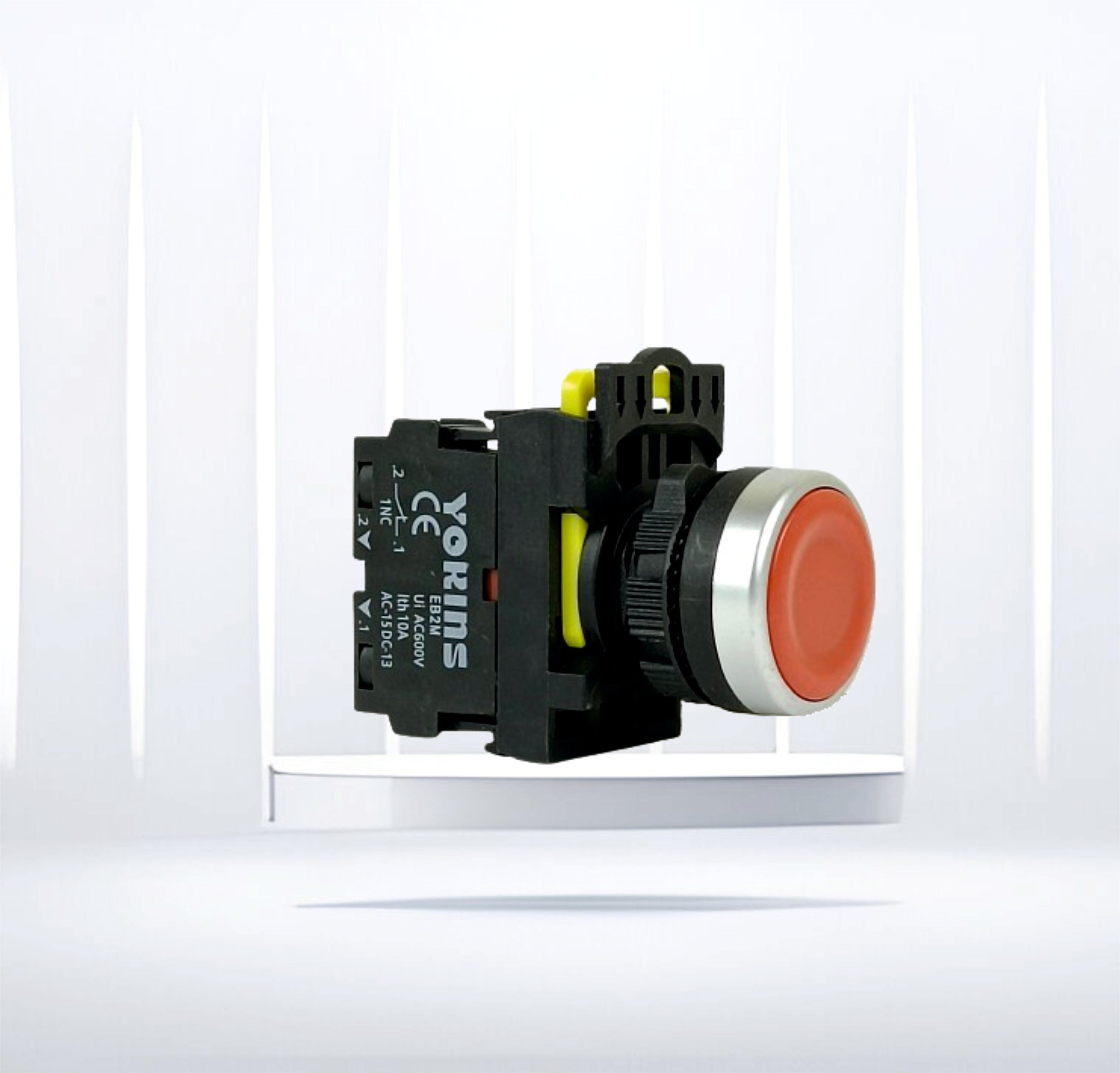

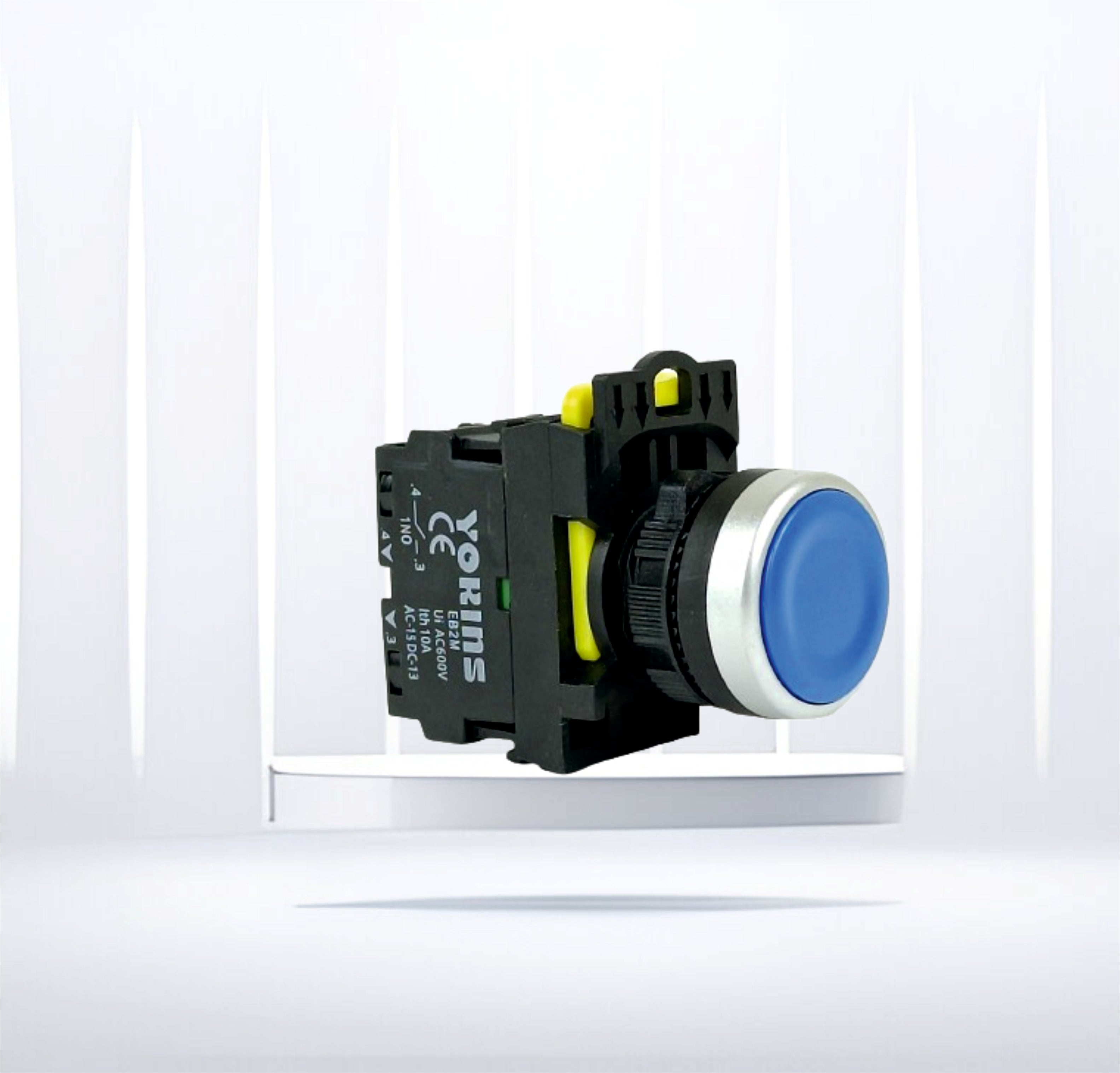

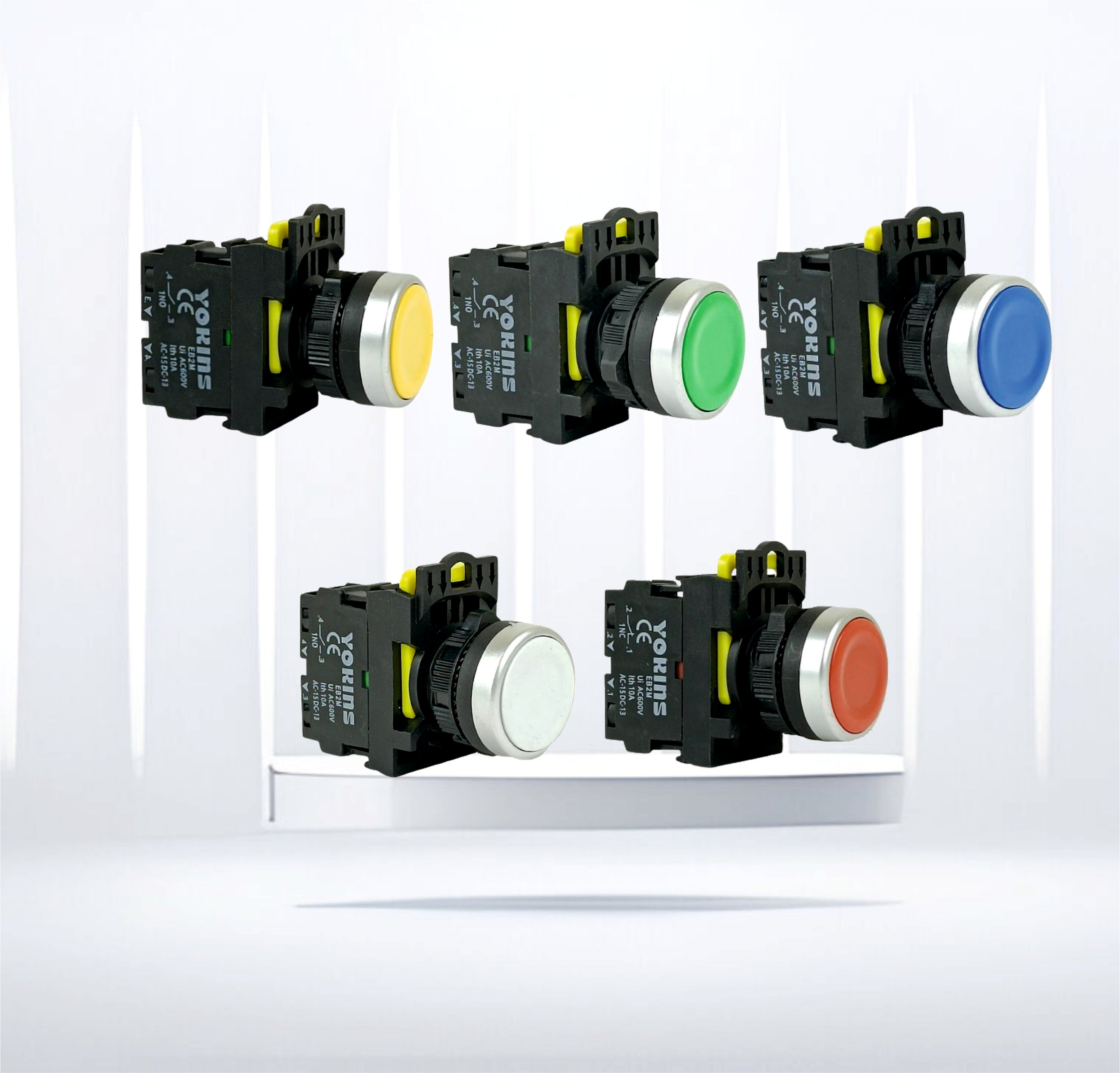

Available In 5 Colors (Red, Green, Blue, Yellow & White)
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC
60947-1
Specification
TechBrij: HTML Table
TechBrij: HTML Table
| Product or Component Type | Push Button |
| Model | EB2M-A |
| Brand | YOKINS |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting Diameter | 22.5MM |
| Contacts type and composition | 1 NO or 1 NC |
| Contact operation | Slow-break |
| Shape of signaling unit head | Round |
| Type of operator | Spring Return |
| Operator Profile | Blue Flush Unmarked |
Extra Details
Dimension
TechBrij: HTML Table
| Height | 52mm |
| Width | 30mm |
| Depth | 61mm |
| Net weight (without element) | 0.035kg Approx |
| Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
