Product Description
DESCRIPTION

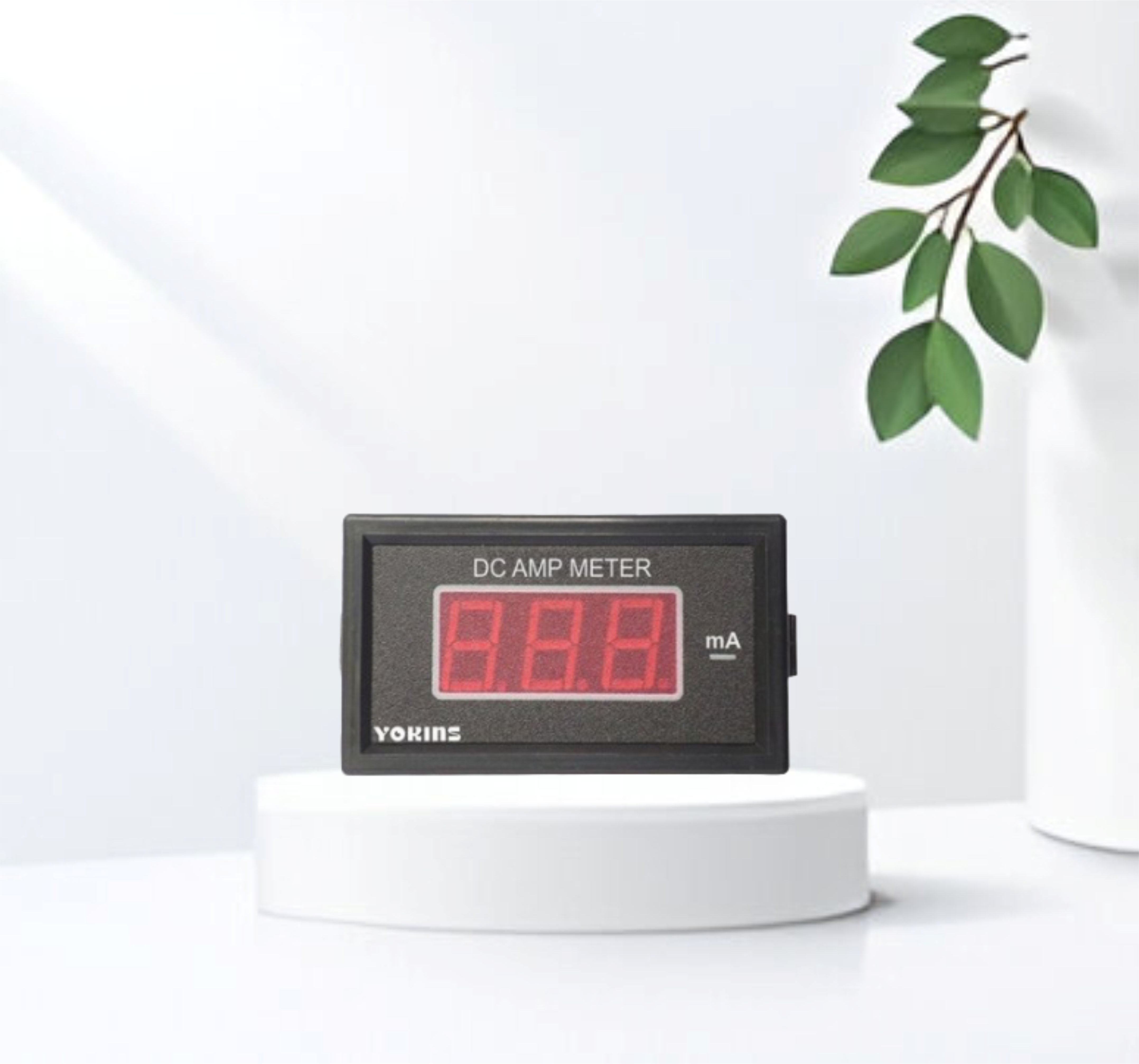

Yokins Instruments Pvt. Ltd. Compact Digital Meter DC Ammeters are designed for customers who have space constraint and want to install a good quality meter in affordable cost.
Check our range of Compact Digital Meter Series Digital Panel Meters. Contact us Today to learn more about our products and to find the best meter for your requirements.
SPECIFICATION
DD-DMA100-09 & DD-DMA500-09
- LED Size/ Color: 3 digit, 0.56’,Red
- Power: 9VAC/DC Red/Black
- Wire Accuracy: +/- 1%, +/- 2LSB
- Sample Speed: about 10 times/sec.
- Over Range: Display 'H'
ORDERING INFORMATION
| Model | Range | Maximum Display | Auxiliary Supply |
| DD-DMA100-09 | 0-100mA DC (Direct) | 99.9 | 9V AC/DC |
| DD-DMA500-09 | 0-500mA DC (Direct) | 500 | 9V AC/DC |
DIMENSION
Dimension
| Model | Dimension | Mounting Size |
| DD-DMA100-09 | 70*41mm | 68*38mm |
| DD-DMA500-09 | 70*41mm | 68*38mm |
Connection
Connection
