Phase Sequence Indicator
Phase Sequence Indicator
Phase Sequence Indicator

Phase Sequence Indicator

INR
Quantity
Download PDF

DESCRIPTION

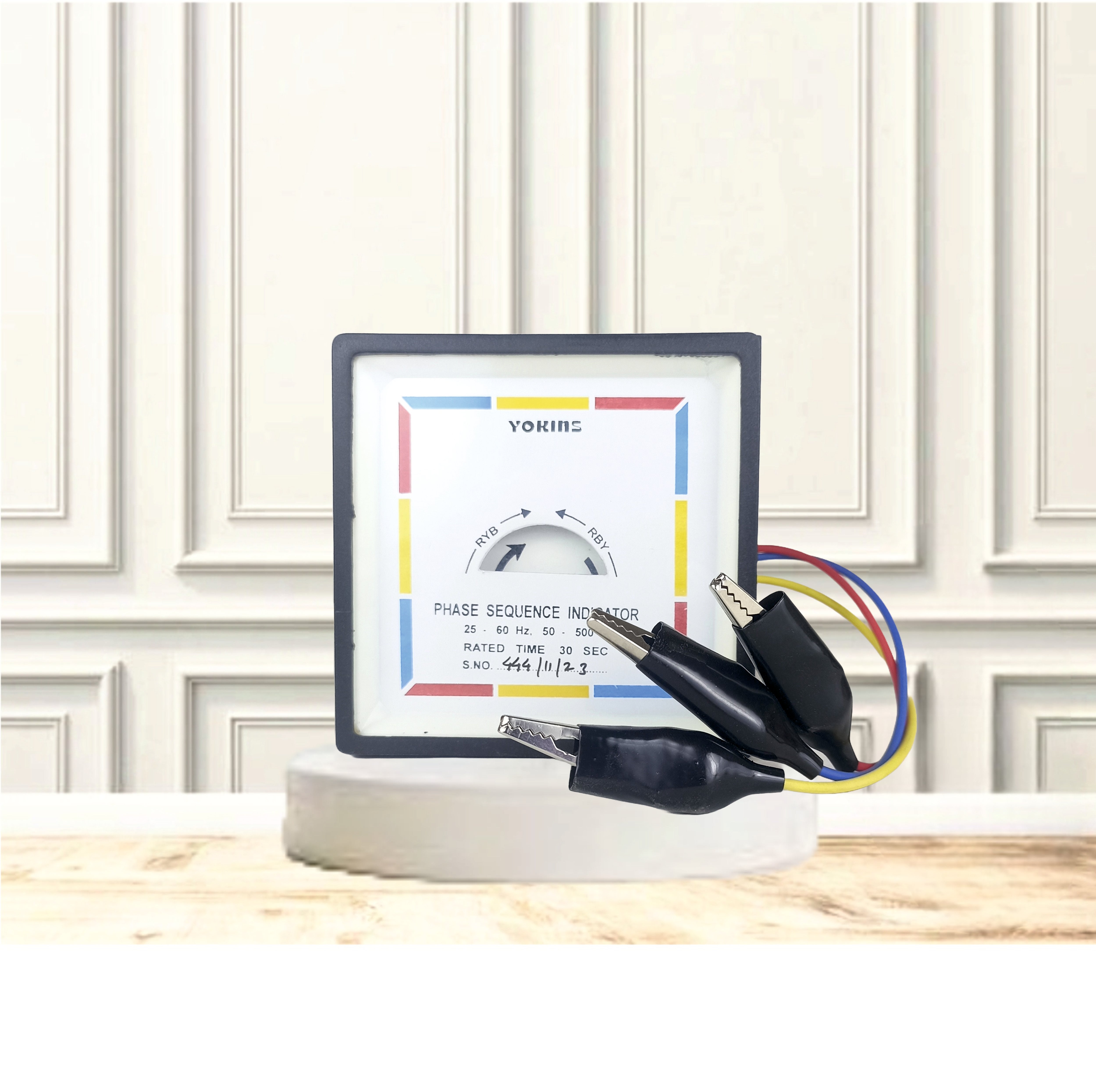

The Yokins Phase Sequence Indicator is a versatile instrument designed for indicating the phase sequence of a three-phase electrical system. This portable 96mm square instrument is rotating disc type, PSI is commonly used in electrical installations, industrial settings, and maintenance applications to ensure correct phase sequence and identify phase rotation errors.



Choose from our wide range of Phase sequence indicator or contact us to get Detailed Information about our Products.

Product Description

Features

specifications

Product Description

The YOKINS Phase Sequence Meter or Phase Sequence Indicator (PSI) is a valuable tool for electricians, technicians, and engineers working with three-phase electrical systems. Its accurate phase sequence measurement and error detection capabilities help ensure safe and efficient operation of electrical installations

Features
  • Phase Sequence Measurement: The meter accurately measures and displays the phase sequence of a three-phase electrical system, helping to identify the correct order of phases (L1, L2, L3).
  • Phase Rotation Error Detection: It detects and indicates phase rotation errors, allowing for quick identification and correction of wiring mistakes.
  • Clear Display: The meter features a rotational disc which rotates clockwise if sequence is correct or rotates anti-clockwise if sequence is incorrect.
  • Compact and Portable: With its compact and lightweight design, the meter is easy to carry and use in different locations and settings.
  • Easy Operation: It is designed with user-friendly controls and intuitive interface for easy operation and quick phase sequence testing.
  • Reliable Performance: The meter delivers reliable and accurate results, ensuring precise phase sequence measurements every time.
  • Durable Construction: It is built with high-quality materials and components, ensuring durability and long-term usage.
  • Power requirement: Self powered, no external batteries or power is required. Which makes it convenient and flexible for on-site phase sequence testing.

Specification
SPECIFICATIONS TechBrij: HTML Table
Measuring Frequency Ranges: 20-60Hz
Operational Voltage: 50-500V AC
Dielectric Strength 2KV / minute
Three separate 30" long leads in Red, Yellow & Blue for three phases are provided with crocodile clips.
WORKING PRINCIPAL TechBrij: HTML Table
When correctly connected to three phases R, Y & B. The clockwise rotation of white disc with BLACK ARROW shows that the phase sequence is correct.
If the rotation is anti-clockwise one of the phases is reversed.
This works from 50 to 500 volts AC
This must be used in horizontal position
Warning : This should not be left on the circuit and be removed immediately after testing the phases.
