AC VAF/VIF Meter

Name: AC VAF/VIF Meter
Brand: Yokins Instruments
Price: 1470.0 INR
Availability: InStock
Rating: 0 (0 reviews)

INR

Being the leader AC VAF Meter Manufacturers and Suppliers, Our AC VAF Meters are easy to use and install, with a clear and concise display.

Learn More

Models

Y1-520
Y1-522
Y1-522 PF

Range

3Ph
3Ph/1Ph

Quantity

Download PDF

DESCRIPTION

Yokins Instruments Pvt. Ltd. AC VAF meters are designed to provide highly accurate and precise measurements. An AC VAF meter is an essential instrument used in electrical systems to measure and display key parameters like voltage, current, and frequency. It is particularly important for monitoring and managing AC power in various applications, including industrial, commercial, and residential settings.. Our AC VAF meters are easy to use, with clear and concise displays. Our AC VAF meters are made with high-quality components and are built to last for long. Our AC VAF meters are affordably priced, making them a great value for your money. Our VAF panel meter are available in single phase and three phase meter range. Offers high accuracy in measuring electrical parameters, ensuring reliable data for analysis and decision-making. Our meters comes with selectable CT and PT ratios for various voltage and current ranges. Can provide communication and relay outputs in these.

Our AC VAF meters can be powered directly from the AC voltage being measured, eliminating the need for external power sources. Typically designed for easy installation in electrical panels or on equipment.

It can be Used in manufacturing and industrial settings to monitor power consumption and ensure the proper functioning of machinery. Also can be Employed in commercial buildings to monitor and manage electrical systems efficiently.

In conclusion, an AC VAF meter is a valuable tool for monitoring and managing AC electrical systems, providing crucial information for energy optimization, maintenance, and compliance with safety standards

Choose our AC VAF meters for the best combination of accuracy, reliability, affordability, and ease of use.

Check our range of Multifunction Series Digital Panel Meters.Contact us Today to learn more about our products and to find the best meter for your requirements.

VAF Meter measures Voltage (V), Current (A), and Frequency (F)
VIF Meter measures Voltage (V), Current (A), and Frequency (F) (naming may vary by manufacturer but function is similar)

These meters eliminate the need for separate voltmeters, ammeters, and frequency meters, making them ideal for control panels and power monitoring applications.

Features

TRMS Measurement
Measures V, A, Hz, Run Hour, ON Hour & RPM
RUN Hour / Load Hour (Max. 999999 Hours, 59 Minutes)
RUN Hour /Load Hour Reset Facility
Auto Scroll / Manual Scroll Display

3 Phase 4 wire, 3 Phase 3 wire, 1 Phase 2 wire Programmable
3 Rows of 3 Digit & 4 Digit Super Bright Red LED Display
Programmable CTR, PTR. Number of Pole Setting
Auto Indication for ‘KV’ & ‘KA’
Auto Selection of Decimal Point

Specification

TechBrij: HTML Table

Display	3 Rows of 3 Digit RED Seven Segment in YI-520, Display 0.40 /10.1mm Digit Height, 3 Rows of 4 Digit RED Seven Segment in YI-522, Display 0.56/14.2mm Digit Height
Auxiliary Supply	150-30V AC (Not Available in Yi-520), 45-270V AC/DC, 19-90V AC/DC
Input Voltage	20- 600 V AC) Max.) (PH - N), 30 - 1000 VAC) Max.) (PH - PH)
Input Current	0.020A-10A AC Per Phase
Frequency	45 - 65 Hz
RPM	As per Number of Pole Setting, Fully Programmable (1-255)
VA Burden (Typical)
Auxiliary	<2.5 VA
Voltage Input	<0.2 VA/ Phase.
Current Input	<0.2 VA / Phase
System	3 Phase 4 wire, 3 Phase 3 wire, 1 Phase 2 wire Programmable

TechBrij: HTML Table

CT Primary Range	1A to 50kA AC Programable
CT Secondary Range	0.5A to 5A AC Programable
PT Primary Range	50 to 500kV AC Programable
PT Secondary Range	50 to 500V AC Programable
Metering Standard	IEC 62053-21/22
Installation Category	Cat II (IEC / EN61010 - 1)
Pollution	Degree 2 (IEC / EN61010 - 1)
Environment
Calibration	27°C ± 5°C
Operating	0 to 50°C, RH <70%
Storage	10 to 60°C, RH < 70%
Dielectric Strength	2.5 KV at 50 Hz for 1 mm
Insulation Resistance	> 20 MOhms at 500 V DC

Extra Details

DIMENSIONS (mm) TechBrij: HTML Table

MODEL	YI-520	YI-522
FRONT	96 X 96	96 X 96
DEPTH (Behind Bezel)	39.5	52
Panel Cut -Out	92 X 92	92 X 92

ORDERING INFORMATION TechBrij: HTML Table

MODEL	PARAMETERS DISPLAYED	ACCURACY CLASS	AUX SUPPLY

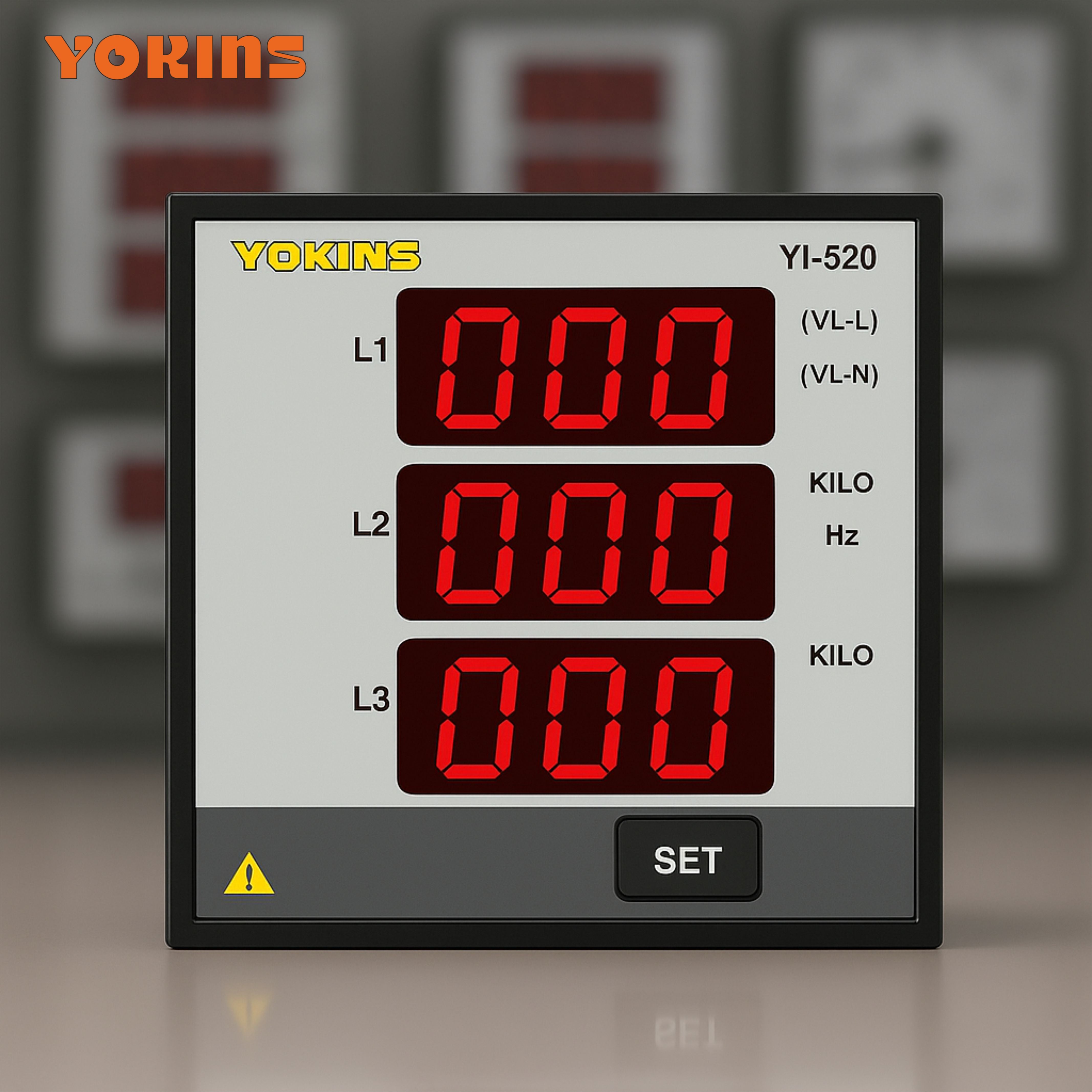

YI-520 (3 Digit 3 Row)	Voltage(Line to Line), Voltage(Line to Neutral), Current, Frequency (Class 0.2), RPM, Load Hours	1.0/ 0.5	SELF POWERED

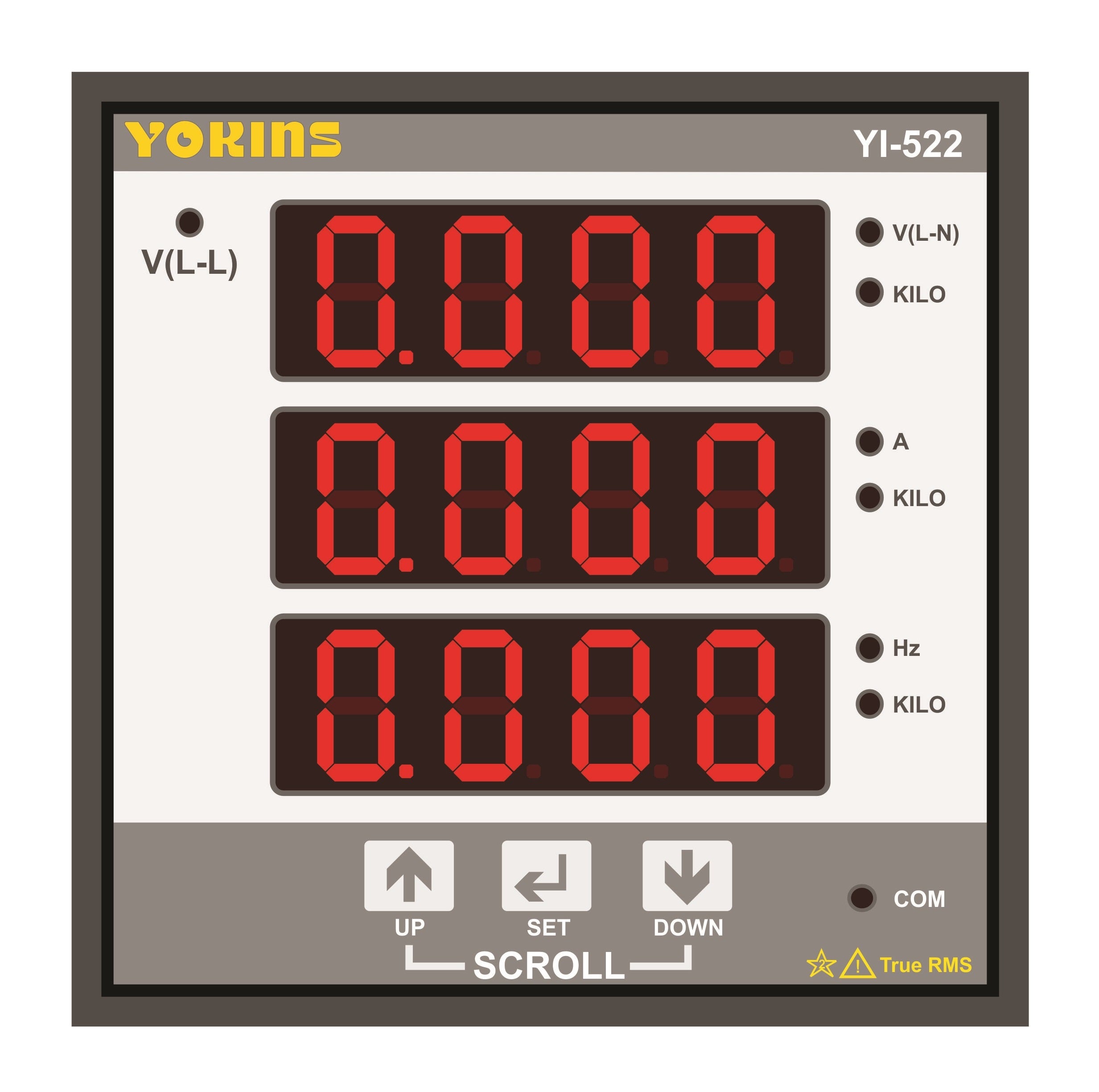

YI-522 (4 Digit 3 Row)	Voltage(Line to Line), Voltage(Line to Neutral), Current, Frequency (Class 0.2), Power Factor(Class 0.5), RPM, Run Hour, Load Hours	1.0/ 0.5	45-270V AC /DC, 19-60V AC /DC
