AC Transducers
KW (Power) Transducer
DESCRIPTION
Specification
TechBrij: HTML Table

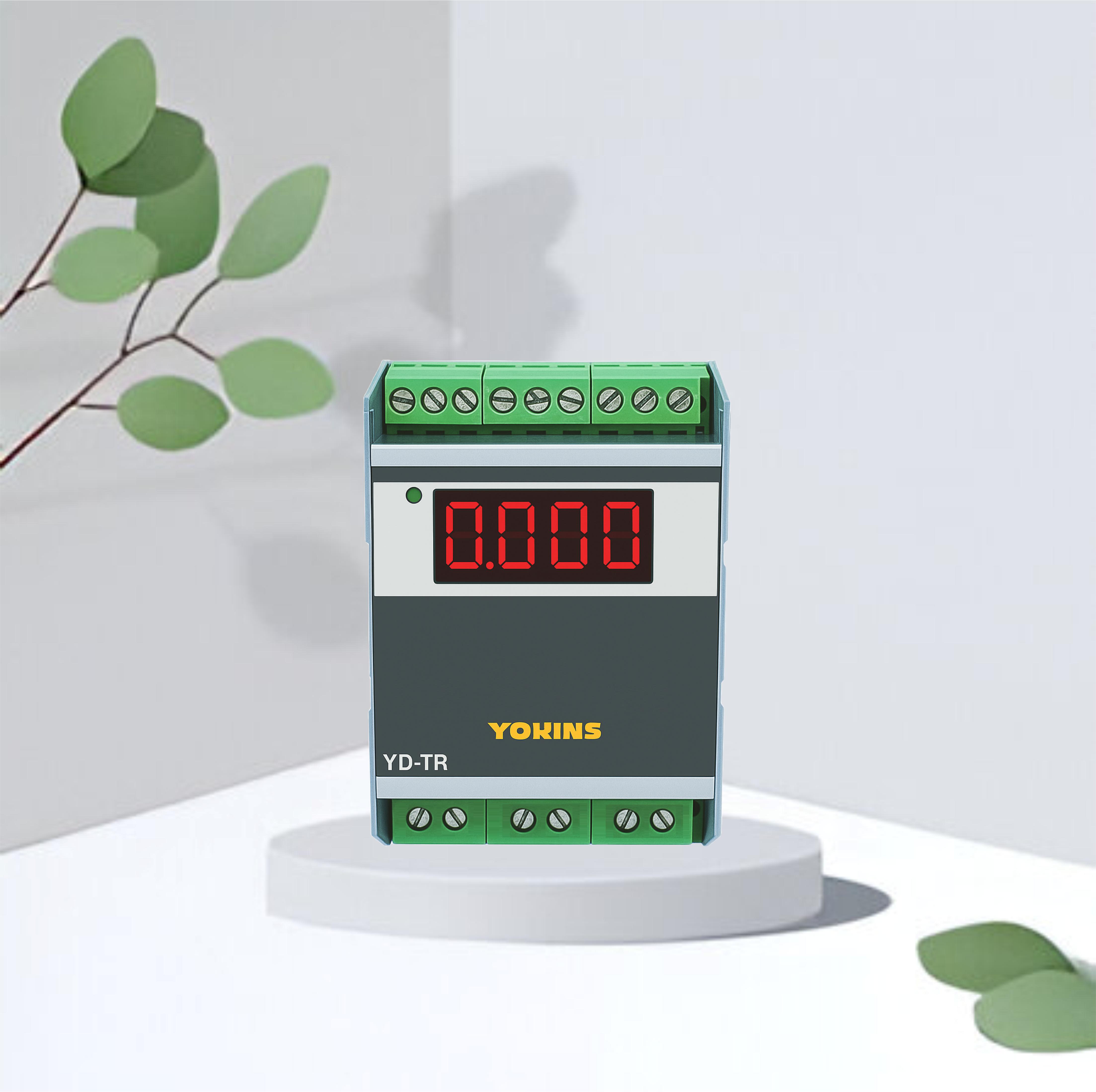

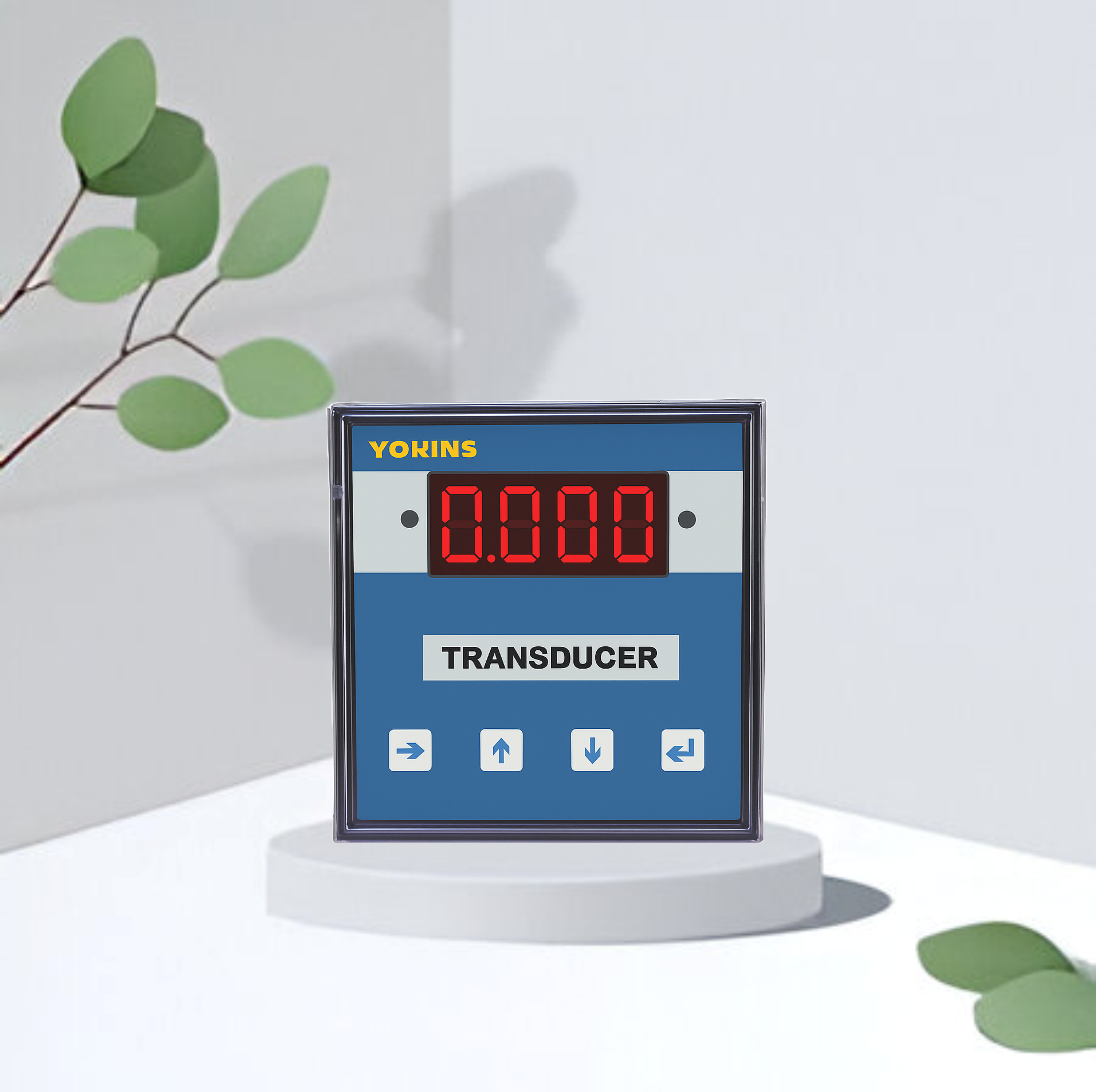

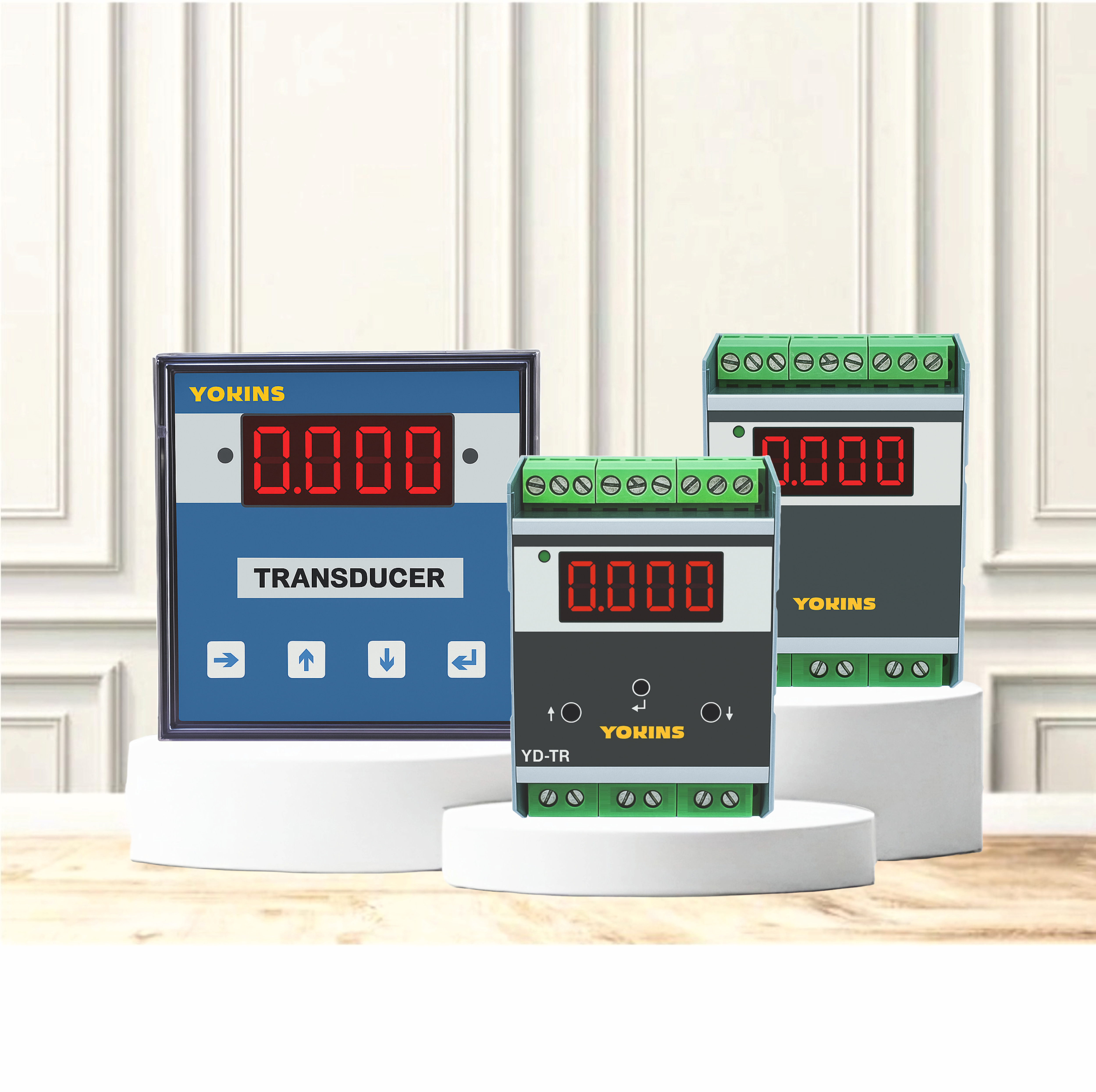

Sizes or models Available | DIN Rail type and Panel mounting 96x96 |
AC Inputs | Voltage 100-500V Current 0-1A or 0-5A (other customized ranges can be provided on demand) |
DC Outputs | Current (mA): 0-1, 0-20, 4-20mA Voltage (V) : 0-5V, 0-10V (other customized ranges can be provided on demand) |
Accuracy | 1.0% or 0.5% |
Number of Outputs | Single output or double output |
Auxiliary Supply | 230V ±10% AC or 80 to 270V AC/DC |
Optional Outputs | Relay Output or RS485 Output |
