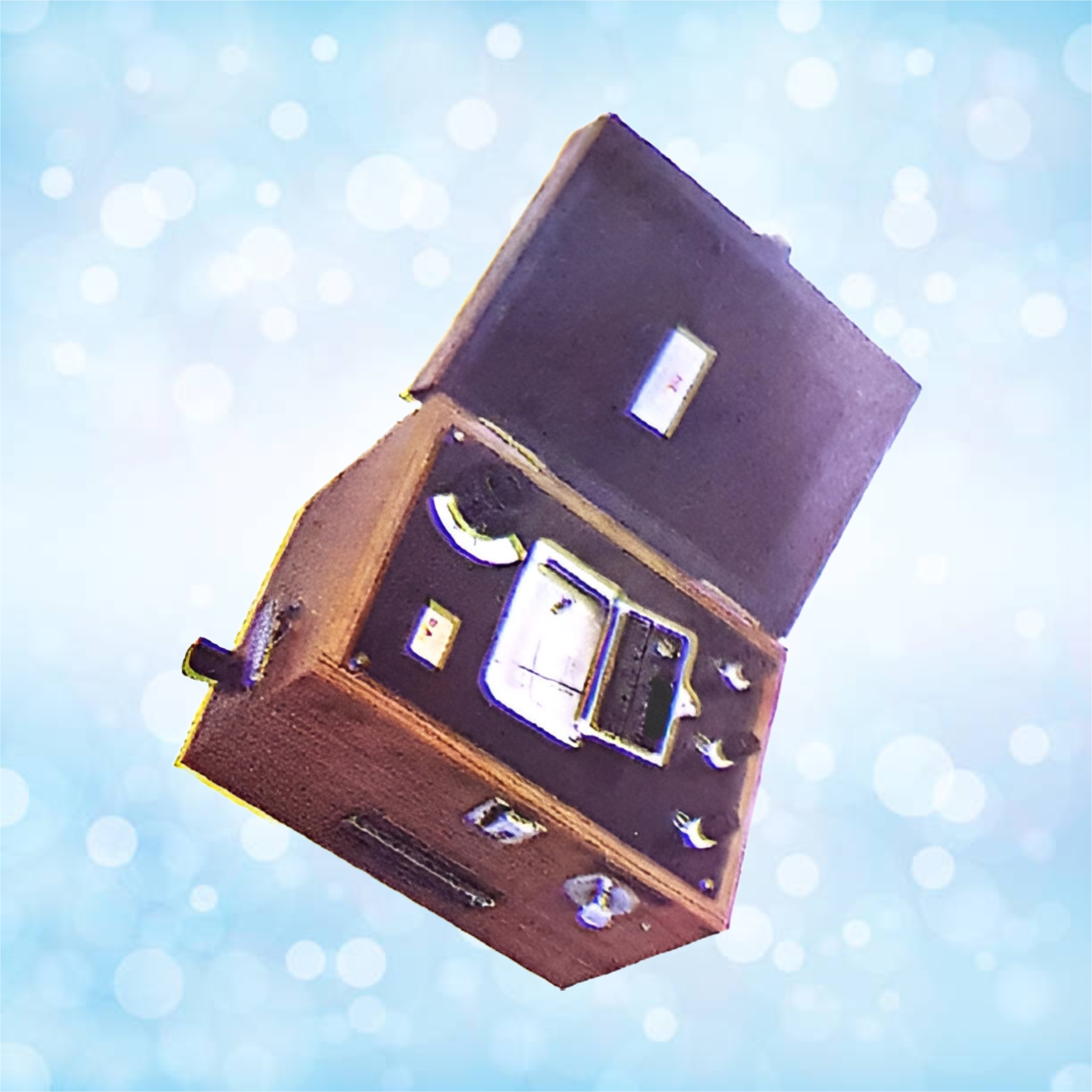

Insulation Tester Wooden body HDGT
Insulation Tester Wooden body HDGT
Analog Insulation Tester

Insulation Tester Wooden body HDGT

INR
Quantity
Download PDF

DESCRIPTION

Yokins Instruments Pvt Ltd., being the leader Wooden Body Insulation Tester Manufacturers and Suppliers, offering portable, hand-cranked insulation tester that is ideal for testing the insulation of electrical equipment. Our offered tester is easy to use and operate and provides accurate and reliable results.
Yokins Insulation Tester Wooden Body HDGT is a valuable tool for any electrician or electrical engineer. The wooden body construction makes it durable and portable and the hand-cranked operation makes it easy to use in any environment.



Choose from our wide range of Insulation Testers or contact us to get Detailed Information about our Products.

Product Description

Product Description

UNIQUE FEATURES

  • Constant Pressure Generators
  • Individually Calibrated
  • Direct Reading No Setting Up Required
  • Inherently Accurate Without Any Drift
  • Reading Independent Of Speed Of Rotation
  • Rugged And Sturdy- A Lifetime Investment

CROSS COIL INDICATOR: The indicating movement is of the cross coil ratio type and is designed so that voltage fluctuation, caused by irregular cranking have no influence on the results of measurement.

INFINITY ADJUSTMENT: This has been provided in the Instrument.

SILENT GENERATOR: The AC Magnet hand generator drive is extremely smooth and silent. There are no carbon brushes and commutators, to be replaced as in DC generators.

QUICK RESPONSE: The quick response saves the time and extend the life of the generator.

GENERAL CHARACTERSTIC RESPONSE TIME :
Less than 3 seconds, when a resistance, the value of which corresponds to the central scale mark is suddenly inserted between measuring terminals

LIMITS OF ERROR : The insulation resistance measurement is accurate to within(+/-)5% of the indicated value over the effective range and within (+/-)10% of the indicated value at the scale mark for the rest of the ranges in confirmity with I.S.2992-1980

TOLERANCE OF VOLTAGE ACROSS MEASURING TERMINALS : Within (+/-)10% of the rated voltage for scale mark of infinity and more than 90% of the rated voltage for the central scale mark in confirmity with I.S.2992-1980.

ROTATIONS SPEED OF HANDLING : 160 R.P.M.

CENTRAL SCALE MARK : 1/50th of rated resistance value.
