DESCRIPTION
Yokins Instruments Pvt. Ltd. DC ammeters are used to measure DC currents upto 20A direct and through shunt upto 50KA. All our meters are fully programable to be used on any shunt ratio. Also the most accurate and reliable on the market, they are also highly durable and can withstand even the most demanding conditions. Our DC ammeters are easy to use and read, with a large, clear display. They are also very affordable, making them the best value for your money. We offer a wide range of DC ammeters to choose from, so you can find the perfect one for your needs. Our DC ammeters are backed by a comprehensive warranty, so you can be sure that you are making a wise investment. We are a leading manufacturer of DC ammeters with over 45 years of experience in the industry. Our DC ammeters are installed in various government departments including Indian Railways, BSNL, BHEL, Indian Oil, etc . We are committed to providing our customers with the highest quality products and services. Our DC ammeters are the best choice for anyone looking for an accurate, reliable, and durable DC ammeter.
We offer a wide range of DC Digital Panel Meters to choose from. Contact us Today to learn more about our products and to find the best meter for your requirements.
FEATURES
- Displays DC Current
- Direct and shunt settable current range available.
- Password Protected.
- Small Ranges Available For Better Accuracy
- Auto/Manual scrolling of parameters
- Easy Programming with push buttons on front facia.
- RS-485 option available on demand.
- Relay Output for alarm can be provided.(optional)
SPECIFICATION
| Display | 4Digit Red LED Super Bright Display |
| Digit Height | 0.56"/14.2.mm |
| Maximum display | 9998(Max) Counts |
| Resolution | 0,001 to 1 Count Depending on Range/ Scale Display |
| Display Stability | Within 1 Digit |
| Faceplate /Lens | Polycarbonate Transparent |
| Case/Housing Material | FR-ABS Black |
| Connectors /Terminal | Nylon 66, 33%GF, Black/Brass |
| Mounting Clamps | Sturdy, Moulded Glass filled nylon with screws. |
| Decimal Point | Auto Scrolling |
| Dielectric Strength | 2.5KV @50 Hz 1 minute between Input -Auxiliary |
| & Case - Terminals | |
| Impulse Withstand | 3.5.KV, 1.2/50 micro Second |
| Refresh Rate | Per8.0ms |
| Maximum Overload | Current : 2 Times Continuous(mV) |
| Auxiliary Supply | 150-300V AC, 45-270V AC /DC, 19-60V AC /DC |
| Input Currrent | 0-20A DIRECT, 0 - 75mV/0-60mV DC(SETTABLE) |
| SHUNT | 1A-50kA PROGRAMABLE. |
| Accuracy Class | 1 & 0.5 |
| VA (Burden) | |
| Auxiliary | ≤1.5 VA |
| Current Input | ≤1.0 VA |
| Environment | |
| Calibration | 27⁰ C ± 5⁰C |
| Operating | 0⁰ to + 60⁰C, RH<70% |
| Storage | 10⁰ to +70⁰C, RH<70% |
| Metering Standard | IEC62052-11 |
DIMENSIONS (MM)

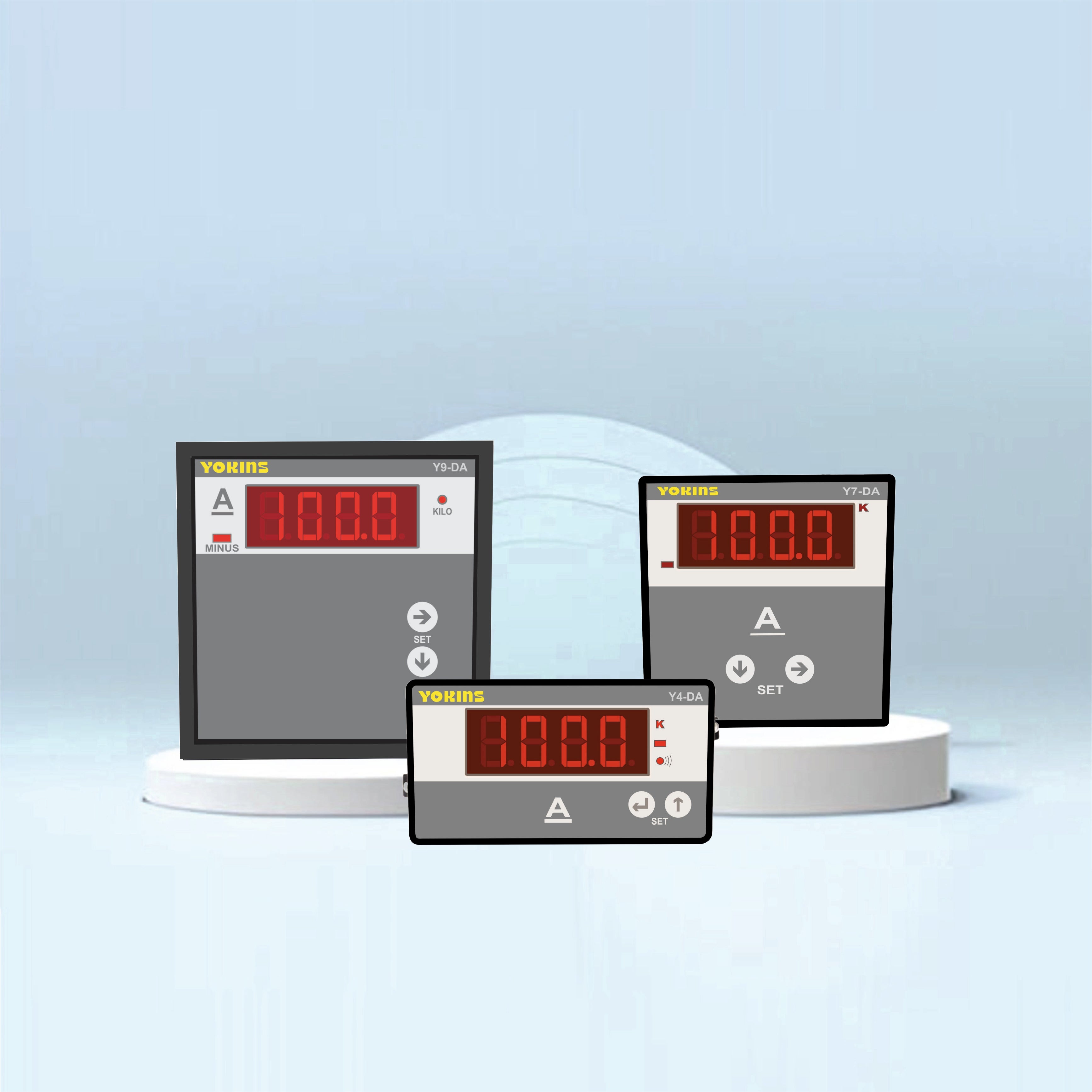

| MODEL | Y7-DA | Y4-DA | Y9-DA |
| FRONT | 72 X72 | 48 X 96 | 96 X 96 |
| DEPTH (Behind Bezel) | 59 | 74 | 39.5 |
| Panel Cut -Out | 68 X 68 | 44(+0.5-0.0) X 92(+0.8-0.0) | 92 (+0.8-0.0) X 92(+0.8-0.0) |
ORDERING INFORMATION
| MODEL | MEASURING RANGE | ACCURACY CLASS | AUX SUPPLY |

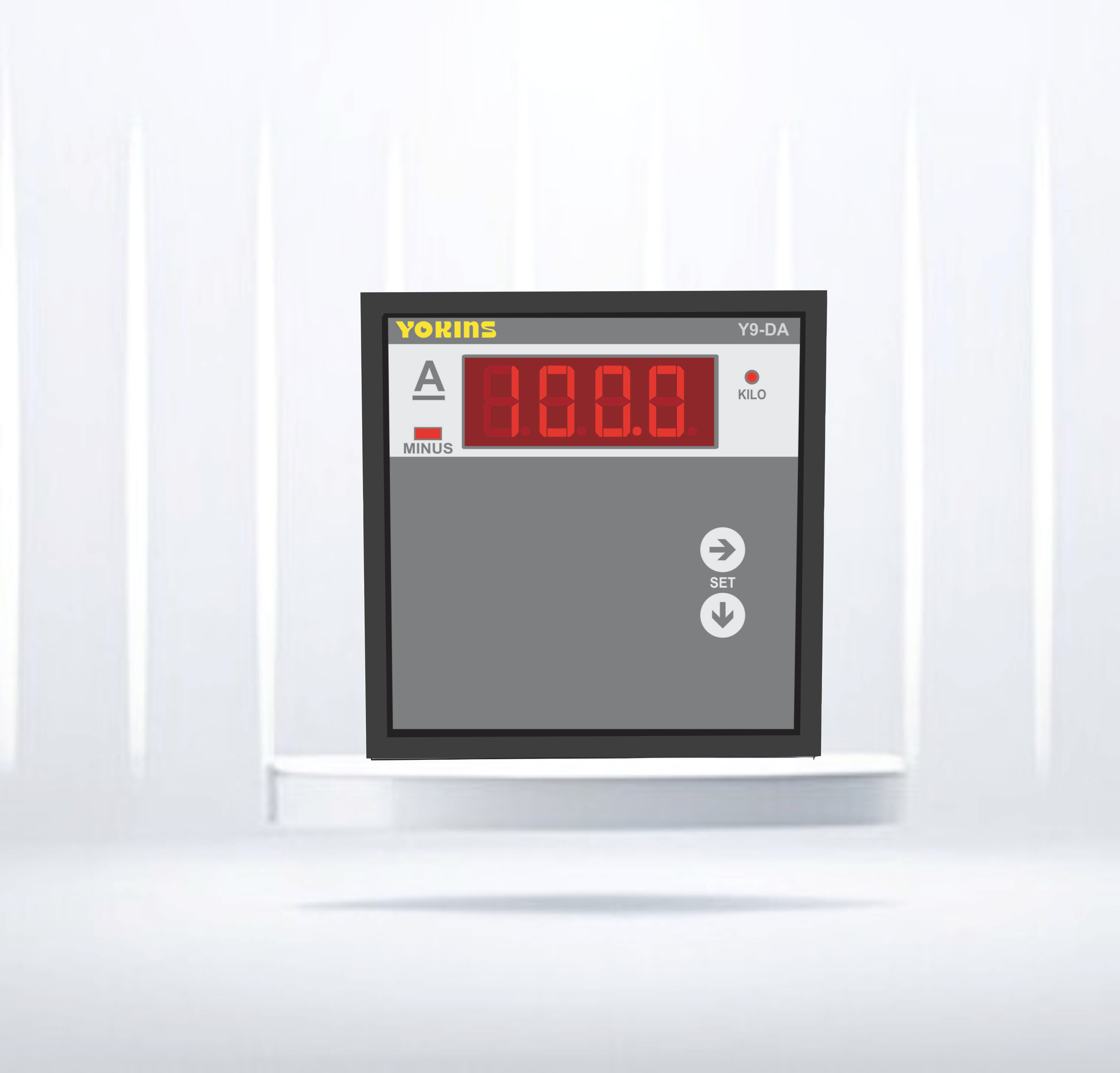

| Y9-DA | 0-10A DC(DIRECT) 0-20A DC(DIRECT) 0-75mV (SHUNT INPUT) 0-60mV(SHUNT INPUT) -75-0-75 mV(SHUNT OR TRANSDUCER I/P) -60-0-60 mV (SHUNT OR TRANSDUCER I/P) |
1.0 0.5 |
150-300V AC (TX Supply) 45-270V AC /DC 19-60V AC /DC |

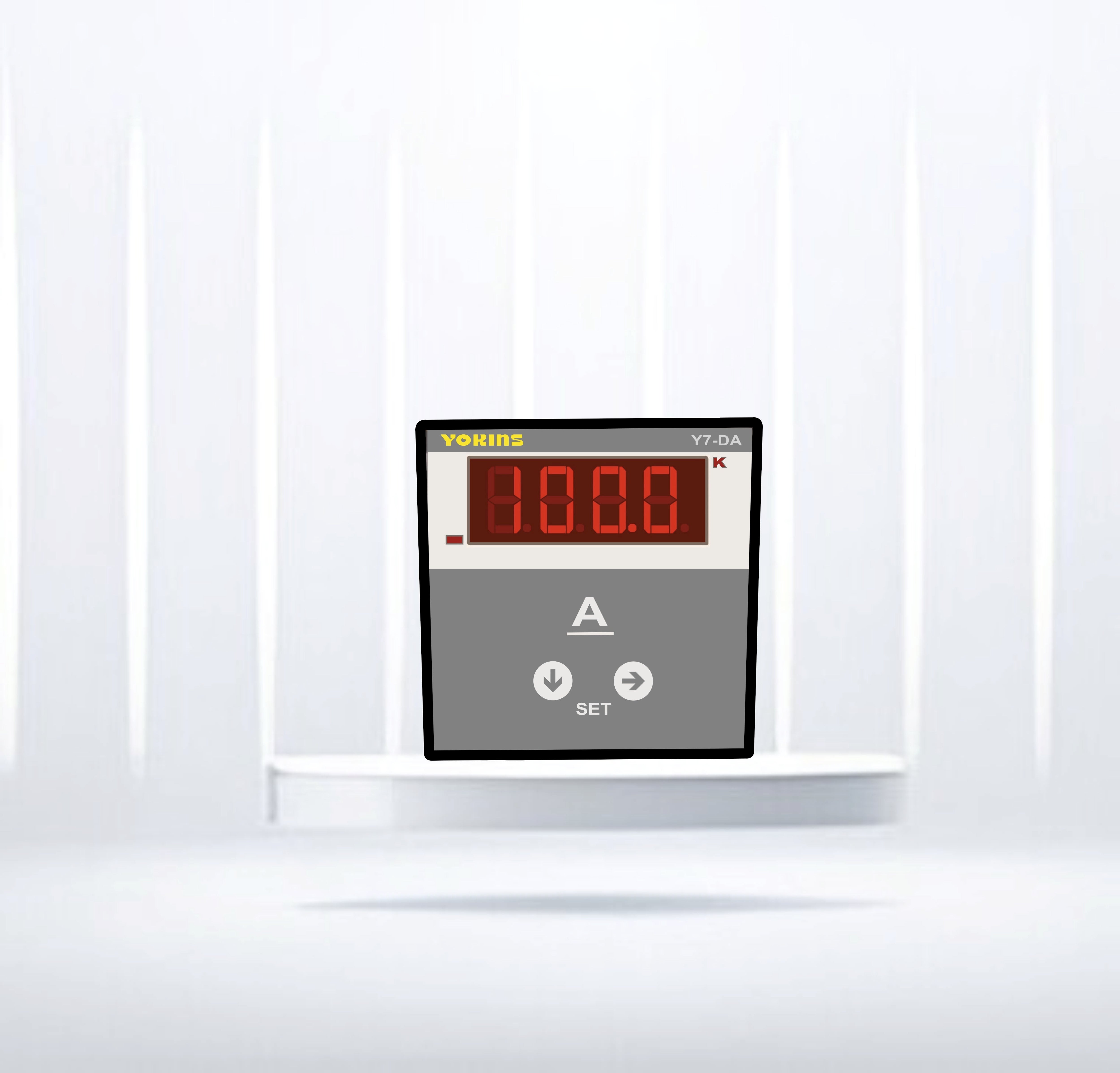

| Y7-DA | |||

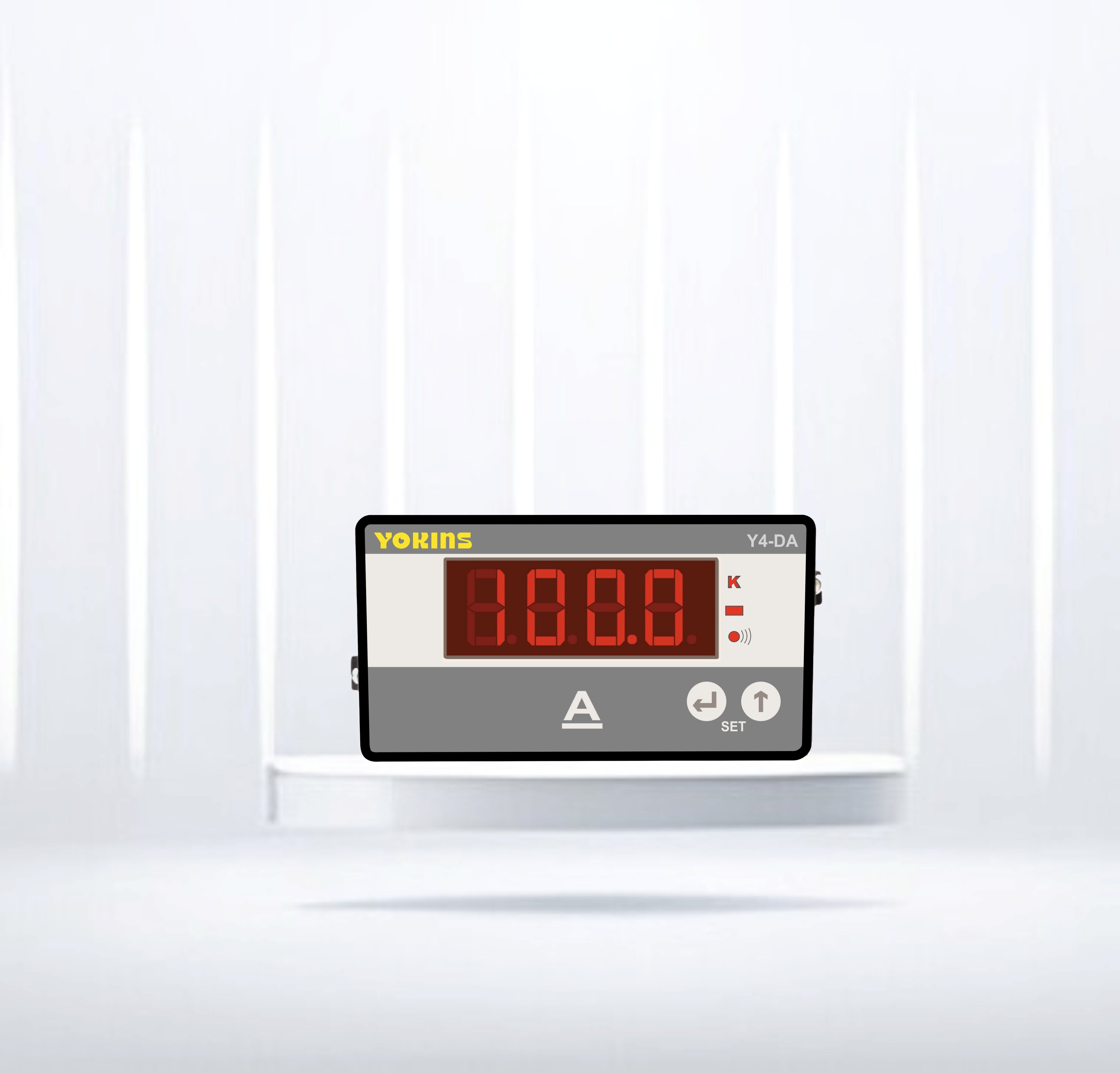

| Y4-DA | 45-270V AC /DC |
