DESCRIPTION

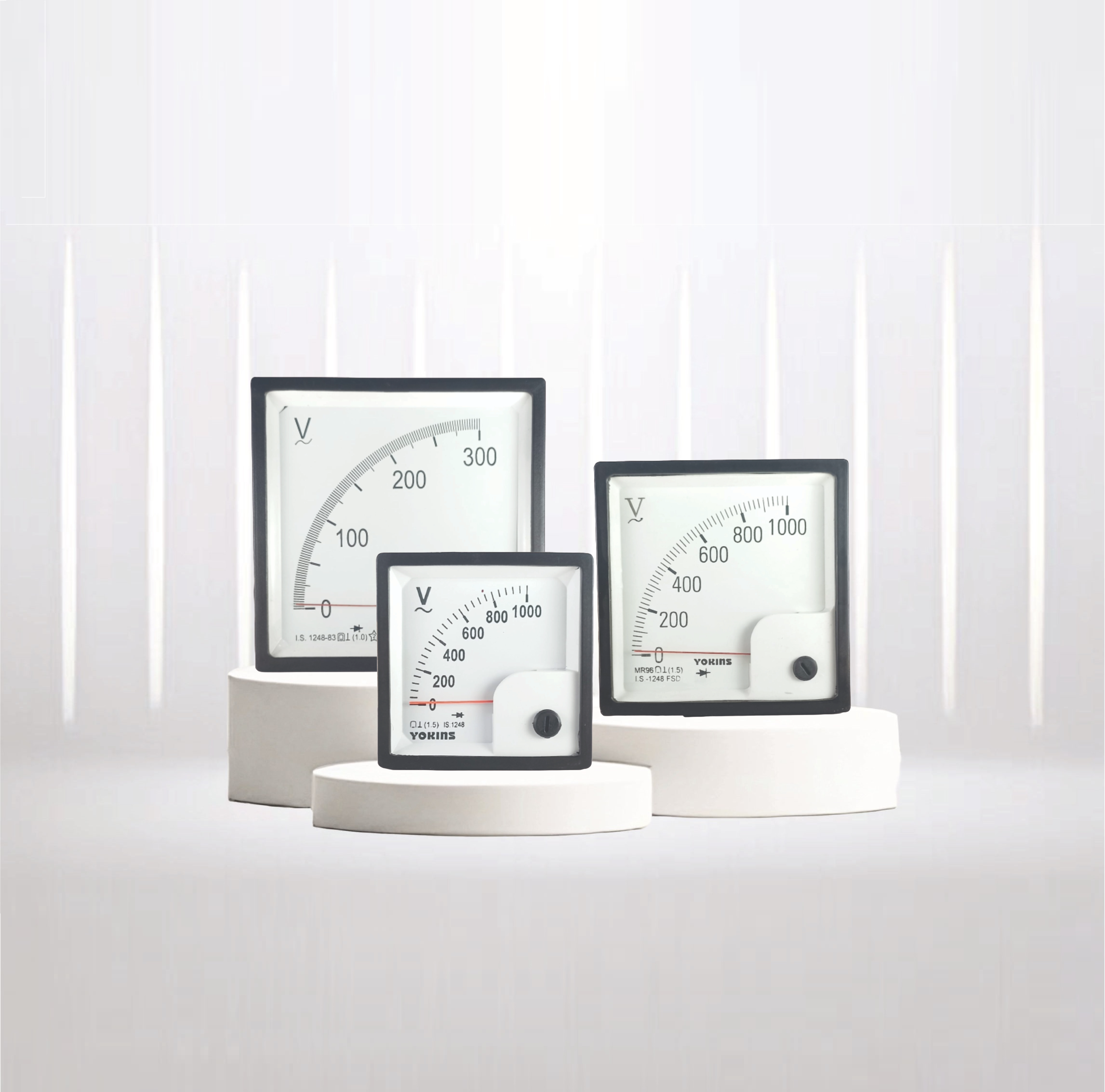

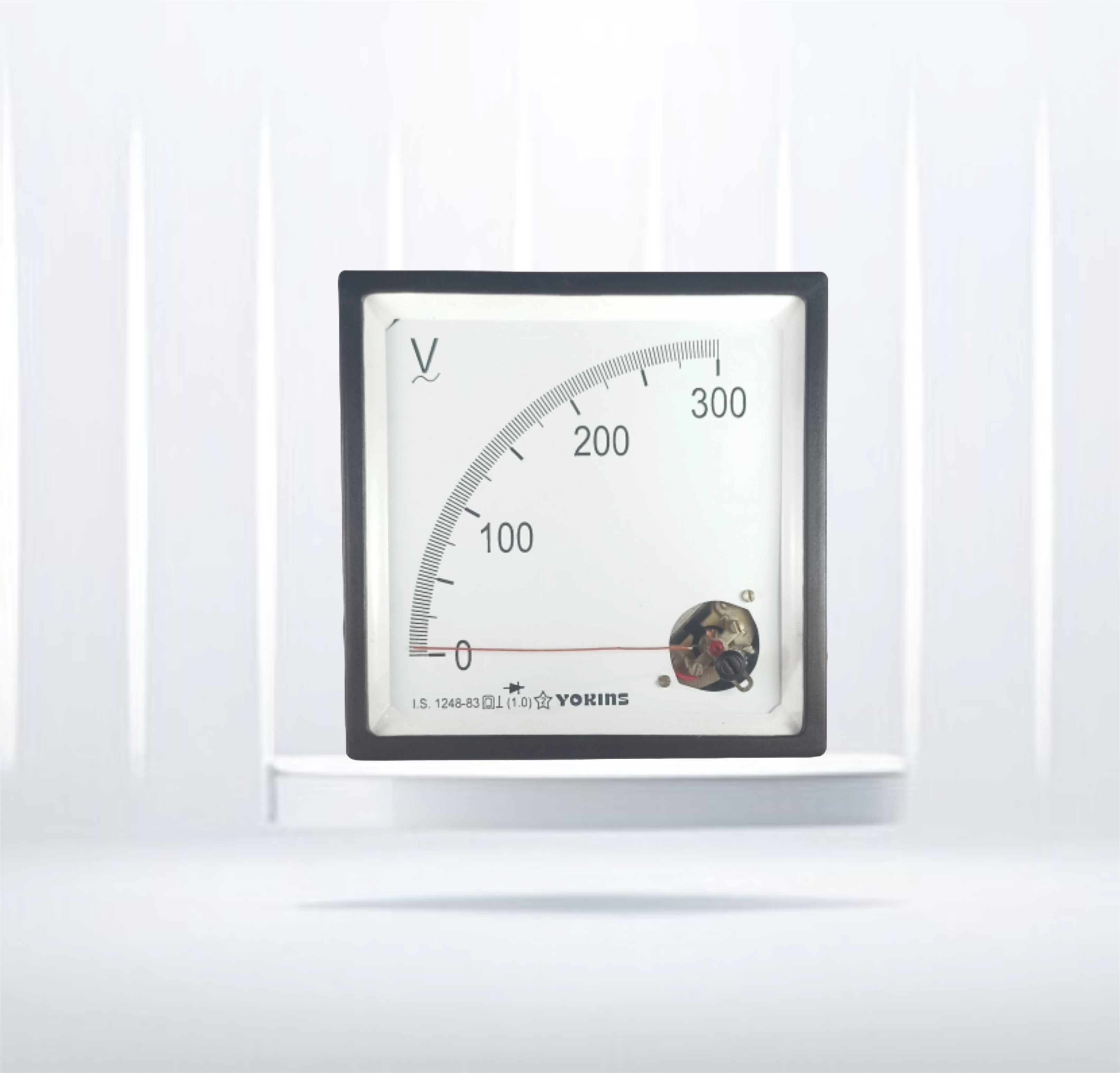

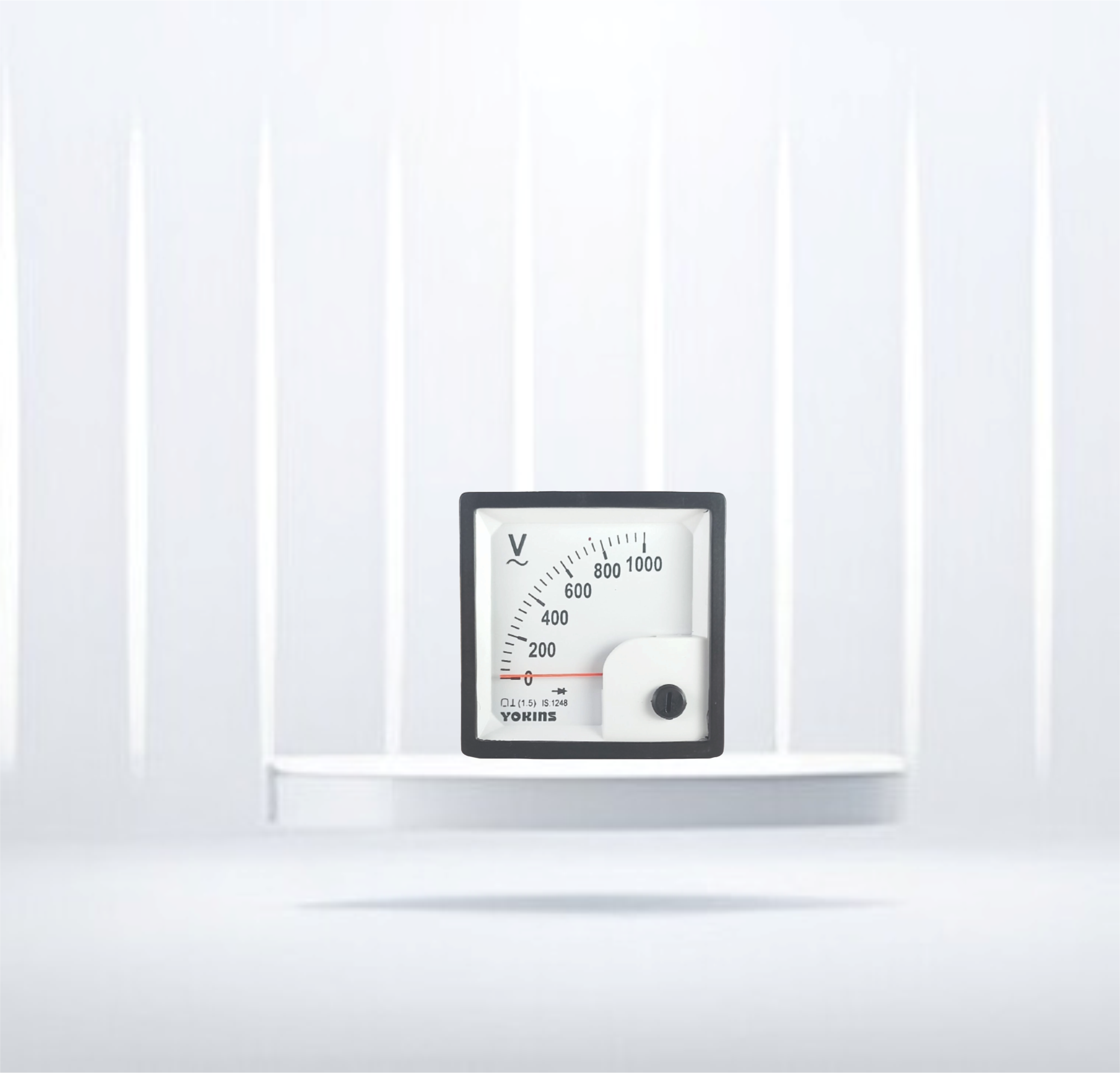

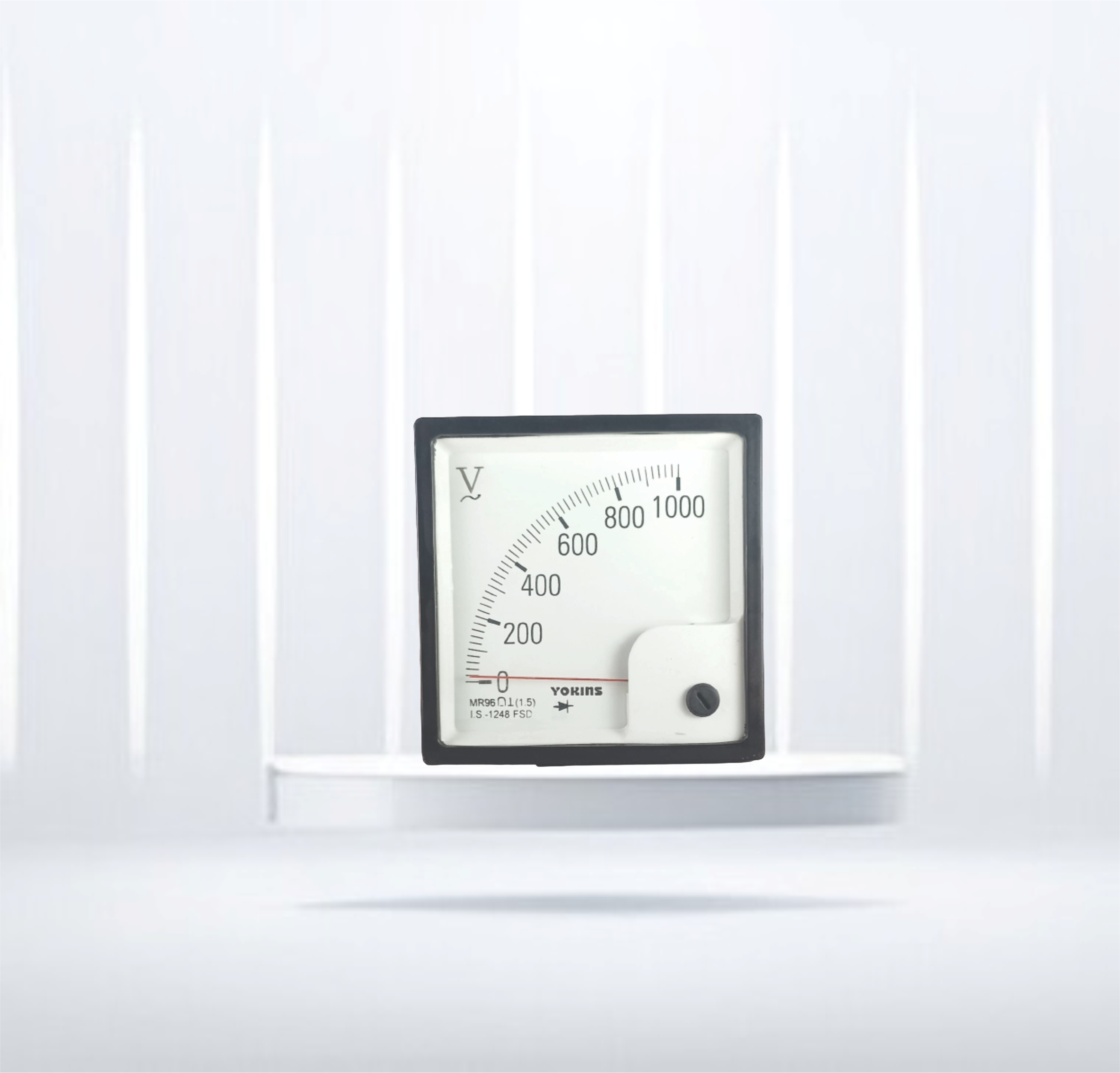

Yokins Instruments Pvt. Ltd is the top Moving Coil Rectifier Meters manufacturers. Our MCR Meters are highly accurate and reliable, thanks to their moving coil design and rectifier circuit. Moving Coil Rectifier Meters can be used to measure a wide range of AC currents and voltages, making them versatile tools for a variety of applications. Our Moving Coil Rectifier Meters are built to last, with durable construction and shock-resistant features. Moving Coil Rectifier Meters are easy to use and read, with clear and concise scales. Our Moving Coil Rectifier Meters are competitively priced, offering excellent value for money. Moving Coil Rectifier Meters have a linear response, meaning that the pointer deflection is directly proportional to the measured value. This makes them easy to calibrate and use. Moving Coil Rectifier Meters have a high torque-to-weight ratio, meaning that they can produce a large amount of torque for their size. This results in a fast and responsive meter.
Being the largest Moving Coil Rectifier Meter Suppliers and Exporters, our Moving Coil Rectifier Meters consume very little power, making them ideal for many applications. Apart from Moving Coil Rectifier Meters, our range consists of Moving Coil Voltmeter, moving coil ammeter, moving coil panel meter etc.
Based on Working Principle, we offer a wide range of Analog Panel Meters. Contact us to get detailed information about our products.
SPECIFICATION
| Description | Moving Coil Rectifier Meter of 90° or 240° Deflection with Fixed / Interchangeable Scale Facility. |
| Movement Type | Moving Coil rectifier permanent magnet type with Jewel Bearing Suspension. |
| Range | |
| Current µA | 100µA to 750µA |
| Current mA | 1mA to 750mA |
| Current A | 1A to 5A (Direct), Through CT/1A or /5A for Higher Current |
| Voltage V | 10V to 1000V(Direct) Through PT for Higher Voltages. |
| Standards | IS-1248 |
| Accuracy | ±1.5% of Full Scale for all except CR48 and DCF65 ±2.5% of Full scale for CR48 and |
| Zero position | Offset zero |
STANDARD FLUSH TYPE SQUARE MODELS
STANDARD FLUSH TYPE SQUARE MODELS
STANDARD FLUSH TYPE SQUARE MODELS
| TYPE | PANEL CUTOUT | FRONT (AXB) (sq.mm) | C | D | SCALE LENGTH | ACCURACY |
| CR-144 | 136 X 136 | 144 X144 | 44 | 52 | 155 | 1.00% |
| CR-96 | 92 X 92 | 96 X 96 | 44 | 52 | 92 | 1.50% |
| CR-72 | 68 X 68 | 72 X 72 | 44 | 50 | 62 | 1.50% |
| CR-48 | 46 X 46 | 52 x 52 | 37 | 42 | 40 | 2.50% |
CROWN SERIES (FLUSH MOUNTING, ROUND PANEL CUT MODELS)
CROWN SERIES (FLUSH MOUNTING, ROUND PANEL CUT MODELS)
CROWN SERIES (FLUSH MOUNTING, ROUND PANEL CUT MODELS
| Type | Panel Cut | A | B | C | D | E | Scale Length |
| Dia in mm | |||||||
| CCF 65 | 55 | 46 | 46 | 35 | 65 | 65 | 60 |
| CCF 70 | 55 | 41 | 86 | 70 | 65 | ||
| CCF 80 | 64 | 63 | 54 | 40 | 80 | 80 | 72 |
| CCF 100 | 65 | 83 | 50 | 38 | 100 | 80 | 90 |
PHOENIX SERIES (REAR MOUNTING, RECTANGULAR PANEL CUT MODELS)
PHOENIX SERIES (REAR MOUNTING, RECTANGULAR PANEL CUT MODELS
PHOENIX SERIES (REAR MOUNTING, RECTANGULAR PANEL CUT MODELS
| Type | Panel Cut | A | B | C | D | E | F | G | H | Scale Length |
| CC 65(R) | 63 x 36 | 48 | 45 | 33 | 69 | 69 | 21 | 3.5 | 18 | 60 |
| CC 70(R) | 77 x 37 | 67 | 55 | 41 | 86 | 70 | 8 | 3.5 | 18 | 65 |
| CC 90(R) | 97.5 x 49 | 70 | 60 | 47 | 104 | 84 | 8 | 5 | 17 | 90 |
| CC 120(R) | 124.5 x 60 | 88 | 65 | 49 | 134 | 101 | 6 | 5 | 23 | 105 |
ROUND FLUSH MOUNTING MODELS
ROUND FLUSH MOUNTING MODELS
ROUND FLUSH MOUNTING MODELS
| A | B | C | D | Panel Cut | Scale length | |
| CO65 | 45 | 39 | 82 | 65 | 65 | 50 |
| CO80 | 64 | 55 | 98 | 80 | 80 | |
| CO100 | 70 | 60 | 125 | 104 | 104 | 92 |
| CO110 | 70 | 60 | 135 | 112.5 | 115 |
WIRING DIAGRAM
Ammeter with direct connection
Ammeter with direct connection
Ammeter with direct connection
Ammeter with direct connection
