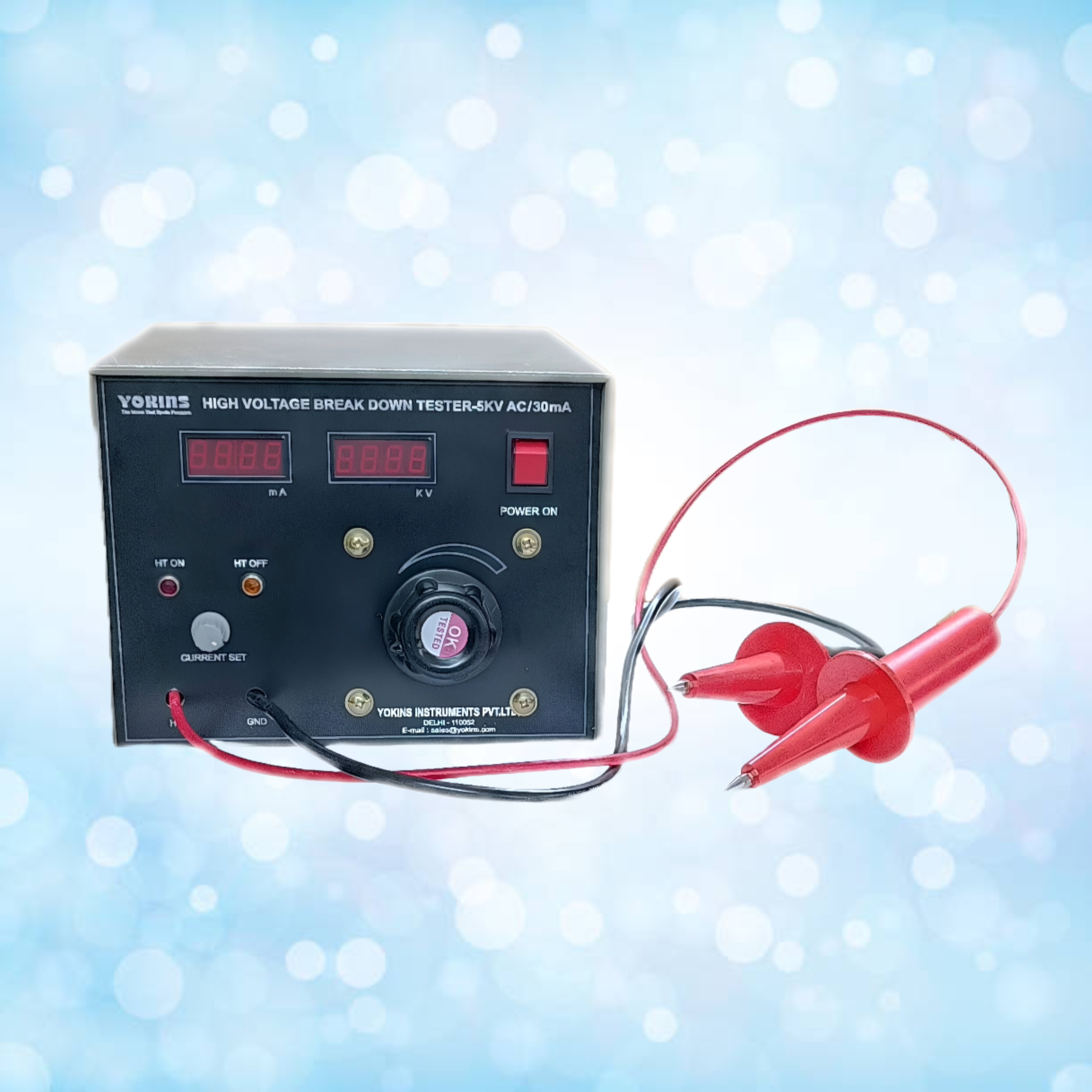

AC HV Breakdown Tester
Product Description
Break Down Tester 1-5kV@ 100 mA
- Input -230vac (Single Phase)
- Output-0-5kV.
- Duty-15min on/15 min off
- Control-manual.
- Metering-AC primary side.
- Output-Lead with HV Probe.
Protection
- Fuse input side
- A fast acting relay in case of fault/ when current
- exceed the preset value.
- Zero start
- Control panel air cooled.
- HV Transformers air cooled.
Indication
- LT on, HT on/off
Push button
- HT ON
Accessories
- Input lead 3meters.
- Output lead 1.5meters.
- Earthing lead with clip 3meters.
Meter type
- AC KV meter, mA meter AC.
- (size 96/96 Analog or digital type as customer required).
Resolution
- 0.01 (Digital)
Tripping range
- 25%/50%/75%/100%. (as per current rating)
