AC Voltage Transducers
AC Voltage Transducers
AC Voltage Transducers
AC Voltage Transducers
AC Voltage Transducers
AC Voltage Transducers
AC Voltage Transducers
AC Voltage Transducers
AC Transducers

AC Voltage Transducers

INR
Quantity

DESCRIPTION

Yokins Instruments Pvt. Ltd is the best Voltage Transducer manufacturer and suppliers. Our Numerical voltage transducers are incredibly accurate. This means that your readings are always accurate, even in the most demanding applications. Our voltage transducers are also incredibly reliable. They are designed to withstand harsh environments and extreme temperatures, so you can be sure that they will always perform when you need them most. Our voltage transducers offer a wide range of voltage measurement capabilities, from millivolts to kilovolts. Also offers wide selection of outputs, which can even be customized as per customers specifications and requirements. This means that we have a voltage transducer for every application, regardless of your needs. Our voltage transducers have a wide bandwidth, so they can accurately measure voltage signals. This makes them ideal for use in demanding applications such as power electronics and motor control.


Our voltage transducers are very compact in size, making them easy to install in even the most confined spaces. Our voltage transducers are easy to use and install. Our voltage transducers can be used in a wide range of applications, including industrial automation, power electronics, PLCs, motor control, and renewable energy. Our voltage transducers are made with the highest quality materials and components, so you can be sure that they will last for years to come.



Choose from our wide range of Transducers or contact us to get Detailed Information about our Products.

Features

ADVANTAGES / APPLICATIONS / OPTIONAL OUTPUTS

Advantages

  • Low thermal drift
  • Low disturbance in common mode
  • Excellent accuracy
  • Low response time
  • Very good linearity
  • High bandwidth and resistance to external interference

Applications

  • PLC, SCADA, Tele metering, Data logging
  • AC variable speed drives and servo motor drives
  • Battery supplied applications
  • Power supply for welding
  • UPS
  • Static convertors for DC motors

Optional Outputs

  • RS 485 Modbus Communication
  • Relay Output ( Single/ Dual)

DISPLAY

  • Numerical 4 digit single line seven segment display for Input
  • Numerical 4 digit single line seven segment display for Output,
  • Numerical 4 digit single line seven segment display for Output & Input alternately,
  • Numerical 4 digit two line seven segment display for Output & Input simultaneously
  • (PT ratio programming can be provided for Input display)
Specification
TechBrij: HTML Table

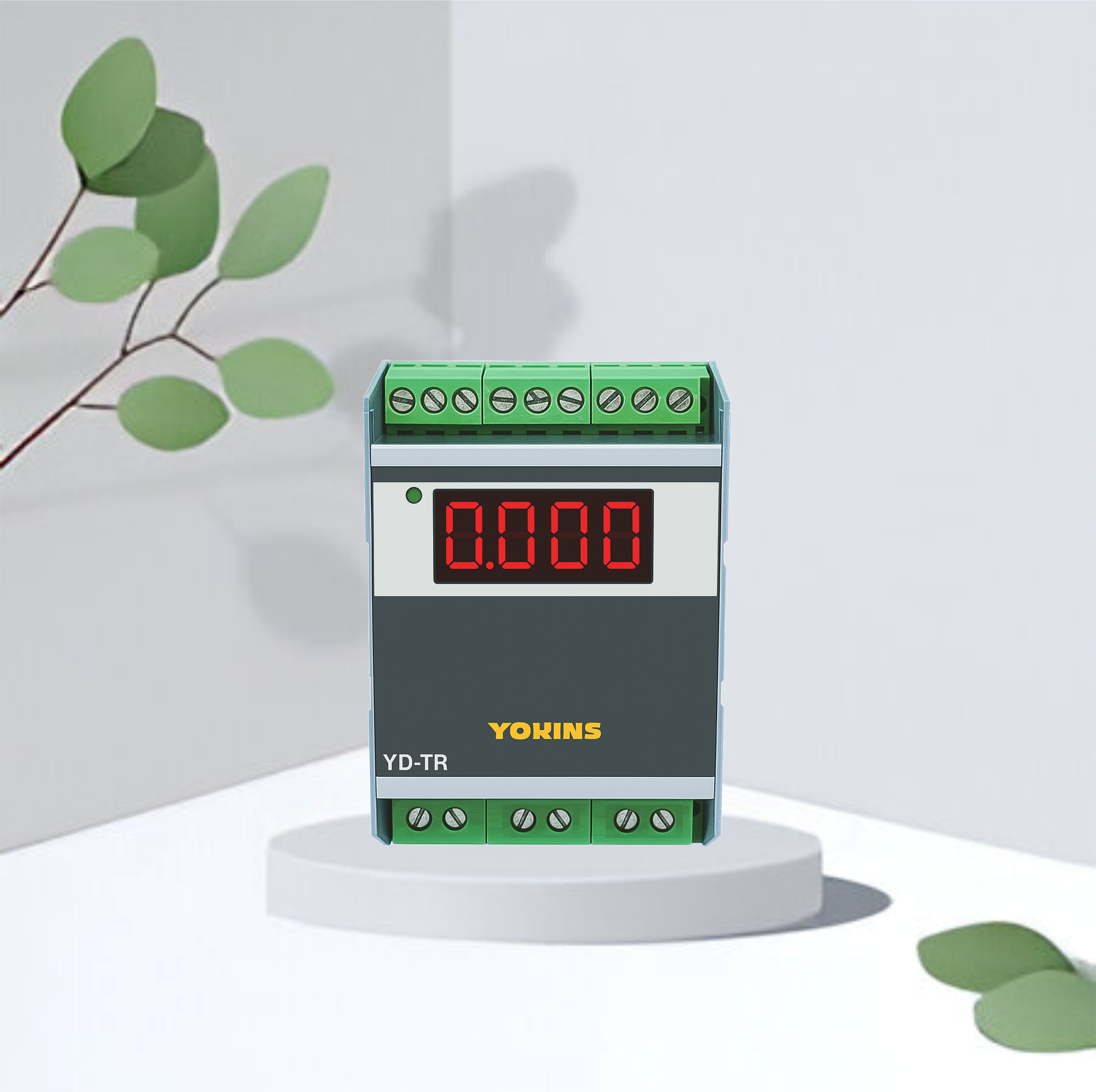

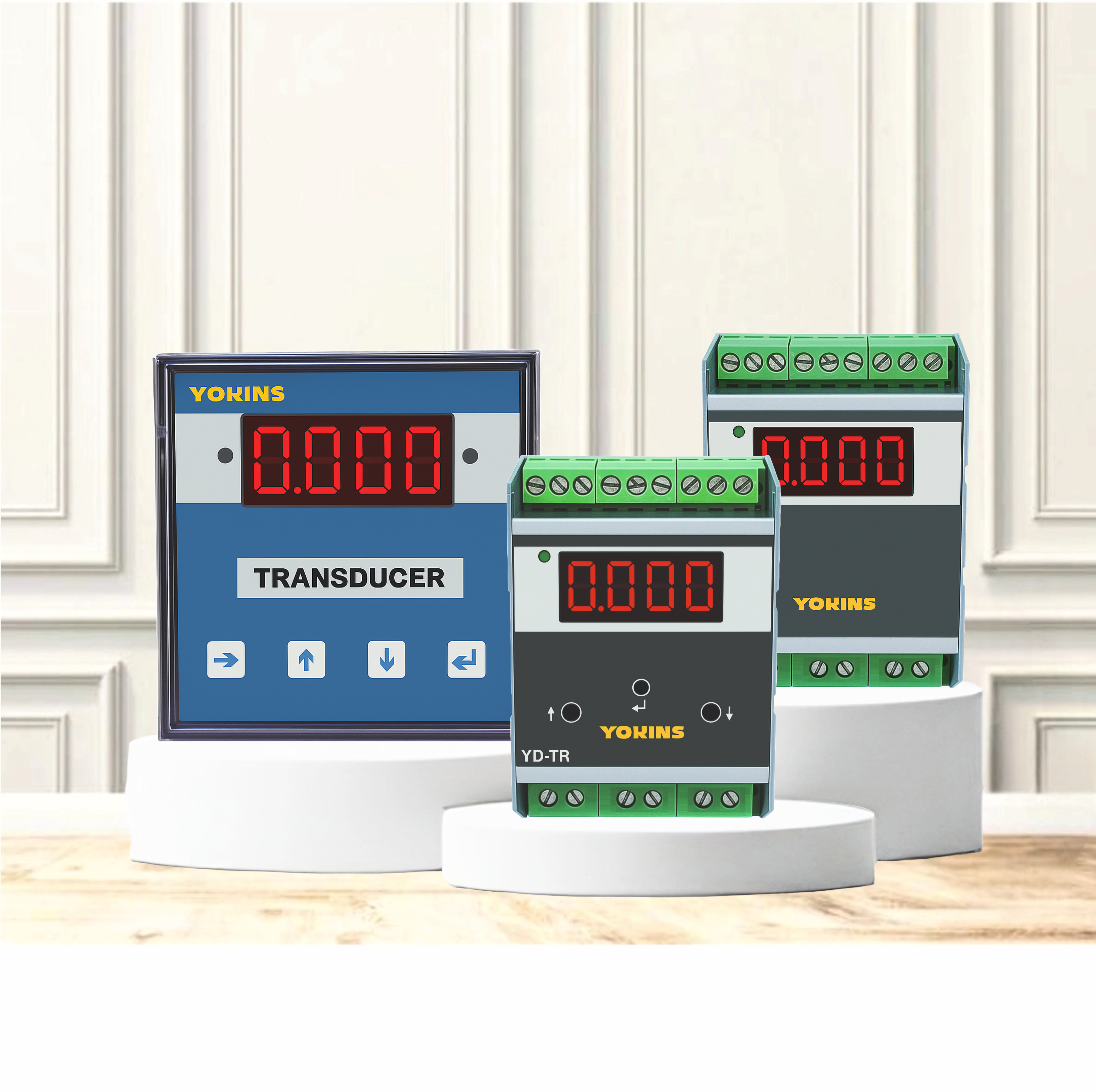

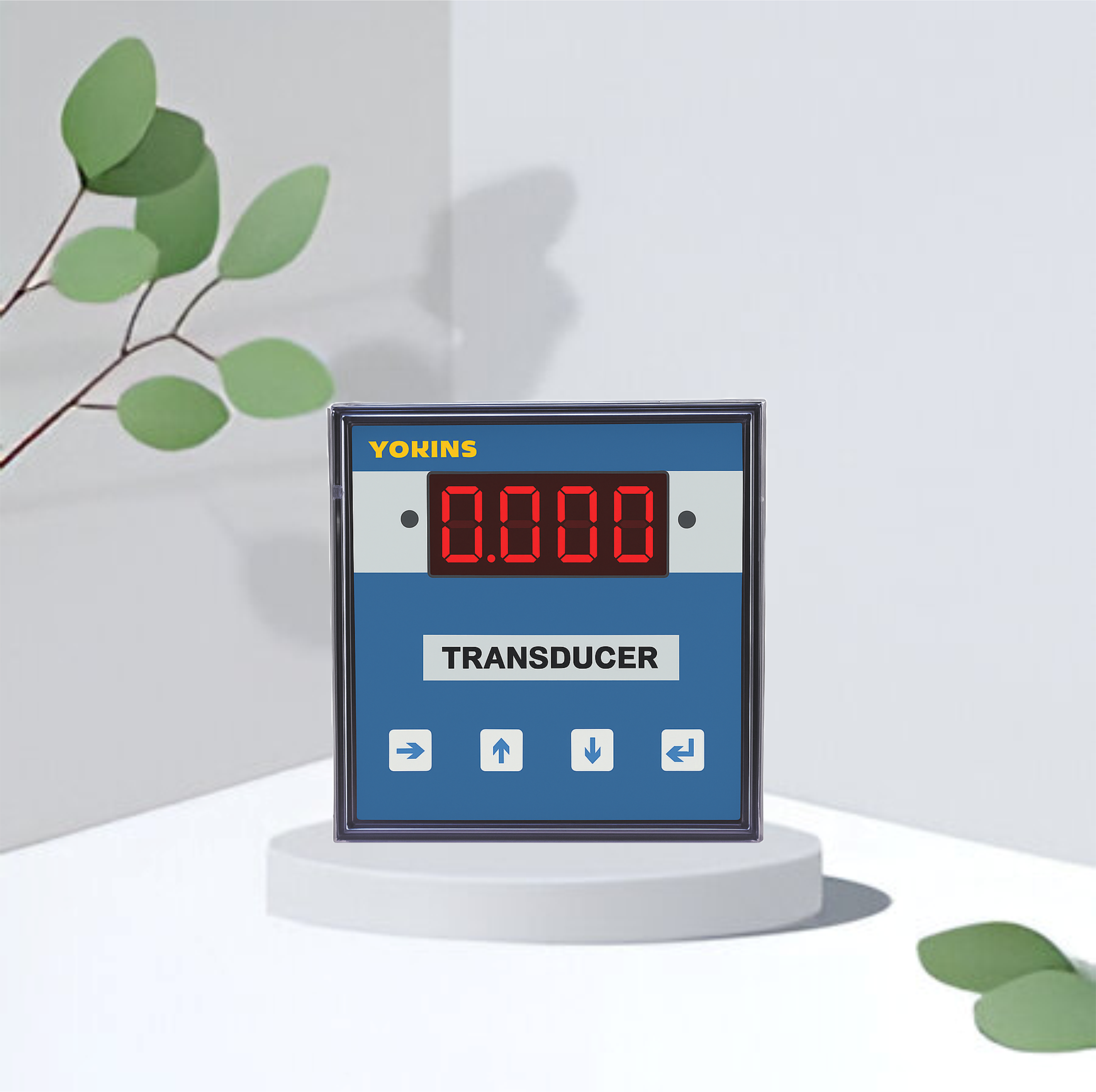

Sizes or models AvailableDIN Rail type and Panel mounting 96x96
AC Inputs0–63.5, 0-110V, 0-230V, 0-300V, 0-440V, 0-500V, 0-660V, 0-1000V (other customized ranges can be provided on demand)
DC OutputsCurrent (mA): 0-1, 0-20, 4-20mA Voltage (V) : 0-5V, 0-10V (other customized ranges can be provided on demand)
Accuracy1.0% or 0.5%
Auxiliary Supply230V ±10% AC or 80 to 270V AC/DC
Extra Details
OUTPUT RANGES(SINGLE/DUAL) TechBrij: HTML Table
Voltage Type Range Burden
DC Voltage 0-5 V / 0-10 V 5 kΩ / 10 kΩ
DC Milliampere 0-20mA / 4-20 mA 500 Ω
DIMENSION (mm) TechBrij: HTML Table
Dimensions76x53x107mm, 96x96x86mm
MountingDIN and Panel Mounting
Weight 400 g
