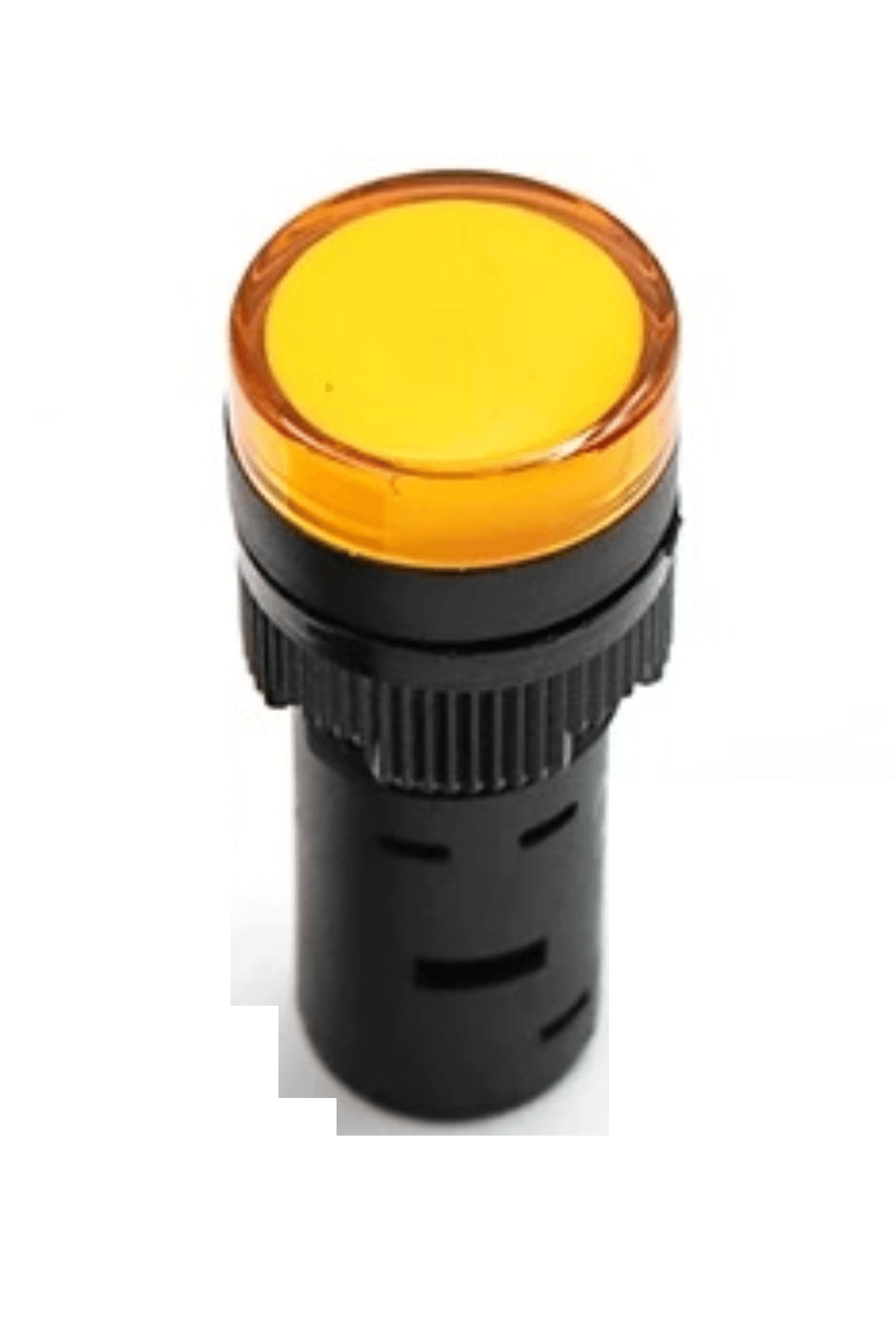

Indicator Light

INR

An Indicating Light is a panel-mounted visual signaling device used to display the operational status of electrical circuits, machines, and control systems. It provides clear and instant visual indication such as power ON, fault, trip, or process status.

Learn More
Quantity
Download PDF
×

PUSH BUTTON

An Indicating Light is a panel-mounted visual signaling device used to display the operational status of electrical circuits, machines, and control systems. It provides clear and instant visual indication such as power ON, fault, trip, or process status.

Product Description

Feature

specifications

Product Description

An Indicating Light is a panel-mounted visual signaling device used to display the operational status of electrical circuits, machines, and control systems. It provides clear and instant visual indication such as power ON, fault, trip, or process status

Feature
  • Ø16mm dia cutout.
  • LED Bright Luminance.

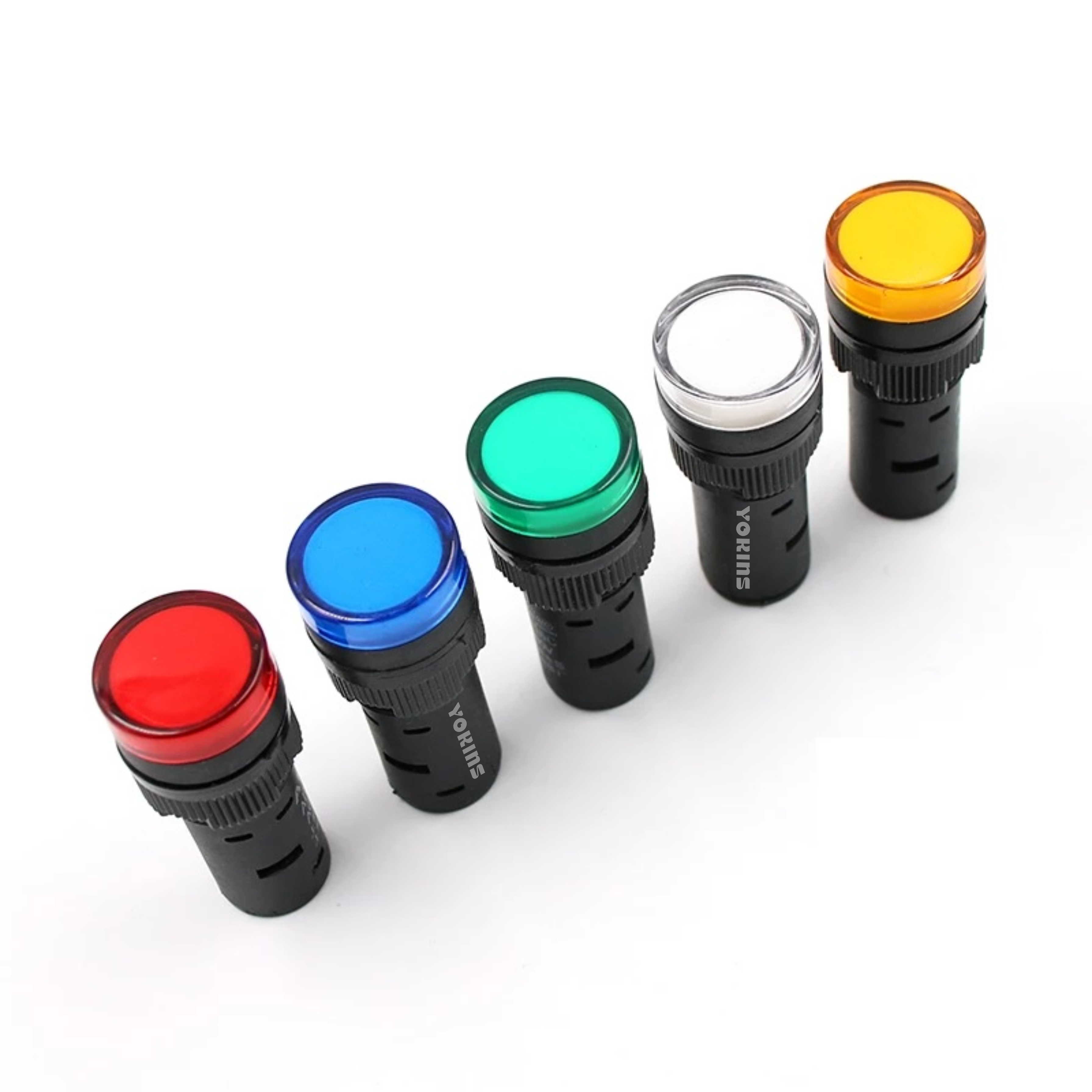

  • All Colors Red, Green, Yellow, Blue,White and Amber Available
    Voltage Available 220V AC.
  • 1 Year Warranty
Indicator Light - Yokins Instruments
  • Bright and clear LED illumination.
  • Low power consumption.
  • Long service life.
  • Shock and vibration resistant.
  • Easy 22.5mm panel mounting
Indicator Light - Yokins Instruments
Specification
Rated Voltage 220VAC
Operating Voltage -20% to +10% of rated voltage
Rated Working Current ≤20mA Max
Operating Frequency 50/60Hz
Insulation Resistance Ui ≤ 60V 5MΩ
Withstand Voltage 2.5KV (AC effective value) 1 min
Continuous Working Life ≥ 3,000 Hours
Brightness ≤ 100cd/m²
Indicator Light - Yokins Instruments
TECHNICAL SPECIFICATION
Rated Voltage 12-230VAC/DC, 24VDC, 12VDC
Operating Voltage -20% to +10% of rated voltage
Rated Working Current ≤20mA Max
Operating Frequency 50/60Hz
Insulation Resistance Ui ≤ 60V 5MΩ
Withstand Voltage 2.5KV (AC effective value) 1 min
Continuous Working Life ≥ 3,000 Hours
Brightness ≤ 100 cd/m²
Extra Details

FAQ

  • 1. What is an indicating light?

    An indicating light (panel indicator) is a visual signaling device used in control panels to show equipment status such as power ON, fault, or running condition

  • 2. What voltage options are available?

    This indicating light supports 12–230V AC/DC, including 24V DC and 12V DC models.

  • 3. What is the rated working current?

    The rated working current is ≤20mA (Maximum), ensuring low power consumption.
