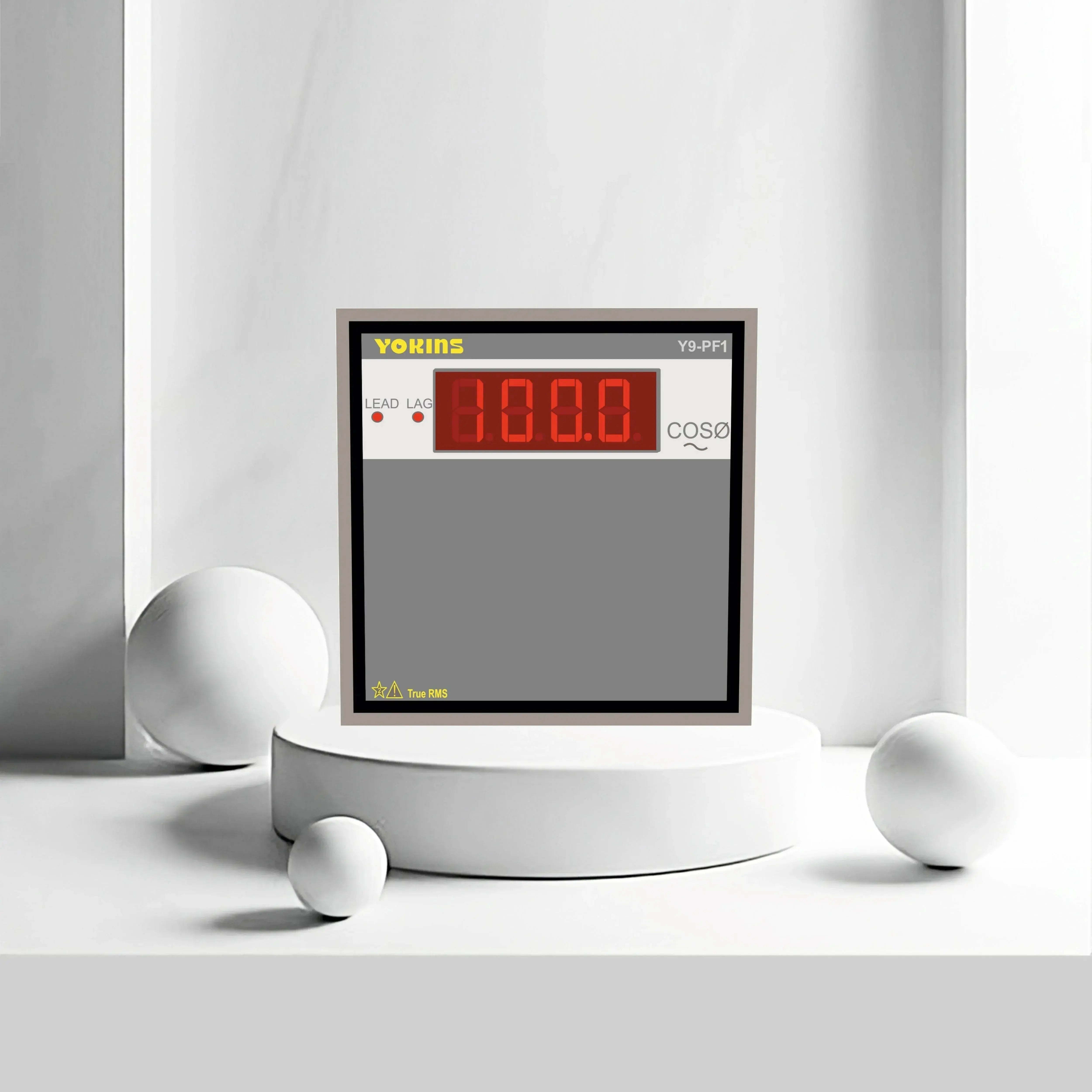

Power Factor Meters - Yokins Instruments
Power Factor Meters - Yokins Instruments
Power Factor Meters - Yokins Instruments
Power Factor Meters - Yokins Instruments
Power Factor Meters - Yokins Instruments
Power Factor Meters - Yokins Instruments
Basic Series

Power Factor Meters

INR

Being the leader Digital Power Factor Meters Manufacturers and Suppliers, Power Factor Meters are easy to use and install, with a clear and concise display.

Learn More
Power Factor MetersY9-PF
  • Y9-PF
  • Y9-PF1
RangeSingle Phase
  • Single Phase
  • Three Phase
Quantity
Download PDF
×

FEATURES

specifications

Extra Details

FEATURES
  • Displays Power Factor of the System
  • Both Single/Three Phase Power Factor Can be Individually Measured
  • LED Indication to Indicate Lead or Lag Status
  • True RMS measurement of parameters.
  • Easy Programming with push buttons on front facia.
  • RS-485 option available on demand.
  • Relay Output for alarm can be provided.(optional)
Specification
TechBrij: HTML Table
Measuring MetrhodCosine of Phase Shift Between Voltage & Current
Display4 Digit Red LED Super Bright Display
Digit Height0.56"/14.2.mm
Maximum display9999 (Max.) Counts
Resolution0.001 to 1 Count Depending on Range/ Scale Display
Display StabilityWith in ±1 Digit
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Polarity IndicationL(Laggine/Inductive) or C(Leading/Capacitive)
Under Range IndicationError Code 01 Blinking when Current Non Detectable
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer 8.0ms
TechBrij: HTML Table
Maximum OverloadVoltage 1.2 Times Continuous/ Current 2 Times Continuous
Frequency Response40-65 Hz
Auxiliary Supply150-300V AC, 45-270V AC /DC, 19-60V AC /DC
Input Voltage0- 750V AC(Direct)
Input Current0.020- 10A AC(Direct)
Accuracy Class0.5
VA (Burden)
Auxiliary≤1.5 VA
Voltage Input≤1.0 VA
Current Input≤1.0 VA
Environment
Calibration27⁰ C ± 5⁰C
Operating0⁰ to + 60⁰C, RH<70%
Storage-10⁰ to +70⁰C, RH<70%
Metering Standard IEC62052-11
Extra Details
DIMENSIONS (MM) TechBrij: HTML Table
MODELY9-PF1Y9-PF
FRONT96 X 9696 X 96
DEPTH (Behind Bezel)39.552
Panel Cut -Out92 (+0.8-0.0) x 92(+0.8-0.0)92 (+0.8-0.0) X 92(+0.8-0.0)
ORDERING INFORMATION TechBrij: HTML Table
MODELMEASURING RANGEACCURACY CLASS AUX SUPPLY
Y9-PF1 (Single Phase)(Voltage Input=) 20- 750V AC(Direct) (Current Input=) 0.080- 10A AC(Direct) OR 0.020- 1A AC(Direct) OR 0.1A-30A Direct AC0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60V AC /DC
Y9-PF (Single/Three Phase)(Voltage Input=) 20-600V (Line to Neutral) 30-1000 (Line to Line) (Current Input=) 0.020A-10A AC 0.1A-30A Direct AC Per Phase0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60V AC /DC
