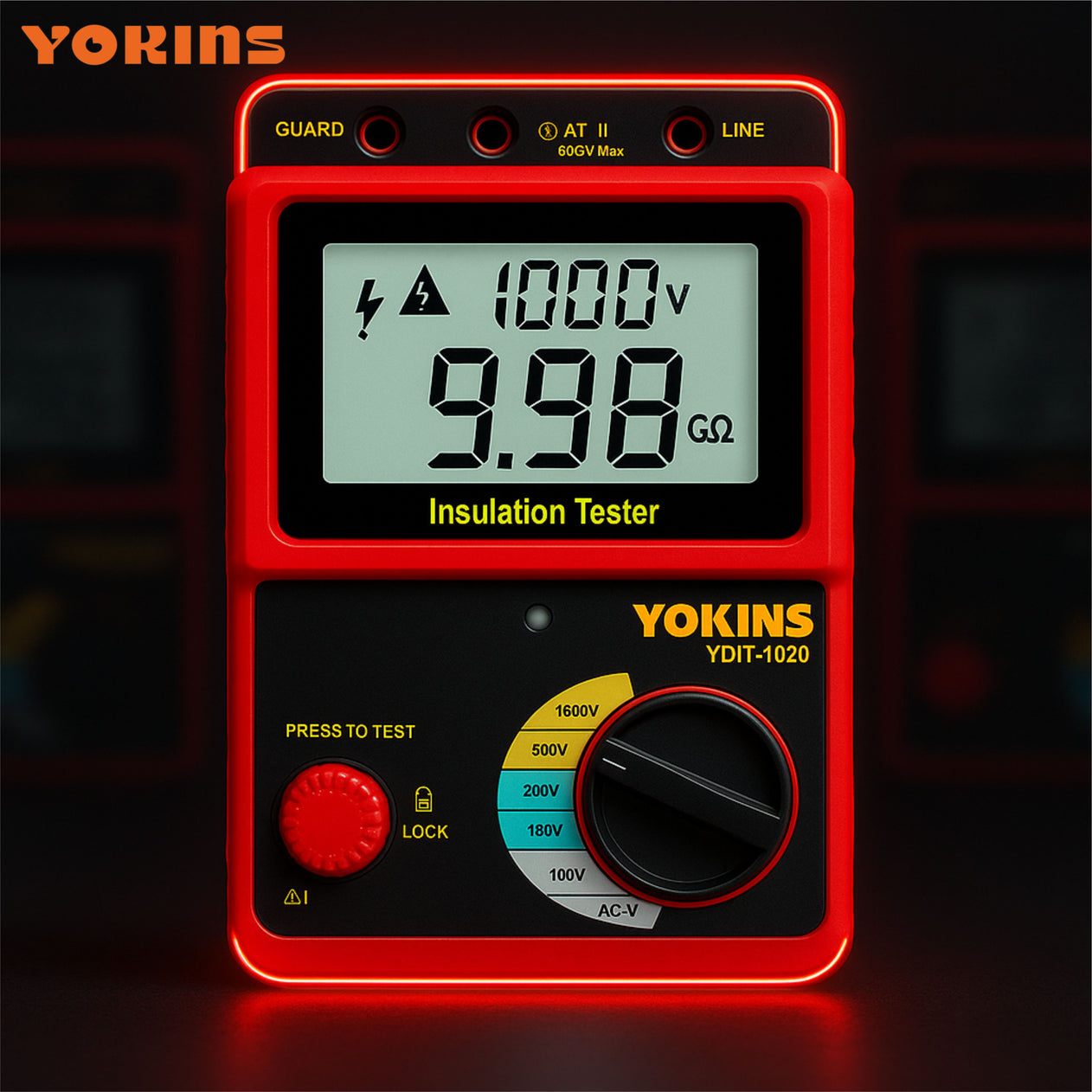

Digital Insulation Tester
Product Description
The Digital Insulation Tester is a high-precision electrical testing instrument designed to measure insulation resistance in electrical systems and equipment. It applies a controlled DC test voltage and accurately measures insulation resistance in Mega Ohms (MΩ), displaying results clearly on a digital LCD screen.
Specification
Digital Insulation Tester Specifications
SPECIFICATIONS
| Rated Voltage | 50V / 100V / 250V / 500V / 1000V AC/DC |
| Measuring Range | 50V / 100MΩ, 100V / 200MΩ, 250V / 500MΩ, 500V / 1000MΩ, 1000V / 20GΩ |
| Open Circuit Voltage | DC 50V +10%, -0% ~ DC 1000V +20%, -0% |
| Short Circuit | 1.3mA Approx |
| Accuracy | ±2% rdg ±3 rdg |
| Voltage Measurement Range | 30–600V (50/60Hz) |
| Voltage Resolution | 1V |
| Insulation Resistance Testing Range | 0.0MΩ–19.9GΩ |
| Insulation Resistance Accuracy | ±8% rdg (100KΩ–10GΩ), ±10% rdg (10GΩ–50GΩ) |
| Sampling Rate | 0.5 – 10 times / sec |
| Operating Condition | 0°C – 40°C, < 85% RH |
| Storage Condition | -20°C – 60°C, < 90% RH |
| Power | 6 × 1.5V AA Batteries |
| Product Net Weight | 535.68g |
| Product Size | 125.4 × 174.6 × 69mm |
| Packing | Gift Box |
