Basic Series

AC Ammeter (Single Phase)

INR
AC Ammeter (Single Phase)Y4-AA1
  • Y4-AA1
  • Y7-AA1
  • Y9-AA1
Ranges5A (CT Selectable)
  • 5A (CT Selectable)
  • 20uA-350uA AC)
  • 30A AC Direct
  • 10-750mA AC
  • 350uA-20mA AC
Quantity
×

Product Description

FEATURES

specifications

Extra Details

Product Description

An AC Ammeter (Single Phase) is an instrument used to measure the current flowing in a single-phase AC circuit, expressed in Amperes (A).

FEATURES
  • Displays Current
  • Password Protected.
  • True RMS measurement of parameters.
  • Auto scaling of parameter values.
  • Easy Programming with push buttons on front facia.
  • RS-485 option available on demand.
  • Relay Output for alarm can be provided.(optional)
Specification
TechBrij: HTML Table
Display4 Digit Red LED Super Bright Display
Digit Height0.56"/14.2.mm
Maximum display9999 (Max.) Counts
Resolution0.001 to 1 Count Depending on Range/ Scale Display
Display StabilityWith in ±1 Digit
Faceplate /LensPolycarbonate Transparent
Case/Housing MaterialFR-ABS Black
Connectors /TerminalNylon 66, 33%GF, Black/Brass
Mounting ClampsSturdy, Moulded Glass filled nylon with screws.
Decimal PointAuto Scrolling
Dielectric Strength2.5KV @50 Hz 1 minute between Input -Auxiliary & Case - Terminals
Impulse Withstand3.5.KV, 1.2/50 micro Second
Refresh RatePer 8.0ms
Maximum OverloadCurrent 2 Times Continuous
TechBrij: HTML Table
Frequency Response40-400 Hz
Auxiliary Supply150-300V AC, 45-270V AC /DC, 19-60V AC /DC
Input Current0.020A - 10A AC(Direct) in Standard Product
CT Primary Range1A to 50kA AC Programable
CT Secondary Range0.5A to 5A AC Programable
Accuracy Class1 & 0.5
VA (Burden)
Auxiliary≤1.5 VA
Voltage Input≤1.0 VA
Environment
Calibration27⁰ C ± 5⁰C
Operating0⁰to + 60⁰C, RH<70%
Storage-10⁰ to +70⁰C, RH<70%
Metering StandardIEC62052-11
Extra Details
DIMENSIONS (MM) TechBrij: HTML Table
MODELY9-AA1Y7-AA1Y4-AA1
FRONT96 x 9672 x 7248 x 96
DEPTH (Behind Bezel)39.55974
Panel Cut -Out92 (+0.8-0.0) x 92(+0.8-0.0)68 x 6844(+0.5-0.0) x 92(+0.8-0.0)
ORDERING INFORMATION TechBrij: HTML Table
MODELMEASURING RANGEACCURACY CLASSAUX SUPPLY

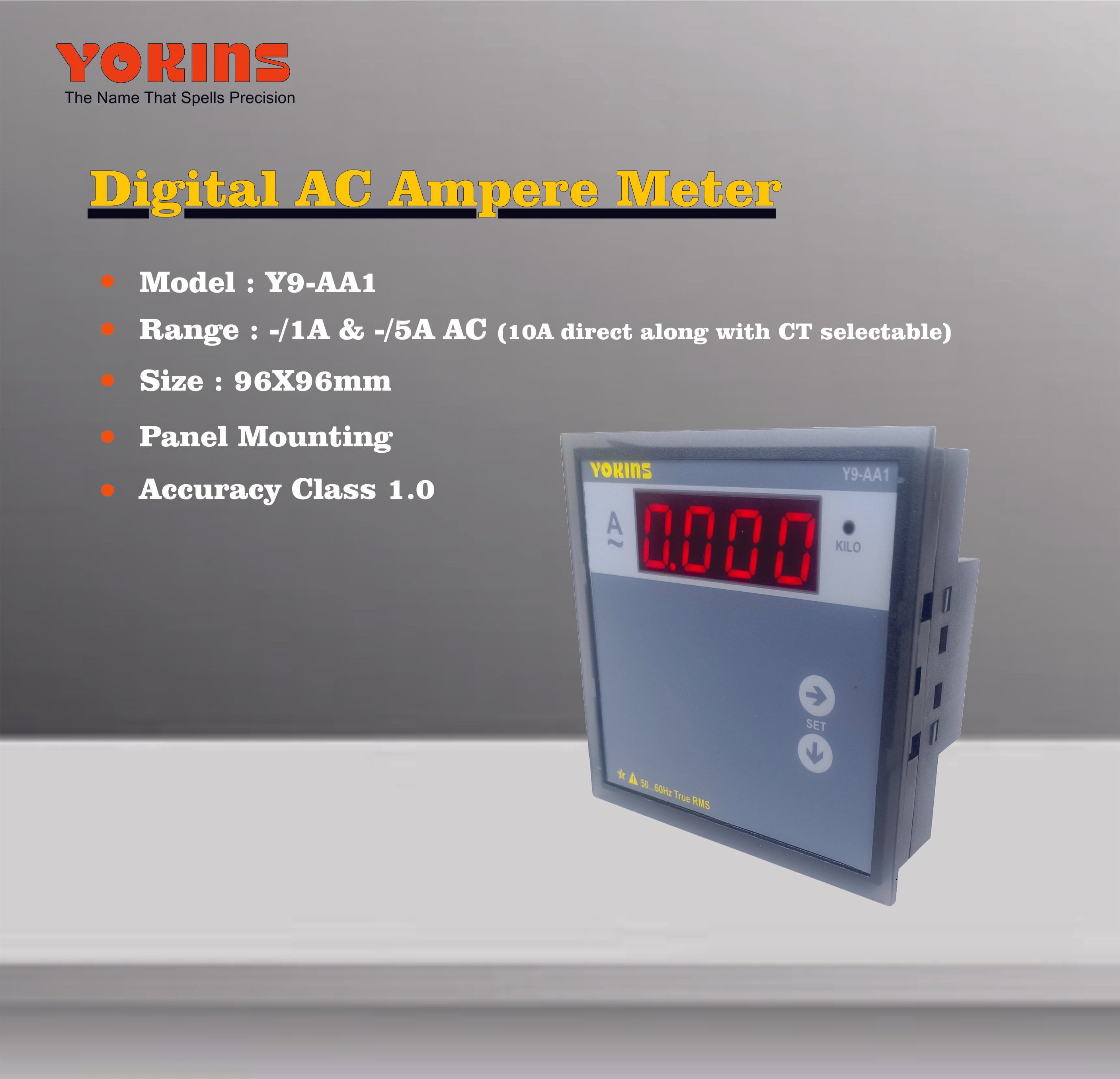

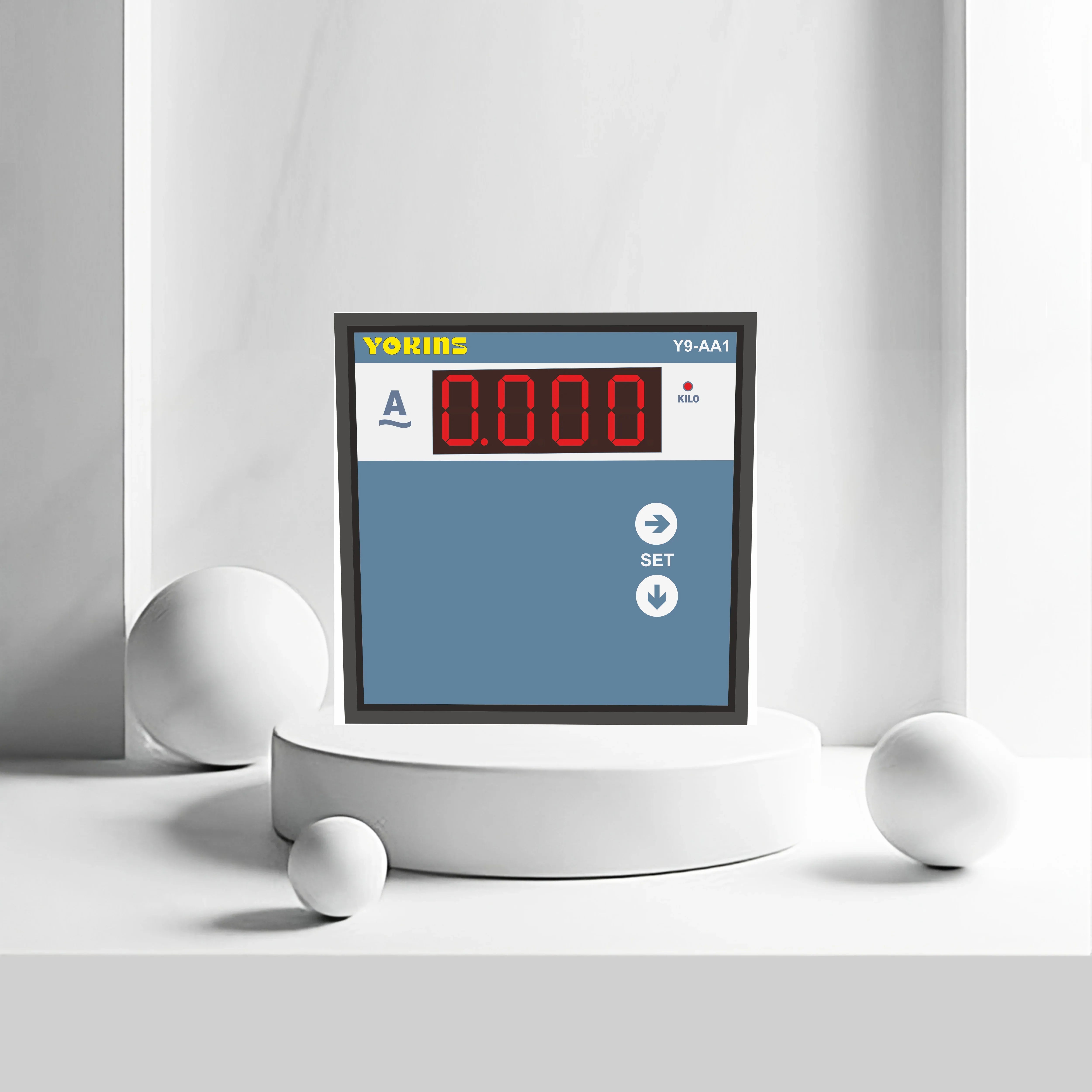

Y9-AA110-350micro A AC/ 0.2-20Milli A AC/ 10-750Milli A AC0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60V AC /DC
Y9-AA10.020A-10A AC/ 0.1A-30A Direct AC1.0/ 0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60V AC /DC

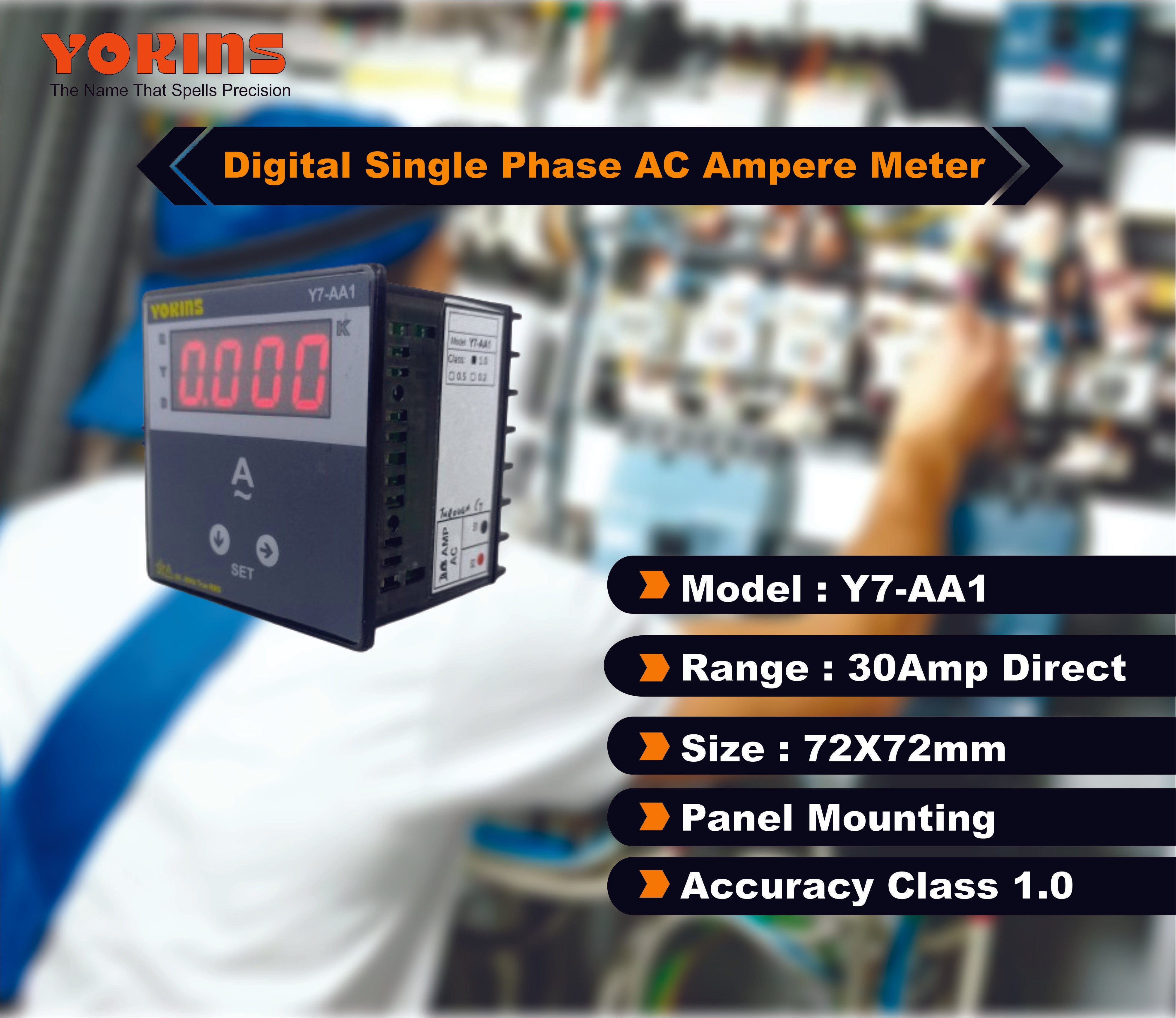

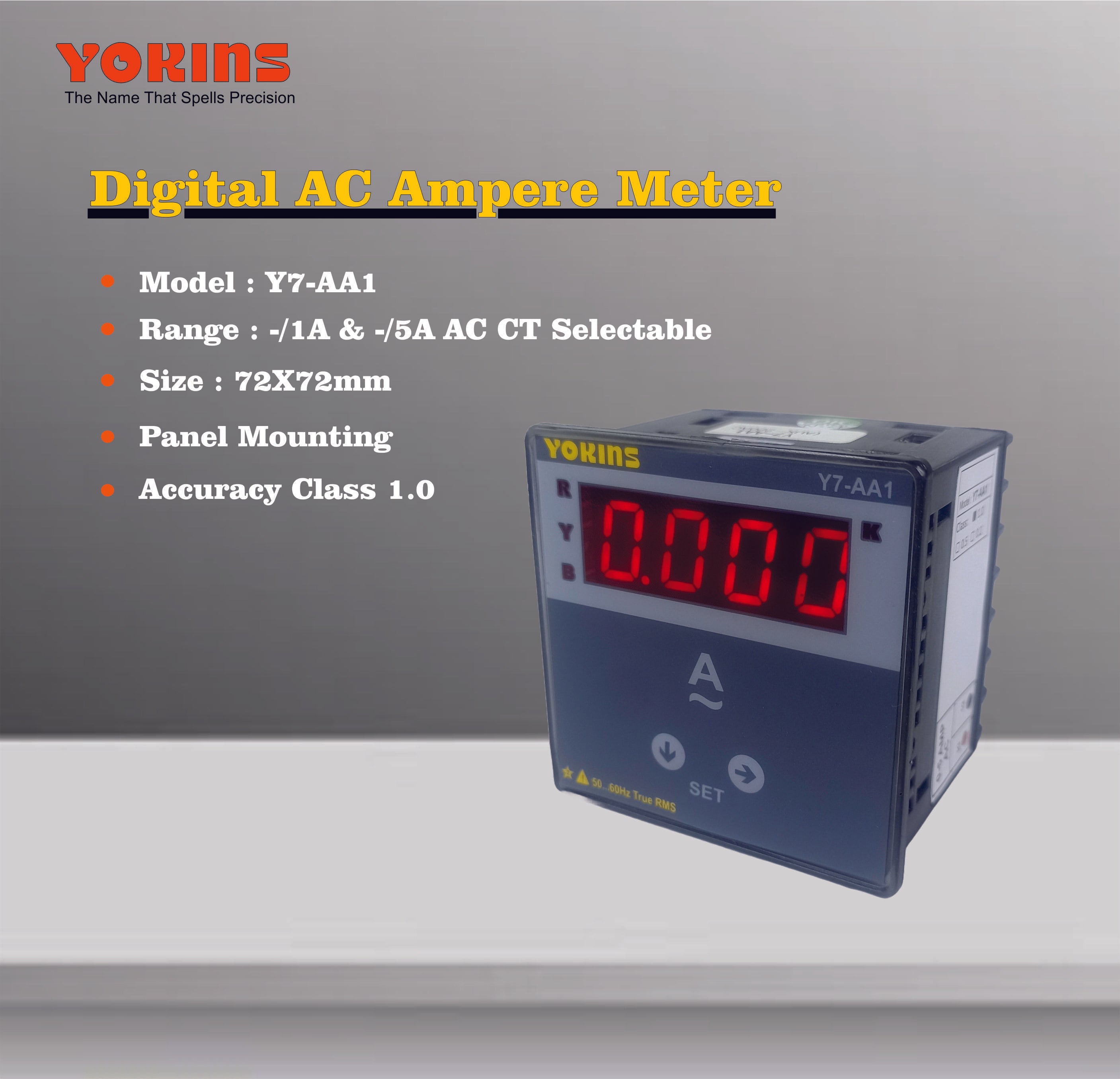

Y7-AA10.2-20Milli A AC/ 10-750Milli A AC0.5150-300V AC (TX Supply)/ 45-270V AC /DC/ 19-60V AC /DC

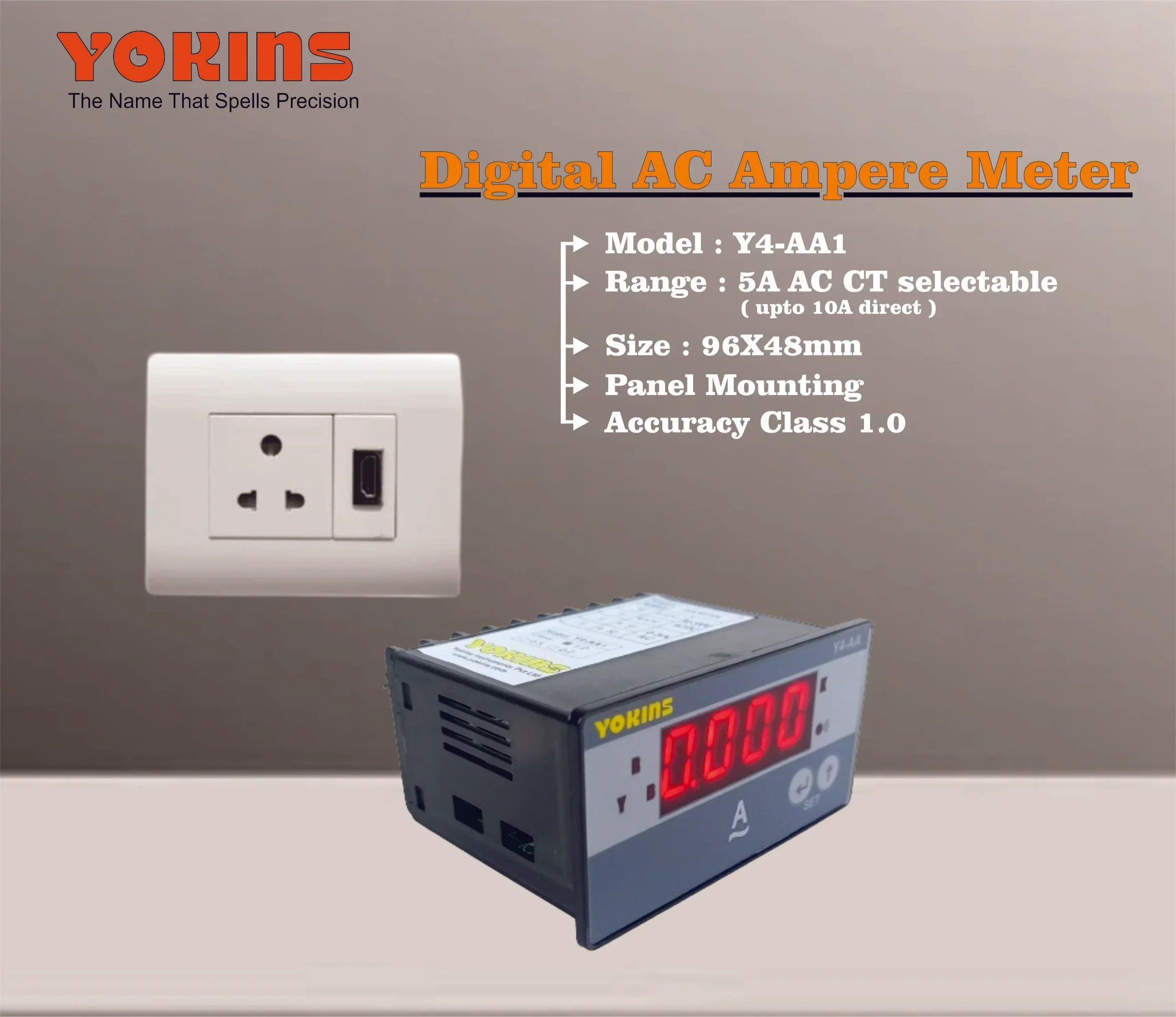

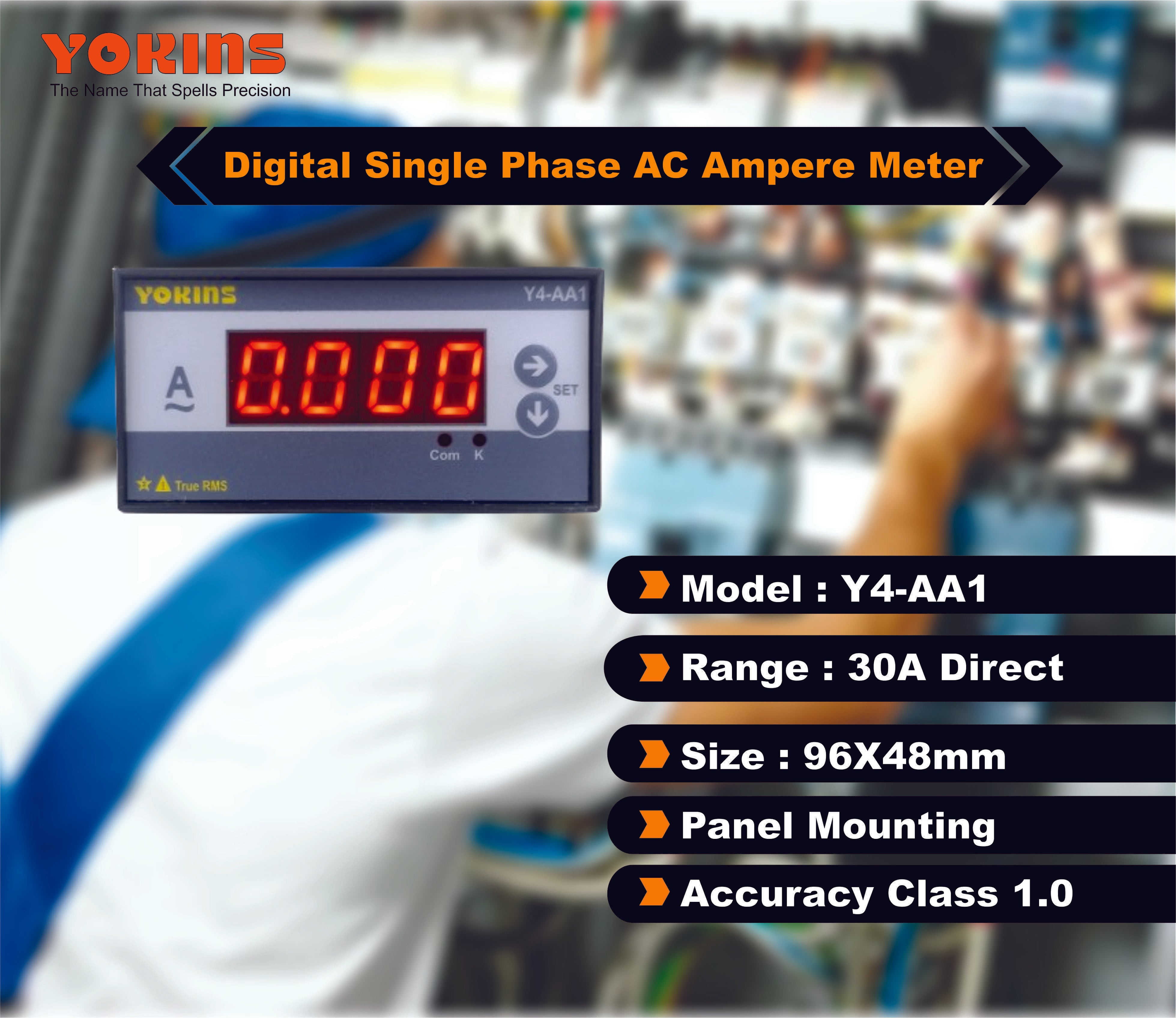

Y4-AA10.020A-10A AC/ 0.1A-30A Direct AC1.0/ 0.545-270V AC /DC
